Description:

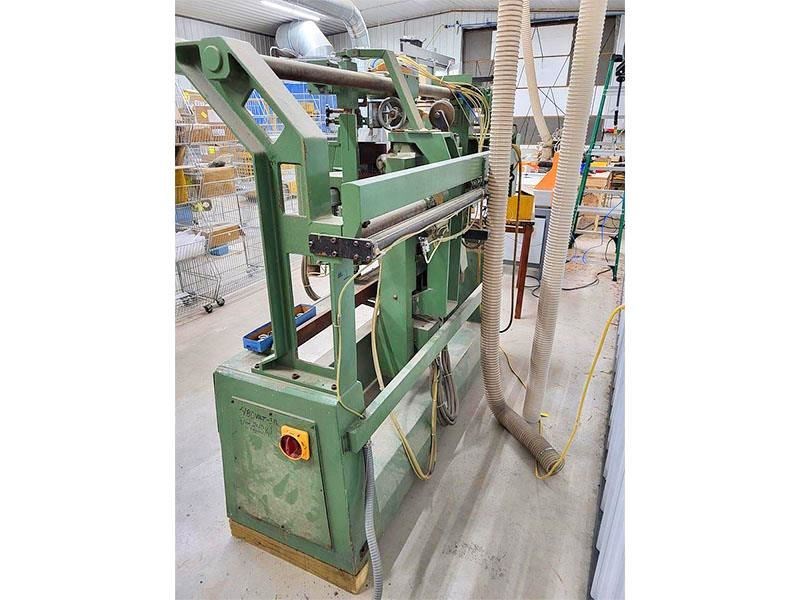

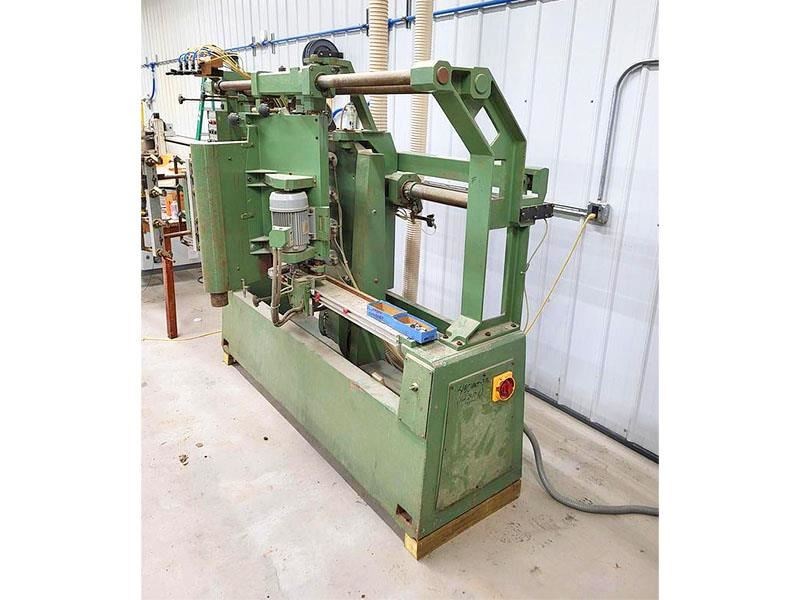

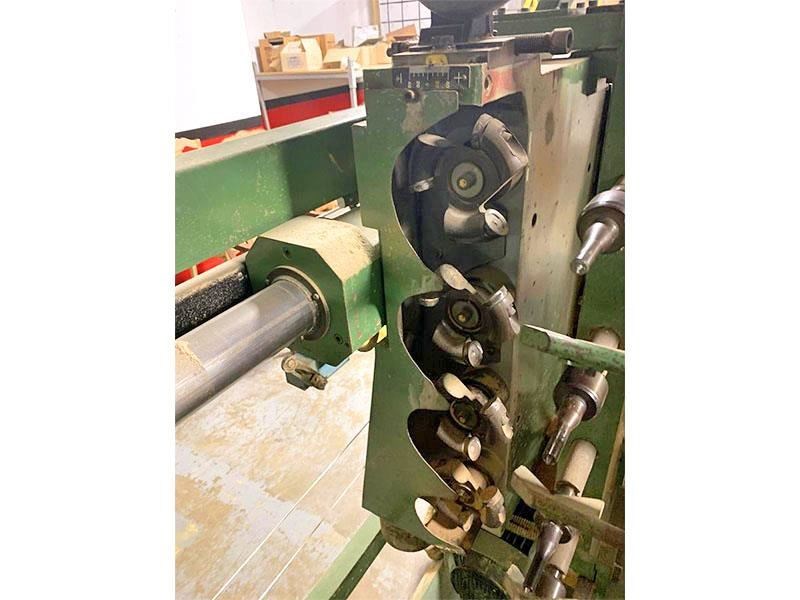

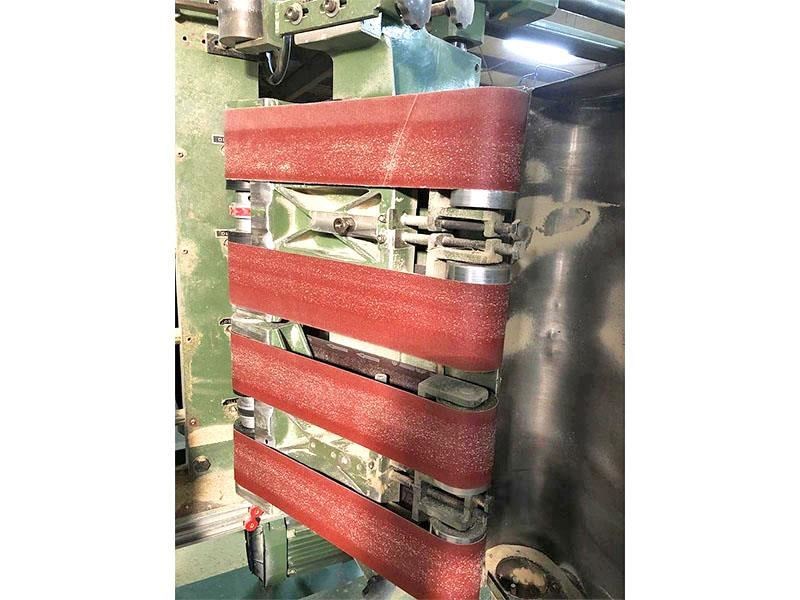

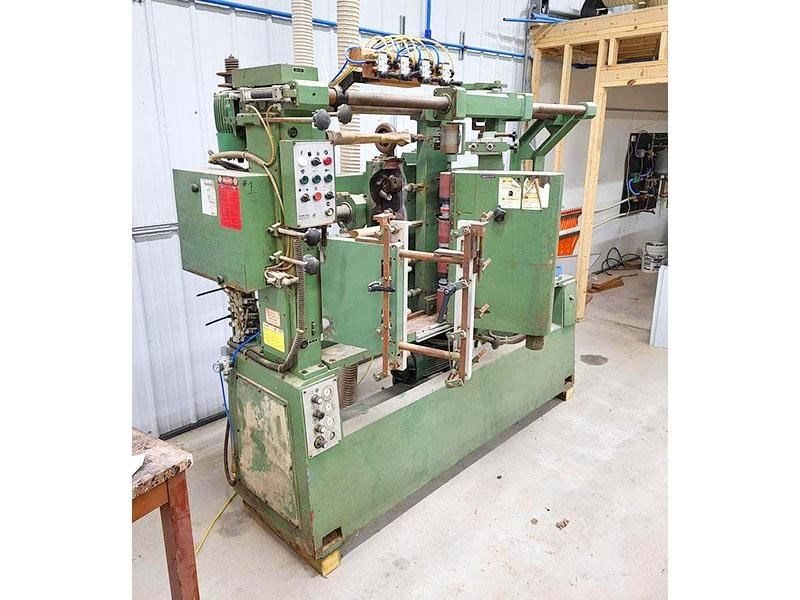

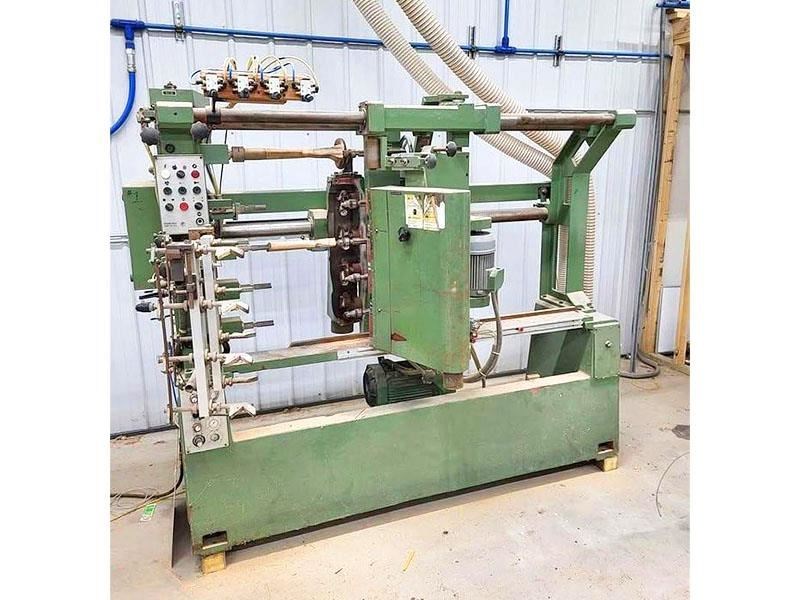

BACCI T4M-O 4-Spindle Asymmetric Copy Lathe, with SandingSpecifications: -- Distance between spindle centers 170 mm (6.69"). -- Max. working height 165 mm (6.50"), Max. copying length 1000 mm (39.37"). -- Standard cutter dia. 35 mm (1.38"). -- Cutter holder dia. 145 mm (5.71"). -- Cutter holder speed 5,300 RPM. -- Spindle speeds 25 & 42 RPM. -- Carriage speeds 75 - 200 mm/Min. (2.95 to 7.87 IPM).Equipped with: -- (4) Duplicating/carving/copy spindles.Complete with: -- (4) 130 mm (5.12") W Copy Belt Sanders for asymmetrical parts, with 130 x 990 mm (5.12" x 38.98") Belts. -- 114" x 92" x 88" H Enclosure.NOTE: Larger diameters possible by using every second carriage position, ie. (2) heads instead of (4) heads.Machine weight: 3,330 Lbs.Enclosure weight: 775 Lbs.
