Description:

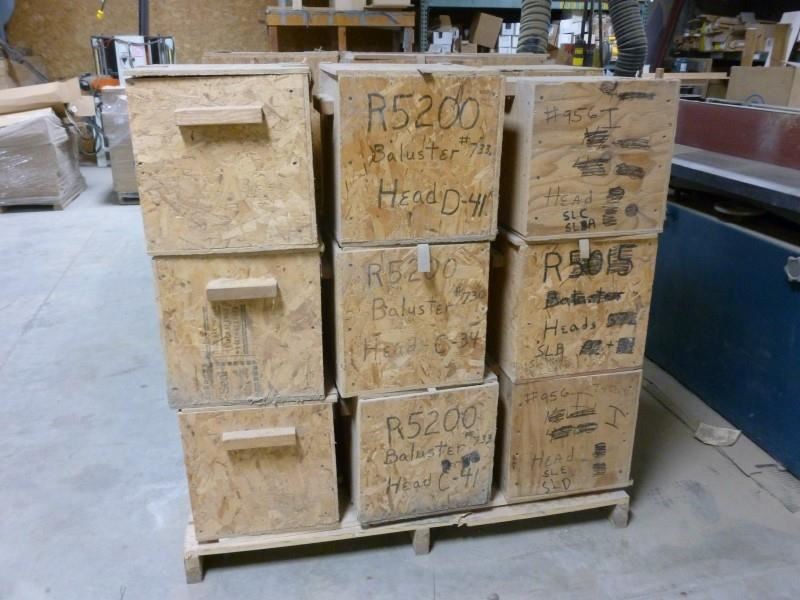

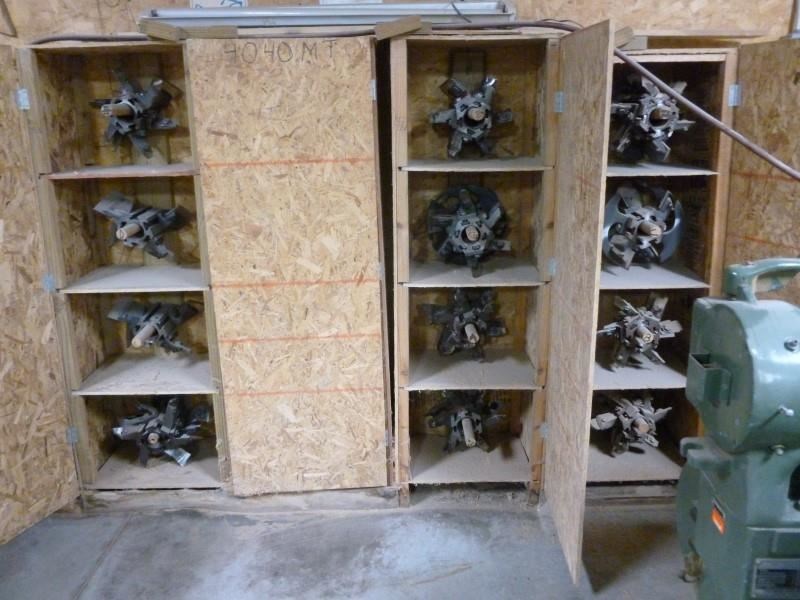

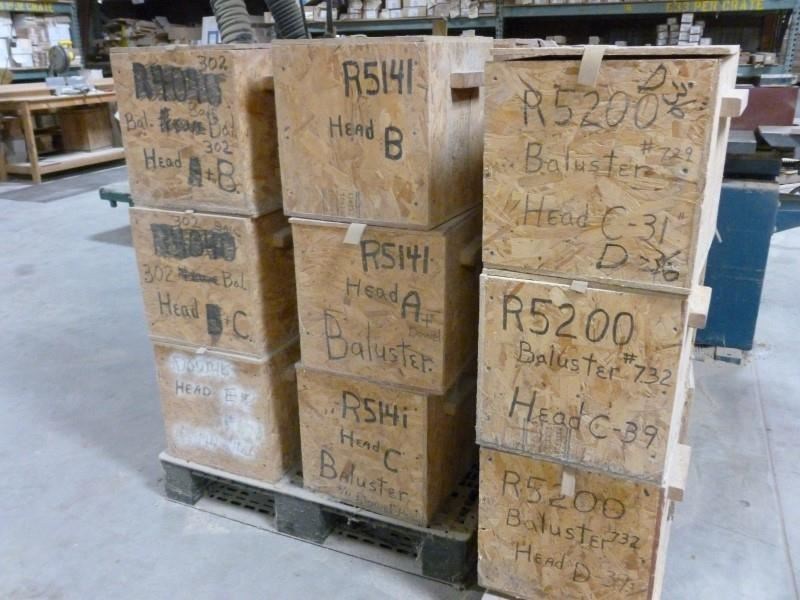

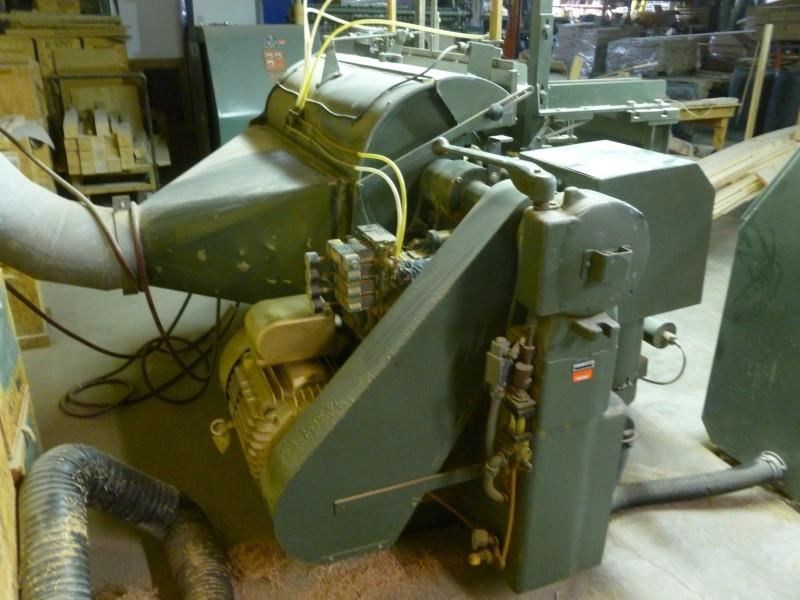

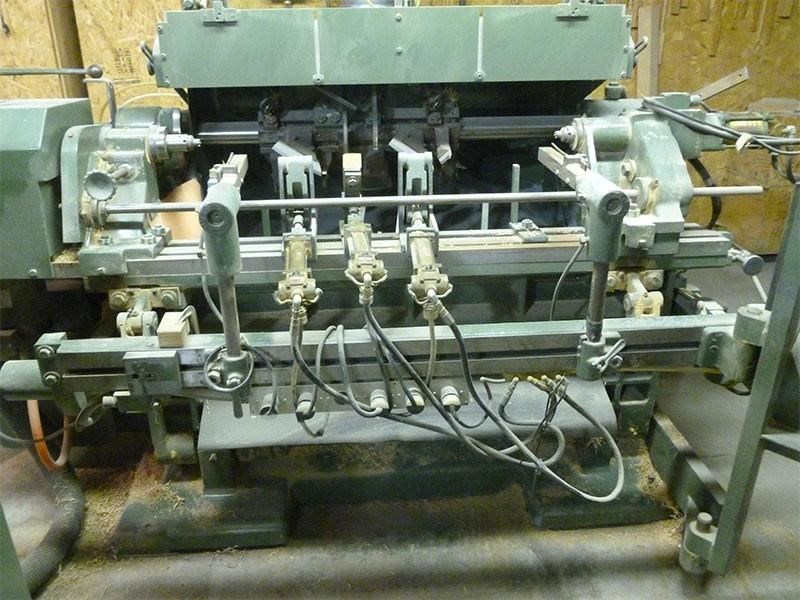

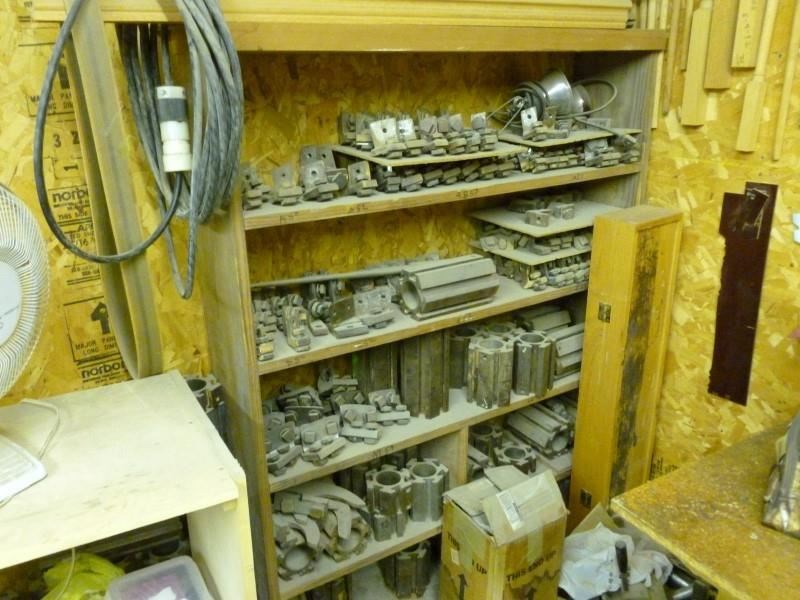

MATTISON - 69-42 MATTI-MAX: Heavy-Duty Automatic Rotary, high production Turning Lathe with Hopper FeedMicroprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor; 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 25 HP - 2,700 RPM Cutterhead Drive; 2-5/8" dia. arbor with variable speed. -- 2 - 45 RPM Stock rotational speed with: 1.5 HP DC Drive (reversing) & self-contained hydraulic unit for precise feed control.Complete with: -- Automatic hopper feed; MATTI-MAX microprocessor-based PLC Controller with keypad entry; machine functions & operation parameters are set directly from the control; RPM of workpiece & feed rate can be programmed to vary during the cut.Matching the feed rate to the stock rotational speed produces an efficient cut.Features -- MATTI-MAX Allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. -- Pneumatic tailstock with: Dual pressure to ensure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load: 26.5 HP. -- Setup Stand.NOTE: Large quantity of knife & heads available for additional cost.
