Description:

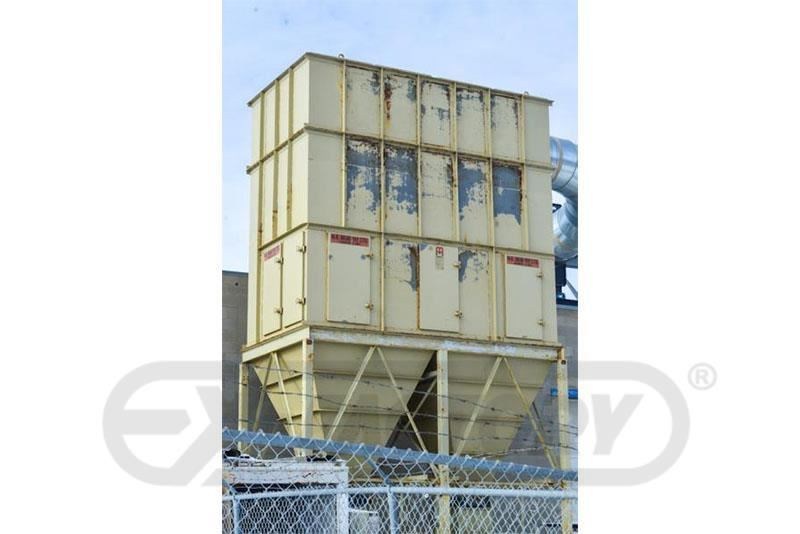

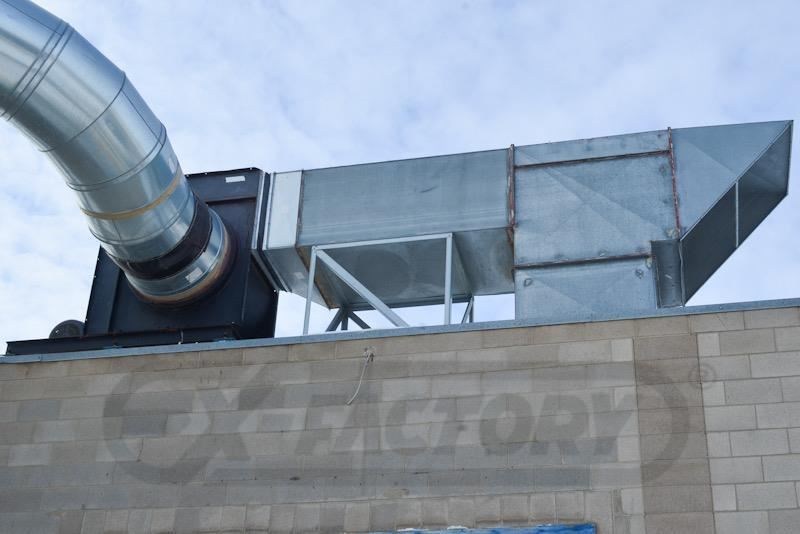

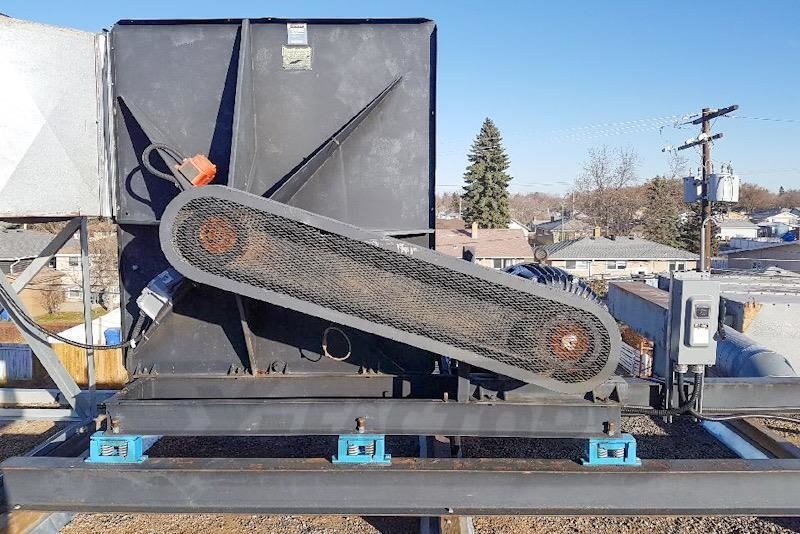

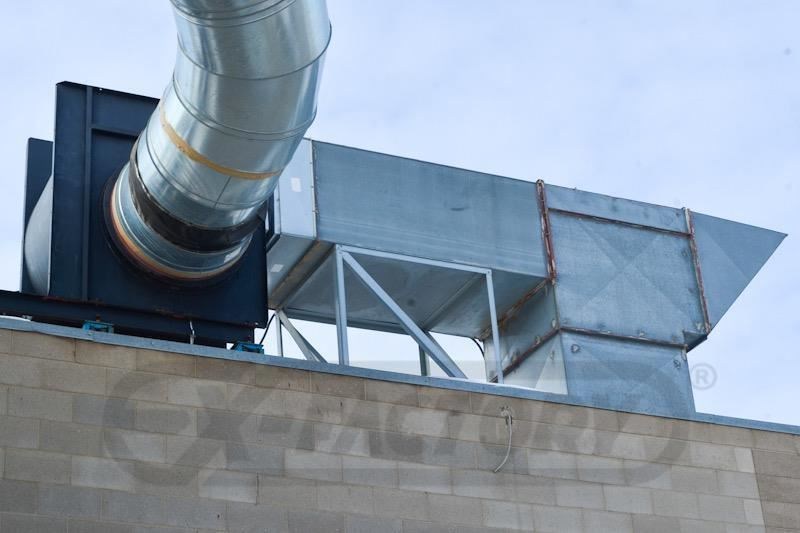

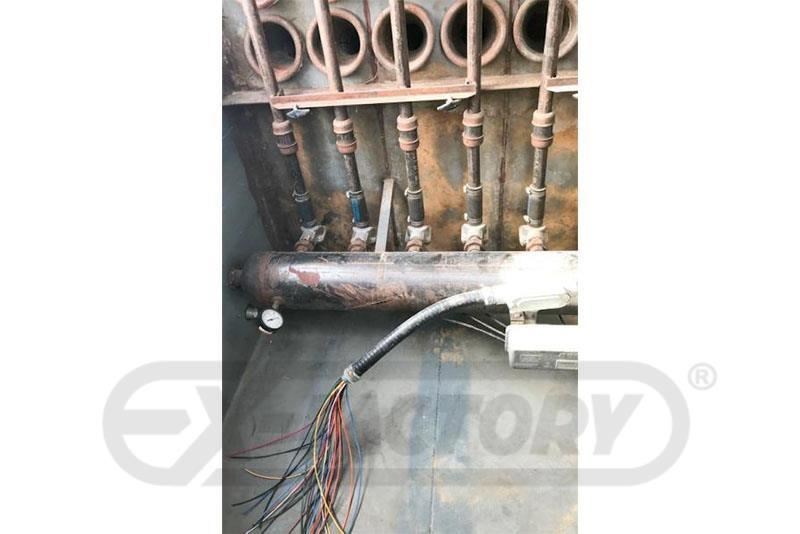

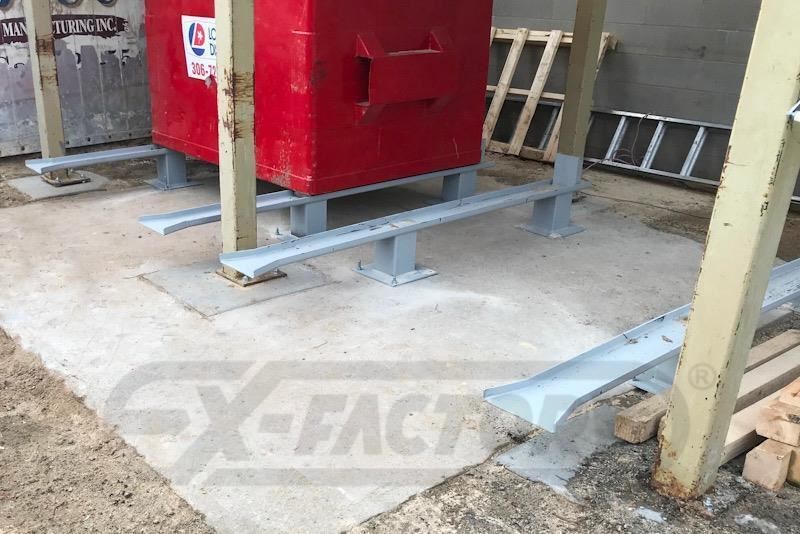

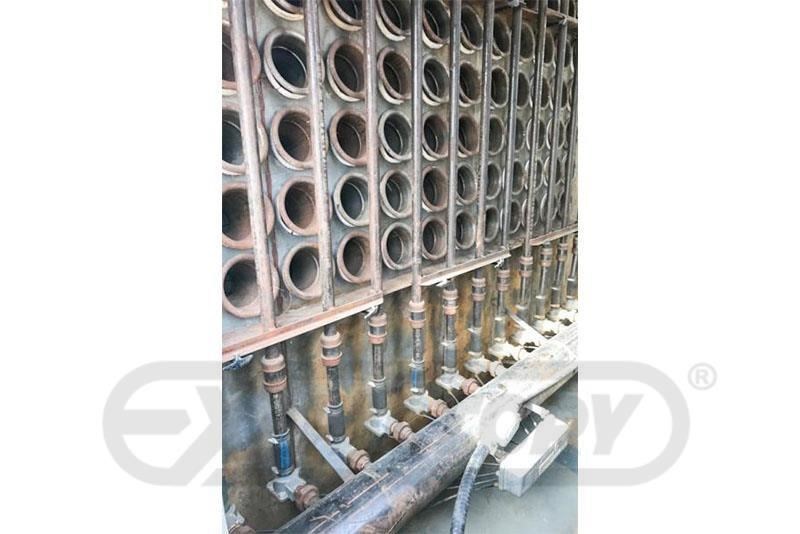

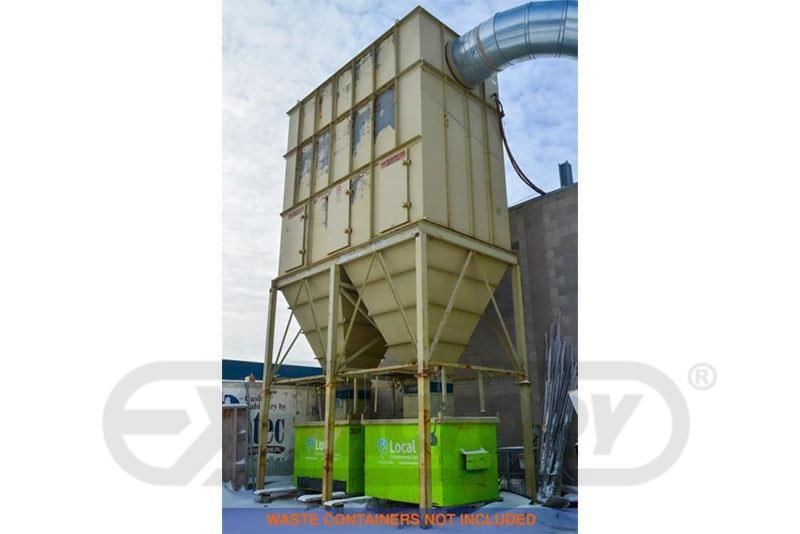

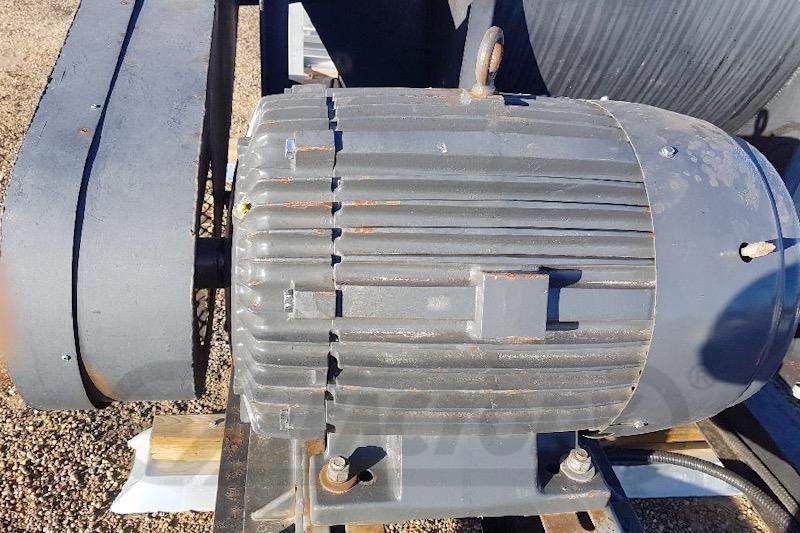

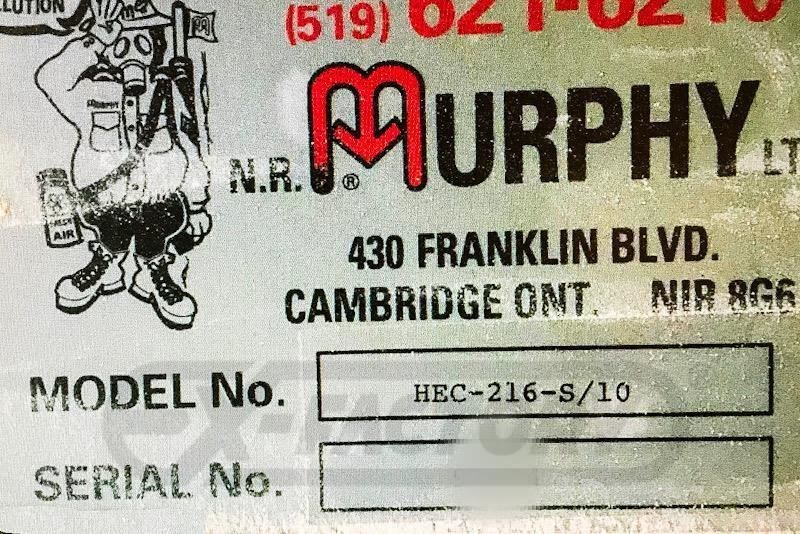

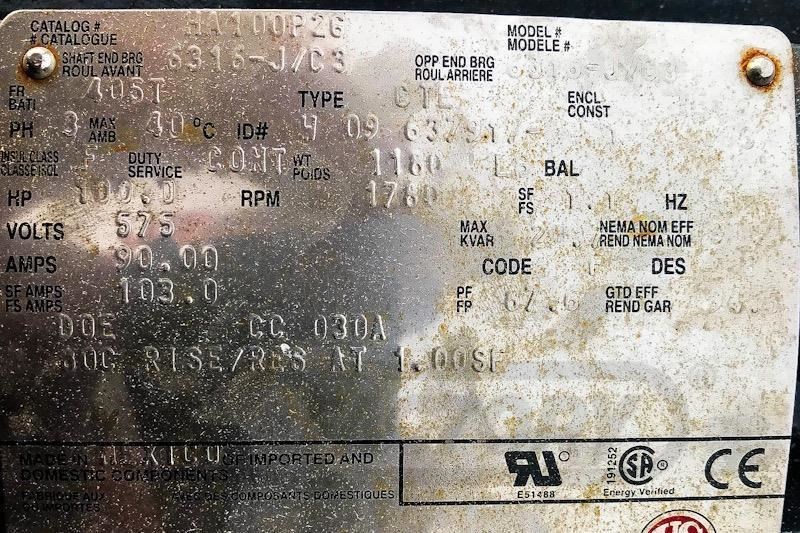

MURPHY-RODGERS - HEC-216-S/10: 33,000 CFM Continuous Duty Automatic Self-Cleaning Pulse Jet Baghouse Dust CollectorEquipped with: -- (216) 5" Dia. x 10' L Cloth filter bags for a total of: 2,827 sq/ff. of filter area. -- (2) 42-1/2" W x 68" H & (2) 40-1/2" x 68" H Top access doors. -- (3) Front & (2) side 27" W x 54" H Filter access doors. -- (2) Square cone bottom hoppers each with: 25" x 25" Discharge openings. -- System utilizes: (2) 4-1/2’ x 6’ x 4’ H Waste containers (NOT included). -- CHICAGO 100 HP - 1,780 RPM Roof Mounted Blower with: 41"; Dia. inlet. -- Motorized dampers for winter & summer modes. -- Winter mode: Directs air back into building, reducing heat loss. -- Summer mode: Directs air outside, cooling building. -- Electrical controls (as pictured).Complete with: -- Spare Filter Bags.NOTE: Installed Used in 2016 with "New" 100 HP motor, new bearings in blower & "New" spring mounts.NOTE: Variable Frequency Drive needs to be replaced.
