Description:

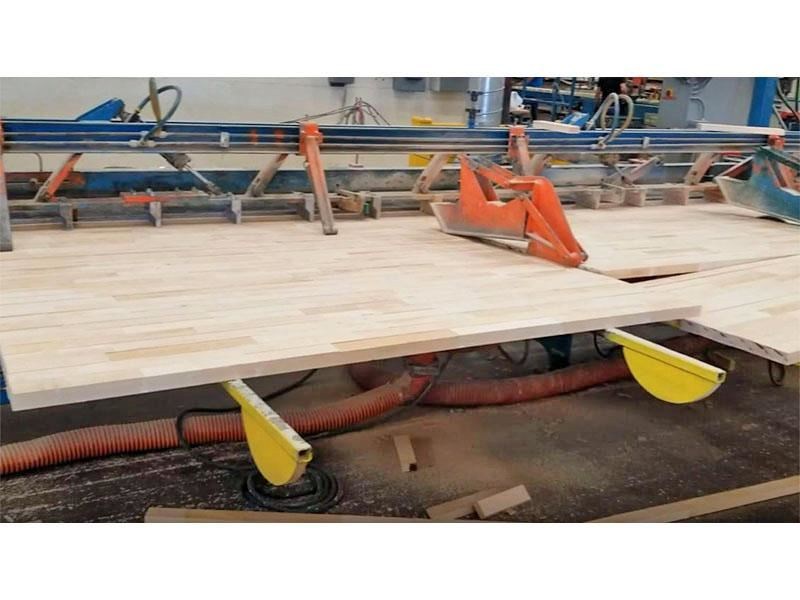

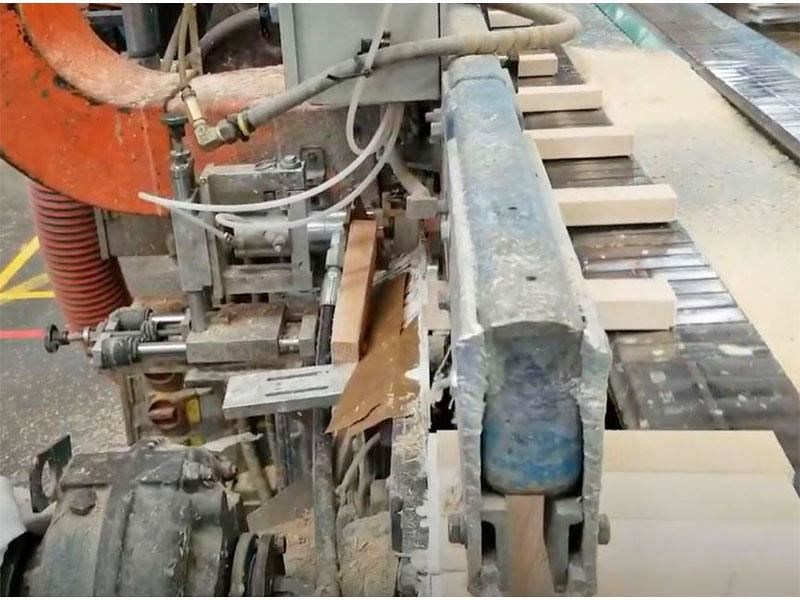

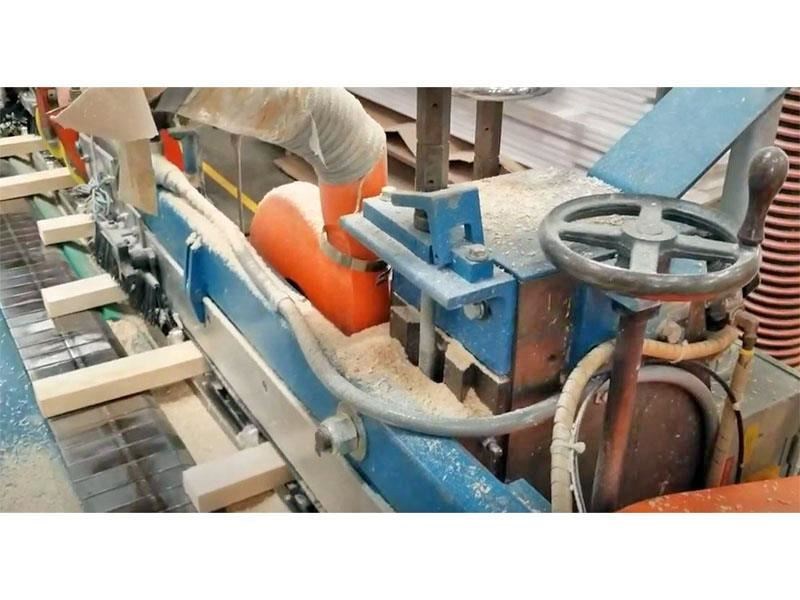

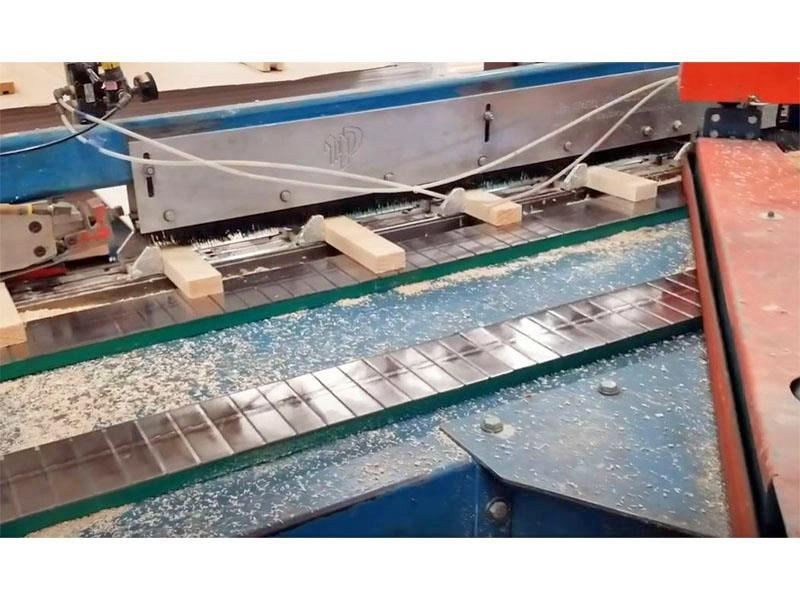

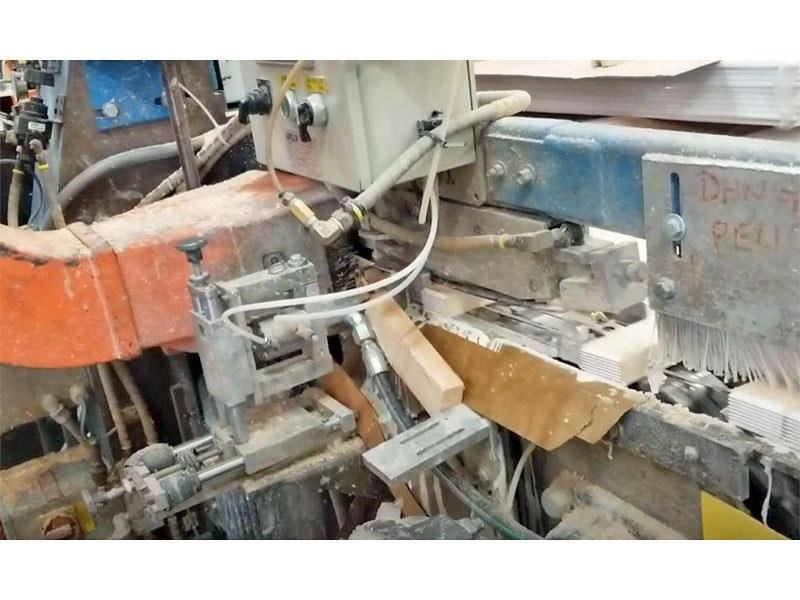

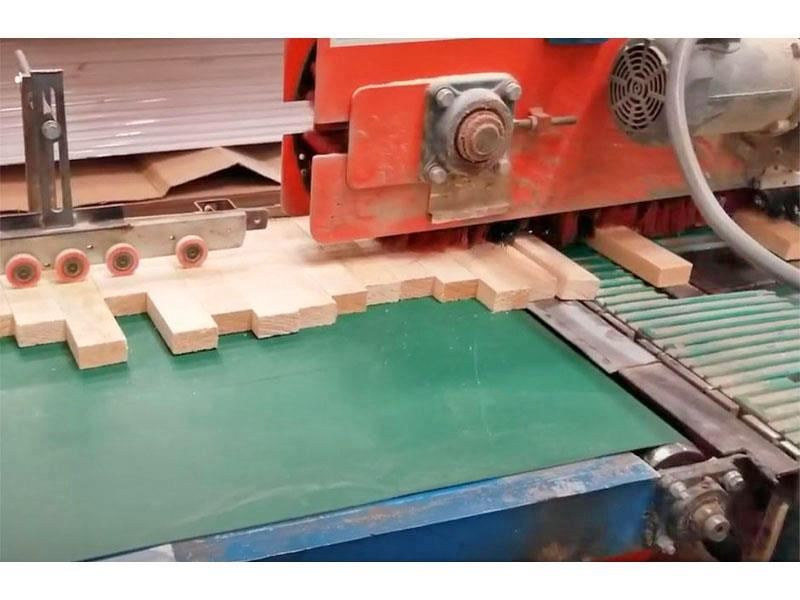

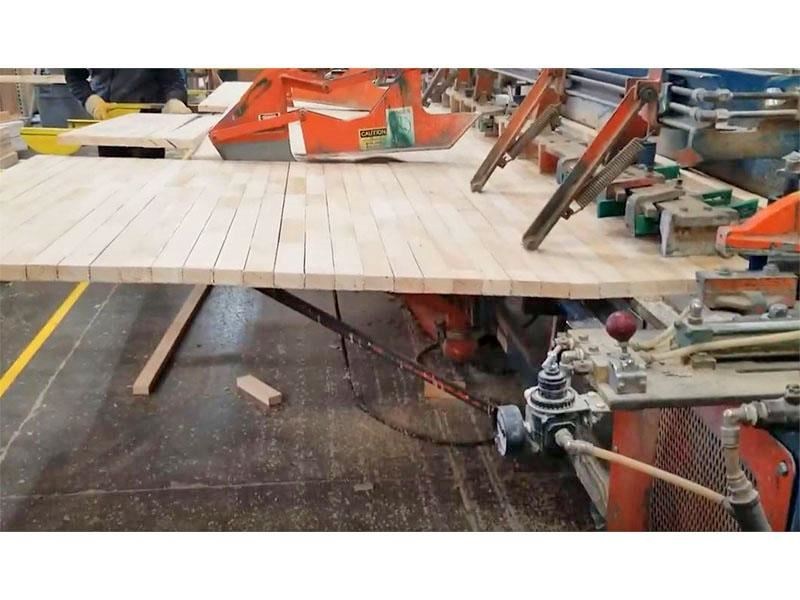

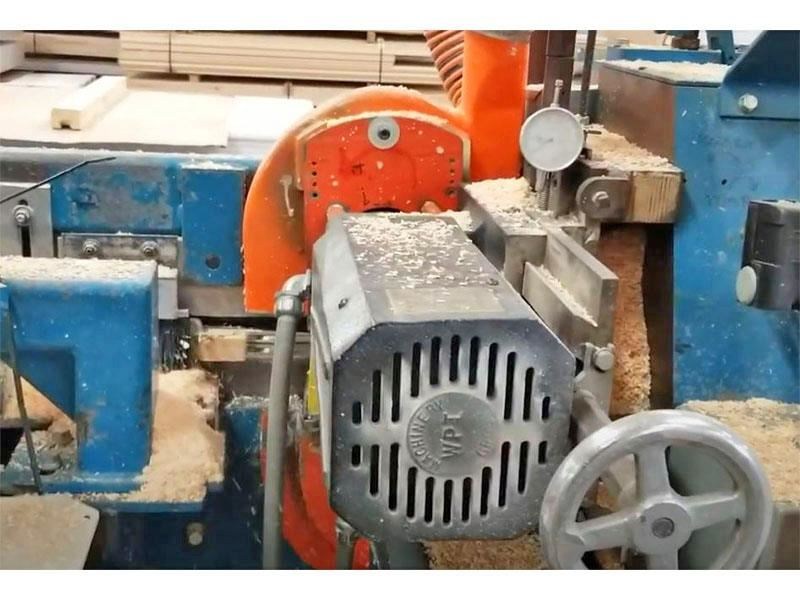

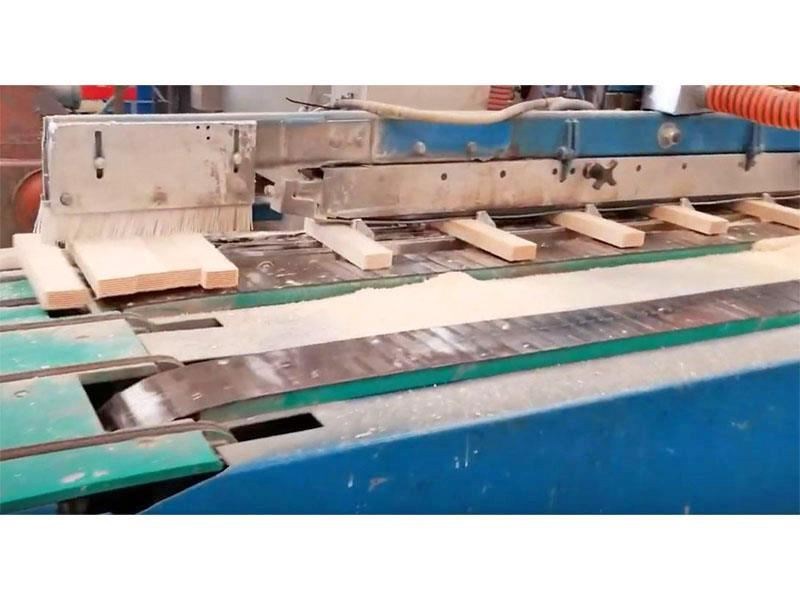

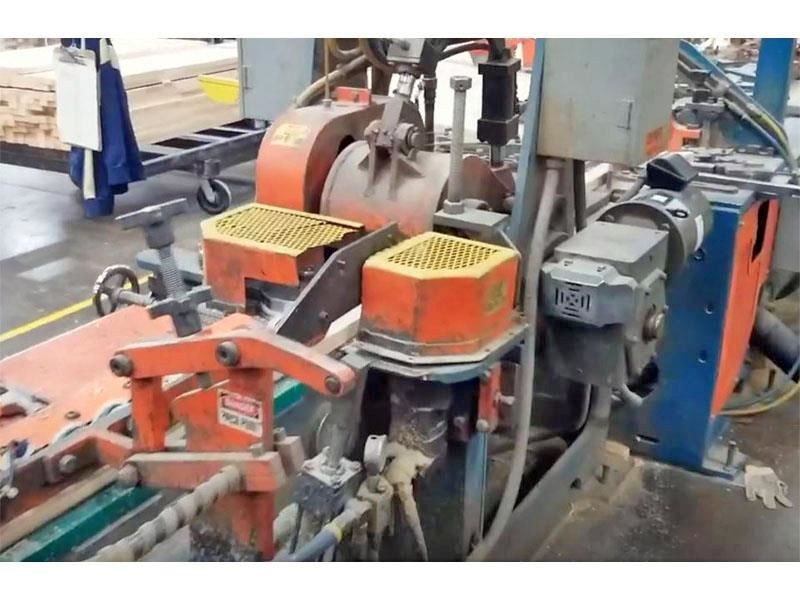

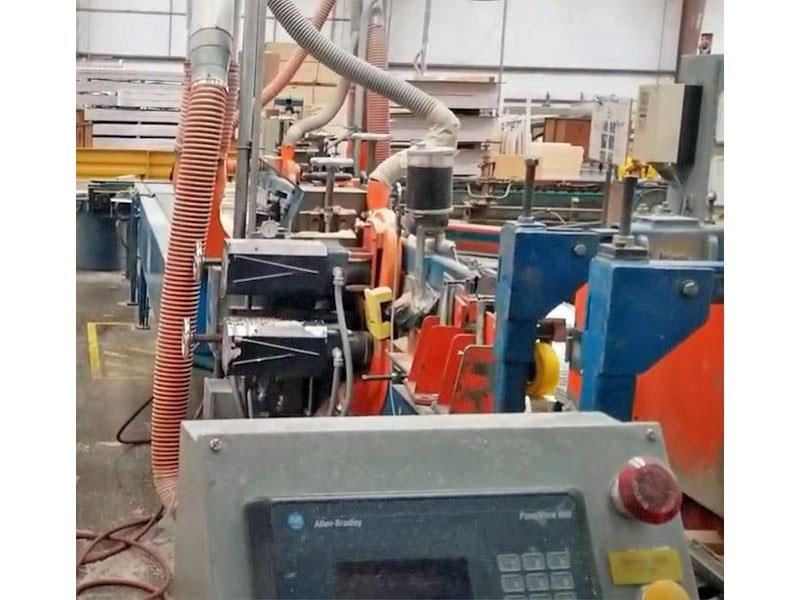

WESTERN PNEUMATICS FJW2VS24 Heavy Duty Production Finger Jointer. Right & left shaper section. - Cap.: 5/8" - 2" Max. thickness, 1-1/2" - 8" max. width, 5" min. - 36" max. length.Equipped with for right and left side: -- (2) Scoring saws, 7-1/2 HP - 3,600 RPM motors, -- (2) trim saws, 7-1/2 HP - 3,600 RPM motors, --(2) shaper motors, 20 HP - direct drive 3,600 RPM motors. -- 6" Wide WESTERN feed chain, angle transfer conveyor and 15 HP variable speed drive with speeds up to (120) lugs per minute. -- Air Bag Pressure Head with quick change feature & brush holddowns -- APQUIP extrusion type glue applicator with meter mixing system -- Transfer to the assembly press via powered manual corner transfer -- 17' Extra length Assembly Infeed Conveyor with electronic ramp up/down infeed package, powered side alignment rolls and top and bottom pre-assembly rolls. -- Assembly Press: 24' (to be confirmed) finished board length, hydraulic squeeze board press and board ejection; with rapid stop-and-chop 7-1/2 HP heavy duty cutoff saw. With automatic cycling, -- Feed speed varies automatically depending on block and cutoff lengths, 50 - 200 FPM.Pieces advance through the cutoff saw to a moveable limit switch and are cut to length, arranged for continuous assembly, the cut to length piece drops down into a final squeeze chamber while the next piece is cut to length, finished lengths are pushed out hydraulically by the next piece onto material outfeed arms.Includes: -- Set of cutterheads and knivesNOTES: -- Machine for factory rebuilt in 2009 -- Machine will easily run 120 lugs per minute and 200 FPM at the Press -- Equipment has been maintained to factory standards since new -- Parts replacemnnt (feed chain, sproket, fences and more) in 2018 for a total of $28,500 -- Taken out of service in January 2025Riggers are required for loadingSome technical information needs to be confirmed by seller
