Description:

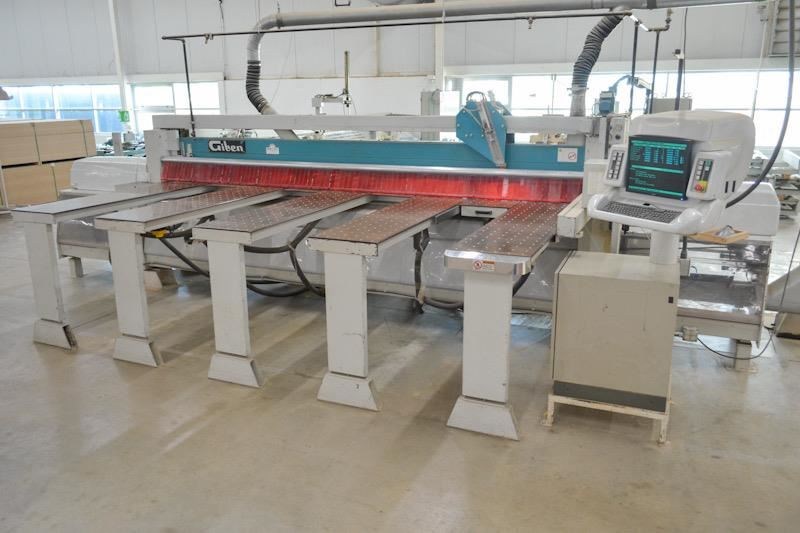

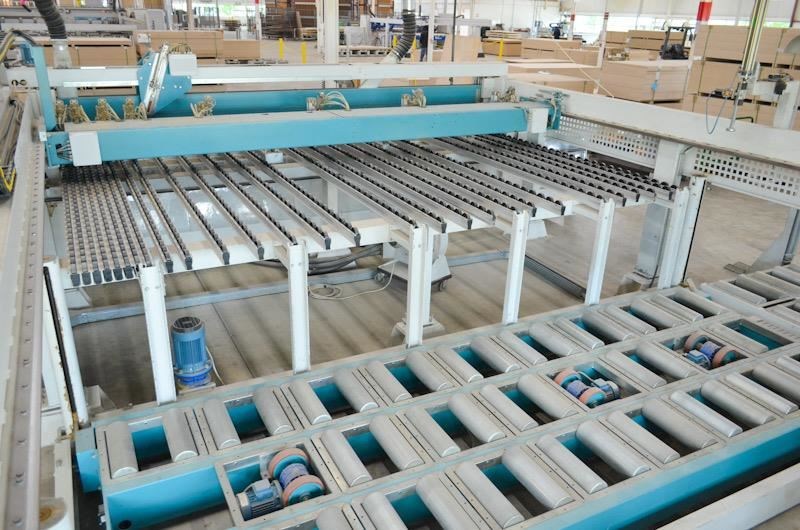

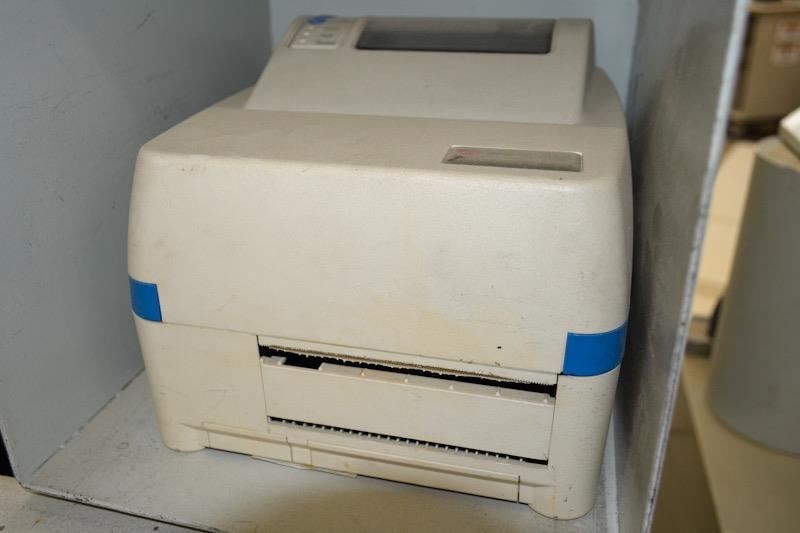

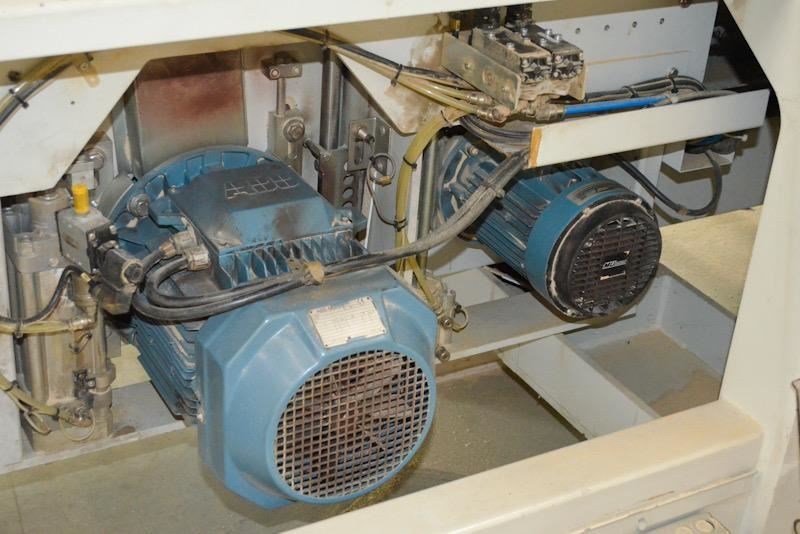

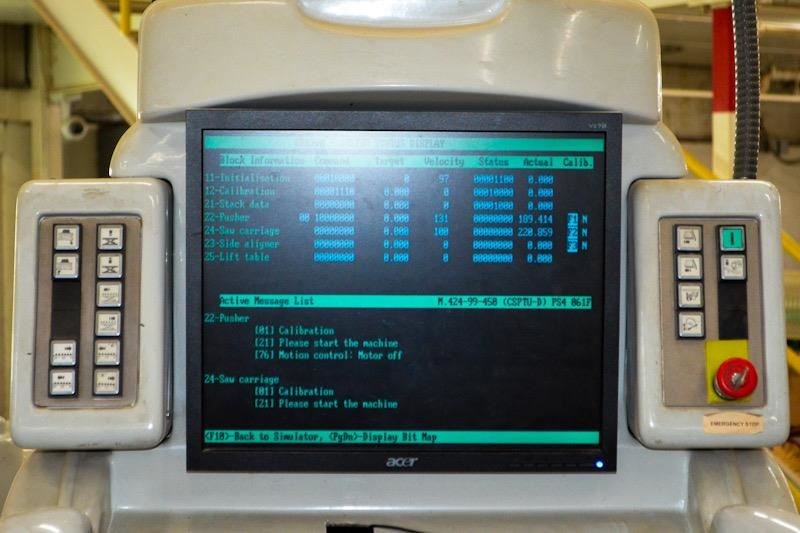

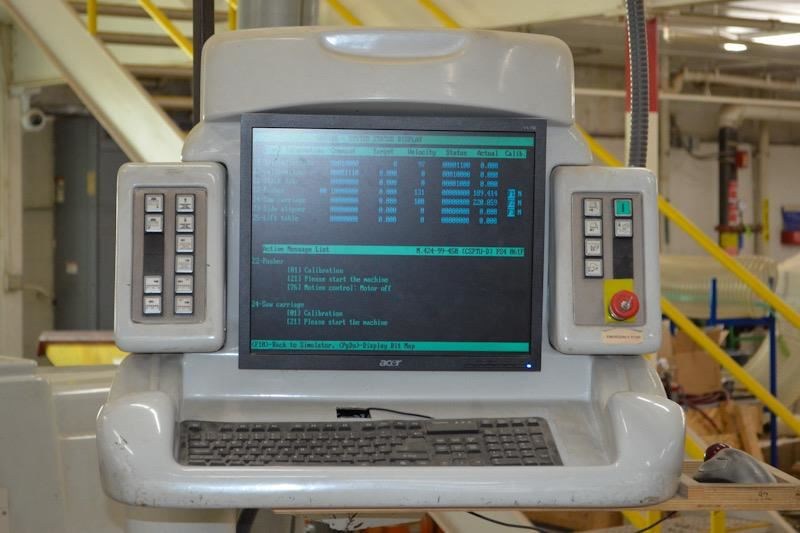

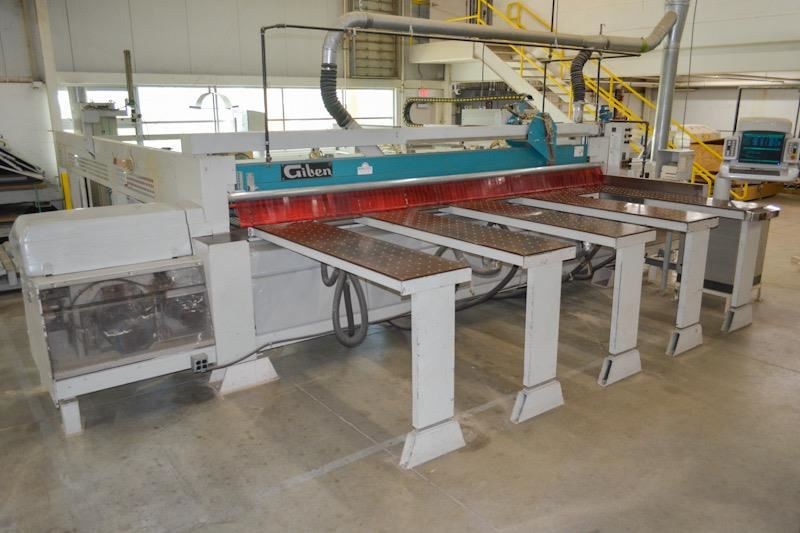

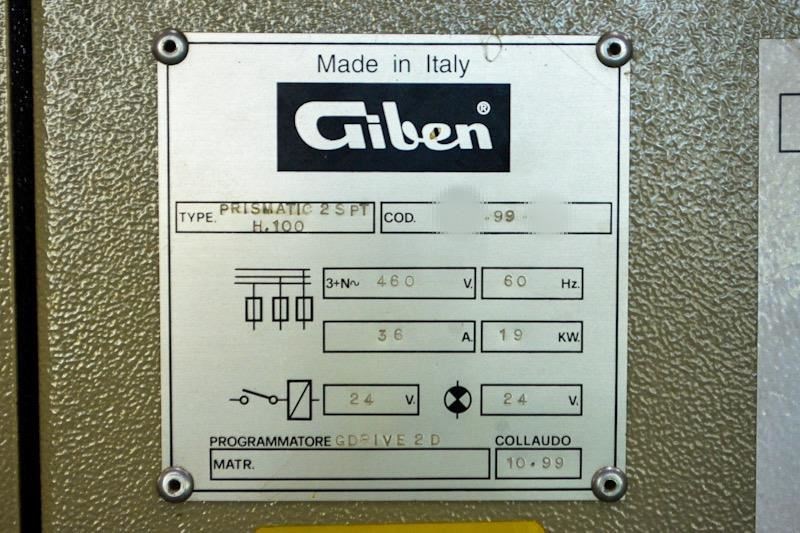

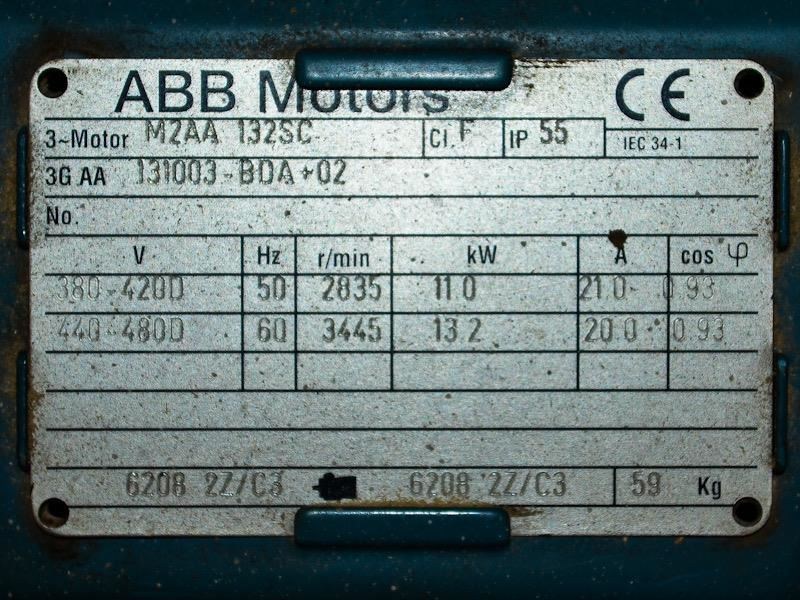

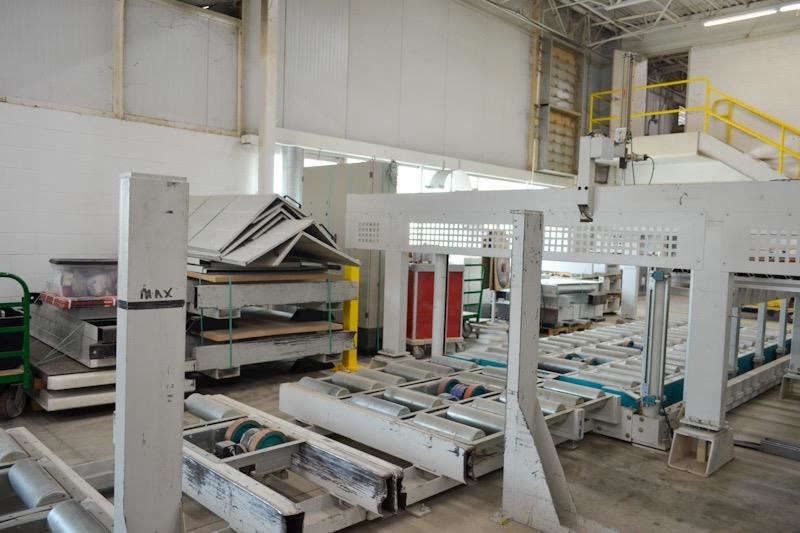

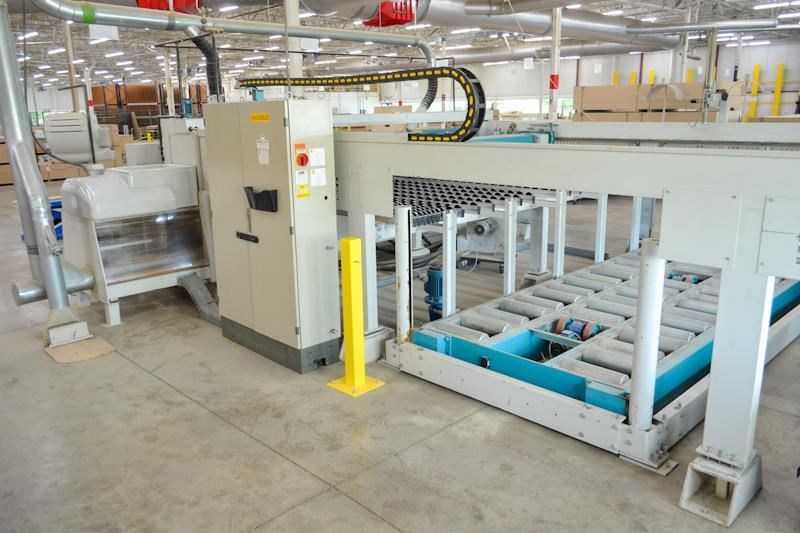

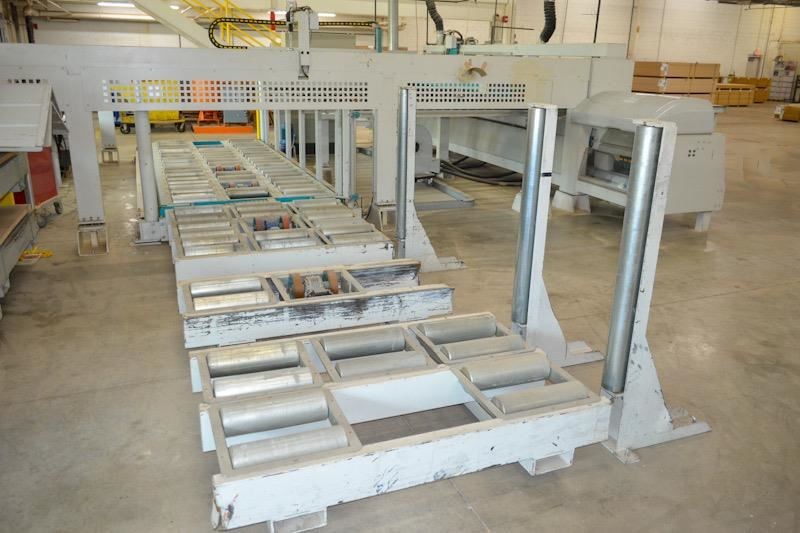

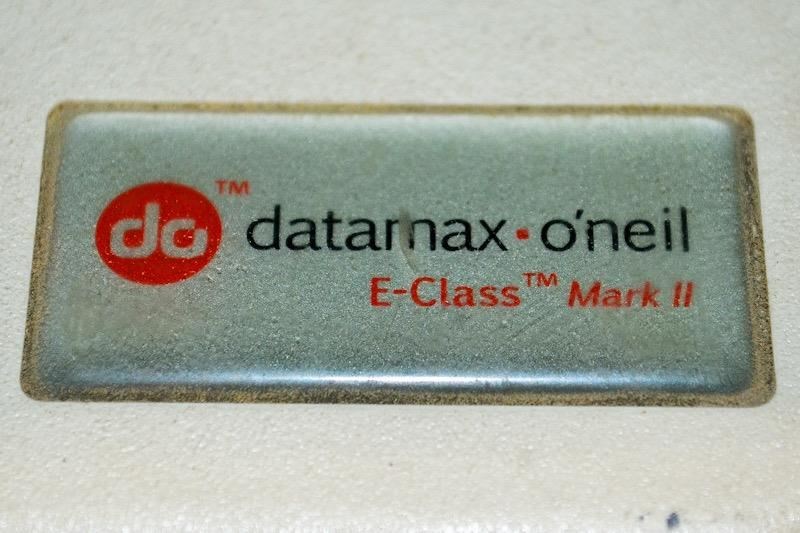

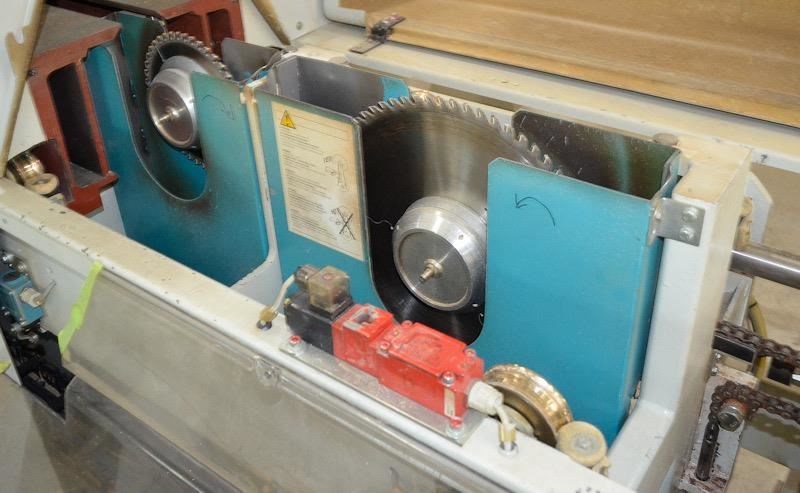

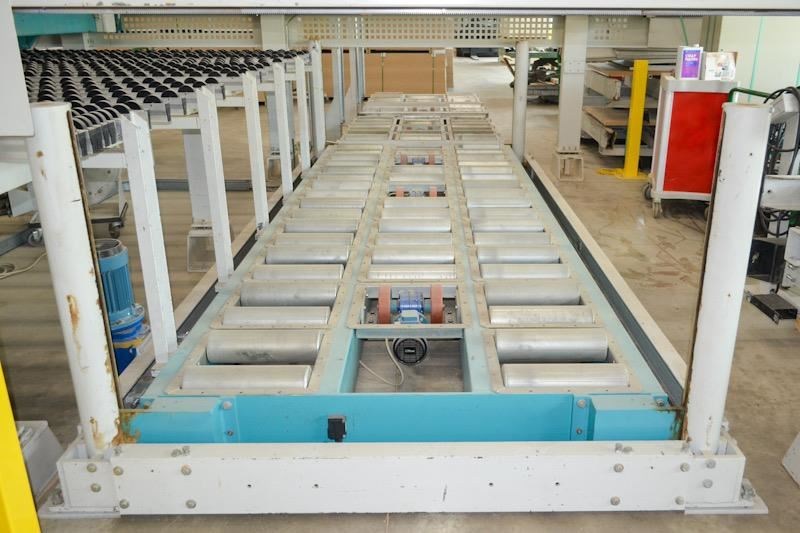

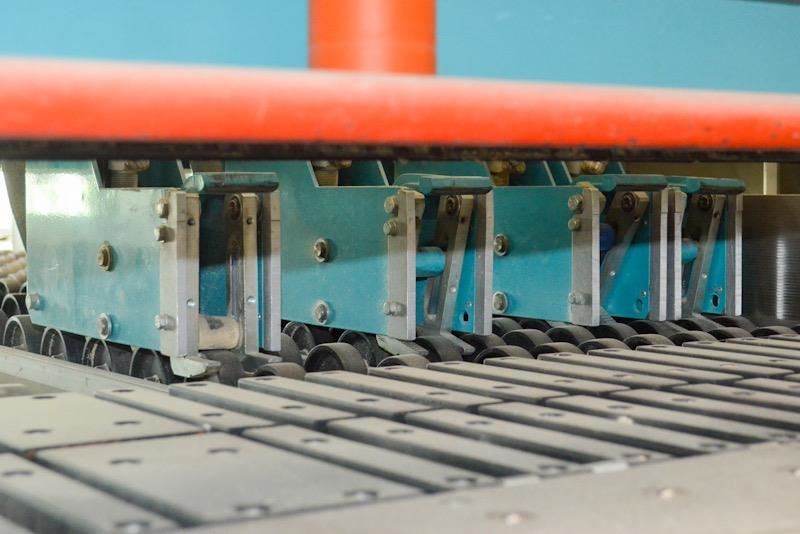

GIBEN PRISMATIC 2 H 100 SPT REAR LOAD, AUTOMATIC PANEL SAW: -- Specifications:177" (4,500 mm) Overall cutting length; 3.9" (100 mm) max. saw blade projection; 17.70 HP (13.2 kW) main saw motor, 15.75" (400 mm) dia., (3,960 RPM) main blade; 3-1/2 HP (2.6 kW) Scoring saw motor, 8.4" (215 mm) dia., (6,095 RPM) scoring blade. -- Saw Carriage:Travel speed 3 - 328 FPM (1 - 100 MPM), 328 FPM (100 MPM) constant return, powered by Inverter drive. -- Pusher Fence:Programmable pusher fence with (8) material gripper clamps (open to 4.6" / 117 mm);Pusher speed 3 - 197 FPM (1 - 60 MPM), return 197 FPM (60 MPM); powered by AC Servo motor on Rack & Pinion system. -- Operator & Machine Control:PC Front end with color monitor & DATAMAX-O'NEIL "E-Class Mark II" Compact thermal barcode label printer. -- Rear Lift Table:4-Column rear load lift table with loading from the rear of the machine; max. panel size 177" x 63" (4,500 x 1600 mm);Lift table stroke 32.7" (830 mm); max. stack height without pit or risers 27" (680 mm).4.8 HP (3.6 kW) motor for Raise & lower; raise & lower speed 2.3 FPM (7.5 MPM); (2) material front aligners located behind the cut line.0.31" (8 mm) minimum thickness for automatic loading from the rear lift table -- Complete with:Modular rear machine table with non-marking rollers on (28) rails; Pneumatic side alignment w/automatic pre-positioningParametrically controlled saw carriage automatically adjusts the cutting height & speed according to the cutting patternSafety photocell barrier for direct loading from the rear to avoid the possibility of a collision between lift truck and pusher (5) Air floatation tables 79" x 20" (2,000 x 510 mm); Front safety flaps on the pressure beam; safety fencing rear & side of machine; 10" Risers. -- Actual model is PRISMATIC 2 H 100 SPT.
