Description:

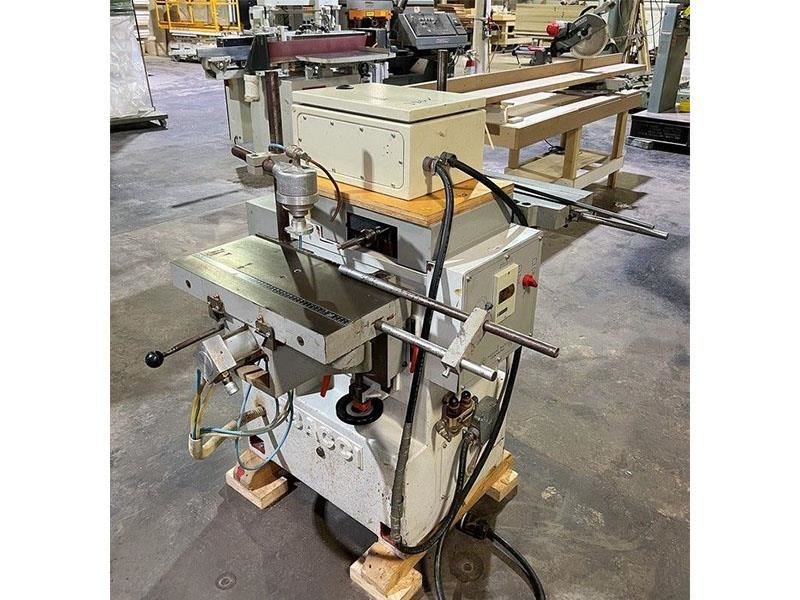

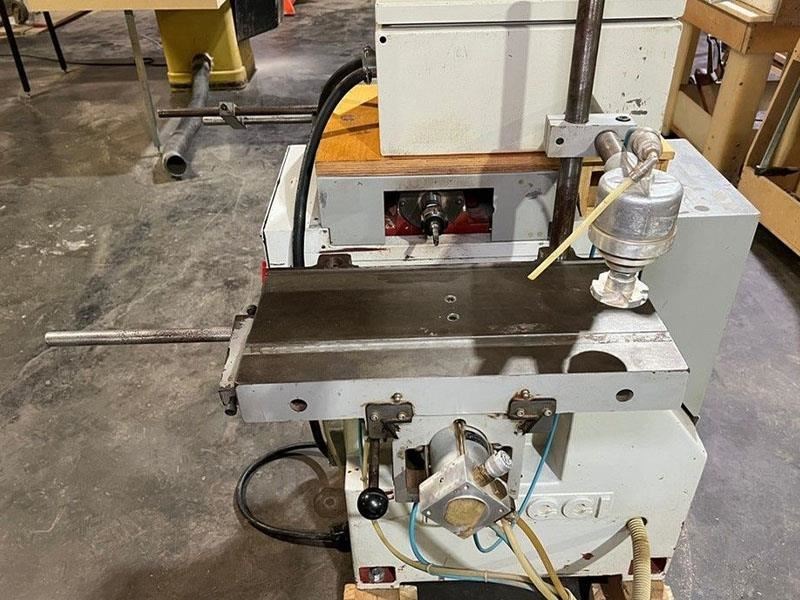

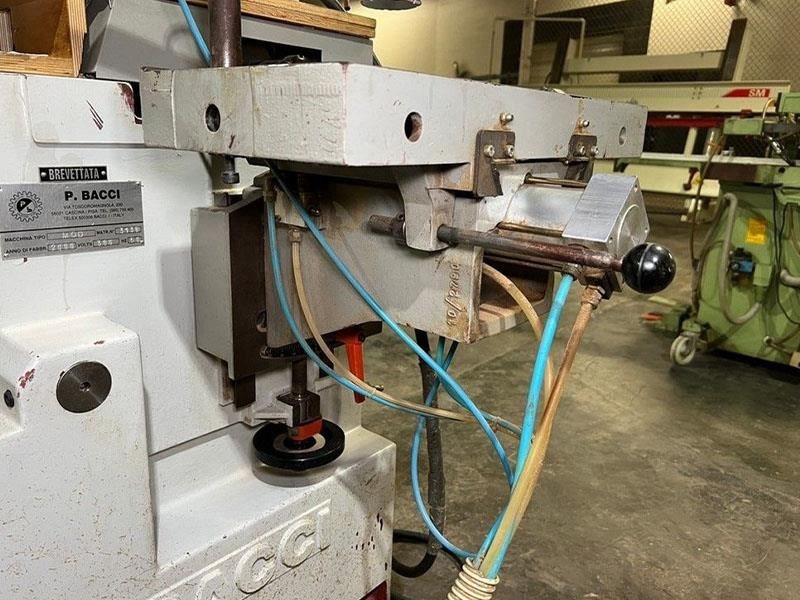

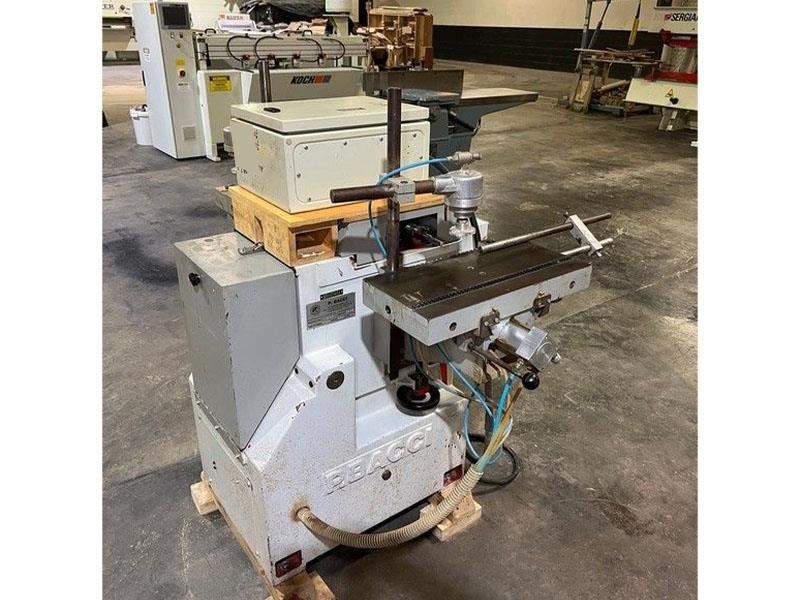

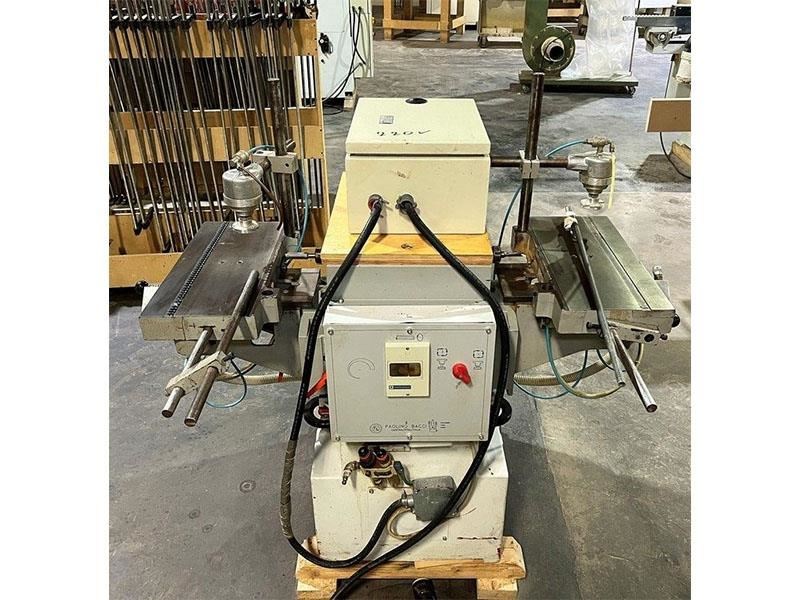

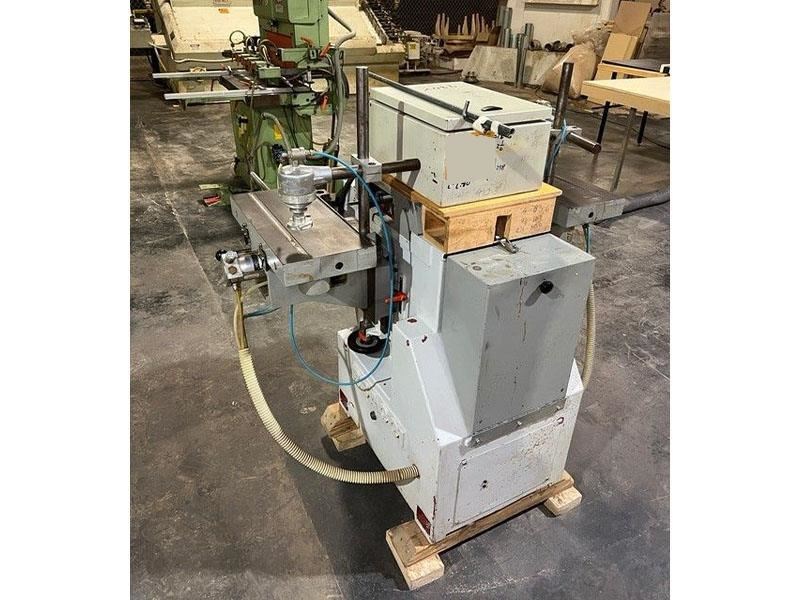

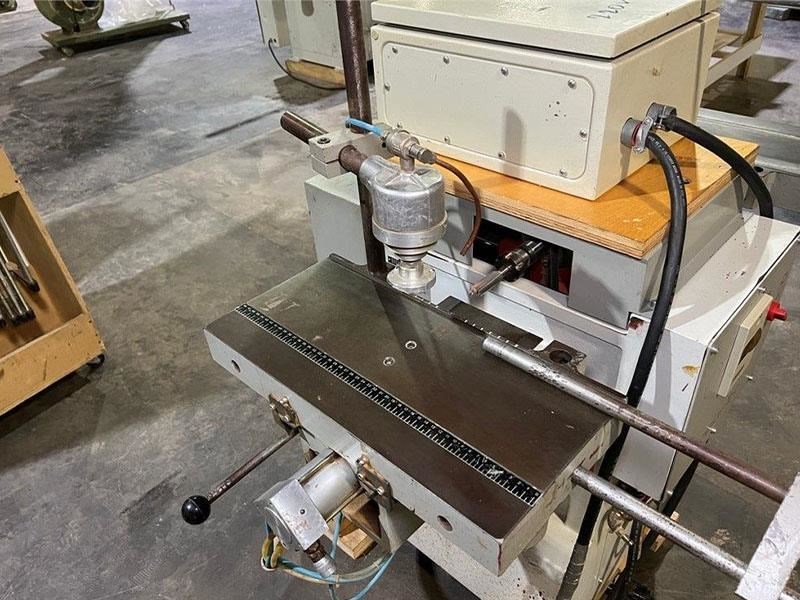

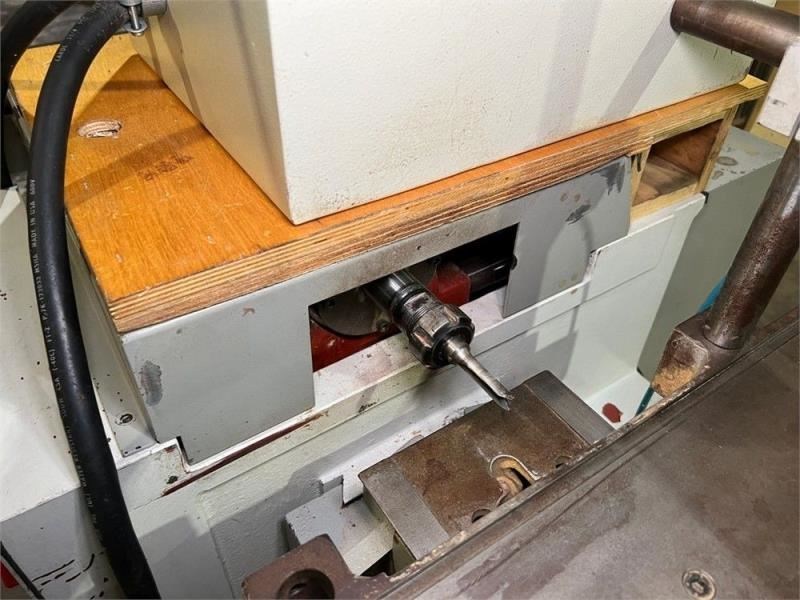

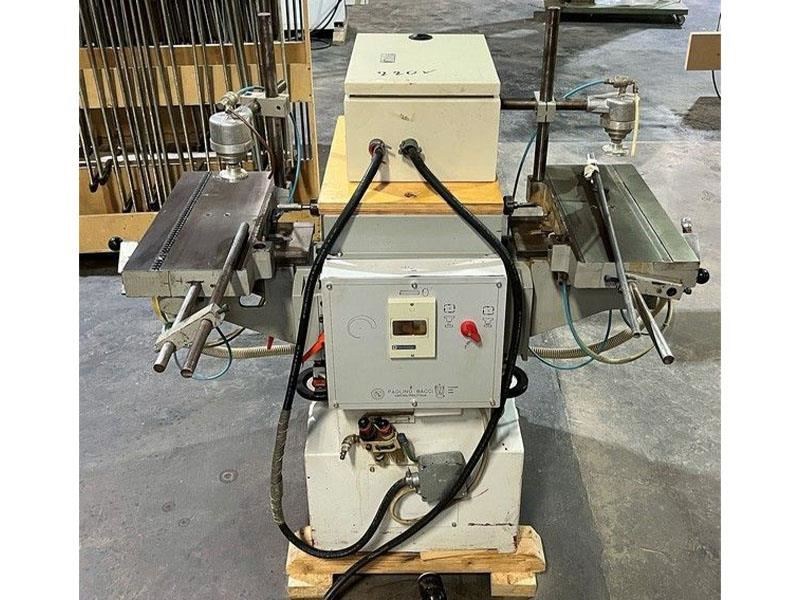

BACCI - MOD: Slot MortiserAutomatic double table round end Mortiser; Mortises or bores holes on chair, furniture or case goods.Technical Specifications -- (2) Tables & spindles; (1) table on each side to eliminate dead cycle time. -- 3 HP - 9,400 RPM Motor; spindles belt driven; 3 HP oscillation motor with: (224) Oscillations/Min; spindle movement with: Ball bushings sliding on hardened ground guides. -- Table assemblies hydraulically feed into spindles; in-and-out table adjustment between table & spindle to reduce spindle engagement time; tilting tables: +/- 20° (Side-to-side); overhead pneumatic clamp cylinders. -- 3" Max. slot depth; 4-3/8" max. slot length with: Mechanical digital readout; adjustable without wrenches; 1-15/16" max. dia. tooling, Heavy-Duty spindles with: 16 mm Chucks.
