Description:

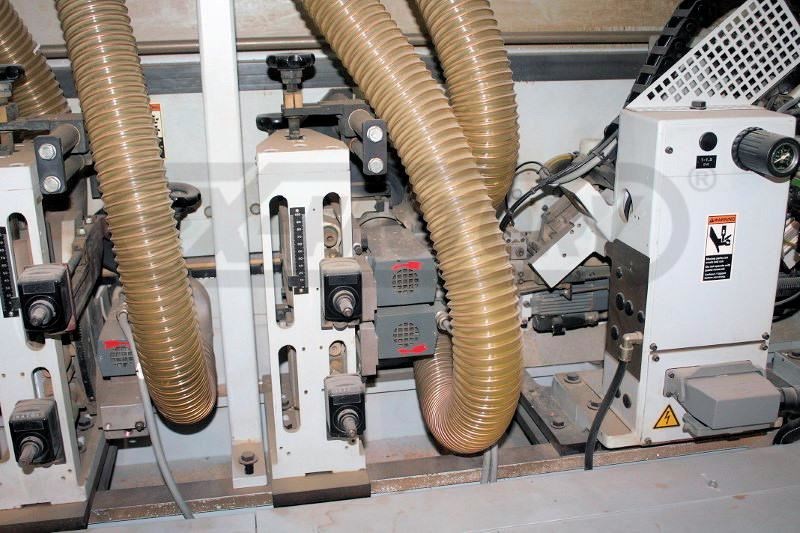

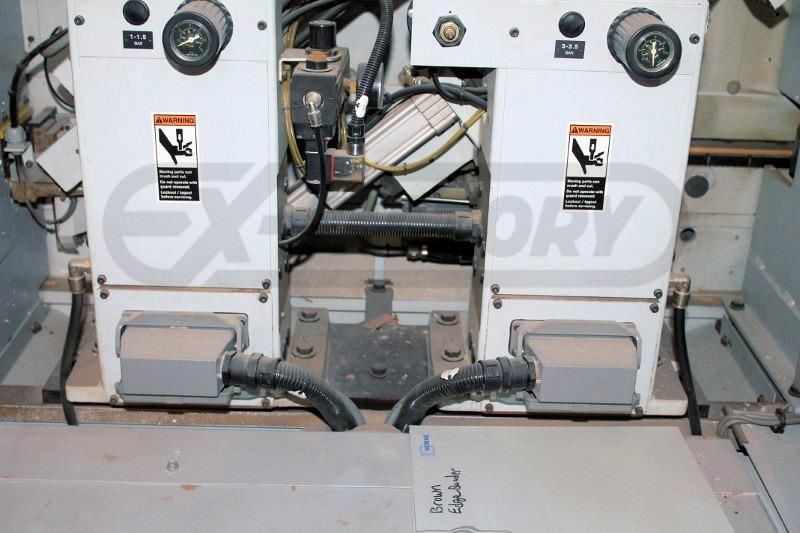

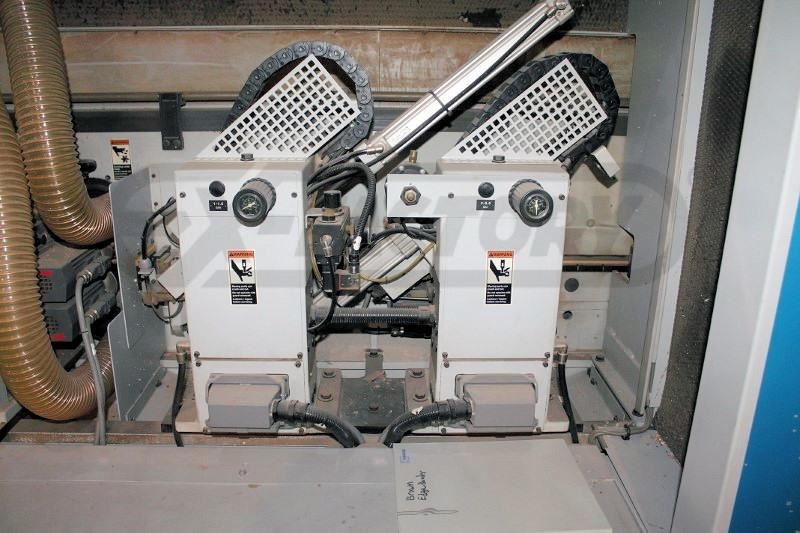

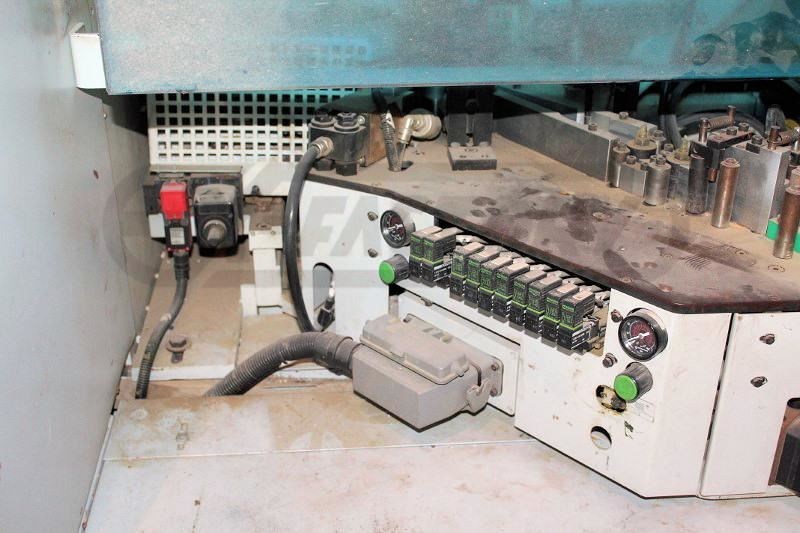

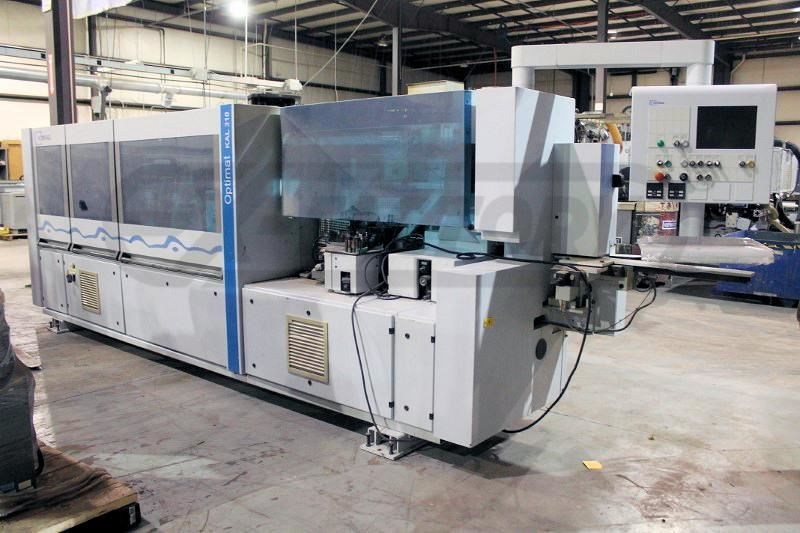

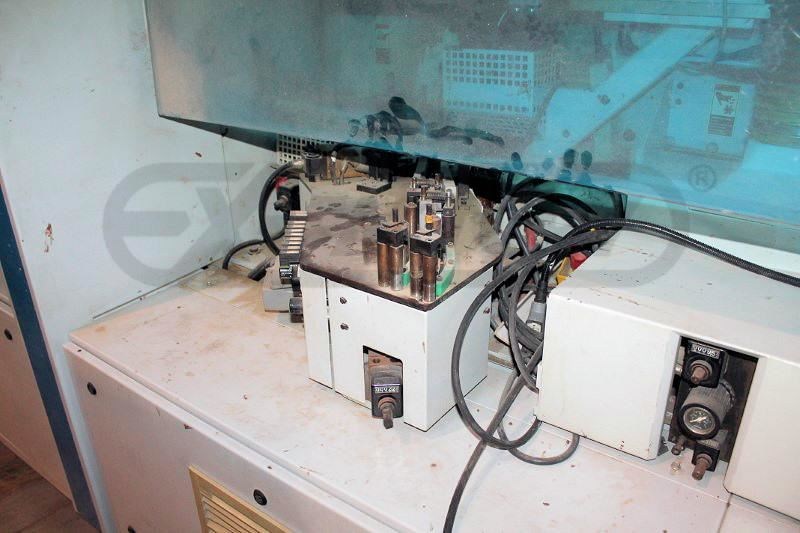

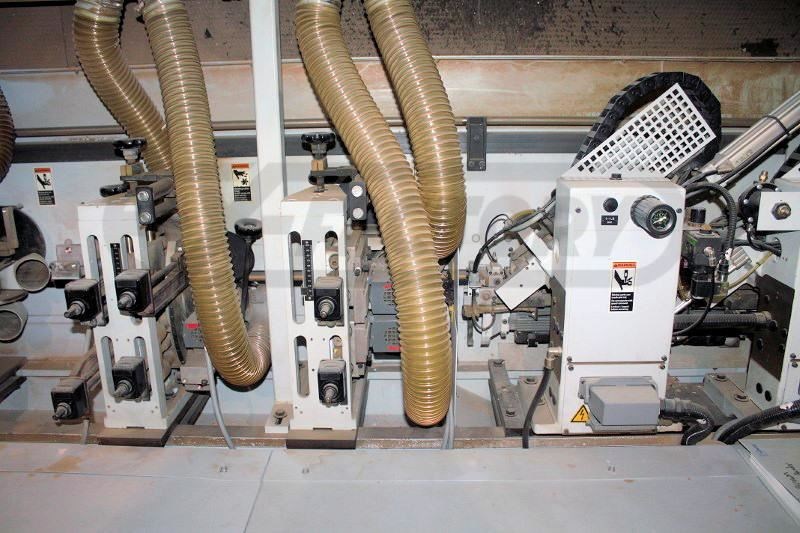

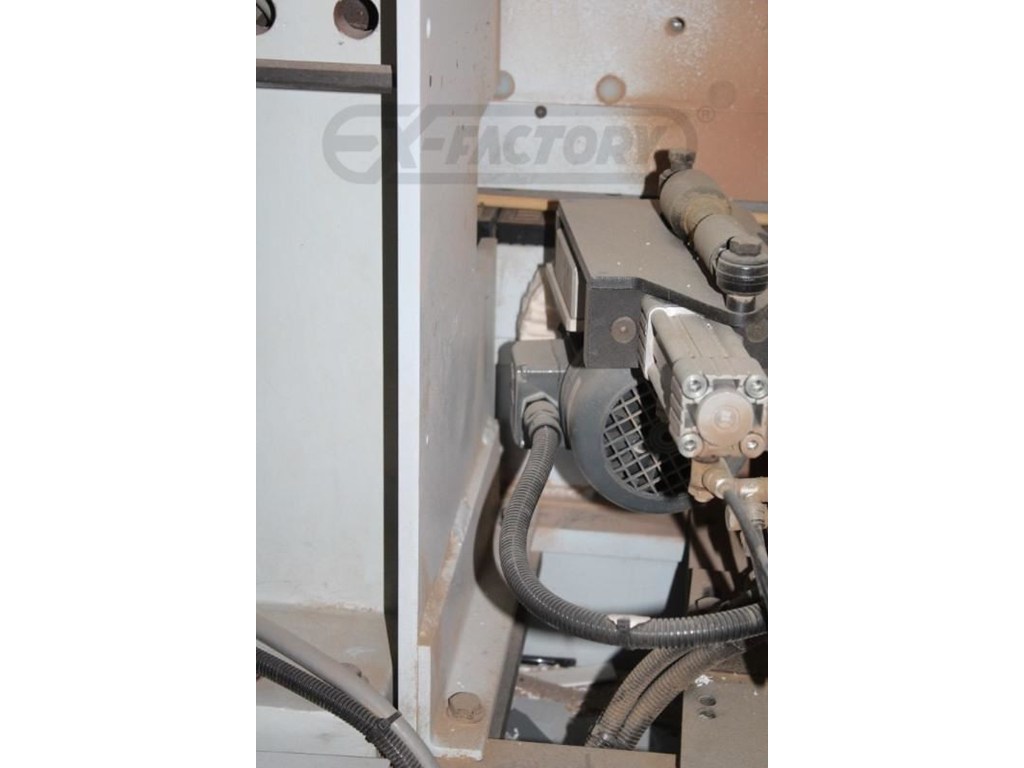

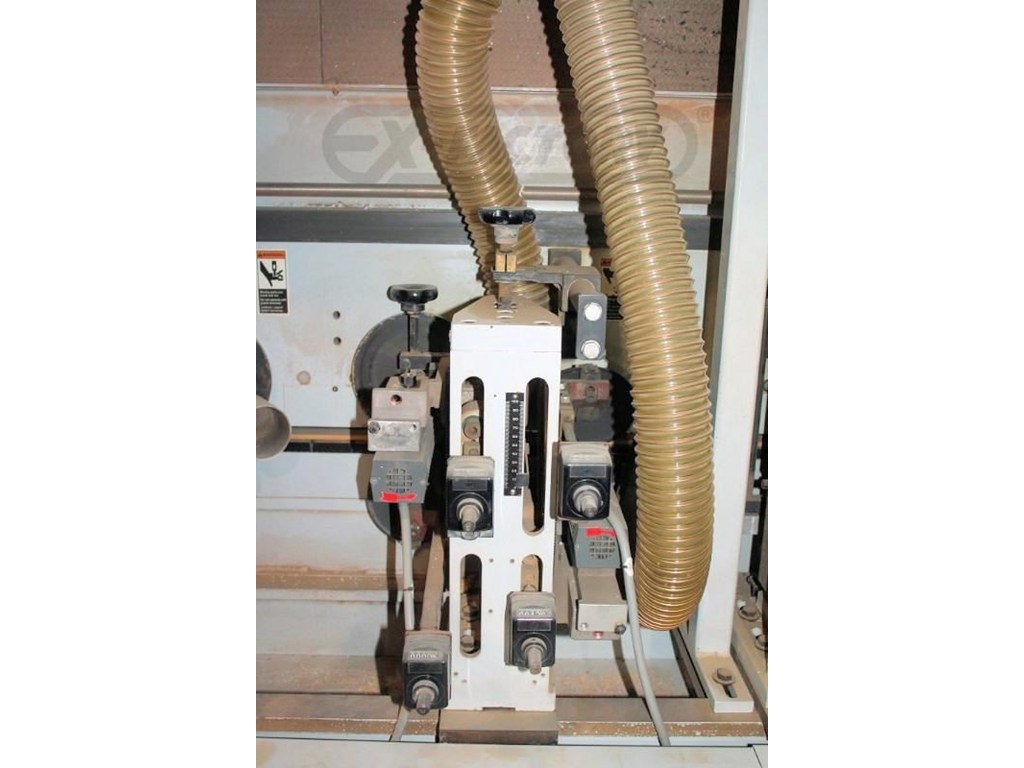

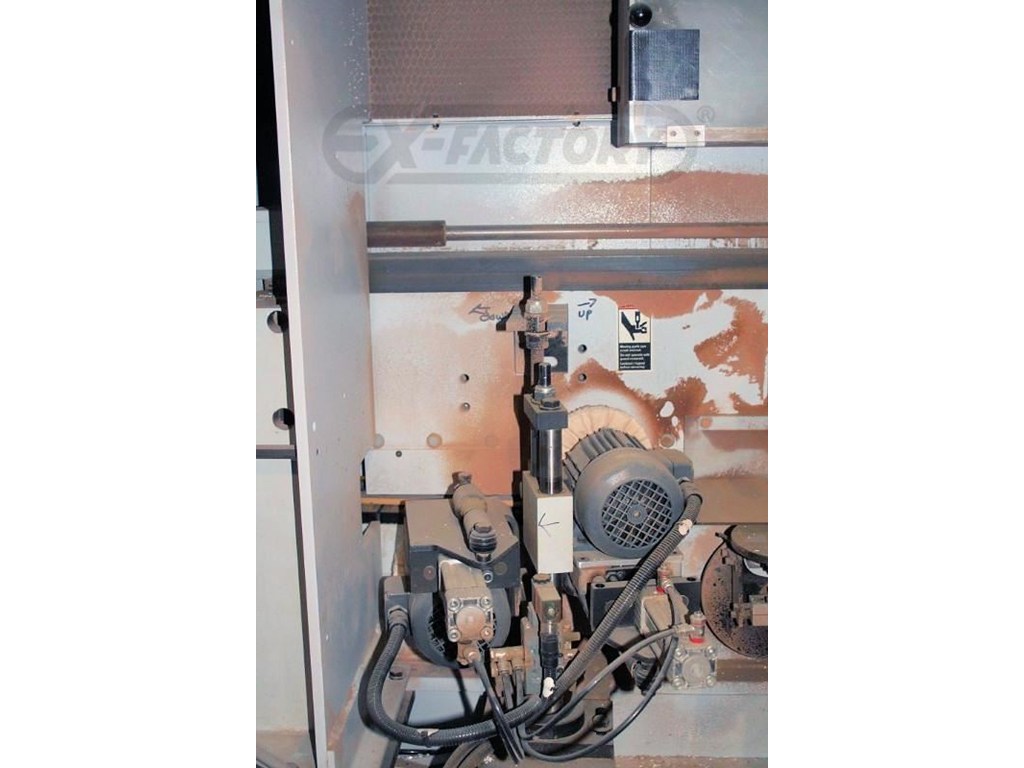

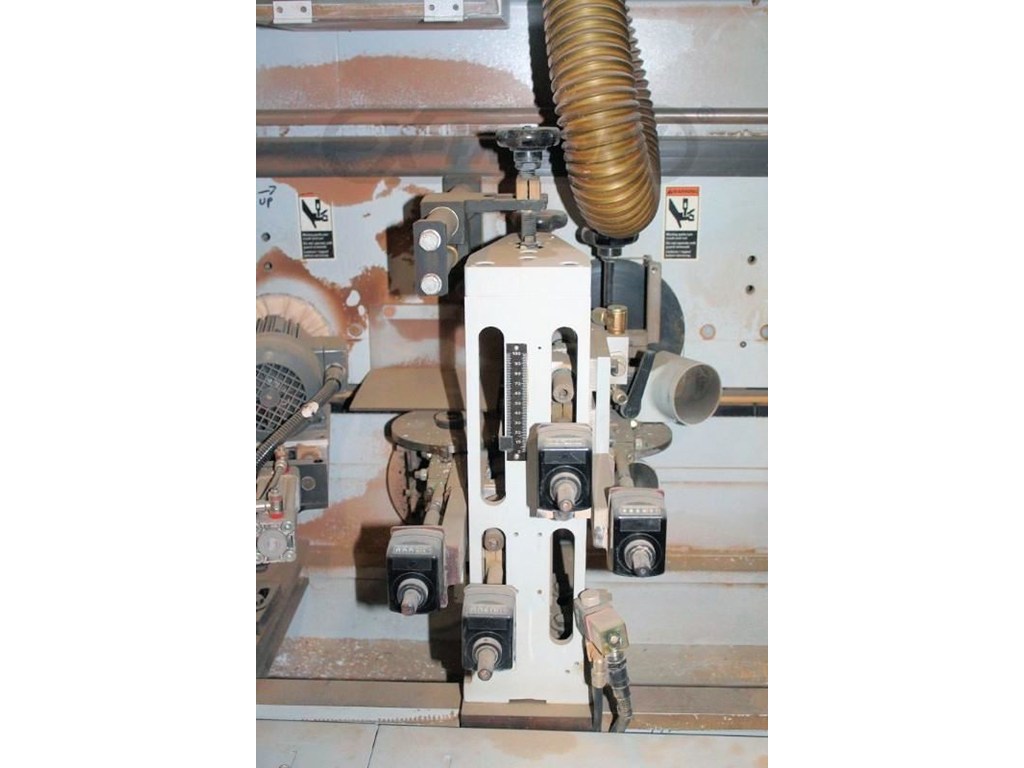

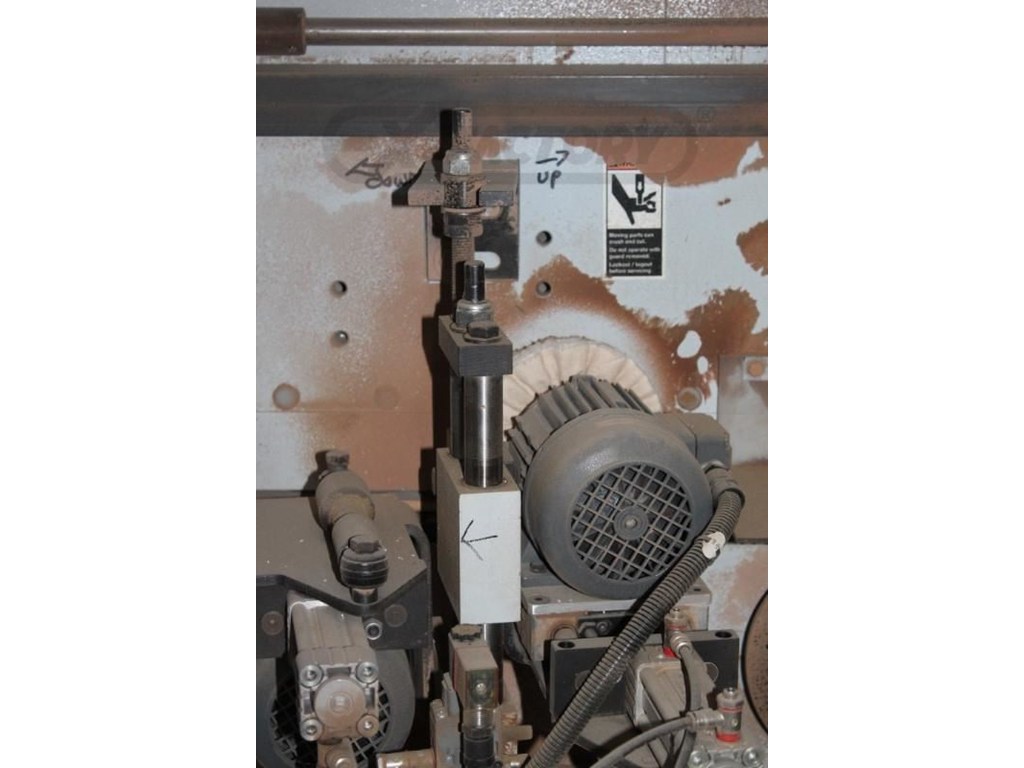

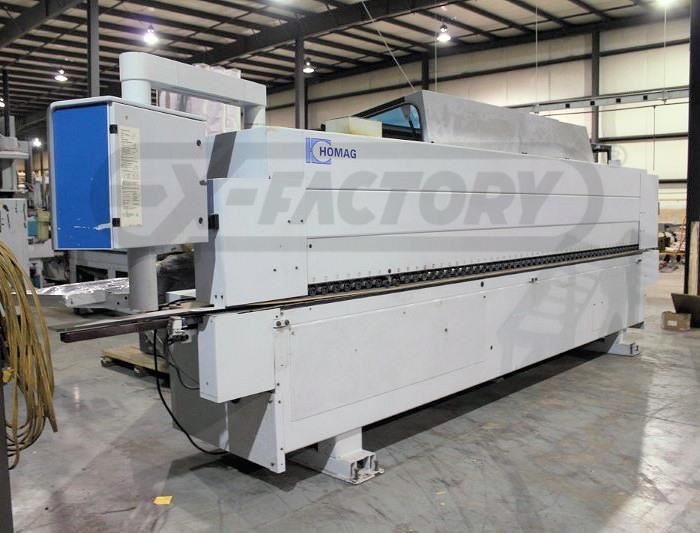

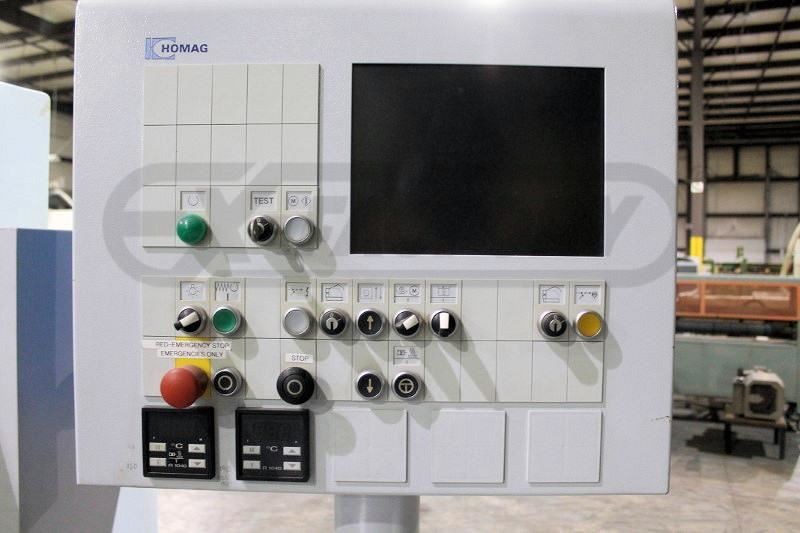

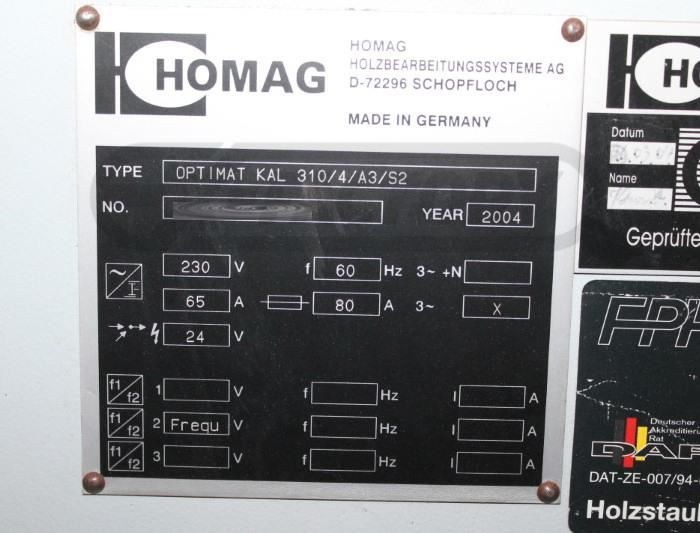

HOMAG KAL 310/4/A3/S2 Edgebander (w/Pre-Milling): -- Specifications:Working Capacity: 0.3 - 3 mm Edge thickness cap., min. panel width 22 mm; max. panel thickness 60 mm; Dual speed -- Equipped with: Pre-Milling Unit 3481: (2) motors, 3 kW, 9000 RPM each, pneumatic controlled/jump milling spindles and adjustable, manual with digital indicator in-feed fence. -- Hot Melt Glue System "QA 34" Quick-Melt Unit: with heated glue roller; -- Edge Magazine Unit 2456: Automatic (2) coil/strip magazine, coils 0.3 - 3.0 mm. -- Pressure Section: Pressure roll section with (3) rollers, (1) large dia. driven & (2) idle rollers; with pneumatic pressure control for straight edges -- HOMATIC "NC 21" Power Control System: Controller operates in Windows-XP environment; Keypad w/LCD display, fault diagnostic, etc.; diagnostic analysis from HOMAG service support via Modem. -- Workstations:End Trimming Unit: (2) motors, 0.18 kW - 12,000 RPM each, to cut excess edge on the front & back of the panel. -- Flush/Pre-Trimming Unit 3201: Top & bottom trim station, 0.55 kW - 12,000 RPM +/- 1° angle adjustment, manual positioning with digital counters. -- Fine/Bevel Trim Unit 3216: (2) motors 0.4kW - 12,000 RPM each, manual positioning with digital counters -- Profile Edge Scraping Unit: with electro-pneumatic adjustment -- Buffing Unit 4402: Top and bottom with oscillation. (2) motors, 0.25kW, 2850 RPM -- Complete with & Features:Electronic DC brakes on all trim motors; sound cabin for all workstations. -- Adjustable outboard panel support with swing out arms for up to 800 mm. -- 80 mm Feed track pads; manually adjusted V-groove belt on top pressure beam and Sound/Safety enclosure over workstations. -- Actual Model is HOMAG KAL 310/4/A3/S2Note: This machine has a new display and a new back up one as well!
