Description:

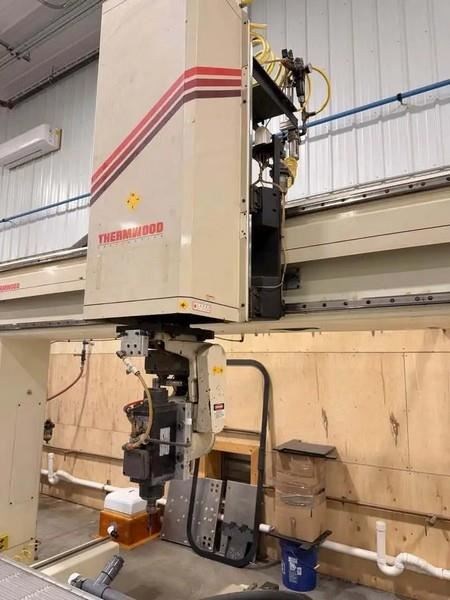

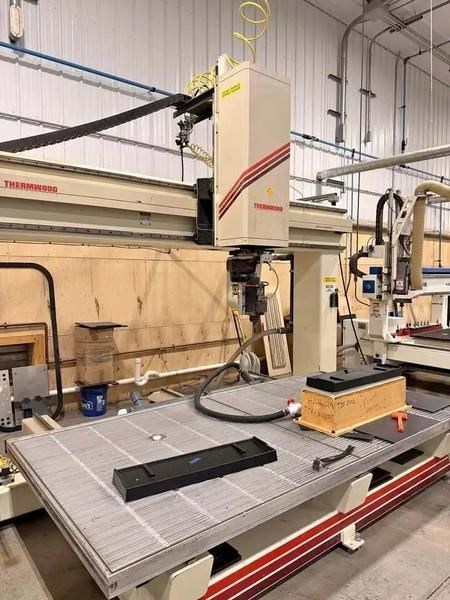

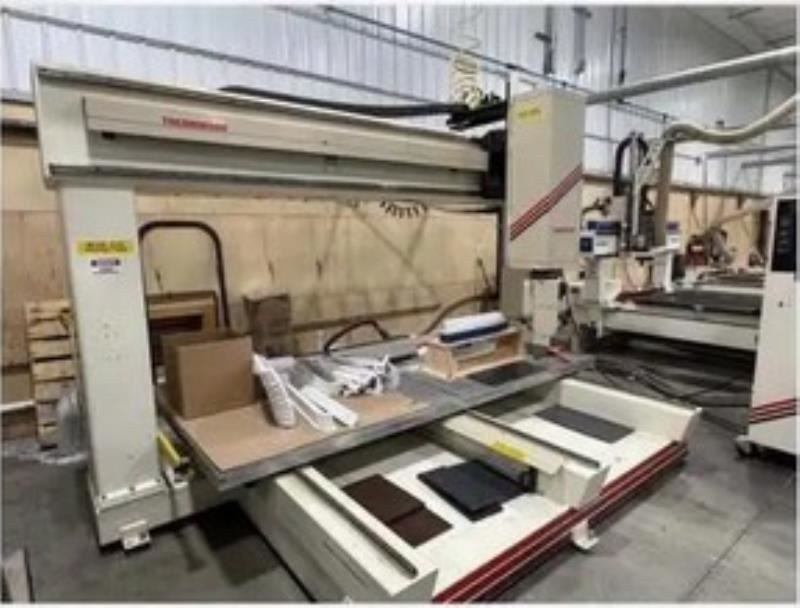

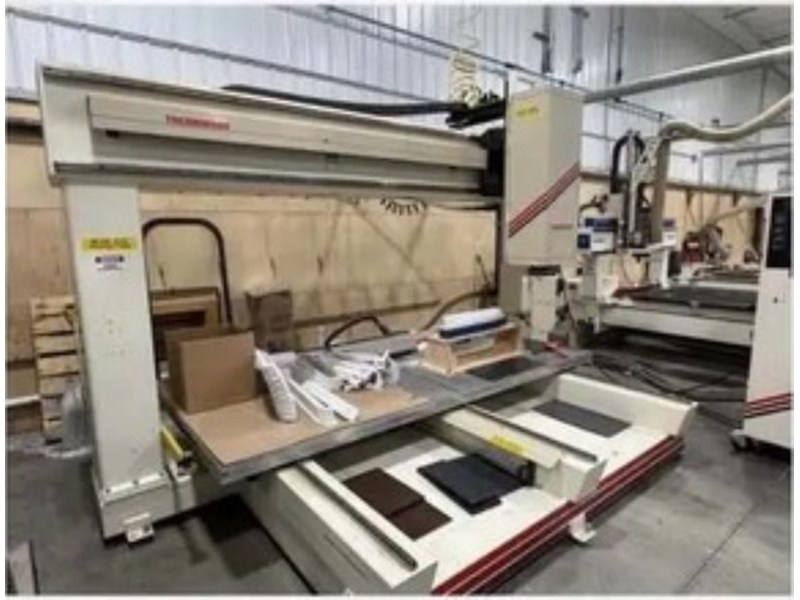

THERMWOOD C67S 5-Axis CNC Router, ... Gantry TypeSpecifications & Features: -- Table: 10' wide x 5' deep moving table design with 5-axis with an aluminum table with 1" thick tool and jig plate. -- Head Travel & Rotation: X-Axis (table travel) is 124", Y-axis (gantry travel) is 62", Z-axis is 36", rotational axis = 360°, tilt axis = 270°. -- Spindle PERSKE: Equipped with (1) 7.5 HP, "Quick Change" Electrospindle with ISO 30 adaptor (no tool changer), (3,000 - 18,000 RPM) with solid-state inverter, -- Lead Screw: With compensation for correcting pitch tolerance, zero-backlash ball nuts, high performance AC Servo drive system with feed speed up to 900 IPM; automatic lubrication system.Controls: -- THERMWOOD "91000 Super Control" version 5.05 software controller, programmable spindle speed option, compatible with major CAD/CAM and offline CNC programming systems; Automatic tool length sensor; Stand-alone, air-conditioned control cabinet.
