Description:

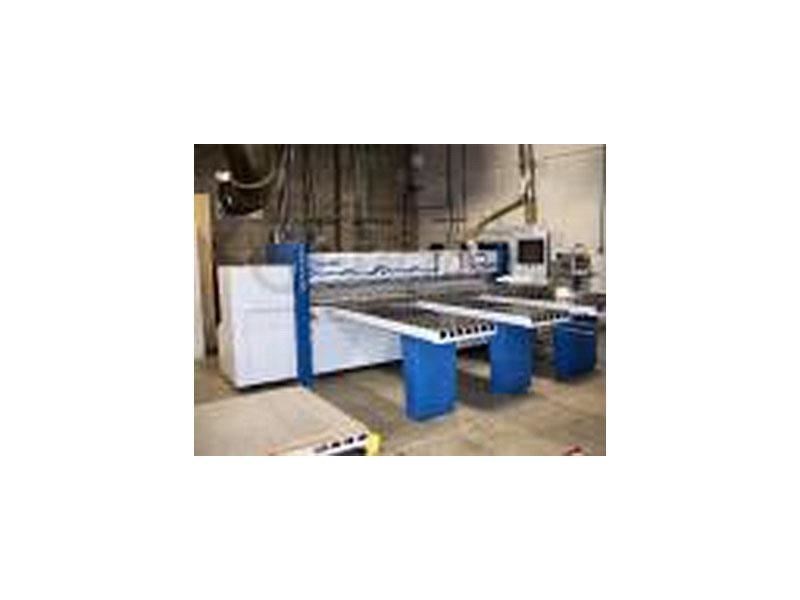

HOLZMA - HPP 350 31/31: Front Load, Automatic Panel Saw -- Specifications122" (3,100 mm) Cut length; 122" (3,100 mm) pull back; 3" (80 mm) saw blade projection.18 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from the "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 426 FPM (5 - 130 MPM); Constant return: 426 FPM (130 MPM). -- Pusher FenceElectronically controlled overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2").Rack & Pinion drive on both sides; forward speed: 82 to 262 FPM (24 - 80 MPM); Return speed: 262 FPM (80 MPM). -- Operator InterfaceHOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory.17" TFT Flat screen monitor; REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard, 1.44 MB Floppy & DVD R/W drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with: Front & rear forks holding ripped strips squarely against the right angle fence.(1) Front air floatation tables: 86" x 25" (2,160 mm x 650 mm); (2) front air floatation tables: 69" x 25" (1.760 mm x 650 mm); rear support rails with non-marking rollers. -- Options include: ZEBRA "Z4M" Plus thermal label printer; (4) sets main/scoring blades; miscellaneous spare parts. -- Actual model: HOLZMA HPP 350 31/31
