Description:

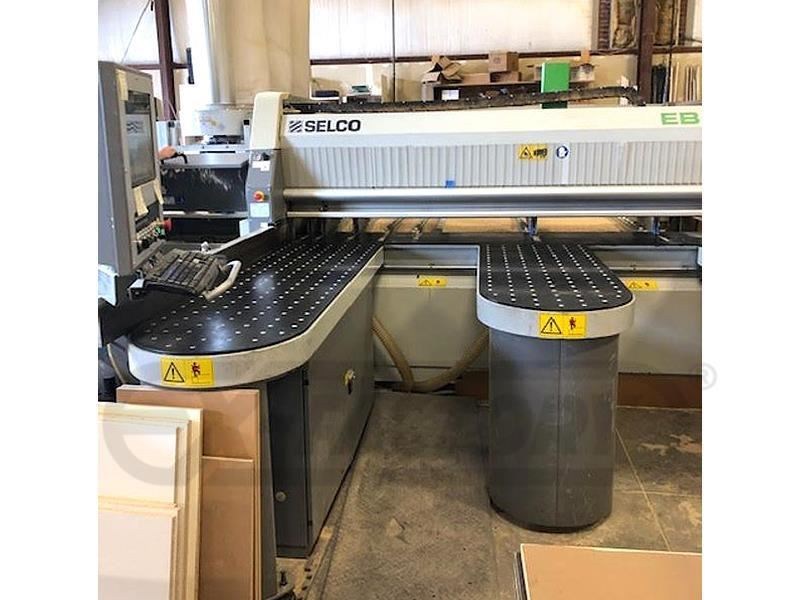

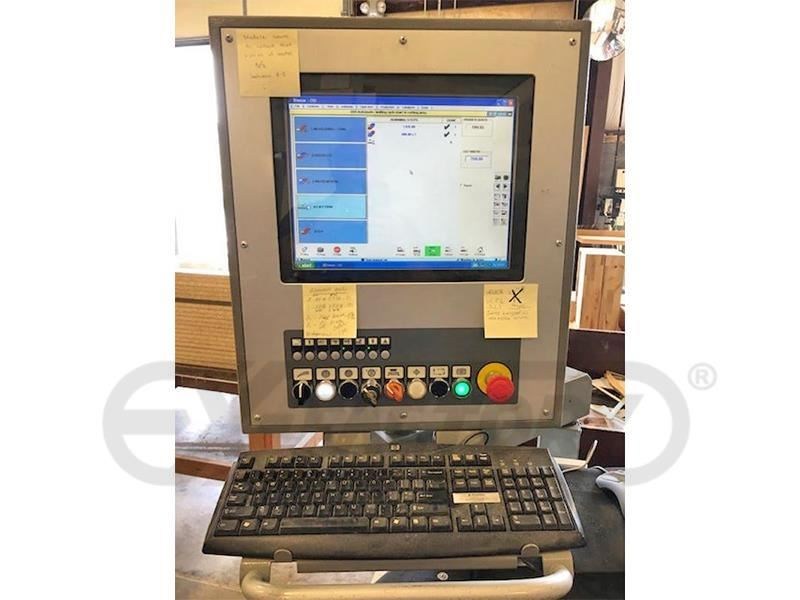

SELCO - EB 70 L, ...CNC Front-Load Horizontal Beam CNC Panel SawSpecifications & Features -- 126" (3,200 mm) Overall cutting length, 2-3/4" cutting height (80 mm saw blade projection); 10 HP main & 3 HP scoring motor. -- Modular roller rear machine table; side aligning device for squaring ripped strips out to 59". -- Variable saw carriage travel speed from: 0 - 164 FPM (0 - 50 MPM). -- Electronically controlled overhead program fence; rack & pinion driven; forward speed of 80 FPM, 131 FPM return speed.Equipped with: -- (6) Clamps (open up to 70 mm - 2-3/4"); (3) are closely spaced in crosscut area & (3) are at equal distance in rip cut area; AC Servo motor drives on both saw carriage & pusher fence. -- PC Controller with: Graphics color monitor & "Assist Line"; LED readout integrated into "high tech" look operator control panel (displays cutting dimensions & patterns), (400) cutting patterns with (50) different dimensions for ea. pattern, self-diagnostic. Machine Features -- 1,500 mm (59") Long crosscut fence (front-to-back); (1) side/crosscut aligner. -- (1) Front mounted air flotation table in the crosscut area (24" x 80"), and (2) front mounted air flotation tables with patented rounded front for moving panel from rip to crosscut position (24" x 59" each). -- 36" Working height; rear of machine partially enclosed for safety.
