Description:

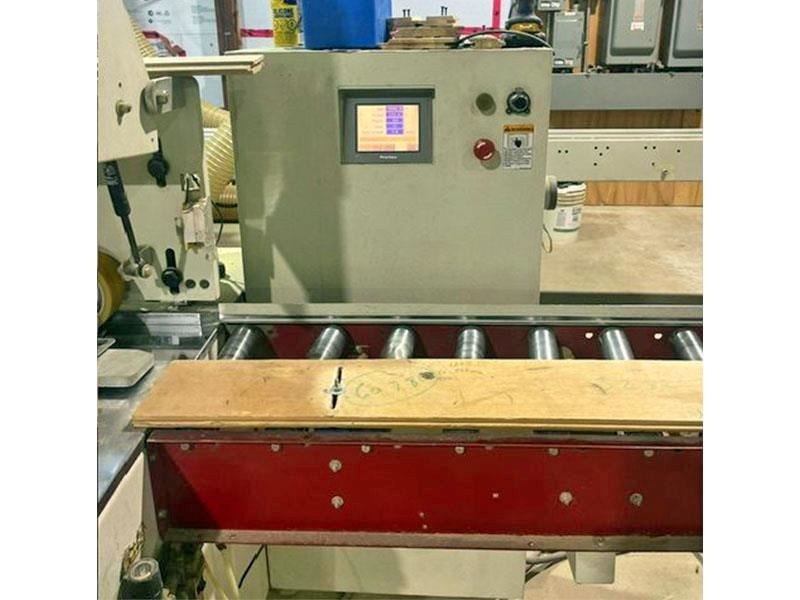

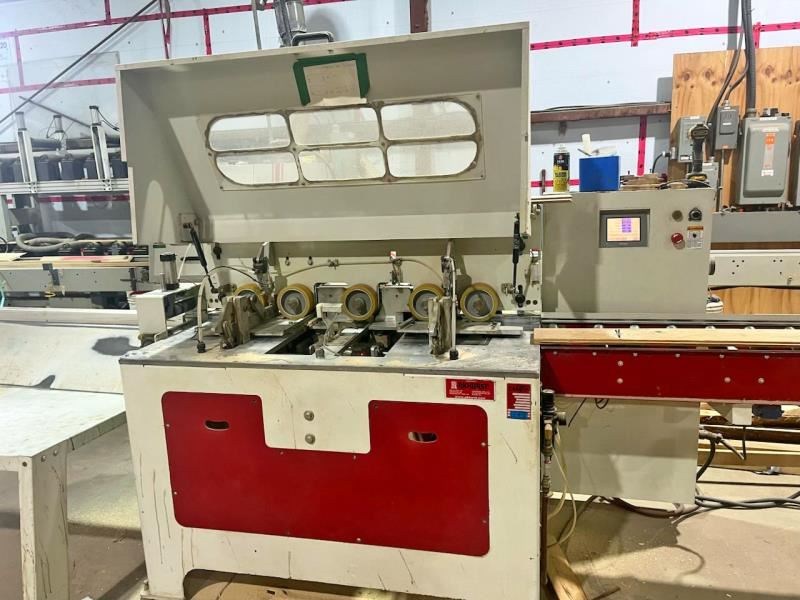

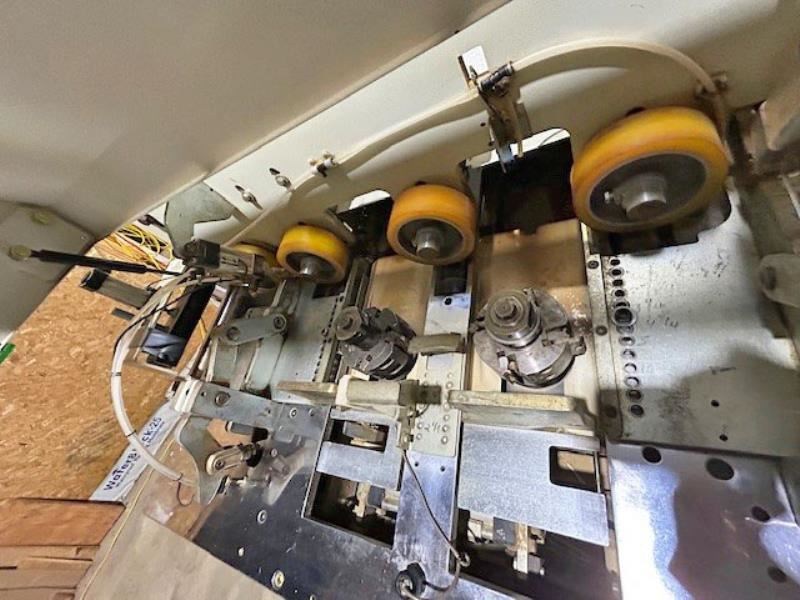

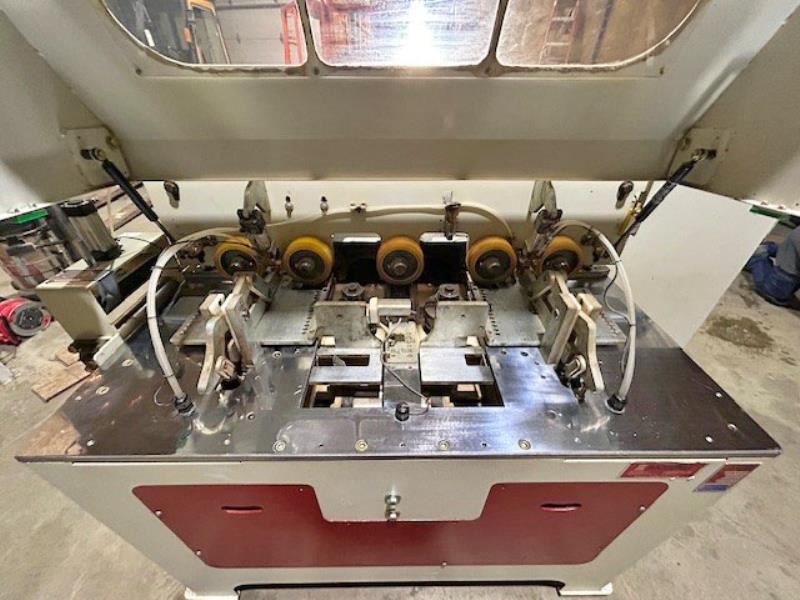

CANTEK - EM-10: Finger Jointer / End MatcherMachine arranged to finger joint but can be easily converted to end match.Specifications -- 1.6" - 10" Width x 3/8" to 1-3/8" thickness x 10.6" min. length capacity; Unlimited lengths possible.Feed speeds: To 295 FPM with approx. production speeds of 77 FPM (based on 6-1/2" incoming boards). -- With standard 118" long infeed table and standard 98" long outfeed table. -- (2) 7-1/2 HP Cutterhead motors; 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top & side.Standard Equipment & Features -- Heavy-Duty self-supporting main frame; compact design requires minimum floor space; capable of processing material as short as 11" to an unlimited length. -- Variable speed through-feed system is controlled by: Frequency inverter; through-feed system allows the fingers to be cut simultaneously on the tail of (1) board and the leading edge of the next board. -- Powered top urethane rolls & spring-loaded bed rollers feed the material into position for processing. -- Pneumatic side pressure ensures the material is held square against the fence. -- Complete safety & noise reduction enclosure; convenient touchscreen control is used to quickly activate & adjust the machine functions. -- Infeed & outfeed roller conveyor.
