Description:

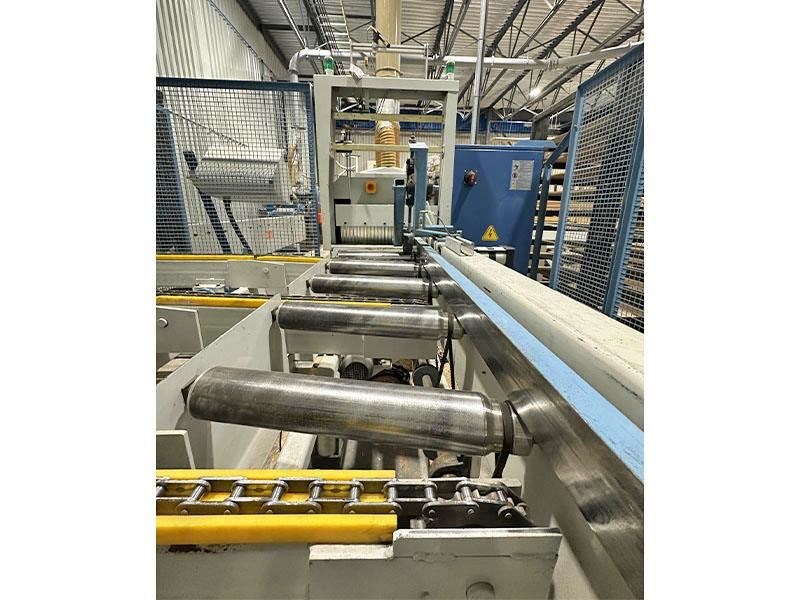

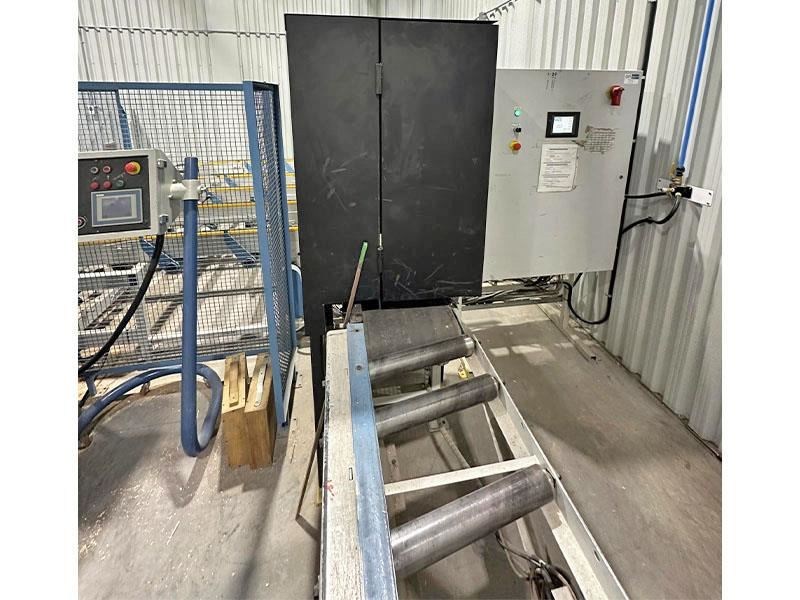

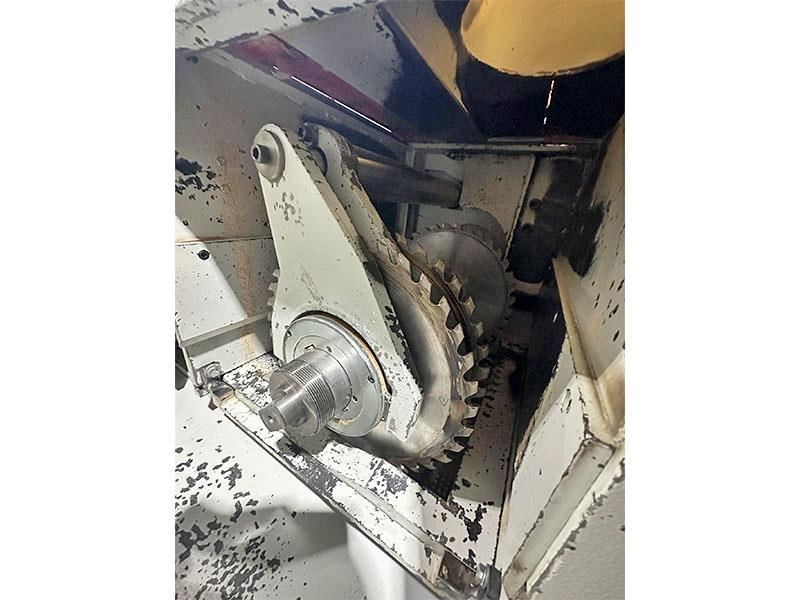

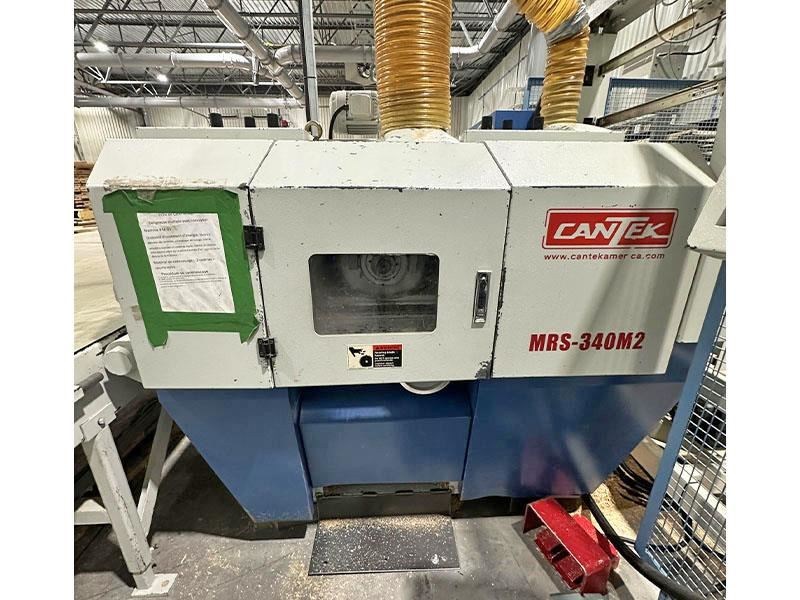

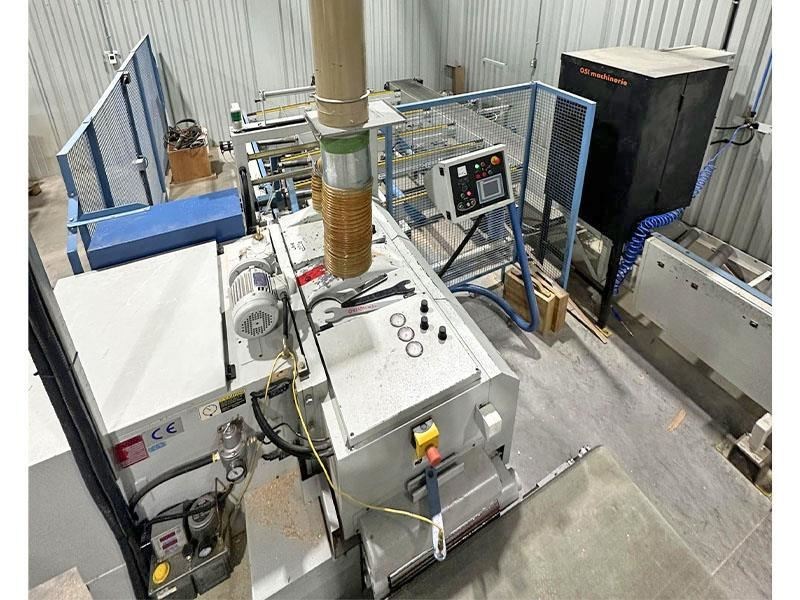

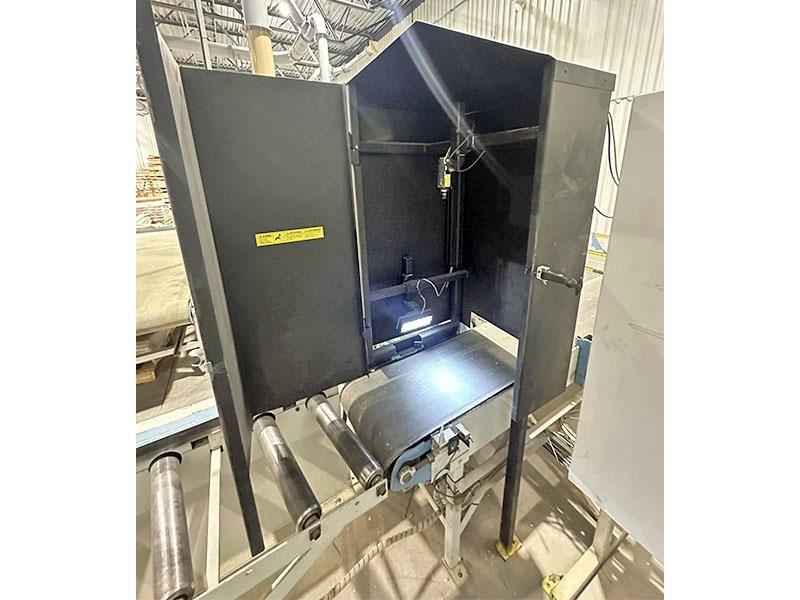

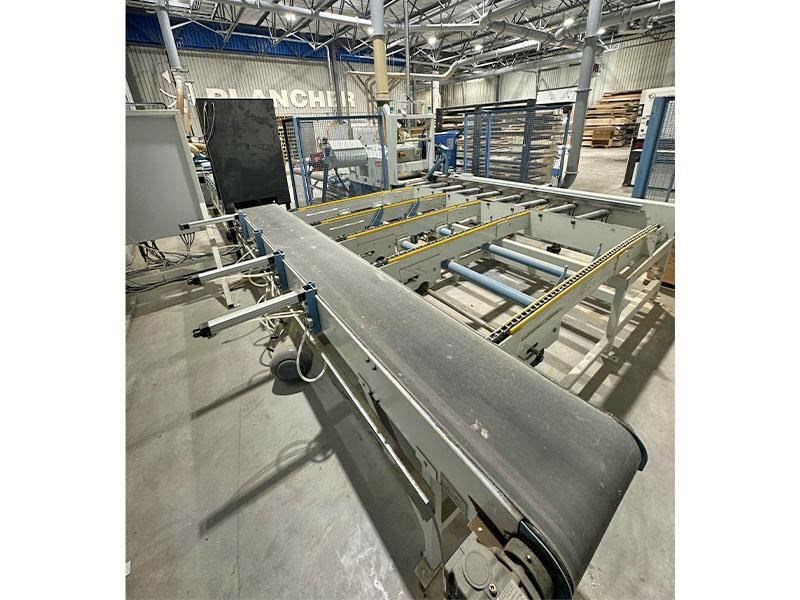

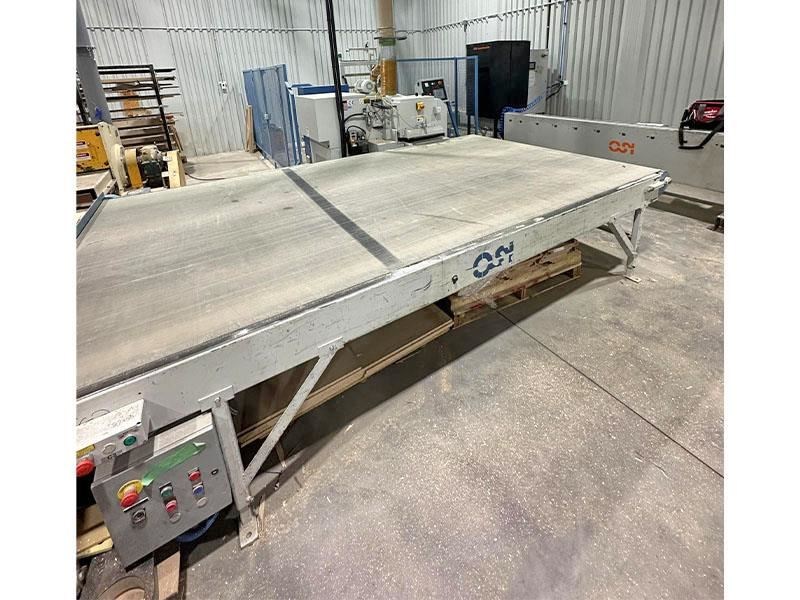

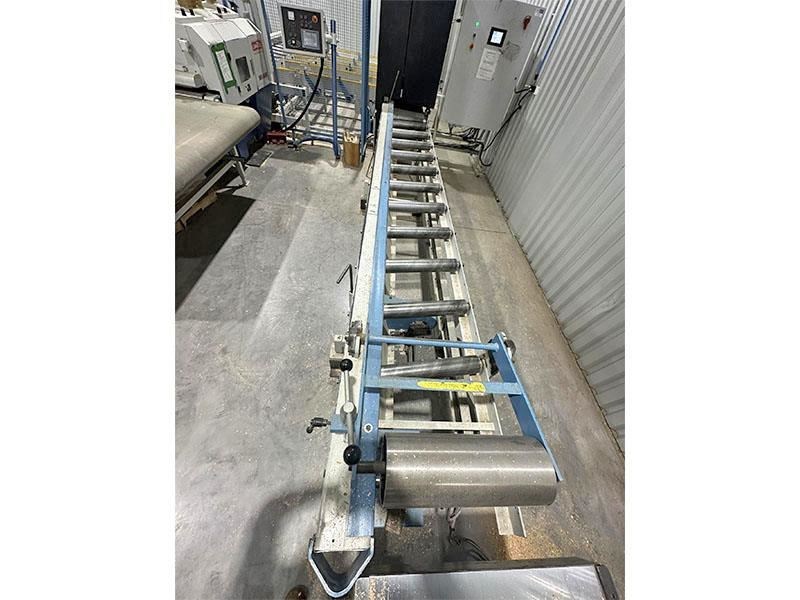

CANTEK - MRS-340-M2, ...Rip Saw Multiblade with OSI OptimisationAutomatid rip line with width optimizationSpecifications -- Part width 3" to 15" -- Part lenght 4' to 14' -- Part thickness up to 4.33" -- Feed speed 15 FPM to 135 FPMLine Composition: -- Inffed roller conveyor 16" X 15' long -- Cognex Width Scanner made by OSI/Logiflex -- Lateral cross feed conveyor OSI 15' X 16' -- Roller conveyor with Automatic fence positionning with control of the 2 moving blade on the Cantek rip sawCantek MRS 340-2 Specifications -- 4.3" Max. thickness with 14" dia. fixed blade(s); 3.3" with 12" fixed blade(s); 4" with 14" movable blades and 2.95" with 12" movable blades; 13.4" max. working width between outside saws 25.6: max. -- 0verall width; 5-1/2" max. distance to fence from inside fixed blade; 0.59" to 13.38" max. saw travel; 23-1/2" min. stock length; 19.7" possible with optional short stock holddown (reduces thickness capacity). -- With 70 mm dia. x 13-3/4" long saw arbor powered by a 50 HP motor driving the blades at 3,800 RPM; 3 HP feed motor; provides feed speeds from 15 to 135 FPM; -- 0.5 HP Lift motor for holddown roll. -- Infinitely variable saw shifting speeds from 0.78" to 3.15" per second. -- 72" x 31" table size; sits 30" from the floor. -- Outfeed lateral belt conveyor 86" X 150" with feed speed of 65FPM OAL: 30' X 30'
