Description:

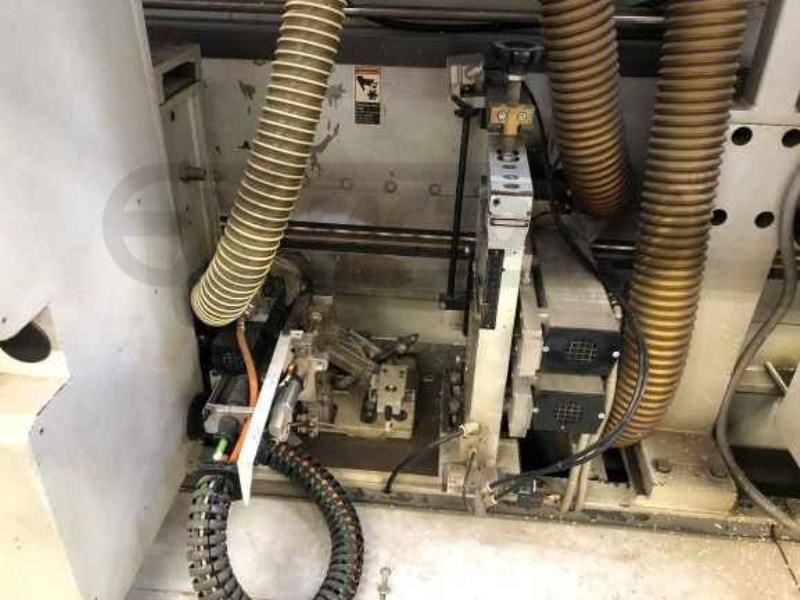

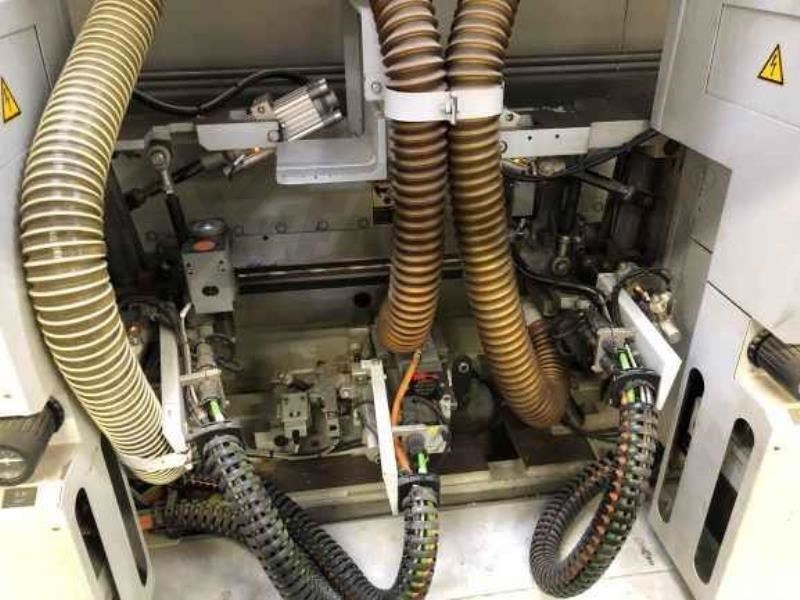

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor;Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst
