Description:

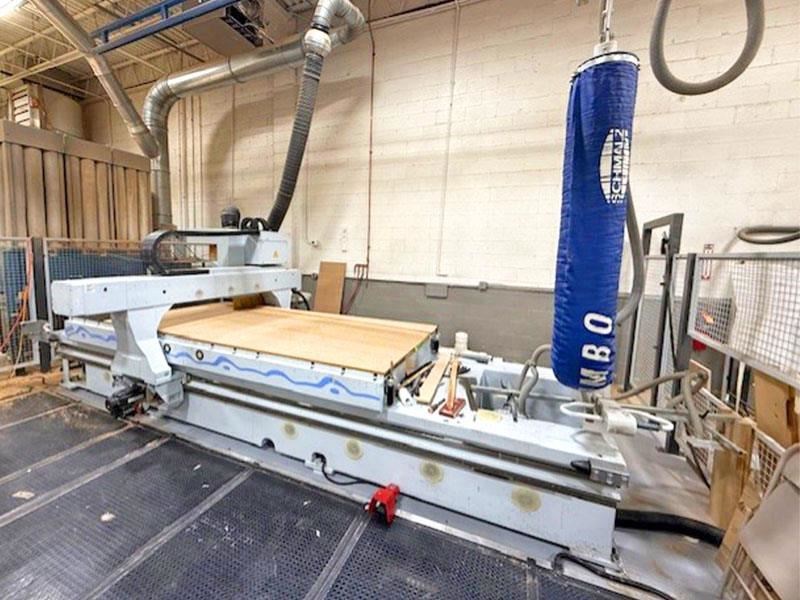

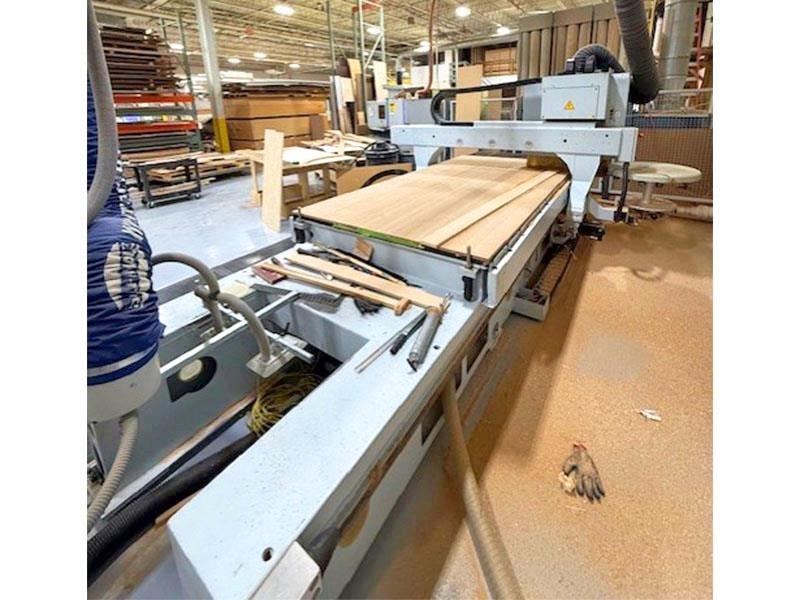

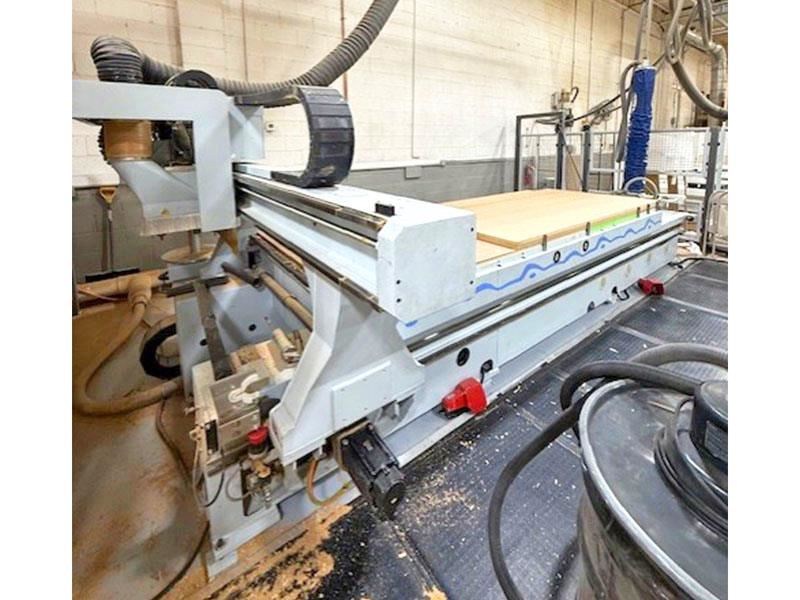

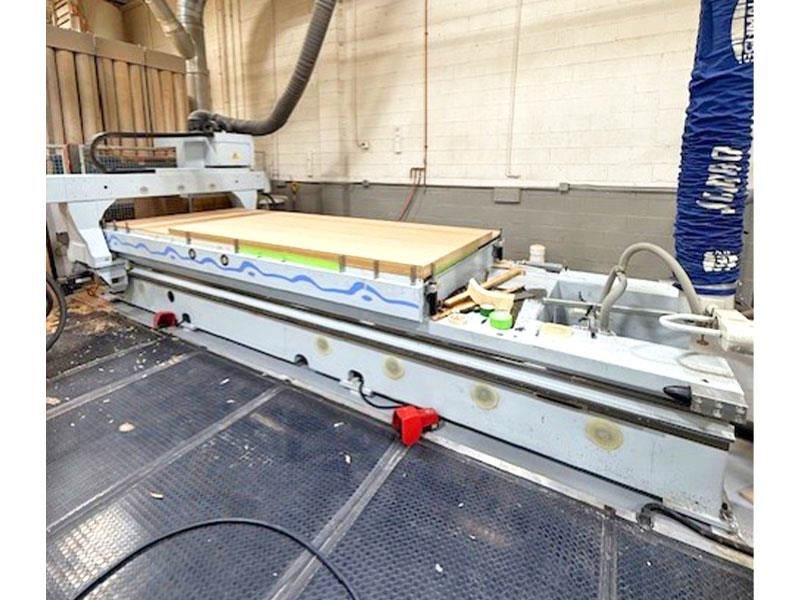

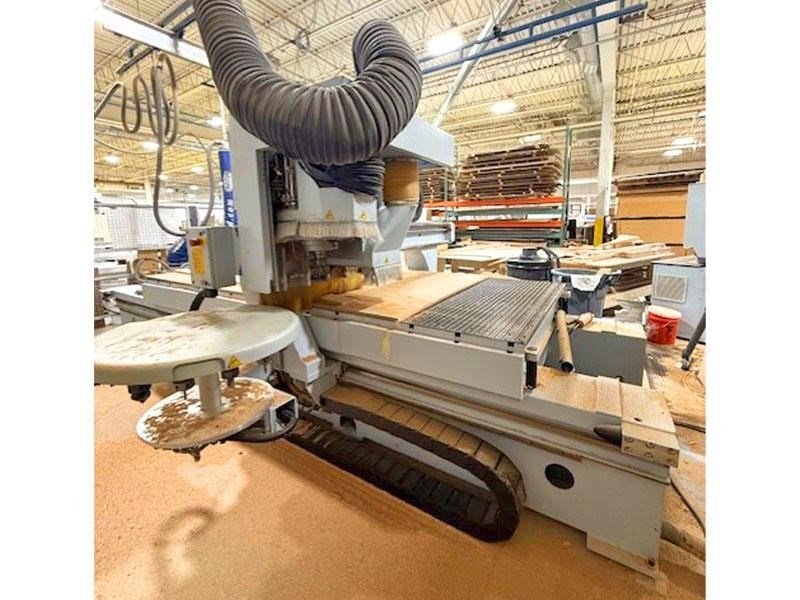

WEEKE VANTAGE 36L (W/BORING/ATC/"C" AXIS): -- Specifications:5' x 12' Bridge style gantry machine; working area cap. "X" Axis is 3,700 mm (145.7"), "Y" axis is 1,550 mm (61"); "Z" axis stroke of 185 mm (7.3"); max. material thickness is 3.9" (100 mm).The head travels on THK linear motion guides on all axes; positioning speed in "X" & "Y" axis is 345 FPM (105 MPM); "Z" axis is 66 FPM (20 MPM). -- Work Table: User-Friendly MATRIX grooved Phenolic vacuum table. The working field can be accessed with all processing units without restriction.(16) pneumatically lowerable workpiece stops, including electrical surveillance of lower cylinder position. -- Boring Unit:With 3.6 HP (2.7 kW) Motor, programmable variable speed from 1,500 - 7,500 RPM; (10) independent vertical spindles.(1) 3-way horizontal spindle head with (1) horizontal spindle in "Y" axis & (1+1) horizontal spindle in "X" axis.(1) NC controlled 0° - 90° "X/Y" grooving Saw with max. 125 mm dia blade; -- Machining:Equipped with: (1) 12 HP (9 kW) High speed constant duty, variable speed electro spindle Router, HSK F 63 adaptor.NC controlled "C" axis for 360° horizontal processing, programmable from 1,250 - 24,000 RPM, RH or LH rotation.(1) 14-Position ATC plate located on the machine head for "on the fly" ATC. -- Operator Interface:PC Front-End with: PC 85T + WoodWop 5.0 + Windows "XP"; 17" TFT color graphic monitor, keyboard for data entry; hand control pendant.CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, and USB ports. BECKHOFF Programmable logic control for (3) axes; linear, circular & helical interpolation.The controller is contained in a separate free-standing, "air conditioned", dust-free control cabinet, which can be placed at either the LH or RH side of the machine. -- WoodWOP 5.0 can be programmed off-line with the same intuitive icon driven software that the operator has on the machine controller. -- Equipped with: (1) 500 m³/Hr Vacuum Pump; safety mats (machine will stop machine if operator enters work area), safety fence, and separate control cabinet. -- Actual model is WEEKE VANTAGE 36L OPTIMAT BHP".
