Description:

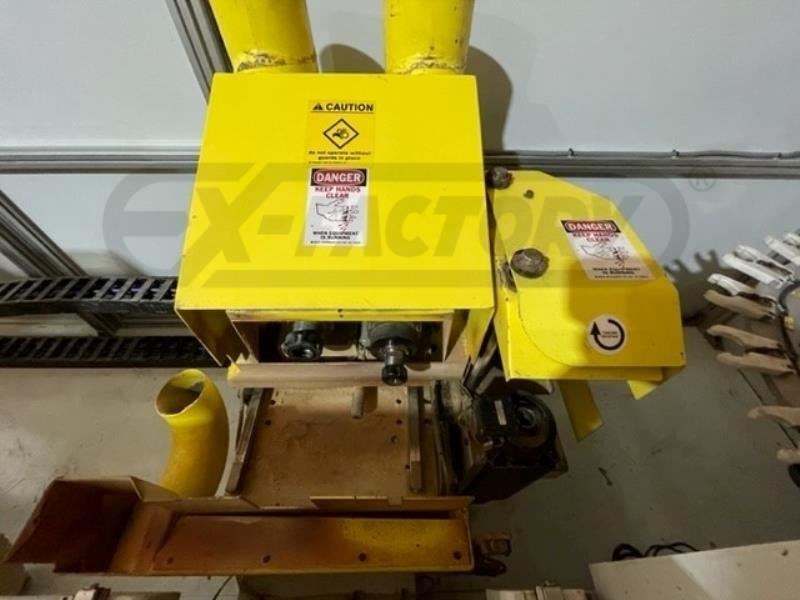

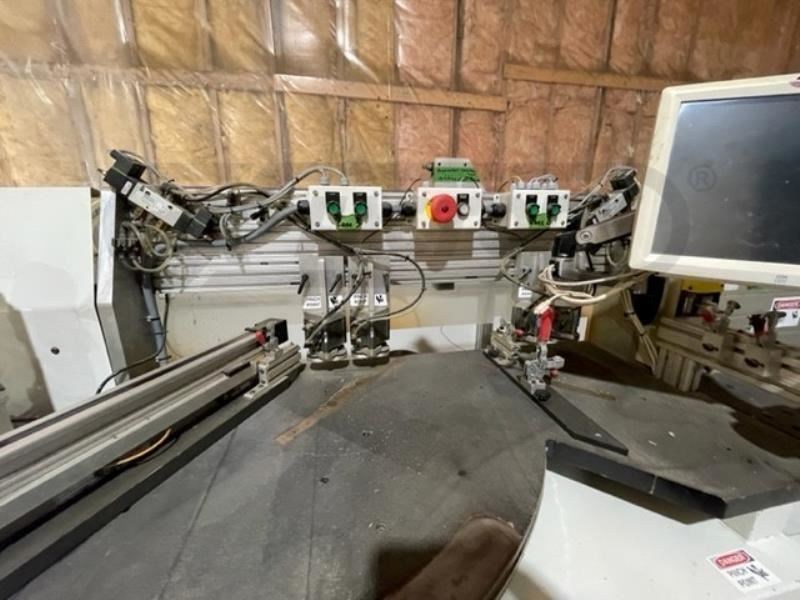

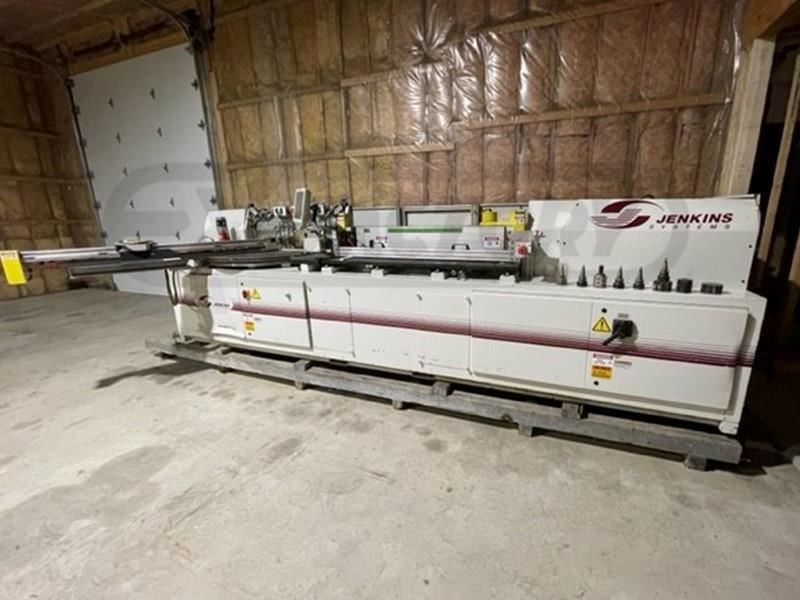

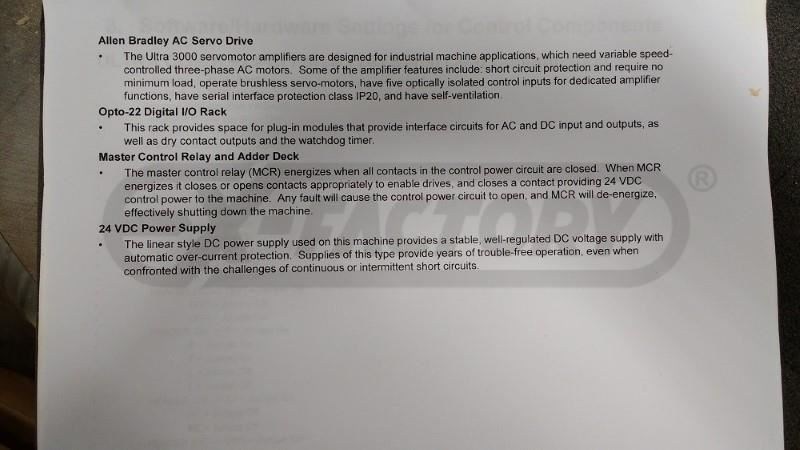

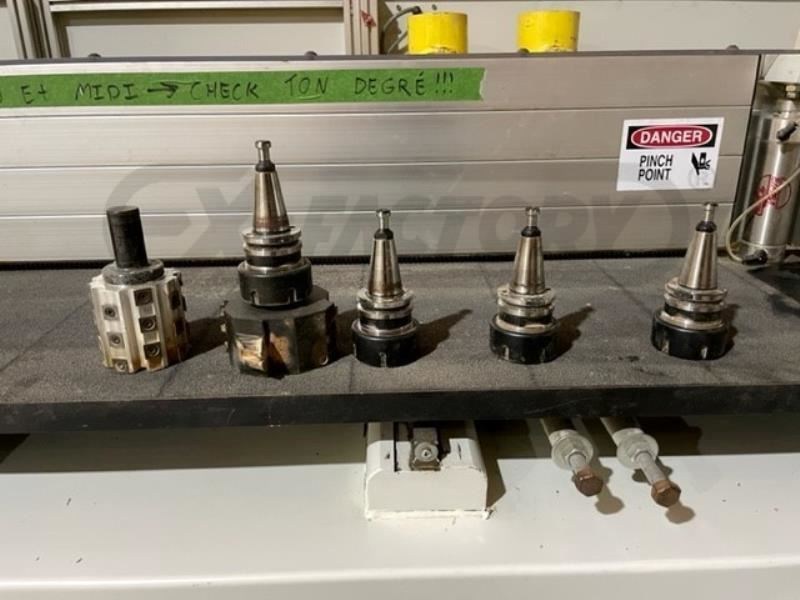

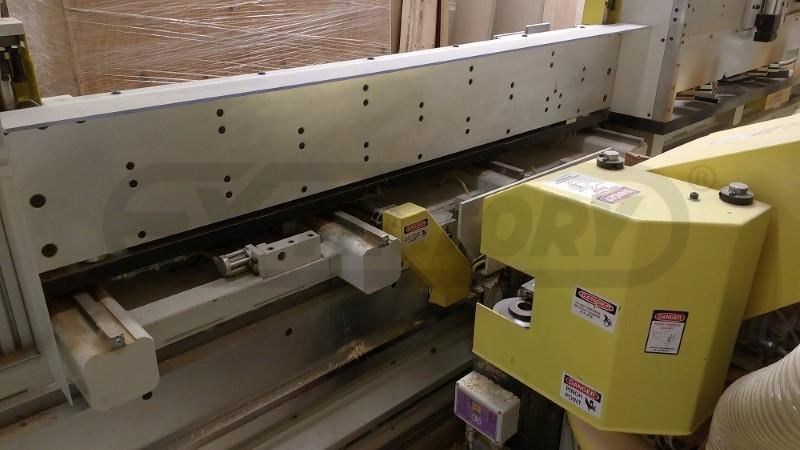

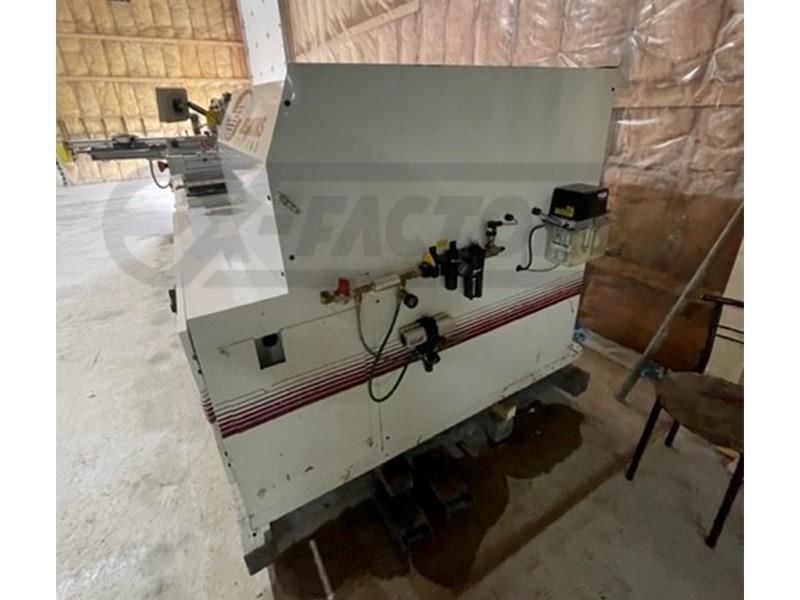

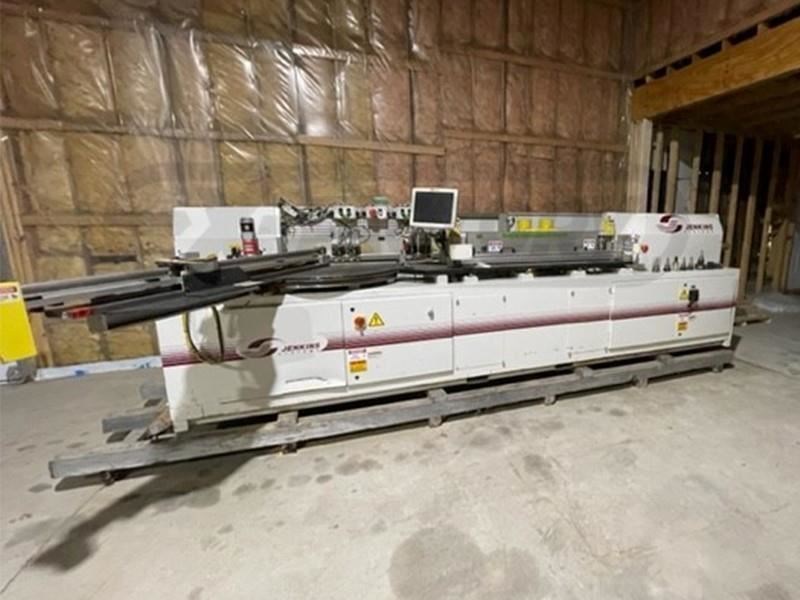

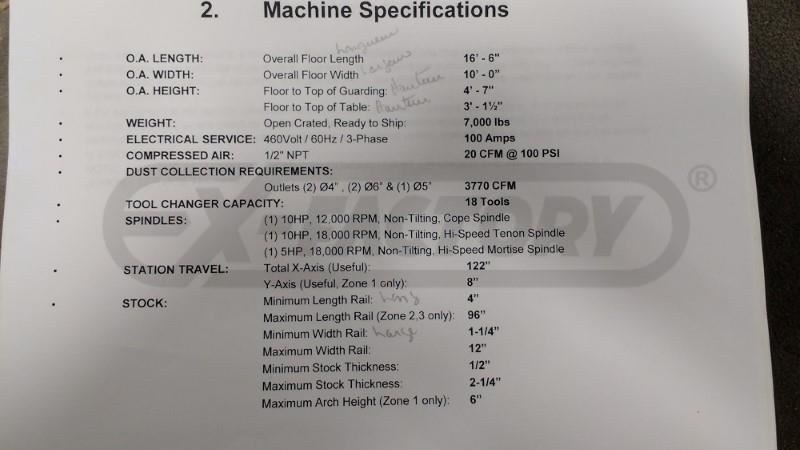

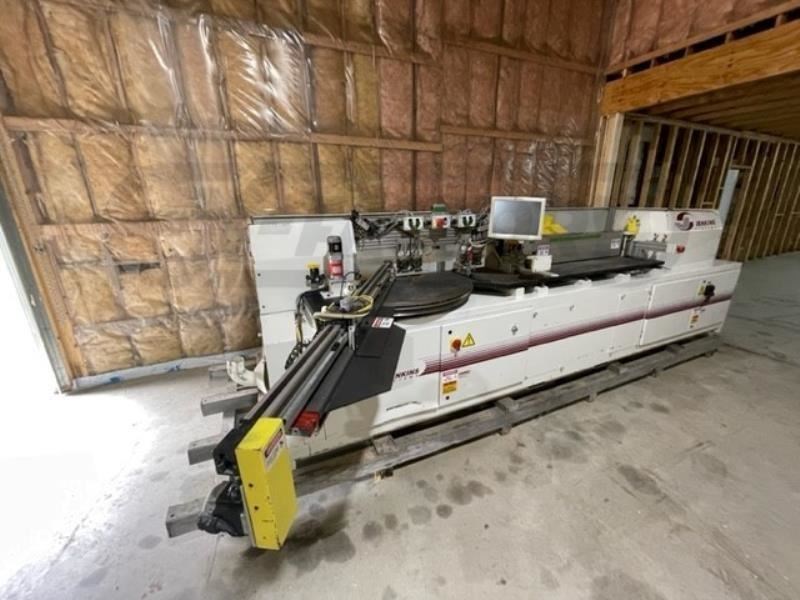

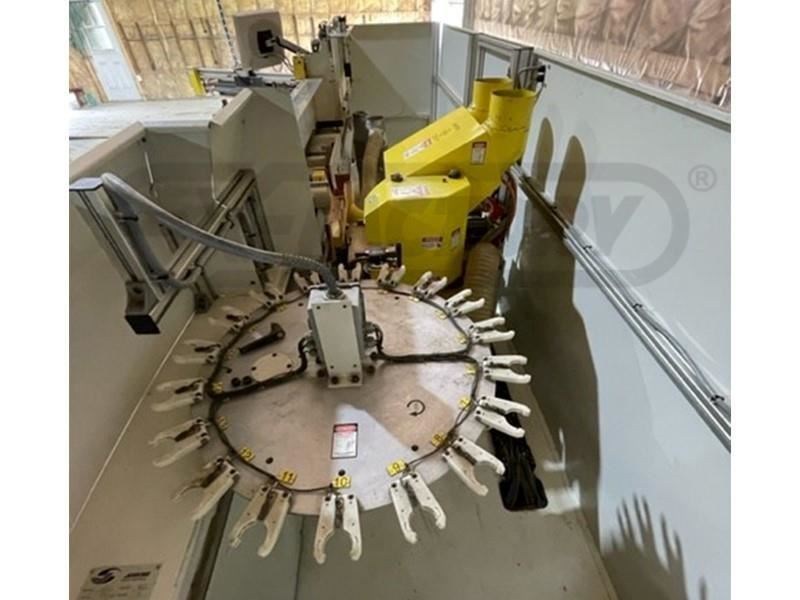

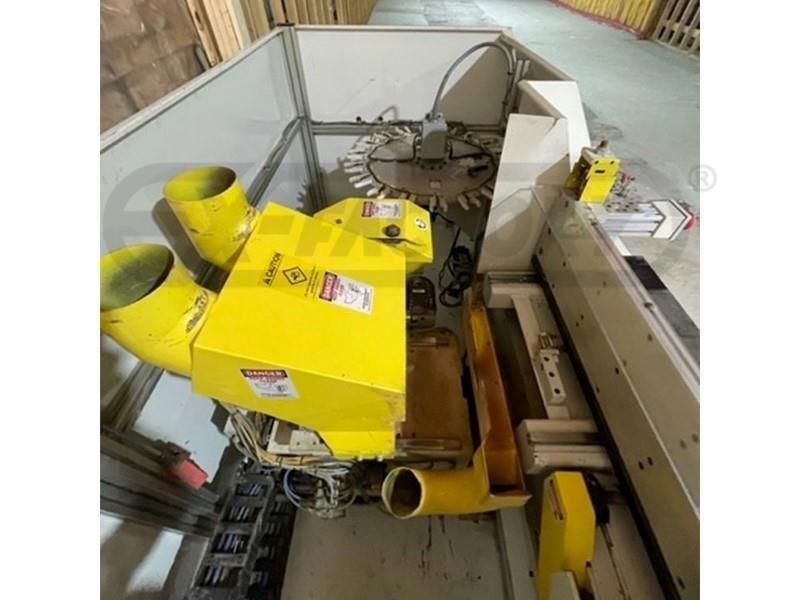

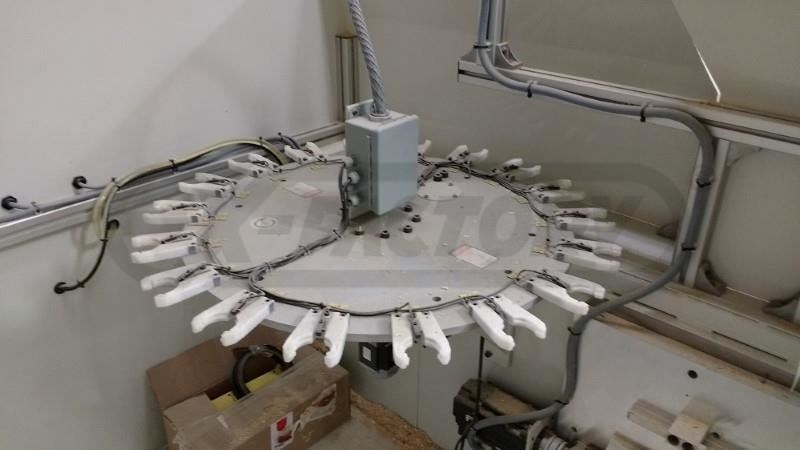

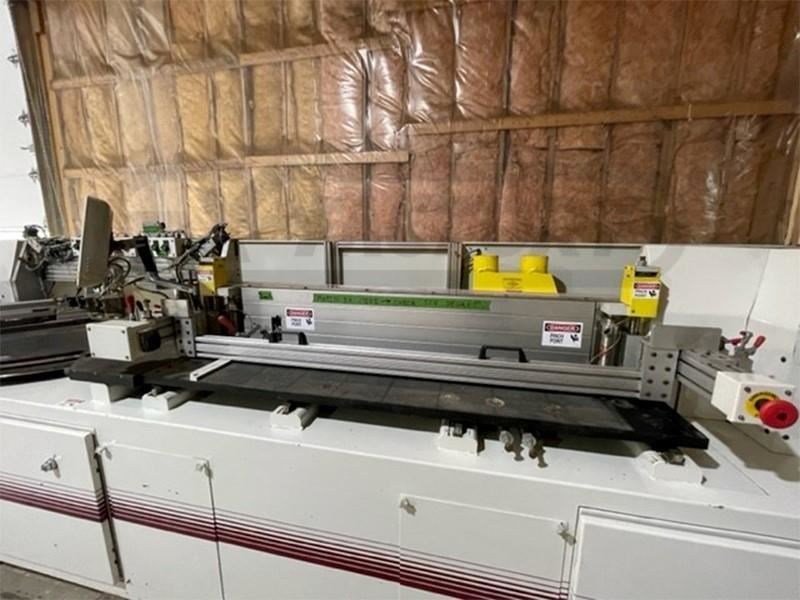

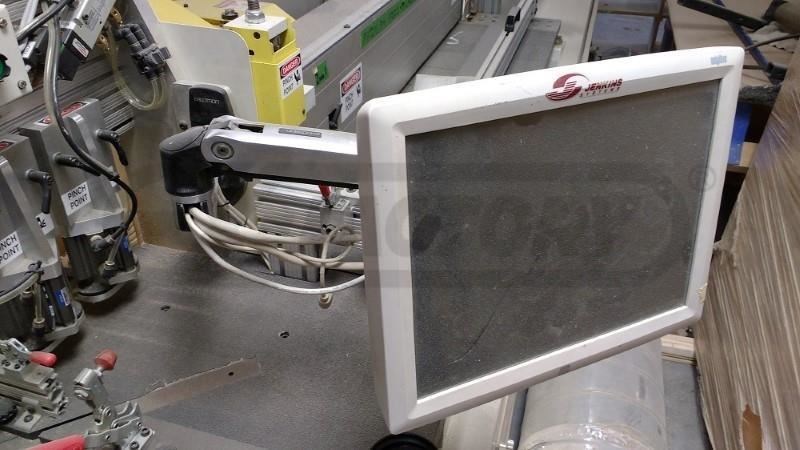

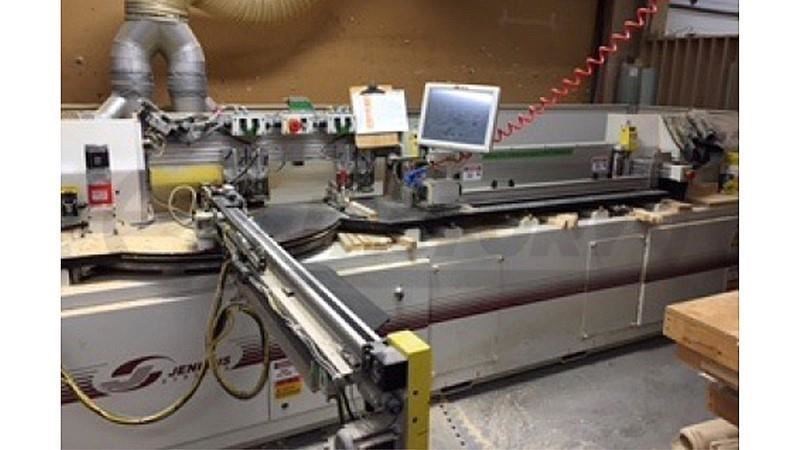

JENKINS - JSM, NC Controlled Shaper & MortiserNC Controlled with: (1) Shaper head with ATC (18) tools, (1) tenon head, and (1) mortising head.Machine Specifications: -- Total X-travel: 122". -- Y-Axis (useful zone-1 only): 8". -- Min. length rail: 4". -- Max. length rail (Zone 2, 3 only): 96". -- Min. width rail: 1-1/4". -- Max. width rail: 12". -- Min. stock thickness: 1/2". -- Max. stock thickness: 2-1/4". -- Max. arch height (Zone 1 only): 6".Spindles: -- (1) 10 HP - 12,000 RPM non-tilting Cope spindle. -- (1) 10 HP - 18,000 RPM non-tilting high-speed Tenon spindle. -- (1) 5 HP - 18,000 RPM non-tilting, high-speed Mortise spindle. -- Tool Changer Capacity: (18) Tools.Controls: -- Industrial PC: Base powered by NEXCOM PEAK "760VL2" all-in-one computer card, industrial-grade computer chassis, LCD color touchscreen. -- YASKAWA Model "V1000": Adjustable AC frequency drives. -- ALLEN-BRADLEY: AC Servo Plus drive model "Ultra 3000".Over all dimensions: -- 16-1/2' Length. -- 120" Width. -- Floor-to-top guarding: 55". -- Floor to tabletop: 37-1/2".
