Description:

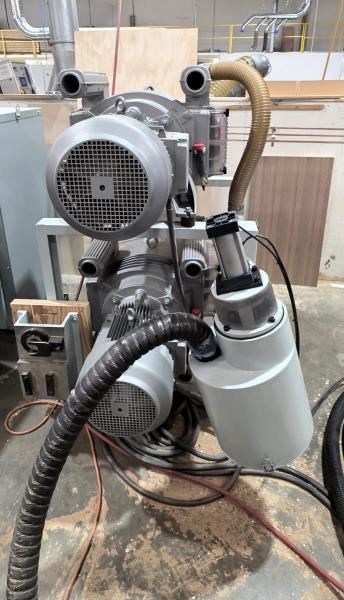

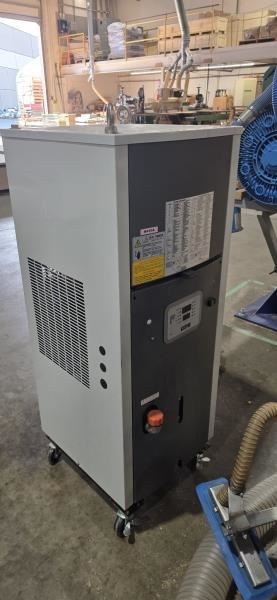

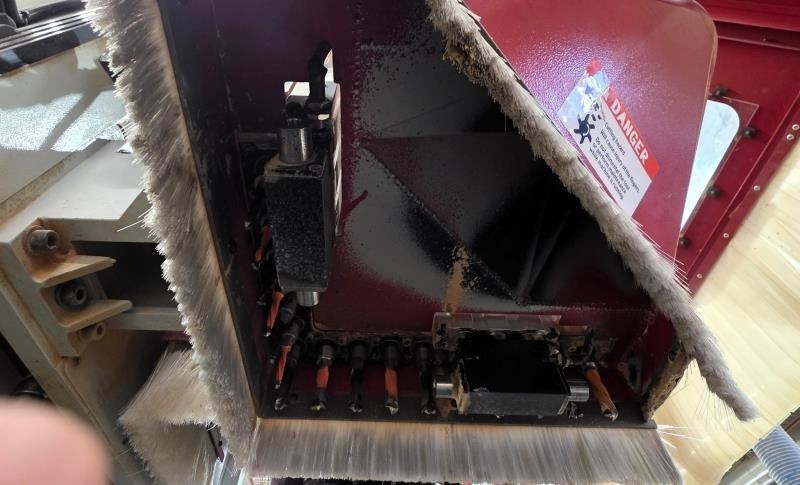

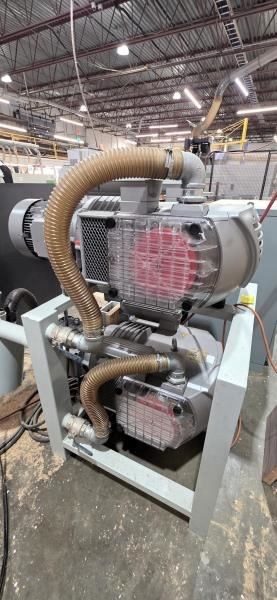

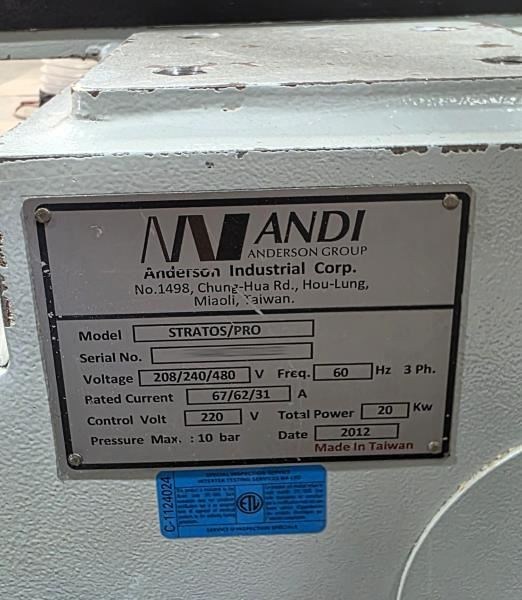

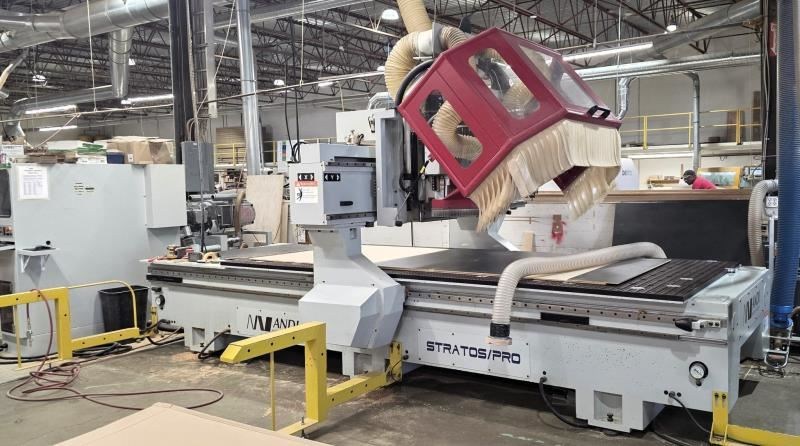

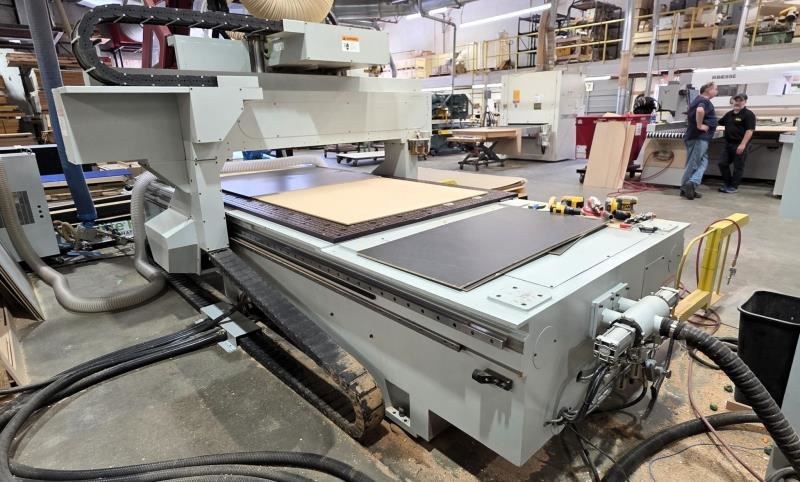

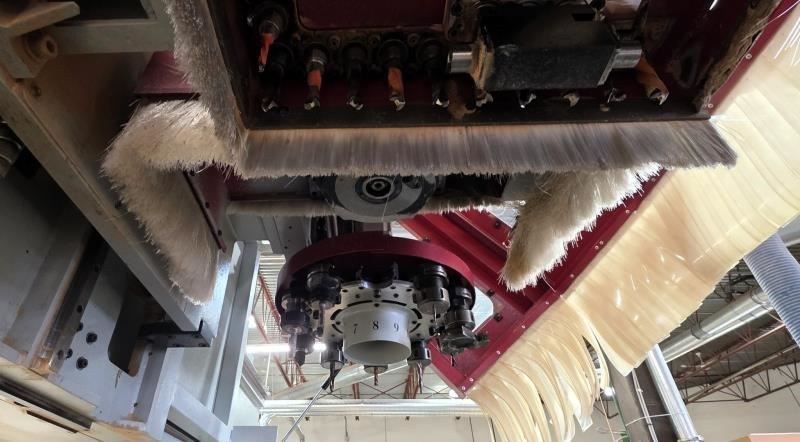

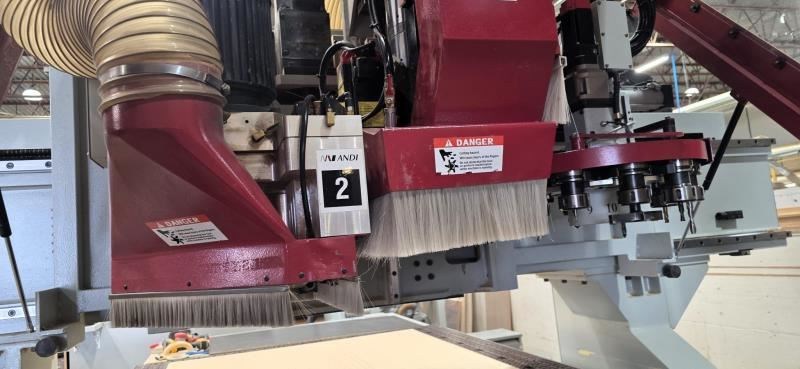

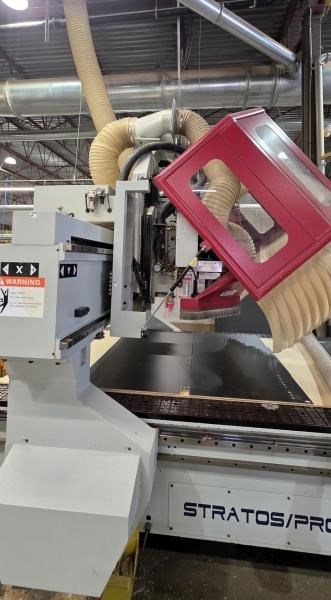

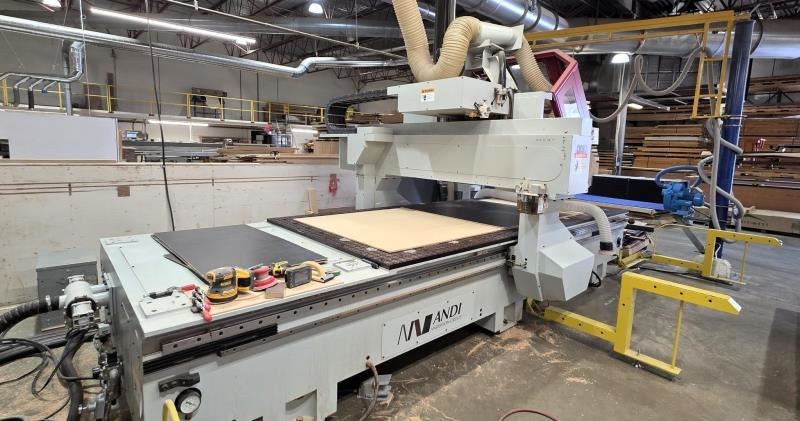

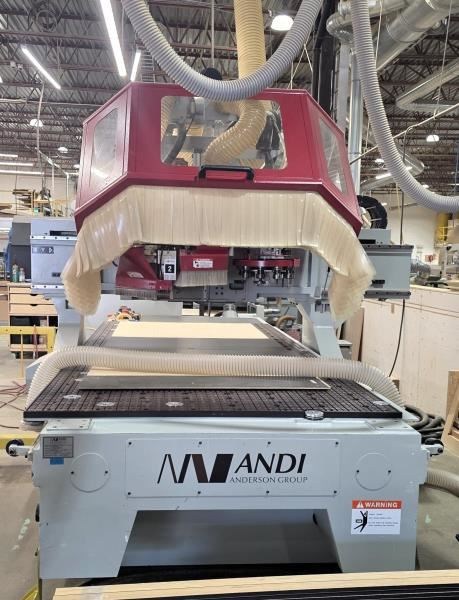

ANDI - STRATOS PRO CNC Router. - 5' x 12' with: ATC, Boring -- Specifications• 5' x 12' Moving gantry; stationary table design in a front-to-back configuration. • (1) 15 HP HSK 63F Liquid Cooled Router Head• (1) 10-Position Automatic Tool Changer• (1) Multiple Spindle Boring Head• Table size: 3700 mm x 1600 mm (146"; x 63";).• Pop-Up Positioning Pins: 15 (12+3).• Vacuum Zones per Table: 2.Axis stroke:• X axis: 3900 mm (153";). Y axis: 2180 mm (86";). Z axis: 350 mm (13.8";).Maximum Rapid Rate:• X axis: 80 meters/min (3,150";/min). Y axis: 60 meters/min (2,360";/min). Z axis: 30 meters/min (1,181";/min).Maximum Feed rate:• X-axis: 80 meters/min (3,150";/min). Y-axis: 60 meters/min (2,360";/min). Z-axis: 30 meters/min (1,181";/min)Spindle #1 - Router Spindle:• Spindle type Anderson 4-Pole, HSK63F. Motor power 13.5Kw. Spindle speed (RPM) 1,000-22,000. 10-Position ATC plate. C-Axis for 360° Horizontal processing.Spindle #2 - Boring Unit:• Spindle type: Line Boring Unit. Motor Power: 2 HP. Spindle speed: 4,500 rpm. Vertical Drills: 10 x 6. Horizontal Drills: 4. Drill Shank Dia: 10 mm.Vacuum hold down system:• 2 Becker Pump(s): Power (per pump) 9 HP Flow (per pump) 168 cfm. Total Pressure 24" Hg (new vanes installed May 2026)
