Description:

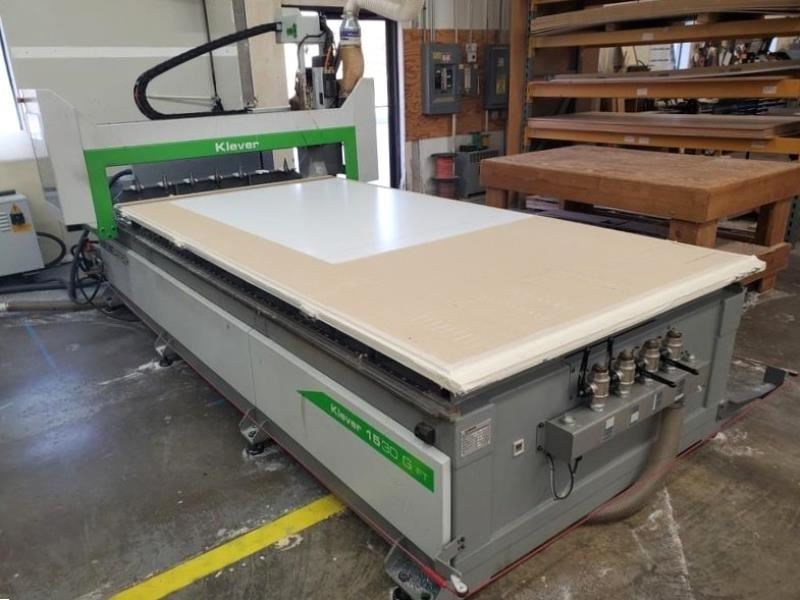

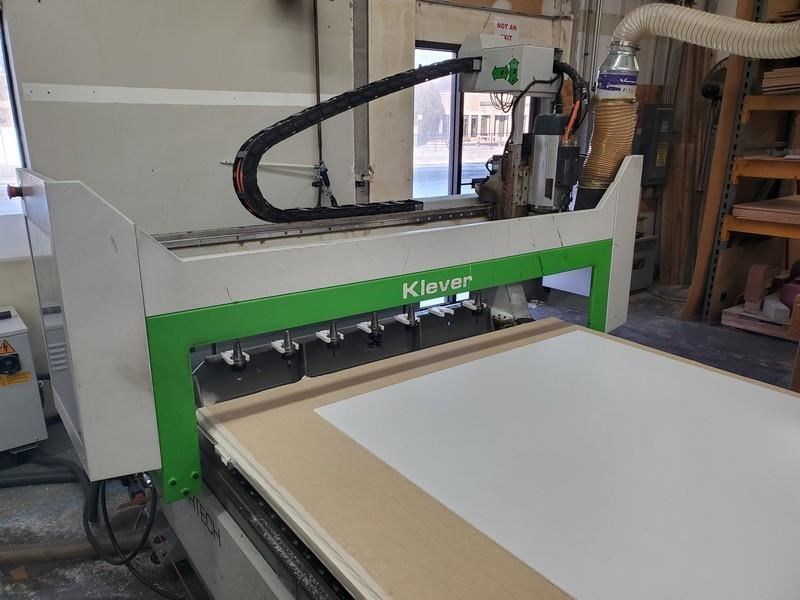

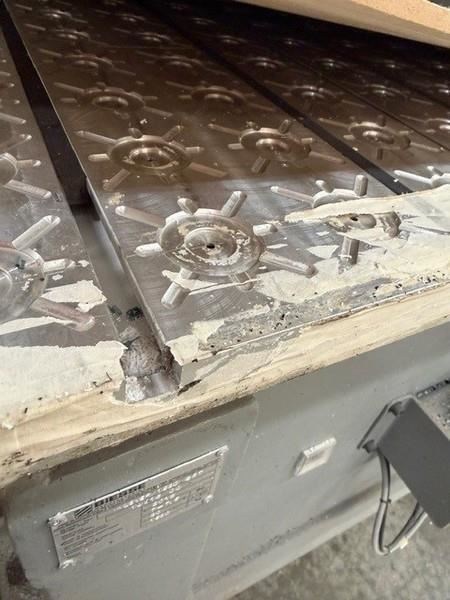

BIESSE KLEVER 1530 G FT FLAT TABLE MACHINE: -- Specifications:5' x 10' "Bridge Gantry" machine with T-Slot "Aluminum" grid table with multiple vac ports that allows vacuum locking (vacuum pump required), or T-Slot Pressure Clamps. -- Working Capacity:"X" Axis 120" (3,050 mm), "Y" axis 60" (1,550 mm), "Z" axis stroke is 10.2" (260 mm), max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" axis 74 FPM (23 MPM), "Z" axis 41 FPM (13 MPM); "X" & "Y" Axes use a precision rack & pinion system, "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work Area:Flat table design with T-Slot "Aluminum" grid table with multiple vac ports that allows vacuum locking (requires a vacuum pump).(3+3) Manual flip reference stops in "Y" axis & (2) reference stops in "X" axis. -- Machining:(1) 12 HP (8.9 kW) Air cooled "HSD" Electro-spindle with HSK F63 adaptor, variable speed from 1,000 - 24,000 RPM.(1) 7-Position ATC rack (automatic tool changer). NC controlled "Touch-off Probe", a digital presetting device for the measurement of the tool length. -- Operator Interface:PC Front End with: Biesse "BH 660" +"BiesseWorks" + Windows "WRT" operating system.19" TFT flat screen monitor, full keyboard & mouse all mounted on a mobile cart. Ethernet connection capabilities. -- BiesseWorks graphic interface with assisted graphic editor used to program machining operations, parametric programming and guided creation of parametric macros.Import of CAD and other external software files in DXF and CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with: Tool Touch-off Probe for automatic program update according to the tool length Automatic Lubrication system for linear guides, pads and re-circulating ball screw Universal Autotransformer for voltages between 200-600 V, 50/60 Hz. -- Actual Model is BIESSE KLEVER 1530 G FTNote: There are NO vacuum pump(s) included. The original monitor does not work; we use a replacement monitor. Control AC unit does not work.
