Description:

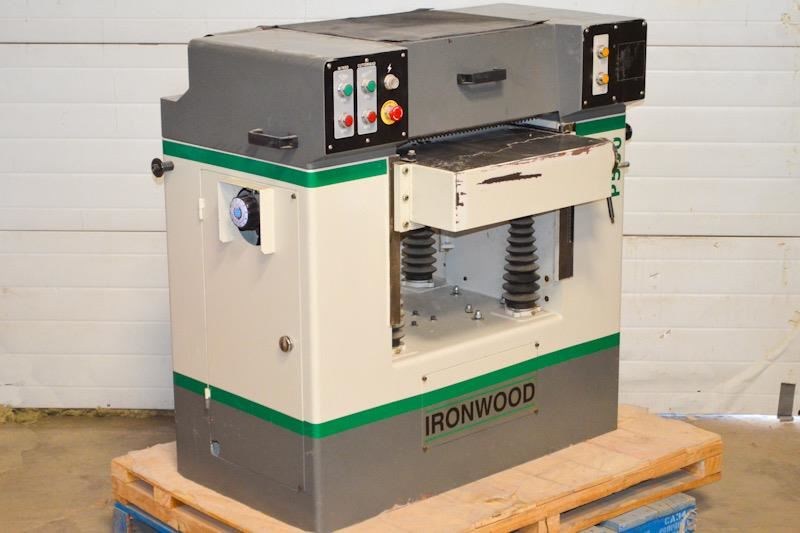

IRONWOOD P500 508 mm (20") Surface Planer, with Spiral Insert Cutterhead Specifications: 20" (508 mm) max. Width cap., 11.8" (300 mm) max. thickness cap., 0.393 (10 mm) min. thickness cap., 0.325 (8 mm) max. cut depth, 8.6 (220 mm) min material length (un-butted). 7.5 HP Main motor, 3.8" (98 mm) dia. cutter-head with 4.0' (102 mm) cutting circle @ 4,800 RPM; Spiral cutter-head with 75, 2-sided Carbide cutter inserts. Equipped with: Digital Position Controller for Up/Down of the Table. Variable speed by Frequency Inverter from 19 to 39 FPM / 1 HP feed motor. 0.25 HP Motorized support table, 29.4 (748 mm) long x 22.1" (562 mm) wide bed; the table is supported by (4) oversized columns with height positioning via keypad entry within the digital controller. Automatic power off when the top safety hood is opened. Both the infeed chip-breaker and the outfeed pressure rollers incorporate spring-pressured adjustments to ensure positive contact on the workpiece as it is passed through the planer. Two 3” adjustable bed rollers for planing of rough or finished lumber, as well as glued panels. Complete with & more: Magnetic starter, Adjustable bed rollers, (1) 6" dia. Dust outlets. Requires 800 CFM; Instruction Manual & Parts List; Shipping weight 1,800 Lbs. Features: The IRONWOOD P500 Series of 20” thickness planers provide operators with solid thickness planning machinery that offers a powerful cutting performance. This machine features an enhanced heavy-duty cast iron table that is heat-treated and precision ground to assure the greatest rigidity and stability during intense cutting operations. The Ironwood Planers offers enhanced engineering designs and superior build construction for long-lasting and trouble-free performance. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.
