Description:

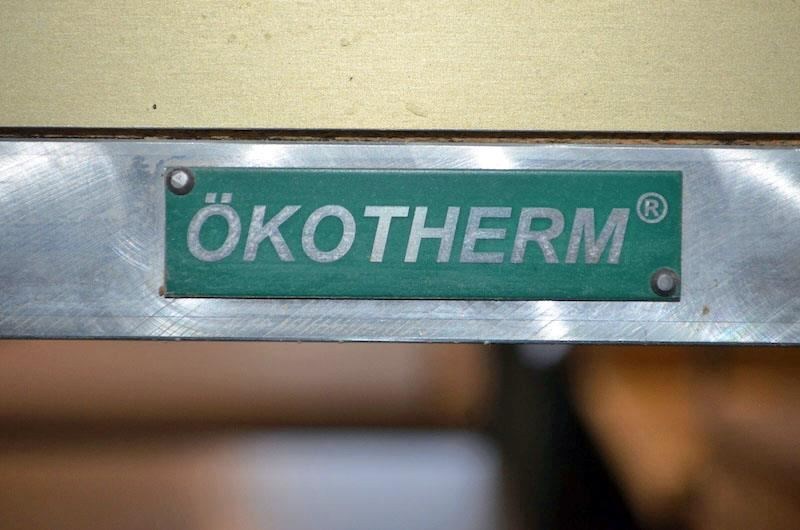

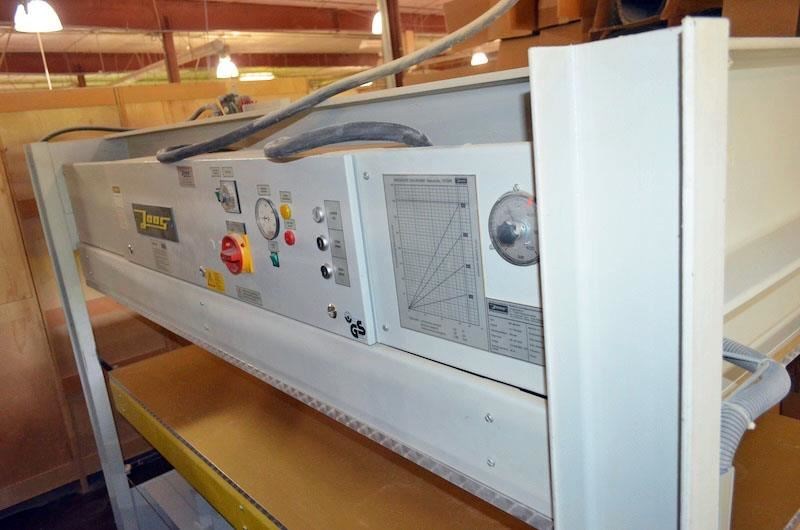

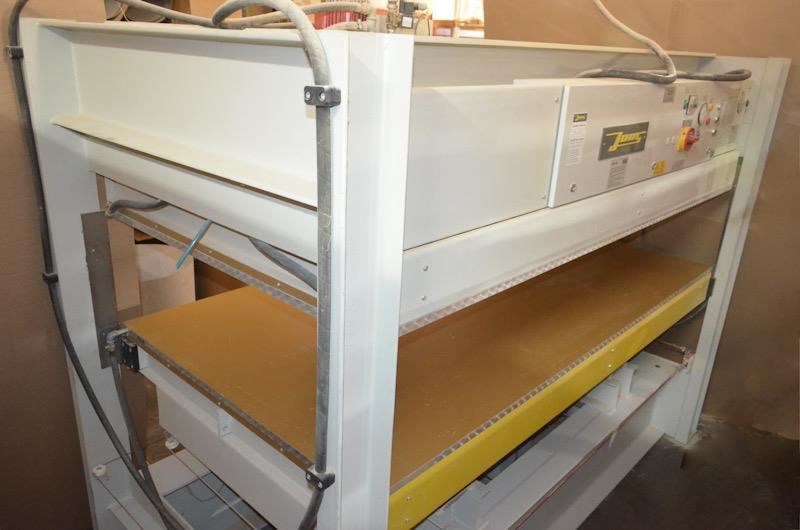

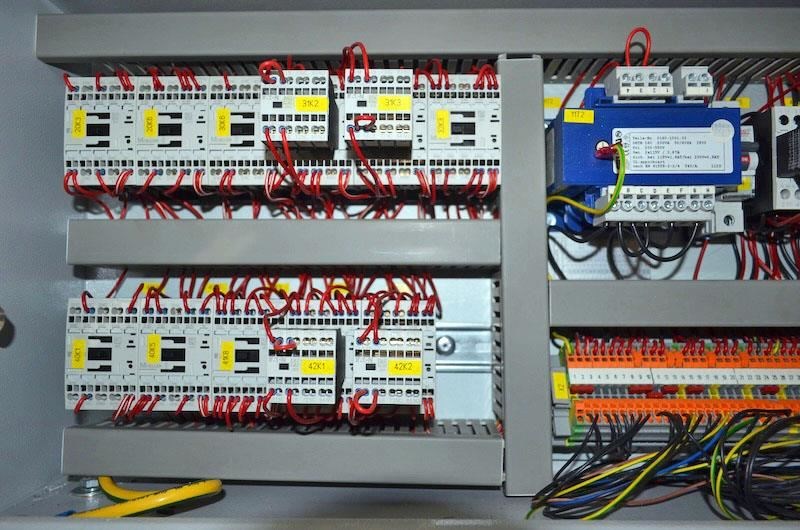

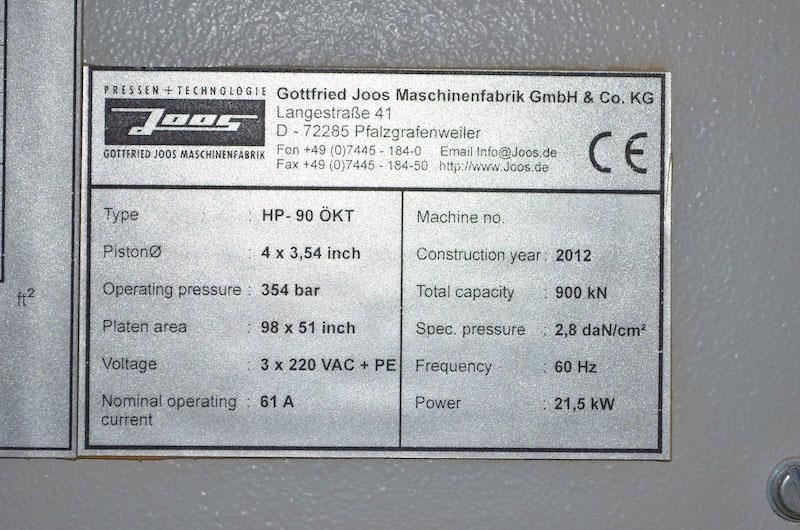

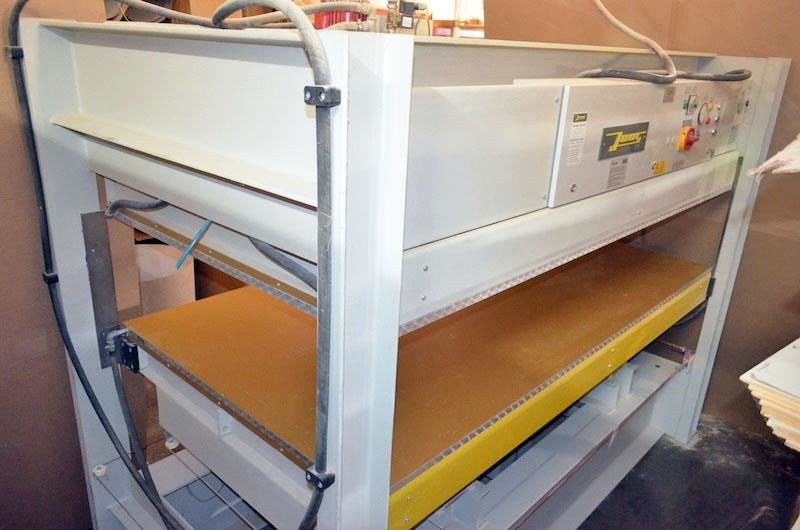

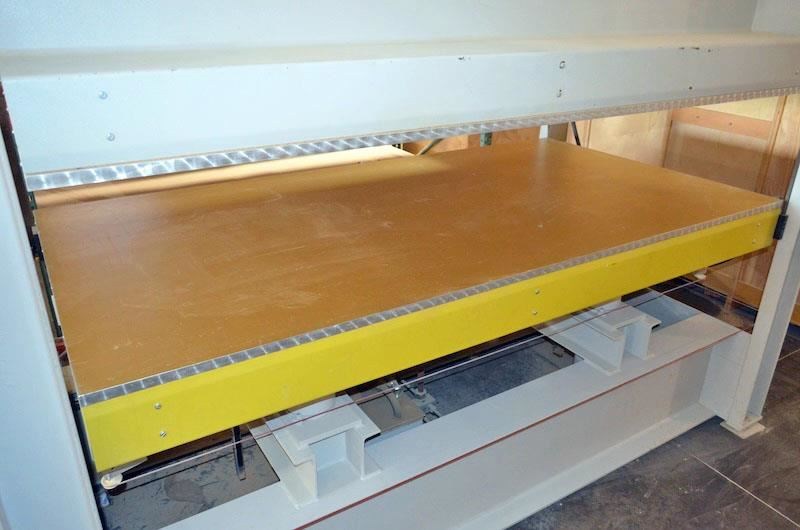

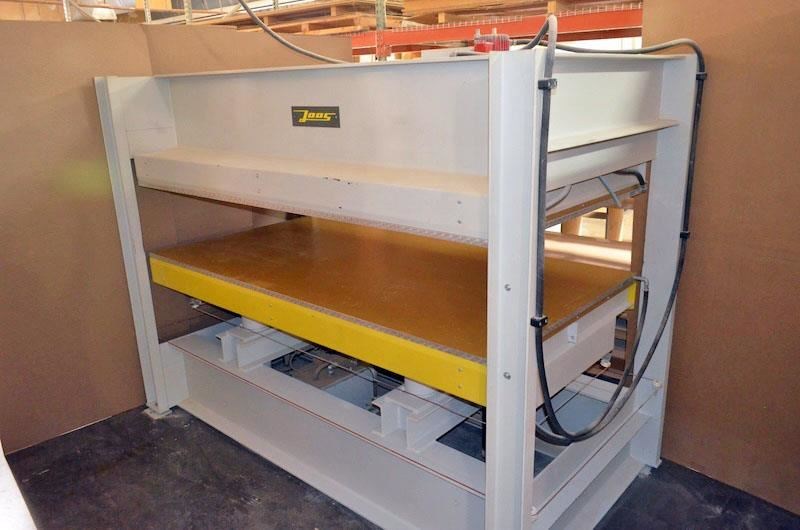

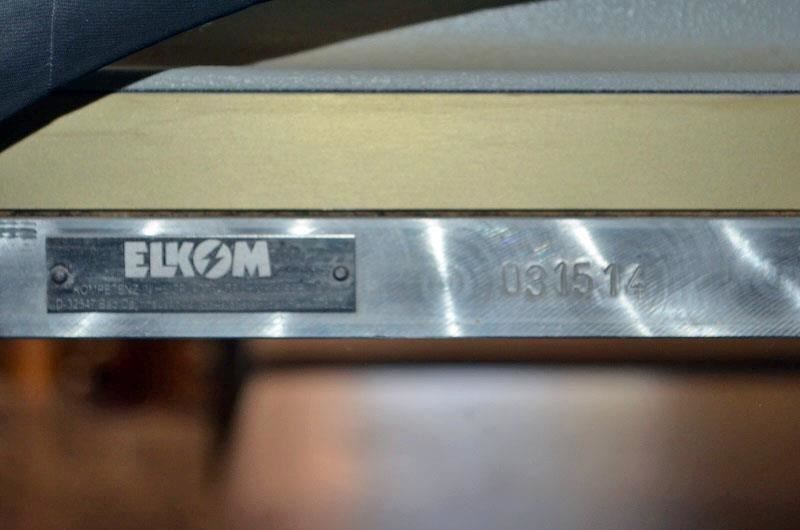

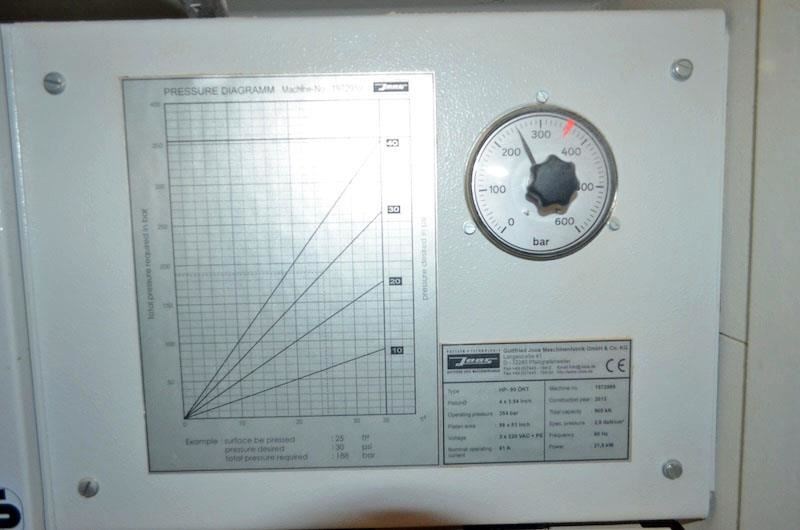

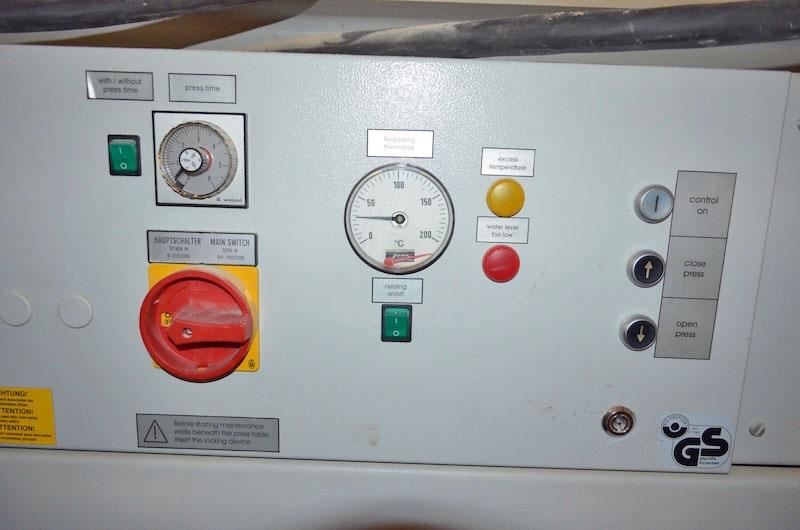

JOOS HP-90 Hot PressPlaten size 51" x 98", load from all sides, 90 metric tons of pressure,Features: -- PLC control of press functions, (1) upper & (1) lower "OKOTHERM" short cycle electrically heated glycol/water platens, tempered gold anodized platen surfaces to prevent glue build up and scratches. -- TOOL-TEMP Heater used for heating both platens. Recommended Maximum Platen Temperature is 110° C (220° F) -- 36 PSI specific pressure over the entire platen, (4) 80 mm dia. upstroke cylinders, 15" stroke.Complete with: -- 2-Stage 1.2 kW hydraulic high-pressure pump, patented ABS parallel safety closing system (If the press is loaded improperly the hydraulics stop preventing damage to the press.
