Description:

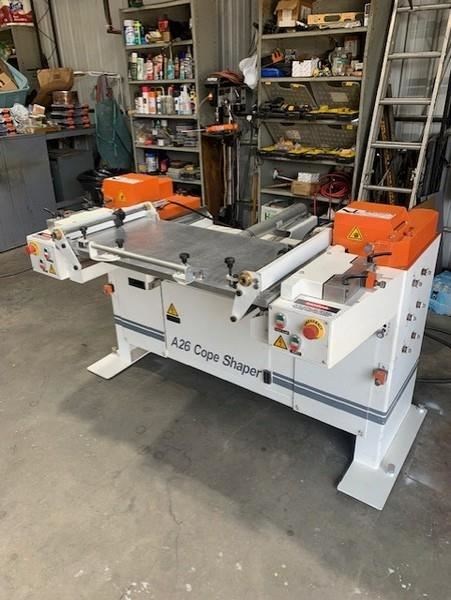

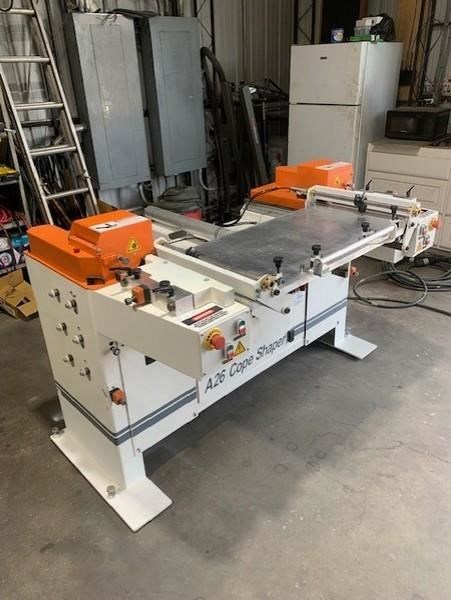

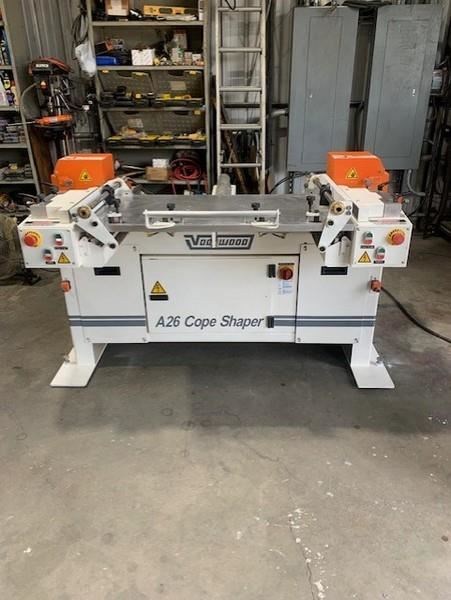

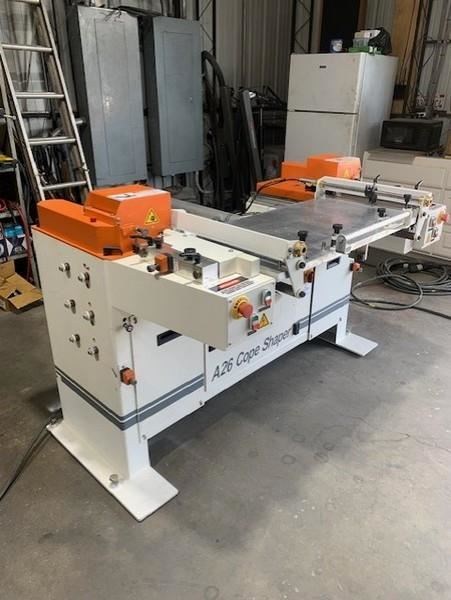

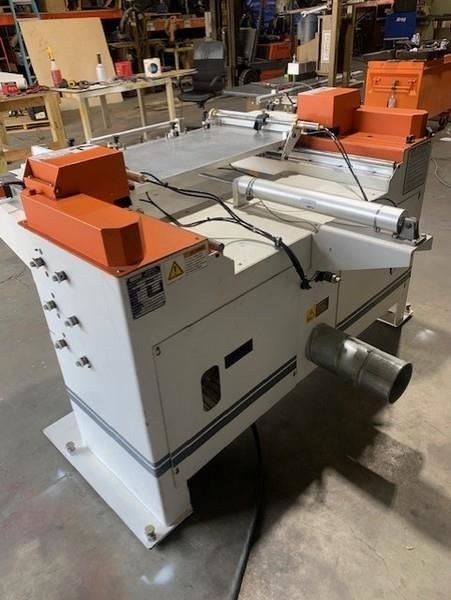

VOORWOOD A26 Dual-Spindle Coping ShaperDesigned to shape single or multiple parts in 1-pass. Produces parts similar to most double-side Cope Shapers.Specifications:Each shaping station equipped with precision balanced drive motor & counter-rotating spindles that cut against the direction of feed; Quick Release Sleeves for quick-change of 1-1/4″ spindles; parts can be quickly transferred from left or right shapers for end-to-end cope cuts (for tenon joint).Both edge guide assemblies are removable, which allows cope cuts on parts longer than 36";.Automatic power feed has 2-handed cycle control for operator safety; backer block to prevent blowout.Pneumatic holddown clamps with non-marring urethane pads: Mounted at each end of the transport table to secure the workpieces as close to the cutting head as possible. Bi-directional clamping ensures consistently square cuts.Spindle diameter: 1-1/4″.Spindle length: 2-1/2″.Min. Shaper head dia.: 4″.Max. Shaper head dia.: 6″.Vertical head travel: 4-1/4″.(2) 5 HP Motors @ 6,100 RPM.Capable of producing: (11) Parts per minute.Capable of processing: Parts of any length.Actual Machine is a VOORWOOD Model A26-C
