Description:

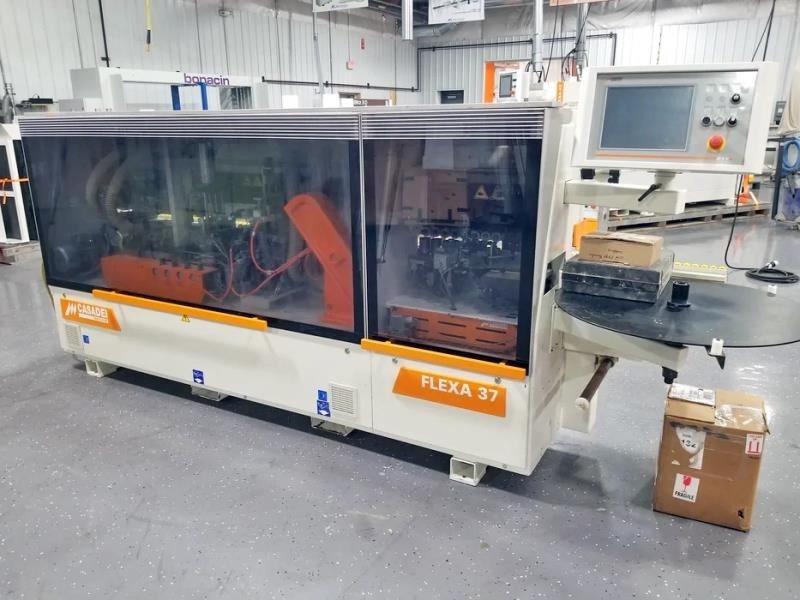

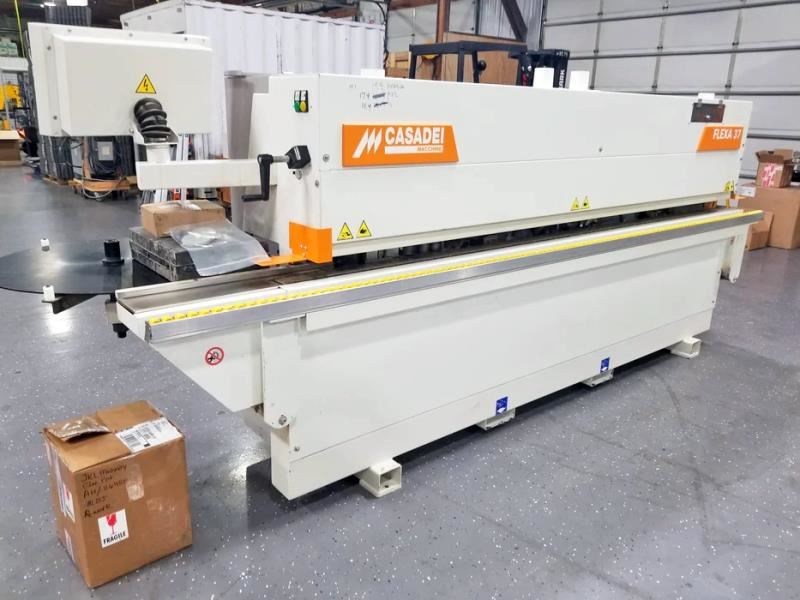

CASADEI/SCM FLEXA 37 EDGEBANDER WITH CORNER ROUNDINGEdge material thickness 0.4 - 3 mm coil & 6 mm (1/4") strips ~ min/max panel thickness 8 - 60 mm (0.31 - 2.36") ~ min. panel width, 80 mm (3.1") and 140 mm (5.5") min. length.Equipped with: Automatic coil & strip feed magazine, with Heavy Duty 3 mm PVC cap. guillotine. Gluing Unit "GP-300", teflon coated quick change glue tank, approx. 10 minute heat-up time, programmable temperature control w/timer if machine idles to prevent glue overheating/burning.Side Pressure Unit: 3-roll pressure unit w/1st roller power driven via clutch with pneumatic in & out positioning, (2) idler rollers.Workstations: -- End Trimming: -- Front & rear end trim (2 x 0.3 HP - 12,000 RPM motor ea.), with pneumatic tilting feature (0° - 15°) from control panel.Top & Bottom Trimming. -- Combination flush/bevel/radius trimming (2 x 0.65 HP - 12,000 RPM ea. motor). tilts from 0 - 25°. Pneumatic 3 position pre-sets programmable from control panel. -- Corner Rounding station. -- Top & Bottom PVC Scraper for up to 3 mm radius. Programmable, pneumatic exclusion on/off. --Top & bottom buffing unit (2 x 0.2 HP - 1,400 RPM motor each), Tlting range 8°
