Description:

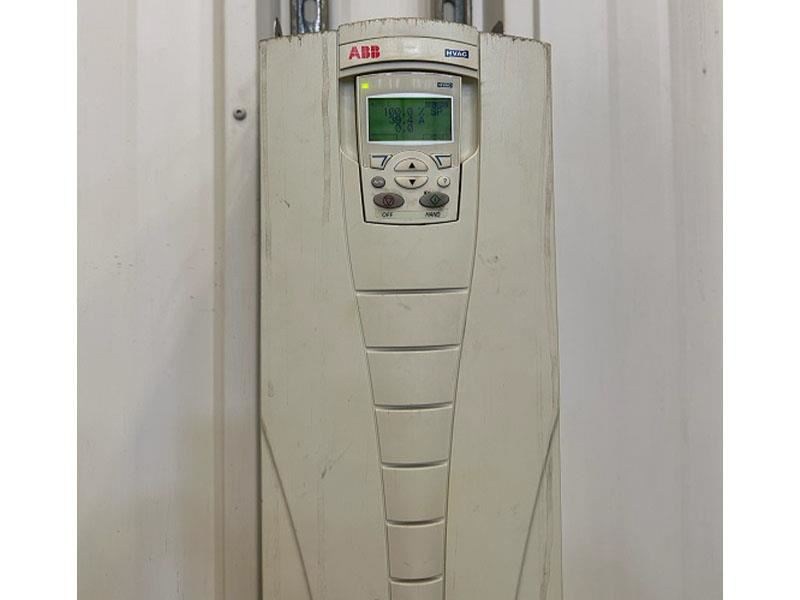

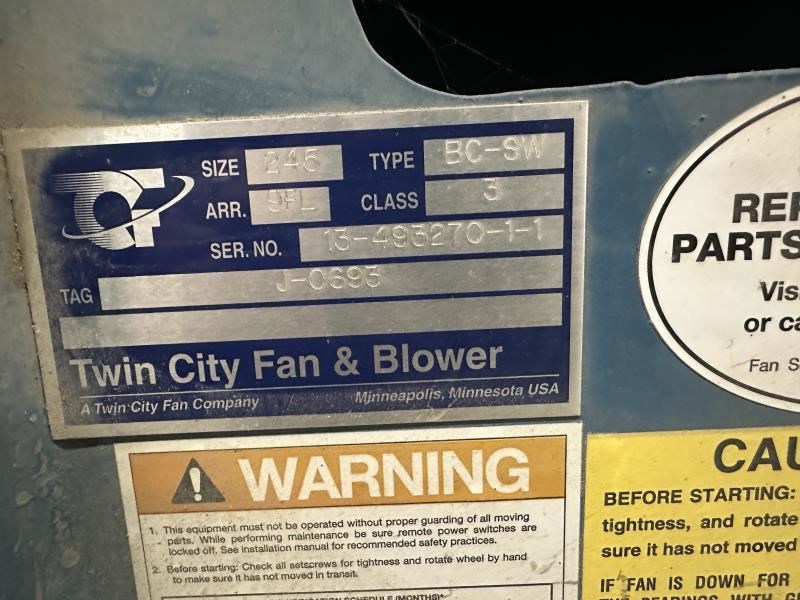

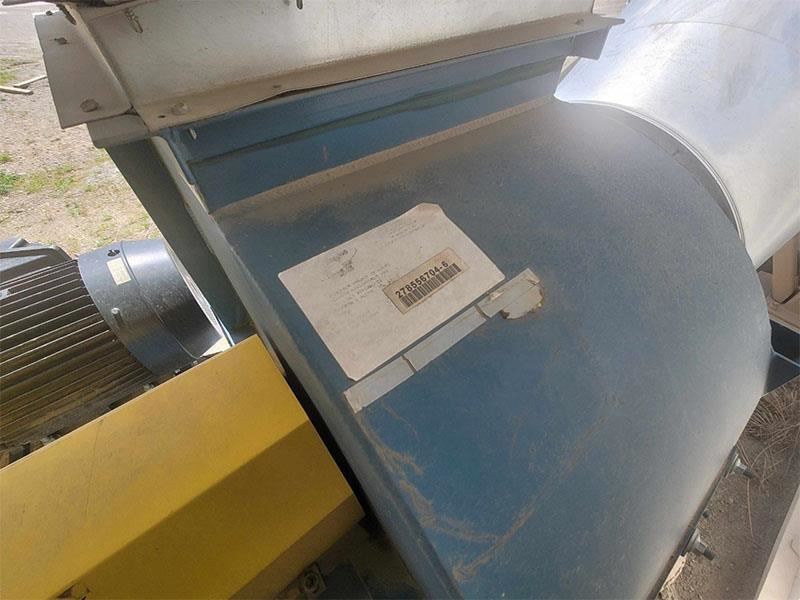

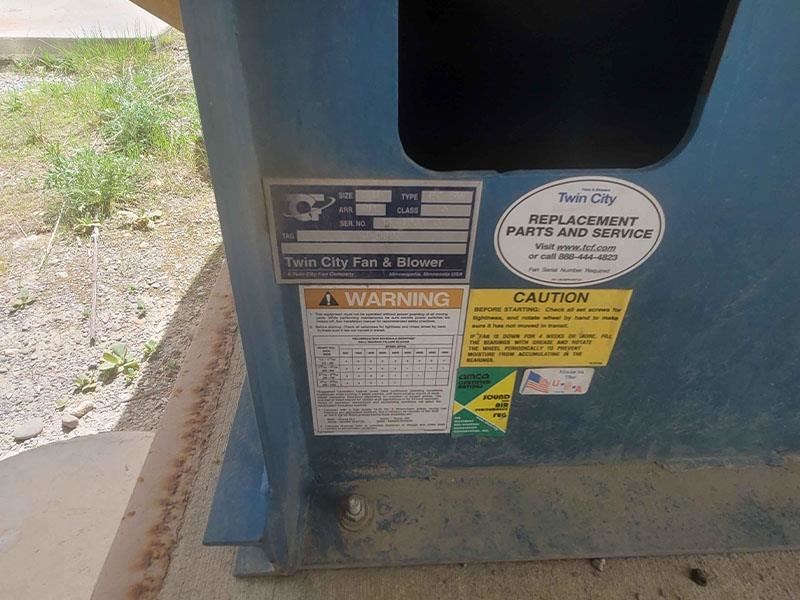

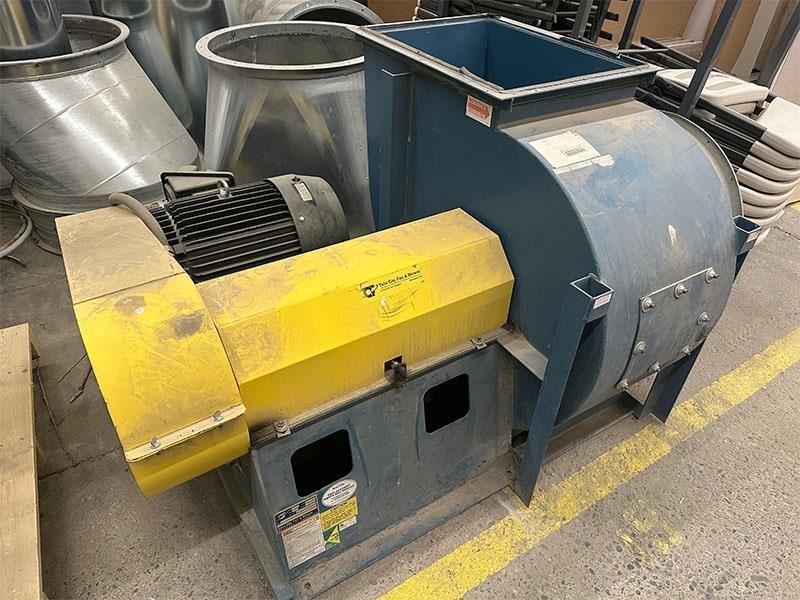

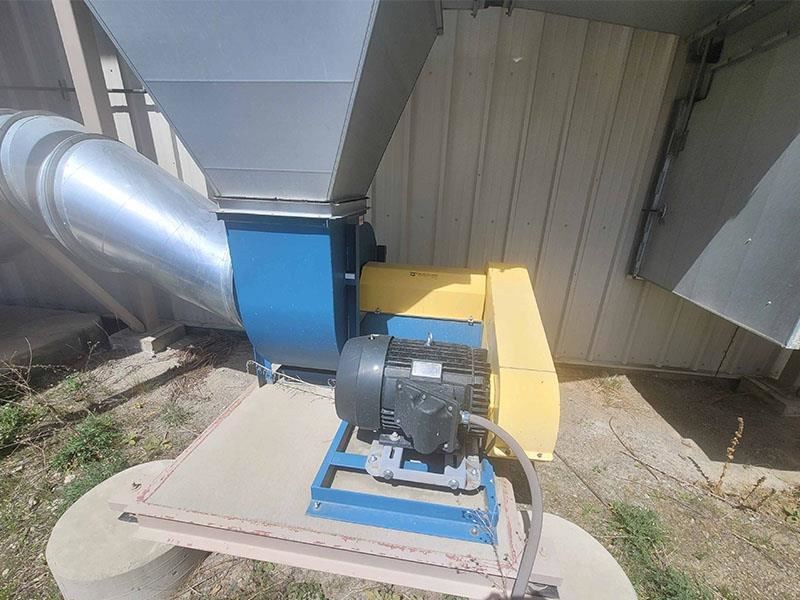

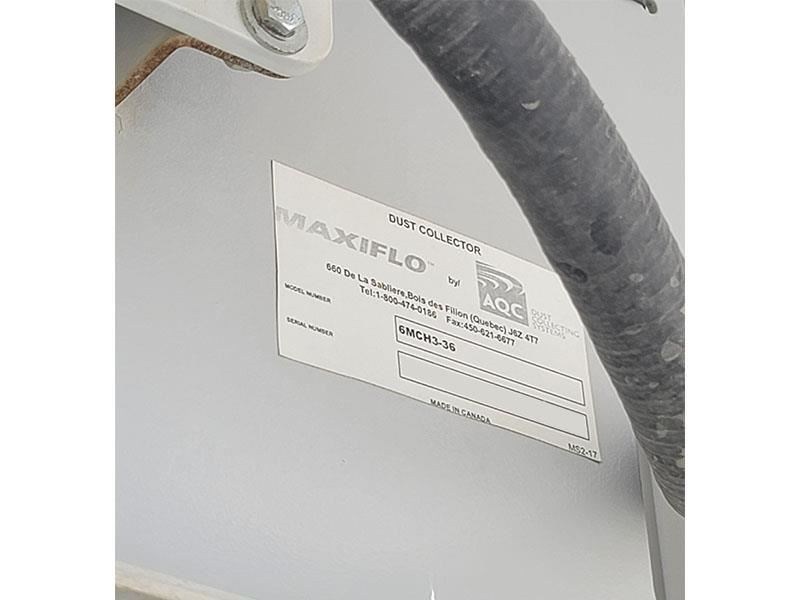

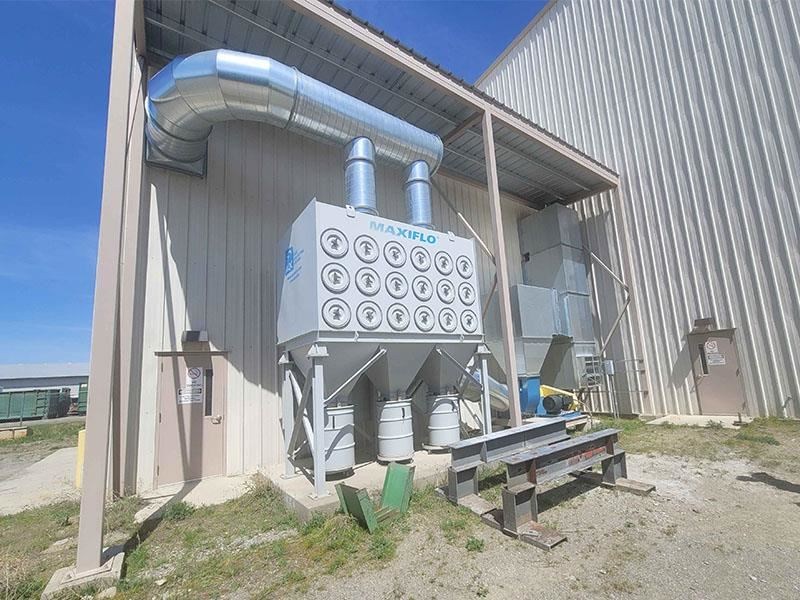

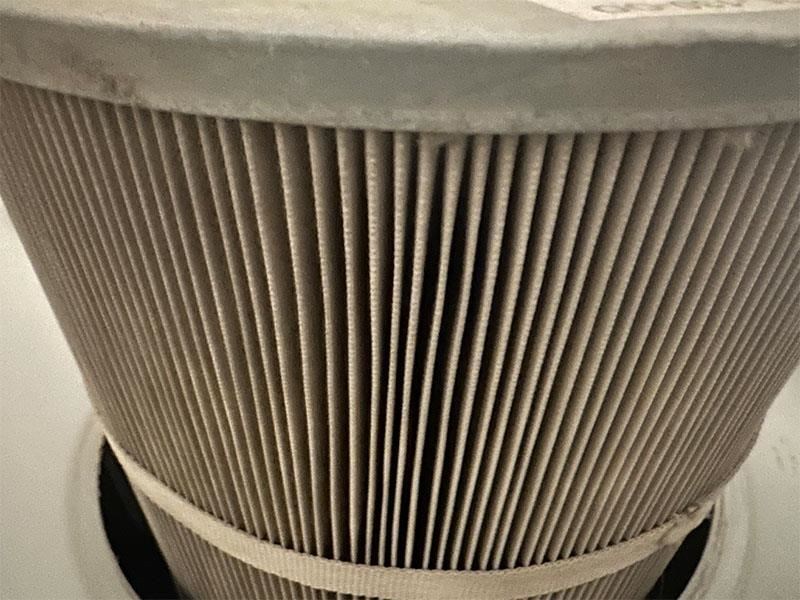

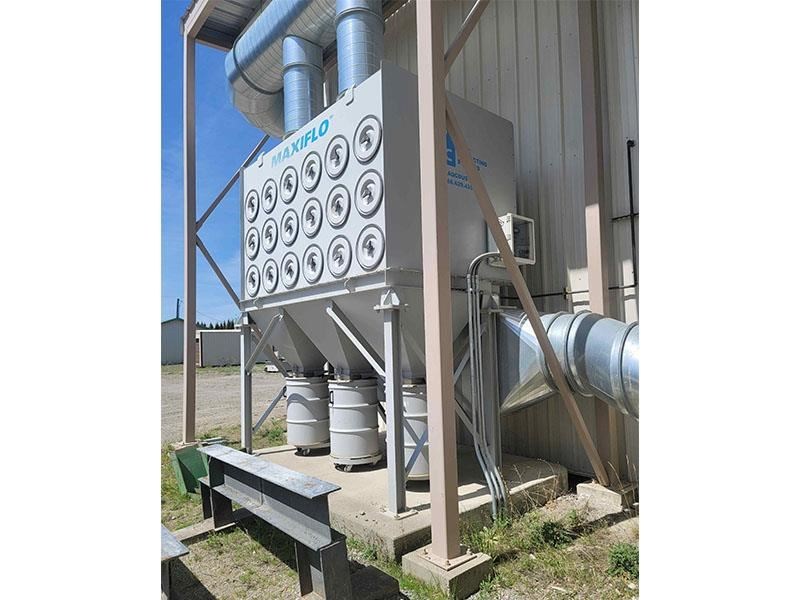

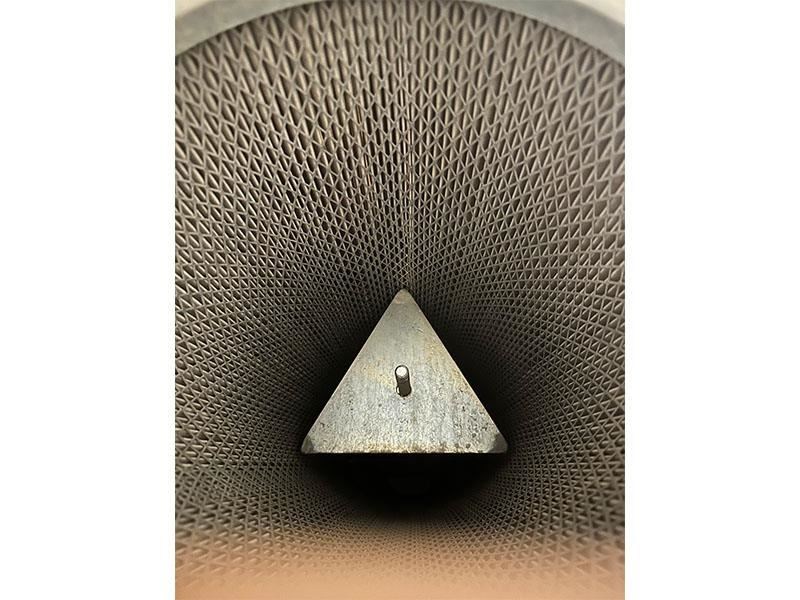

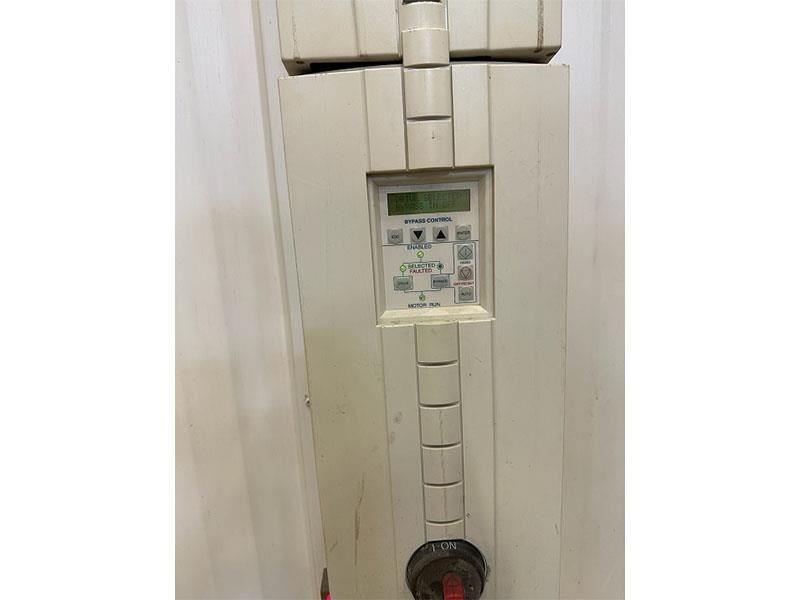

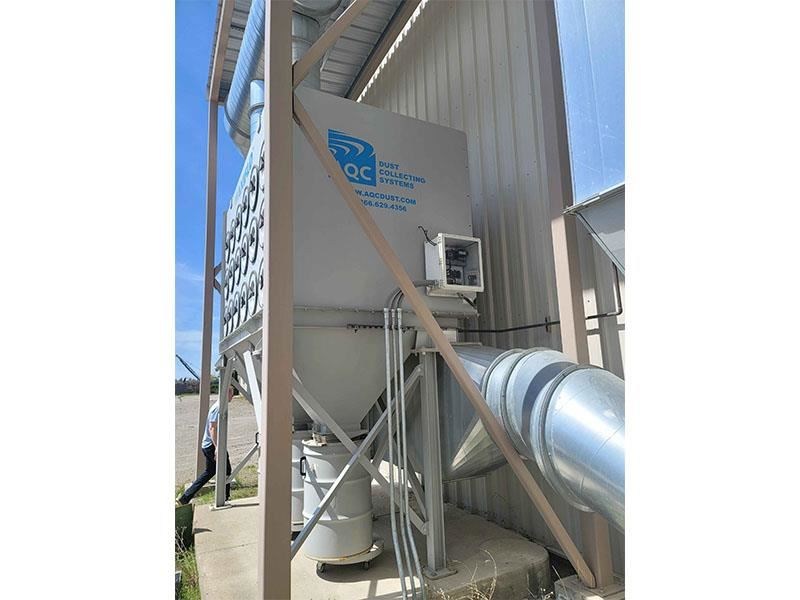

MAXIFLOW by AQC V3-6MCH3-36 CARTRIDGE Filter Dust Collector. -- Specifications: 16,000 CFM approx. Filter Cartridge System complete with (36) cylindrical cartridges (130 sq. ft. cloth area per cylindrical cartridge - 13.84"OD x 9.47" ID x 26" long.) for a total 4,680 sq..ft. of filter area; operating at 3.4:1 air-to-cloth ratio. -- Cartridge Specs: SB-820, 100% Polyester Spun-bolded, 8.0 oz/sq. yds. Air permeability 20 -30 cfm/sq. ft. @ 0.5" WG. 200°F continuous operating temperature. -- Comes with: Automatic continuous pulse jet cleaning via compressed air, (1) pulse valve per (2) cartridges; Sequencing Timer in an enclosure. -- Construction: 11 gage fully welded construction. 1/4" thick plate Tube Sheet. (3) V-shape 66" hoppers under filter housing. Heavy Duty steel legs to position unit approximately 43"' above the ground, providing sufficient clearance for (3) 55 Gal. drums.. Housing rated for +/- 20 " WG. Includes 92) 20" dia. top inlet pipe. -- Equipped with: TWIN CITY Fan, approx. 26" inlet belt driven by a 40 HP , 1800 RPM, TEFC Fan generates 16,000 CFM at 9" WG. Ground-mounted fan/motor. -- Features: ABB 'HVAC' series VFD (Variable Frequency Drive) for variable speed of motor to conveniently control desired CFM.. -- Services Required: 110V 50-60 Hz; air supply of 12 CFM @ 90 - 100 PSI. Pulses every 10 sec. -- Overall filter dimensions/Weight: 86" wide x 132" long x 160" ht. (156.5" + inlet flange); 6,500 Lbs. -- Seismic rating zone 4, Wind resistance 160 KPH (100 MPH).
