Description:

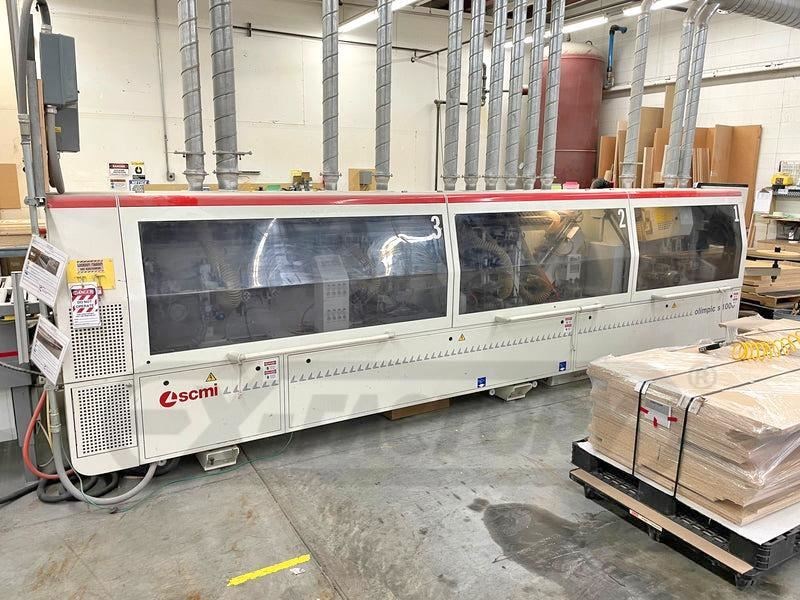

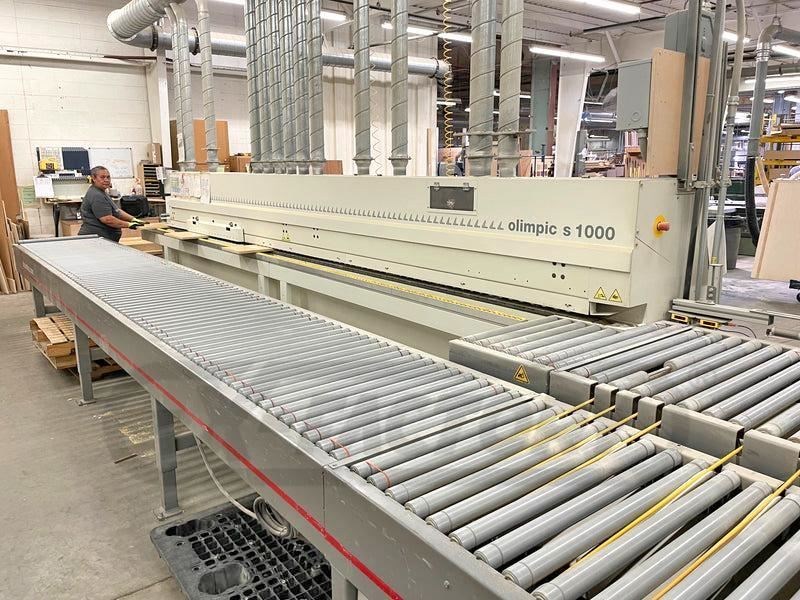

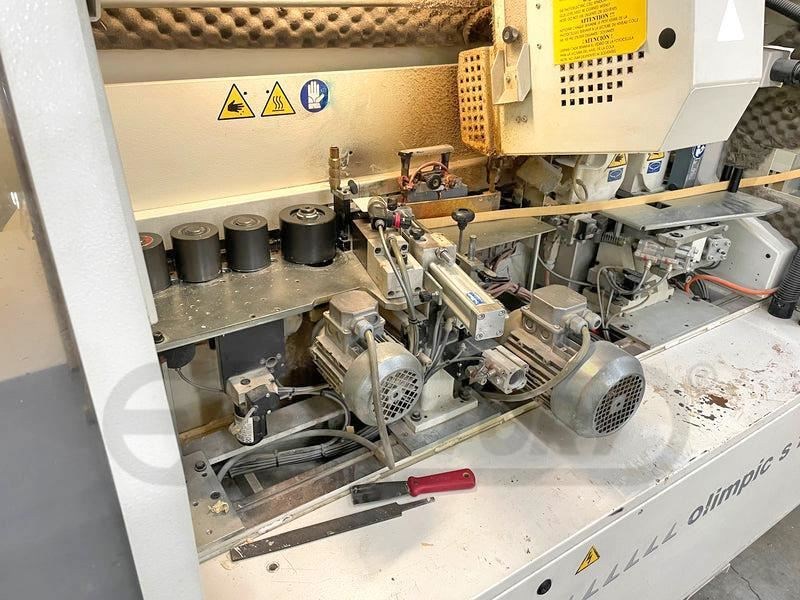

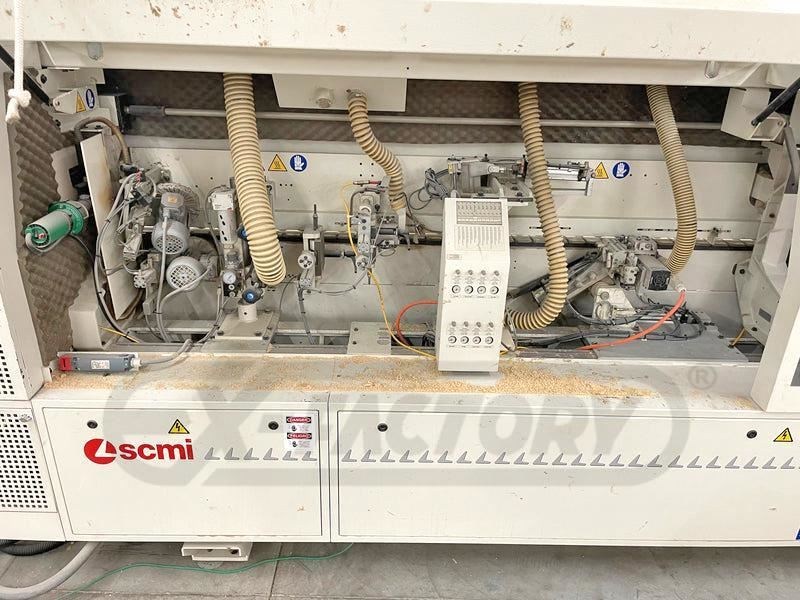

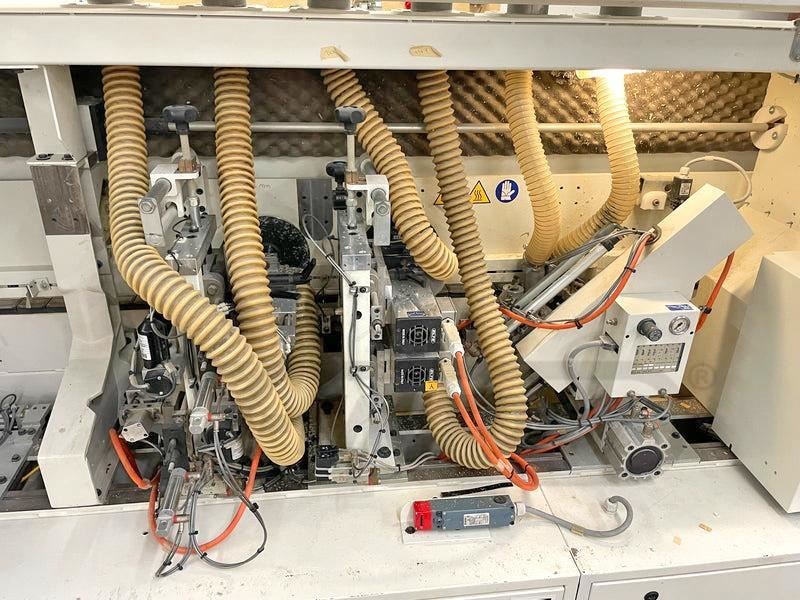

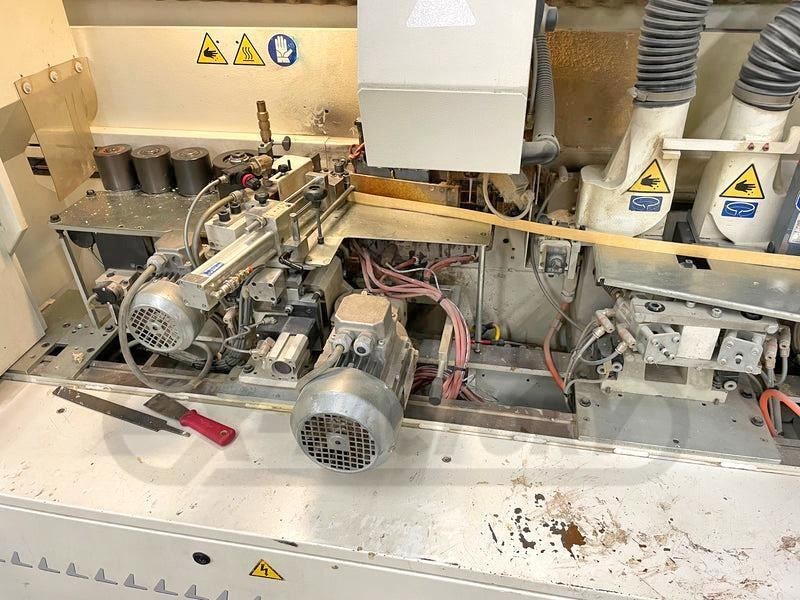

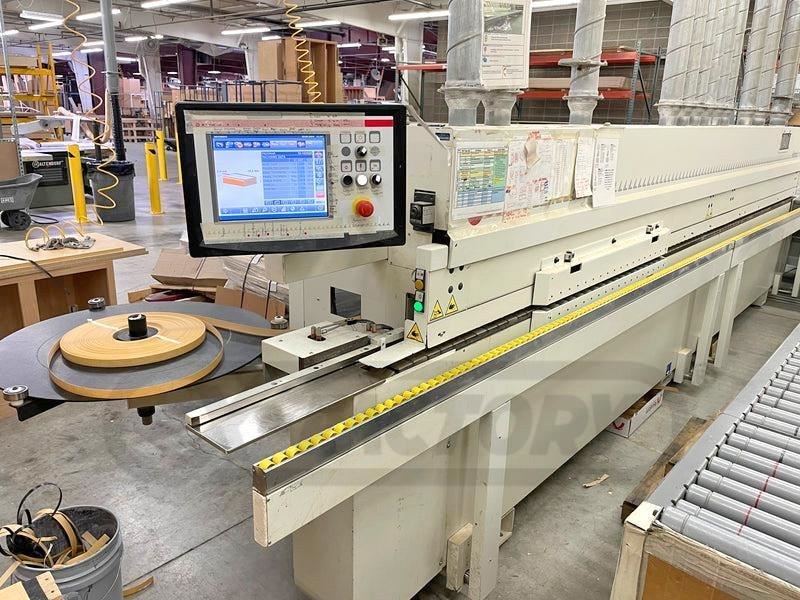

SCM S1000-T/ERL EDGEBANDER WITH PRE-MILL & CORNER ROUNDINGSpecifications: 15/32" (12 mm) Max. edge cap., 2" max. (w/corner rounding only 1-3/4") banding height, 2-3/8" min. panel width and 6-5/16" min. length.Equipped with: -- Automatic strip & coil feed magazine w/Heavy Duty 3 mm PVC cap. guillotine. -- Teflon coated glue pot with glue roller application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control. -- 3-Roll pressure unit w/pneumatic controls for all pressure rollers.Workstations: -- "RM-K" 2-Head Pre-milling station model (2.5 HP - 19,000 RPM motors ea.). -- Double motor front & rear end trim (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide. -- Top & bottom flush trims (0.8 HP - 12,000 RPM motor ea.), bevels 0° - 15°. -- Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) w/pneumatic positioning from control panel. -- 2-Motor Corner Rounding units for leading & trailing corner when edgebanding all (4) sides (two 0.5 HP - 200 Cy motors ea.). -- Top & bottom PVC Scraper for up to 5 mm radius. -- Top & bottom buffing unit (0.33 HP - 2,800 RPM motors). Hot Air Heating Unit, for restoring color on scraped PVC edges. -- Feed & Speed: Single 42 FPM fixed feed speed, 1 HP drive.Complete with: -- Microprocessor for line control & glue temperature (can store up to 50 preset programs). -- Swivel control panel. -- Pneumatic positioning of super finish. -- Full cover sound enclosure. -- 200 Cy - 5 kW Frequency inverter w/automatic motor brakes for all HF motors.
