Description:

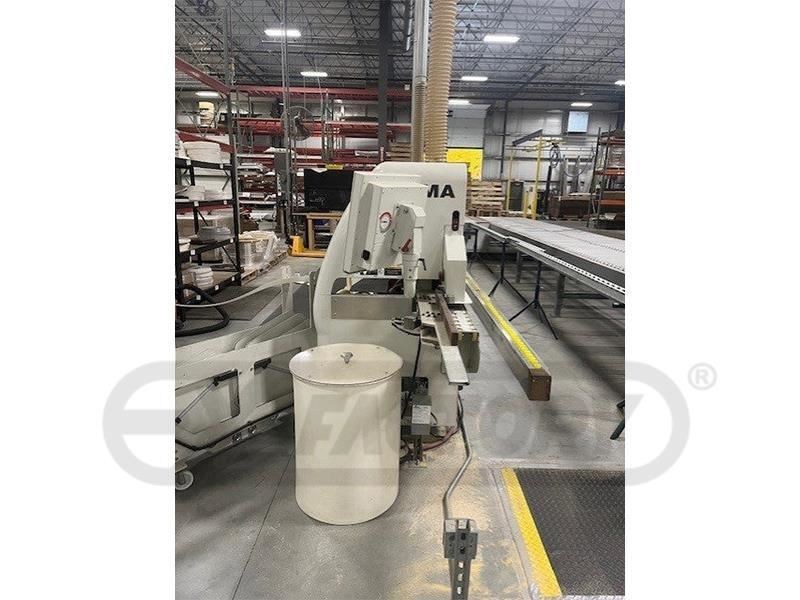

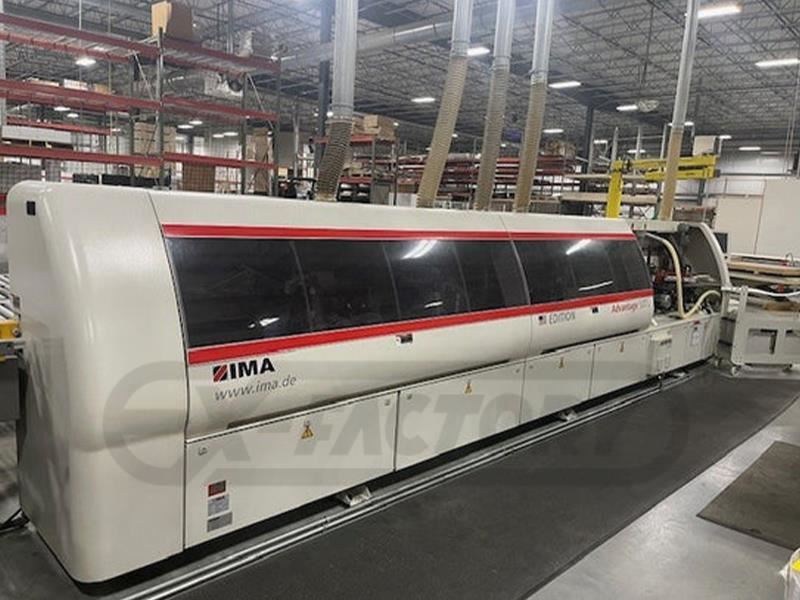

IMA ADVANTAGE 500 L EDGEBANDER (w/PREMILL & CORNER ROUNDING): -- Specifications:Edgebanding capacity: Coiled material: 0.3 - 3 mm (0.012 - 0.118"); strips 3.0 - 12.0 mm (0.118 - 0.472); panel thickness min./max. 8 - 60 mm (0.315 - 2.362").Equipped with:Pre-milling Unit: 4 kW x 2 (5.3 HP x 2) - 9,000 RPM Vertical joining spindles; SIKO digital readouts, and particle & debris air jet blower. -- Glue System - EVA (Hot Melt) with: "Quick-Lock" System. -- Pressure Section with: (1) Large dia. driven and (5) idle rollers. Workstations:End Trimming Unit: Dual motor, (2) 0.66 kW (0.88 HP) motors; suspended from the hold-down beam; automatic chamfer adjustment 0° - 8°. -- Rough Trimming Unit: Top & Bottom flush trimming, W 1.0 kW x 2 (1.34 HP x 2) - 12,000 RPM Ea. motor; against the feed (up milling), vertical & horizontal tracing wheels, digital readouts for adjustments. -- Contour Unit: Multiuse; Top & Bottom linear and vertical corner trimming; total motors: (4) 2 x 180 W and 2 x 400 W - 12,000 RPM. -- Profile Scraper Unit: Profile Scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing shoes. -- Glue Scraping Unit: Flat, Top & Bottom self-tracing Glue Scraper. -- Buffing Unit: Top & Bottom 0.18 kW x 4 (0.25 HP x 4) - 1,400 RPM. -- Edge Smoothing Unit: Top & Bottom for 1, 2 & 3 mm edge.Control System ICOS OPEN TS: Large color LCD display; displays stored data, on/off workstation sequence, troubleshooting diagnostic; data input by touchscreen, alphanumeric keyboard, and mouse. Microprocessor adjusts according to stored programs or input; pressure section position & pressure control, vertical positioning of all holddown beam mounted workstations.Complete with:Heavy-Duty "sliding" feed chain with: 70 mm Wide x 60 mm long rubber pad inserts; central lubrication of transport chain; variable feed speed from 4 - 20 MPM (13 - 65 FPM). -- Motorized central height adjustment of top pressure beam with double V-belt hold-down. -- Sound Enclosure - All stations; all trimming & milling motors DC electrical motor brakes for immediate stopping. -- Spraying Units: Upfront at infeed for anti-stick solvent and polishing solvent prior to Buffing Station. -- Actual Model is I M A ADVANTAGE 500 L
