Description:

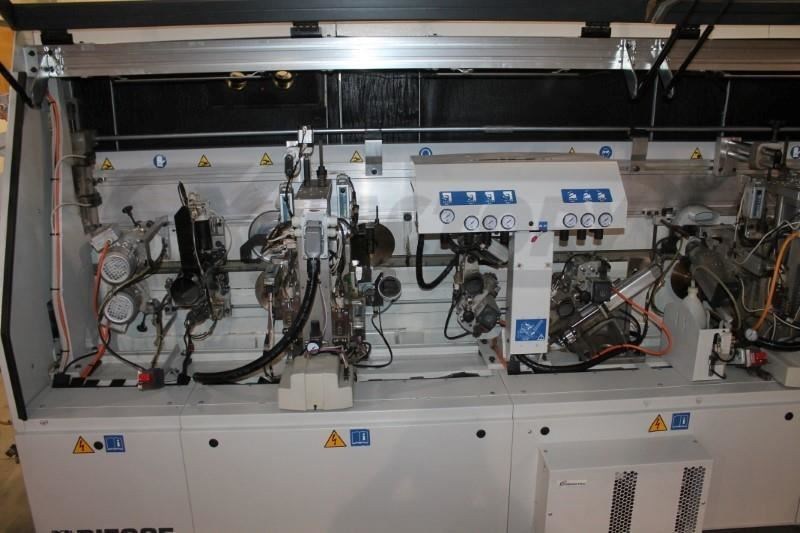

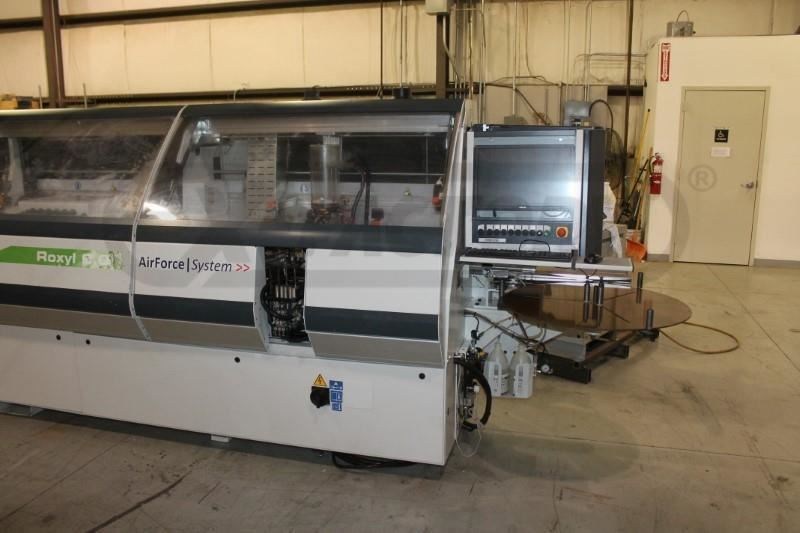

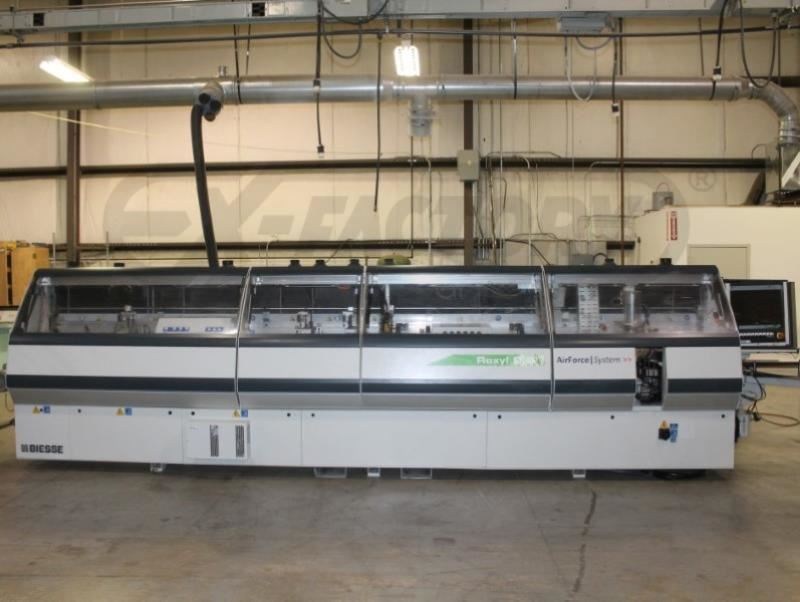

BIESSE ROXYL 6.0 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + "AIR FORCE" PUR/EVA GLUING TECHNOLOGY: Features: -- Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers.This technology allows changes based on banding colors without any setup. Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. -- In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Specifications: -- Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). -- Machine Controls: "Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material + a (2) position vertical Coil Magazine Cart. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.Gluing System: -- EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material. -- AirForce "VC-710": High pressure, hot air system to reactivate special precoated edge material (commonly referred to as laser edge).Workstations: -- End Trimming Unit "IT90-S": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-100": Top/Bottom pre- or flush trimming motors -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (4) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-positioning of motors by pneumatic air cylinders. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece's surfaces. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner a
