Description:

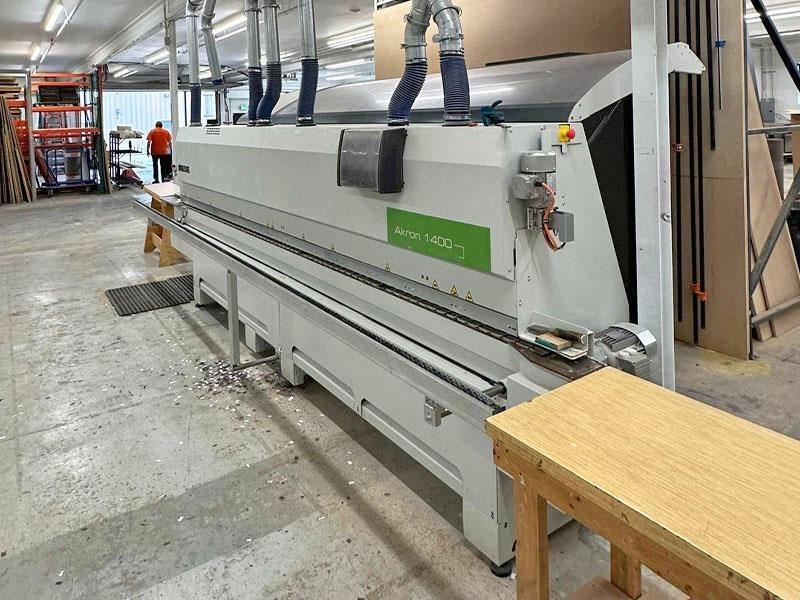

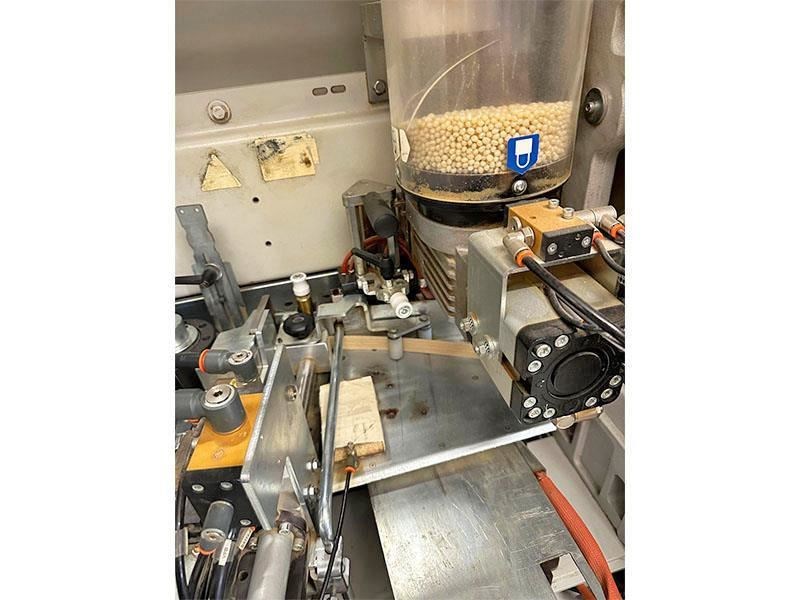

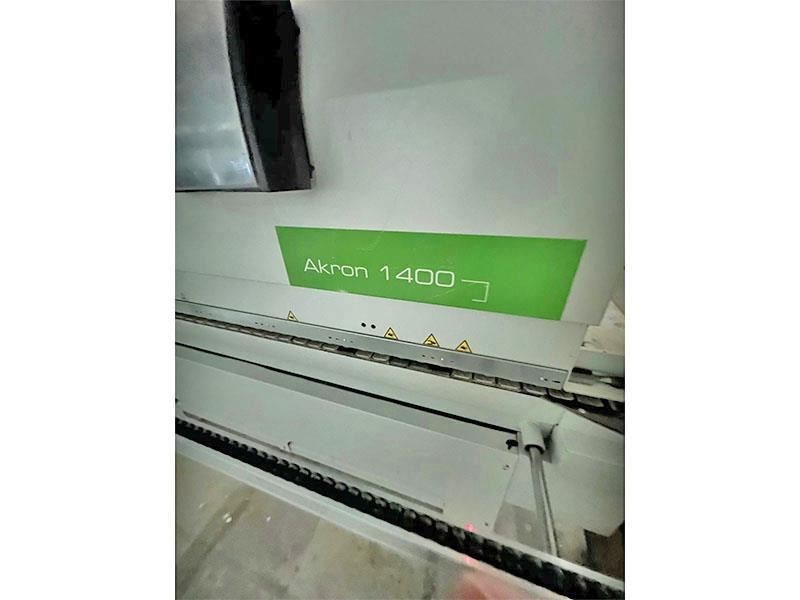

BIESSE - AKRON 1440A: Single Side Edgebander (2/Premill & Corner Rounding) + with "AIR FORCE" PUR & EVA Technology -- SpecificationsLatest Technology combines: Productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" Emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. The layer is activated & bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup.Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. Also featured is a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; height of edgebanding material: 14 - 64 mm; thickness of edgebanding material in rolls: 0.4 - 3 mm; thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3,200 mm; min. panel width (with length 140 mm): 85 mm; min. panel width (with length 250 mm): 50 mm.Multifeed speed: 8 - 12 - 15 & 18 MPM.Glue & Pressure Section -- Infrared lamp: IRL 700; Gluing unit: Quickmelt "QM 703 EVA" melting glue. - Special glue container for: PU glue; additional glue container: EVA Gluing unit with melting device.Additionally equipped with AirForce "VC-710": High pressure, hot air system to reactivate special precoated edge material (commonly referred to as laser edge).Automatic edge feed; cutter knife; pressure zone with: 1-Drive & 2 pressure rollers.Working Units -- Premilling unit: (2) x 0.8 kW - 12,000 RPM Motors; front/rear inclination: 0° - 15°. -- "RT 02": Gluing, edge feeding, and "VC-511" pressing unit. -- End trimming unit with: (2) x 0.8 kW - 12,000 RPM; front/rear; inclination: 0° -15°. -- Fine trimming unit: (2) 0.6 kW - 12,000 RPM Top/bottom. -- (2) Multifunction Corner Rounding units: 0.65 kW Each; for corner rounding; straight workpieces; post and soft-forming 90° -180°. -- Edge Scraper unit. -- Glue Scraper unit. -- Buffing unit: (2) × 0.37 kW motors. Machine Features -- Belt pressure beam. The Top Presser comprises a rubber belt with a stainproof coating. The thrust exercised on the panel is provided by springs housed on technopolymer connecting rods. -- Auto-adjustment of infeed fence. -- Automatic track lubrication system with: Dynamic track absorption. -- Manual infeed system for narrow pieces. -- (1) Coil automatic edge feeding. -- Hybrid gluing head for: Granulated EVA & Polyurethane glue. -- Premelter "TM10" for: Polyurethane glue in cartridges. On-demand top loading pre-melter for PUR glues. -- Adaptive infrared lamp to heat up the panel side before the glue application, to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator Interface -- BIESSE Windows-based "Smart Touch" control & O
