Description:

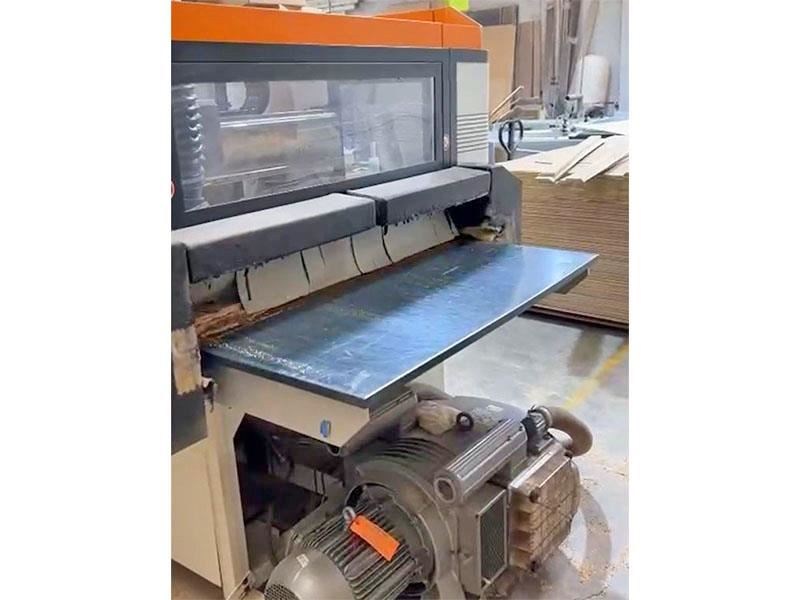

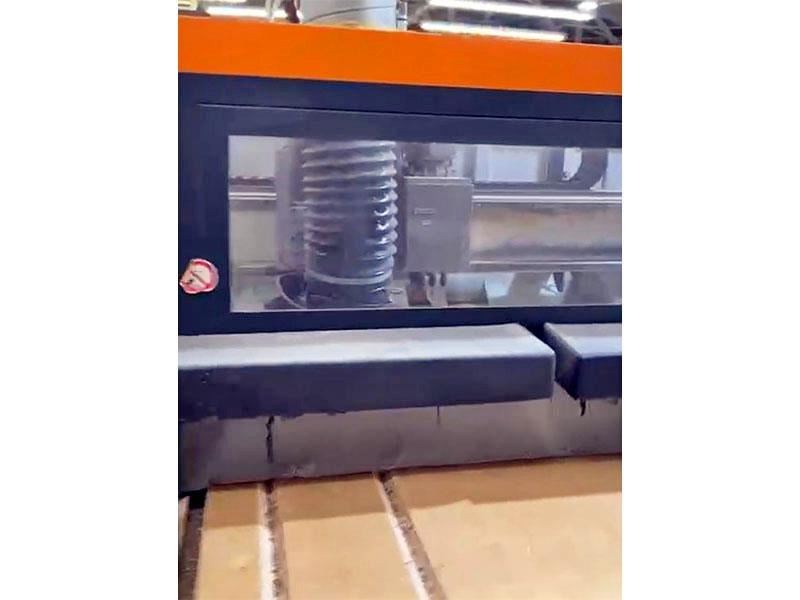

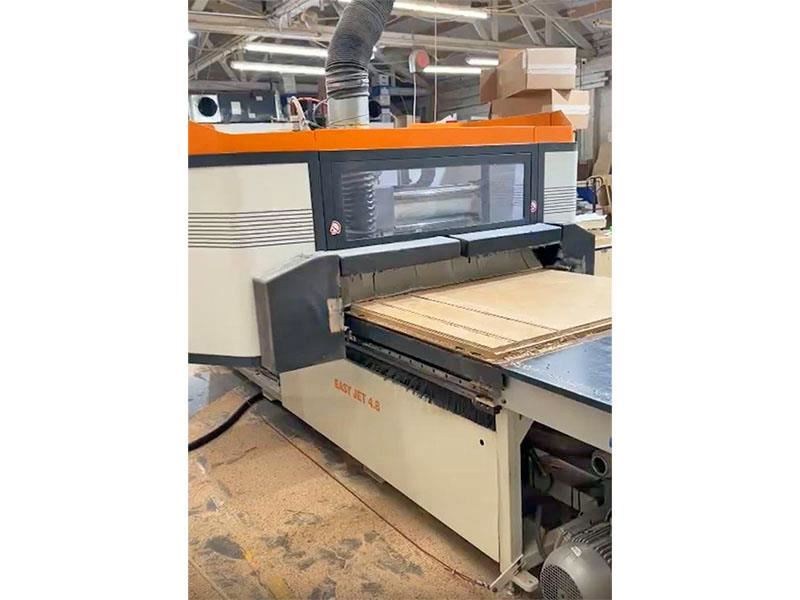

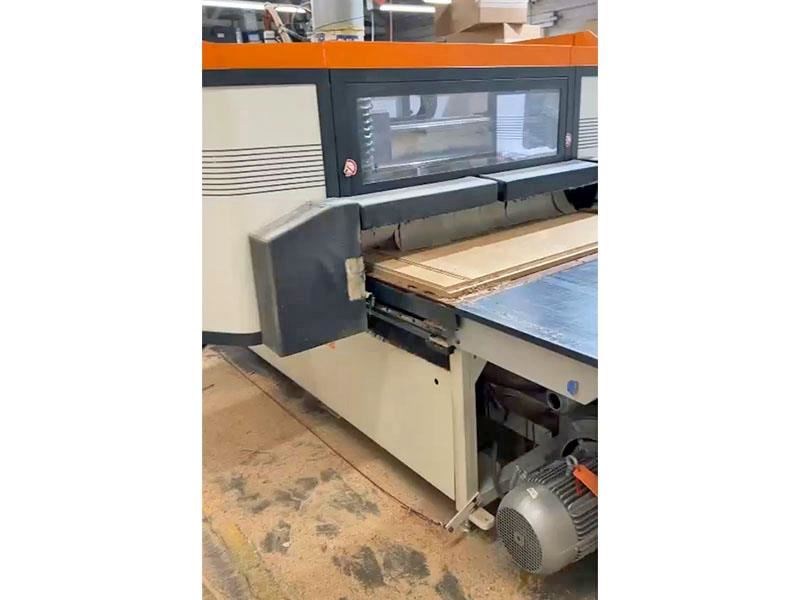

BUSSELATO - EASY JET 4.8: CNC Flat Table Machine -- Specifications4' x 8' Traveling "Bridge Gantry" and stationary vacuum table with: "MATRIX" square grid pattern for fixturing parts.Grid pattern allows use of: Vacuum pods or closed cell rope gasketing material; spoil boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working Field"X" Axis is 97.8" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 5.9" (150 mm); max. material thickness: 4" (100 mm). -- Worktable(1) Working Area in "X" Axis; (3) locator pins on the back side; (1) RH side pin. Front reference stops to: Facilitate loading smaller parts on the front side of the machine. -- Positioning SpeedX & Y-Axes 115 FPM (35 MPM); Z-axis at 82 FPM (26 MPM); closed loop AC Servo drive system. -- Boring Unit2.2 HP (1.7 kW) - 6,000 RPM Motor; (12) vertical spindles on: 32 mm Centers with (8) spindles in "X" Axis & (5) spindles in "Y" axis. -- Machining 13 HP (9.5 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM; LH & RH rotation.{4} NC Controlled air jets; situated at 0º, 90º, 180º and 270º around spindle; adjusted to aim at base of cutting tool?CNC Control automatically activates: Jet following the cutting tool to blow dust from groove; makes it airborne so that Dust Collection System can effectively remove it.(1) 14-Position ATC tool rack mounted to: Machine "Y" axis base. -- Operator InterfacePC Front-End with: Windows 7 + AlphaCam Essential Operating System.AlphaCAM Essential. CAD Functionality includes: Lines, arcs, circles, rectangles, polygon, ellipse, typed-in TrueType® text (with editing capability), splines (with editing capability), APS fast geometries; additional special geometries (including bolt hole circle; involute curve; slot; equal spaced holes); digitizing; importing of DXF/DWG/IGES (as surfaces) CAD files; graphic printing & plotting.CAD Utilities include: Snap to; auto-snap to; ortho modes; coordinate/distance/radius reporting; dimensioning; access to user layers; APS layers; conversion of points to lines or arcs.Editing functionality includes: Undo; change start point; 2D move; 2D copy; 2D rotate; 2D mirror, scale; stretch; skew; break; trim; explode; join; extend; fillet; chamfer; offset; group/ungroup; change function; construction to geometry &reverse.Viewing options include: Shading or wireframe mode; 3D view; ghost tools; single steps; rapid positioning; all zoom functions.Machining functionality includes: User-defined tool library; tool direction settings (including: inside, outside, left, right); vertical rough; finish machining; contour/linear/spiral pocketing with unlimited islands; 3D engraving; drill/peck/tap/bore holes; automatic lead-in/lead-out; G41/42 tool compensation; automatic calculation of speeds & feeds; cut corner options include: Straight/roll round/loop; add/remove support tags; adjust feed rate around corners; oper
