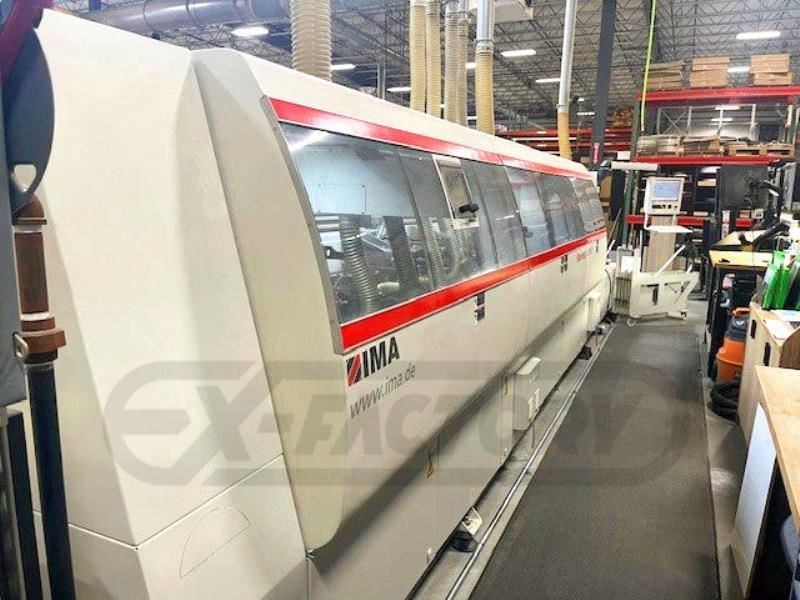

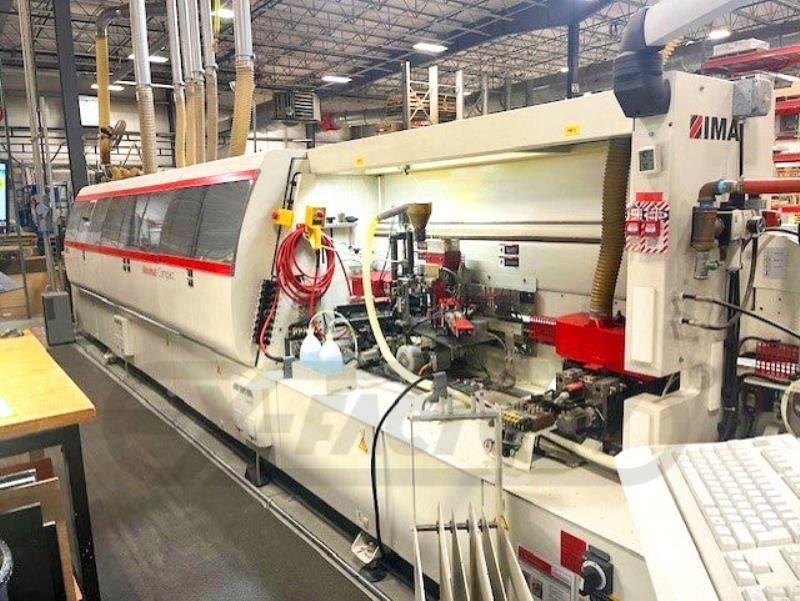

2017 I M A NOVIMAT Edgebander
800-374-5009 ext: 346
Bob Bullin
$ 130,000
2017 I M A NOVIMAT Edgebander
$130,000
800-374-5009 ext: 346
Bob Bullin
Overview
Year: 2017
Make: I M A
Model: NOVIMAT
Stock Number: EO-012618
Year: 2017
Make: I M A
Model: NOVIMAT
Stock Number: EO-012618
Description:
IMA NOVIMAT COMPACT/I/G80/700/L12 EDGEBANDER (W/ PRE-MILL & CORNER ROUNDING): -- Basic Specifications:Edgebanding coil stock capacity, 0.3 - 3 mm; (0.012 - 0.118"), Strips up to 12mm (0.47") can be processed. Panel thickness min/max 8 - 60 mm (0.315 - 2.362").Equipped With: -- Spraying Unit, anti sticking solvent, top and Bottom application. -- In-feed Fence with N.C. servo motor positioning. -- Pre-Milling Unit 08.378, with kW 4.5 x 2 (HP 6 x 2) vertical joining spindles, N.C. controlled, both w/jump movement and reversible rotation, SIKO digital readouts, particle & debris air jet blower. -- Edge Pre-heating Lamps, for best possible glue bond. -- Glue System: EVA Glue (Hot Melt) + 1 Quick Melt unit. -- Side Pressure Section: N.C. controlled, with (5) pressure rollers w/individual pneumatic pressure control for each roll -- Edge Magazine: Vertical coil cartridge assembly, 1 x 6 positions with auto edge-selection and HD guillotine.Workstations: -- End Trimming Unit 08.0555: High speed, double motor KW 0.66 x 2 (HP 0.88 x 2) suspended from the hold-down beam, automatic chamfer adjustment 0° - 15° for speeds up to 32 m/min (105 ft./min). -- Flush/Bevel/Radius Trimming Unit: Top & bottom, multi profile, N.C. controlled, KW 1.5 x 2 (HP 2.0 x 2) - 12,000 RPM motors, bevels 0°-30°, vertical & horizontal tracing wheels, digital read-outs. -- Corner Rounding Unit KFA 25: High Speed, (1) x Kw 0.66 (HP 0.88), 12000 RPM motor with multi-profile and N.C. servo positioning. -- Profile Edge Scraping Unit: Top & bottom, multi-profile (4) positions N.C. controlled scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing wheels, digital readouts for adjustments, chip extraction system for scraping unit. -- Glue Scraping Unit: Flat, top & bottom self-tracing glue scraper, N.C. controlled. -- Buffing Unit: Double Stage, (2) top & (2) bottom KW 0.18 x 4 (HP 0.25 x 4) - 3,000 RPM ea. motor for linear & vertical corner edge polishing. -- Glue Scraping Unit: Flat, top & bottom self-tracing glue scraper. -- Buffing Unit: Top/Bottom (2) x KW 0.18 (HP 0.25) - 3,000 RPM ea. motor.Operator Interface: -- ICOS OPEN, Large color LCD display; displays stored data, on/off work station sequence, troubleshooting diagnostic; data input by alphanumeric keyboard. Microprocessor adjusts according to stored programs or input; pressure section position & pressure control, vertical positioning of all hold-down beam mounted workstations.Complete With: -- Heavy Duty "sliding" feed chain with 80 mm wide x 60 mm long rubber pad inserts, central lubrication of transport chain, -- Variable Feed Speed 6 - 30 MPM (20 - 98 FPM); -- Motorized central height adjustment of top pressure beam with double V-belt hold-down. -- Frequency inverters; ball bearing guided outboard panel support up to 27-1/2", sound enclosure, all stations, all trimming & milling motors DC electrical motor brakes for immediate stopping. -- Spraying Unit with polishing solvent prior
