Description:

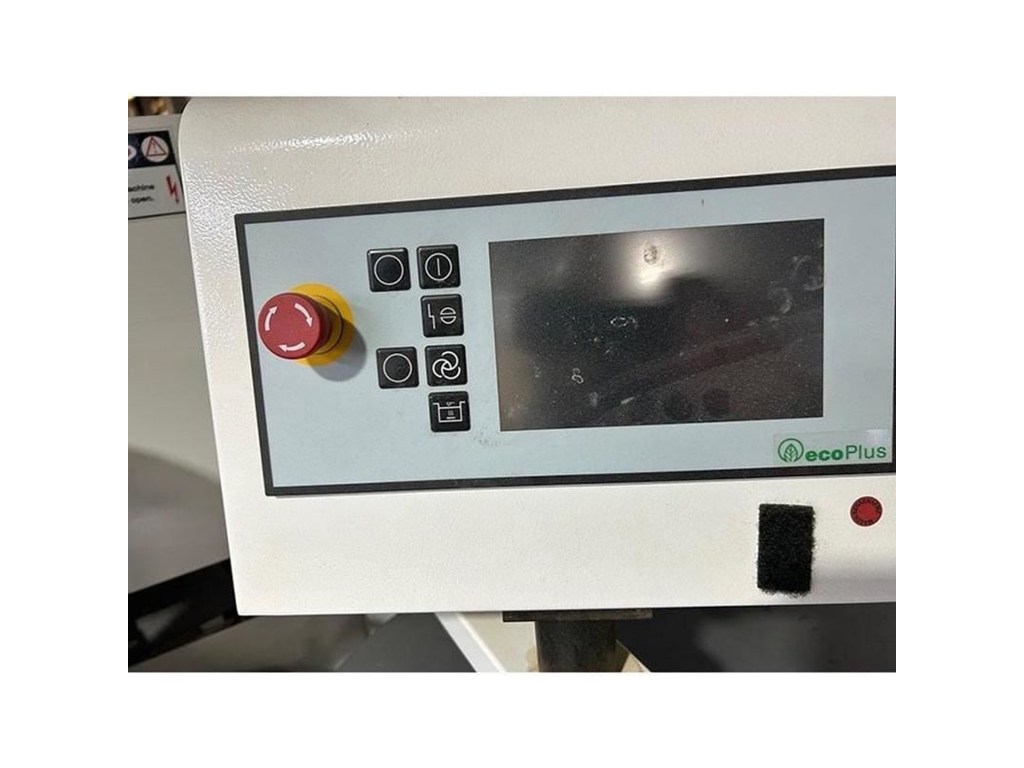

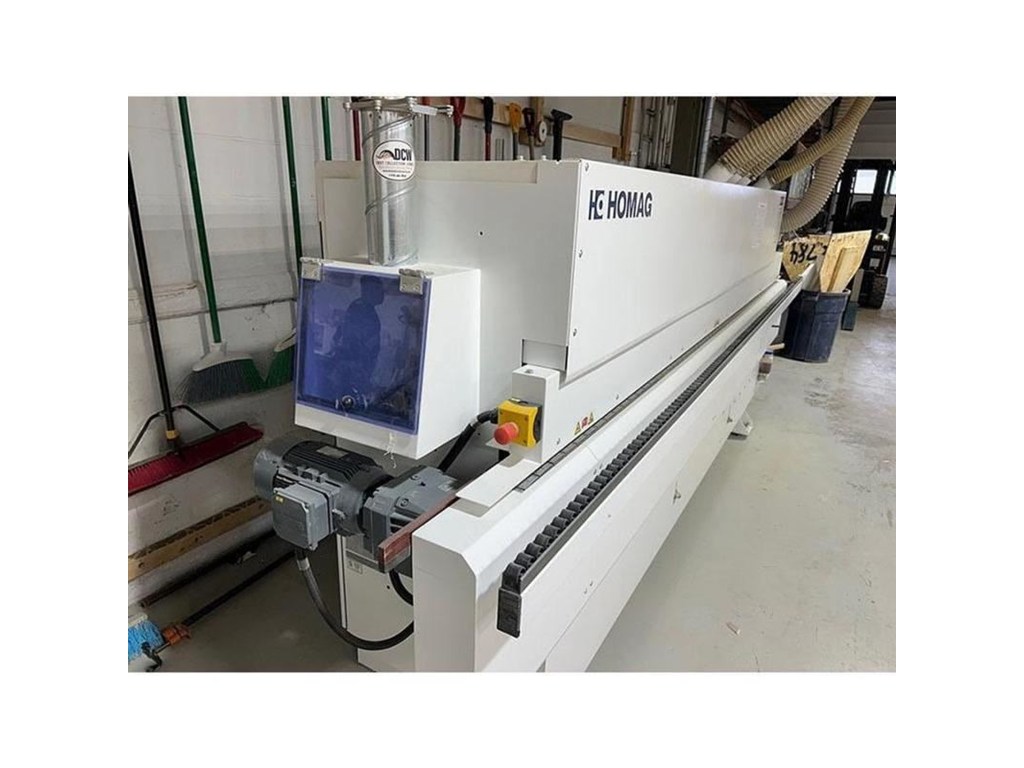

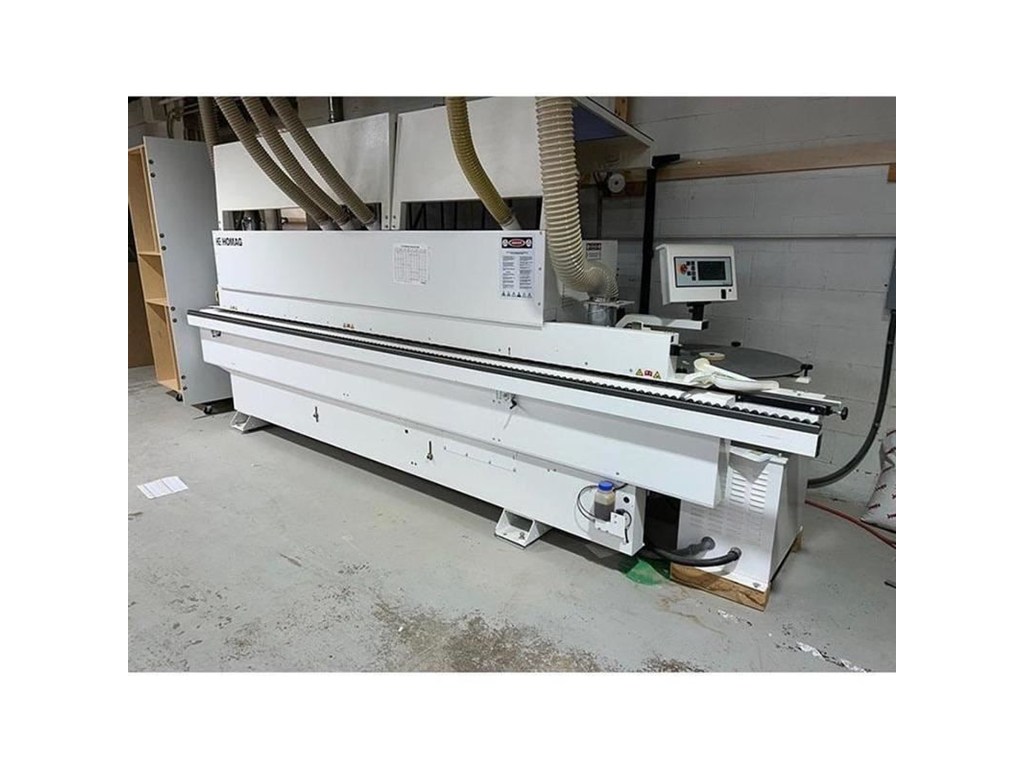

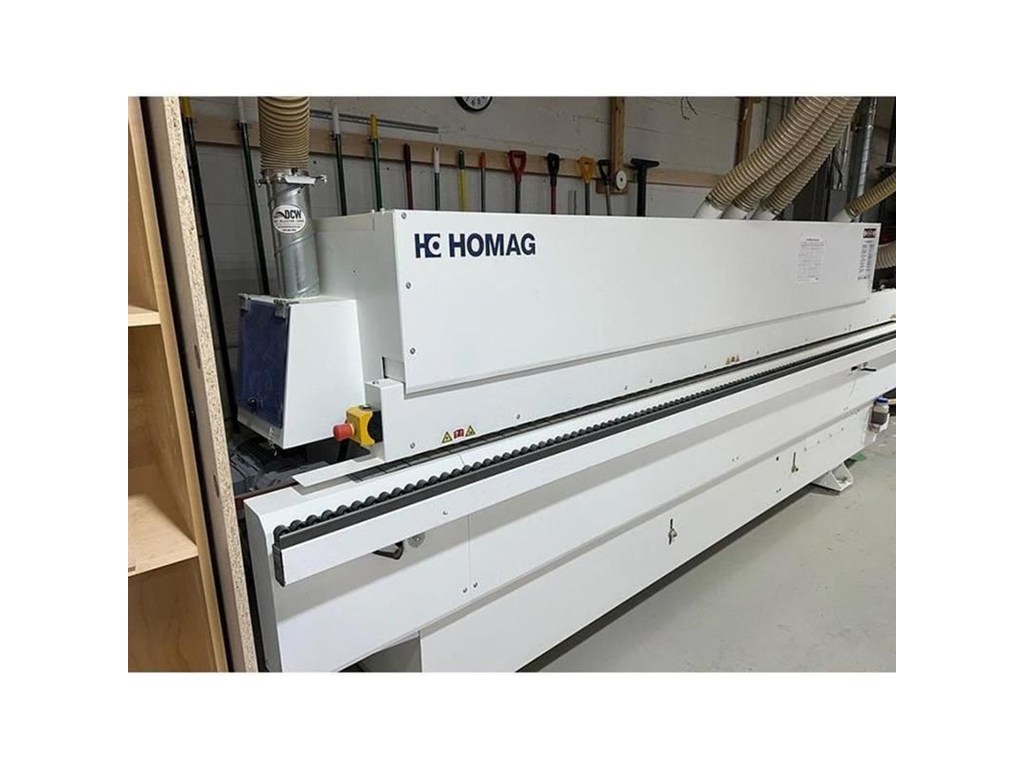

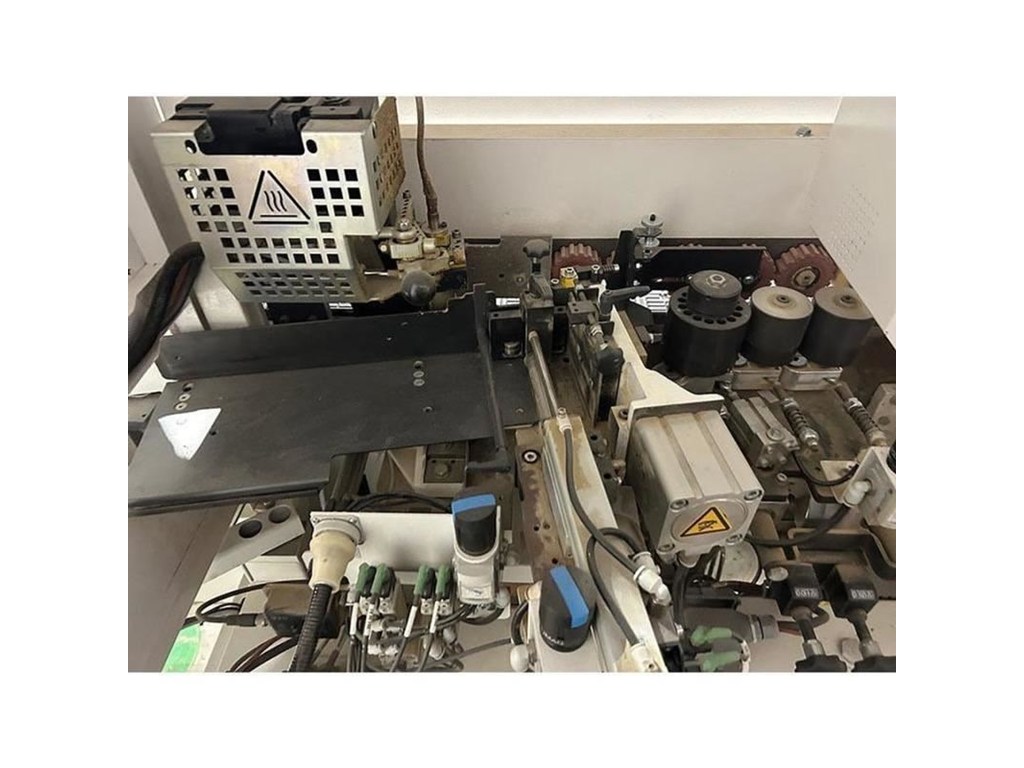

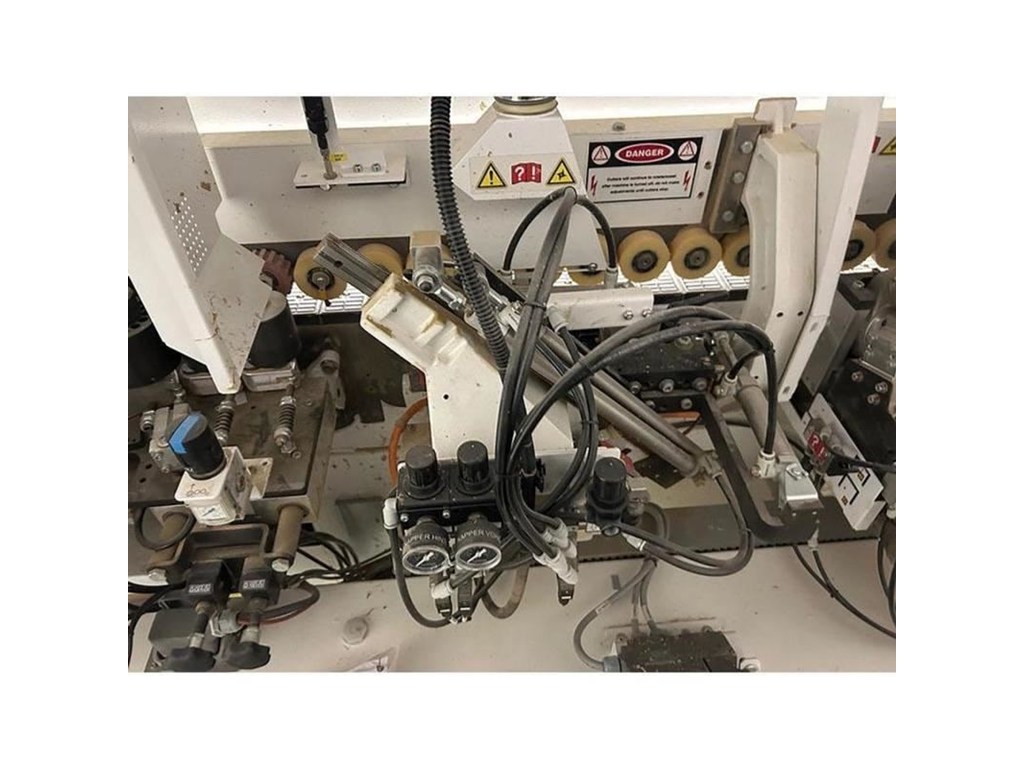

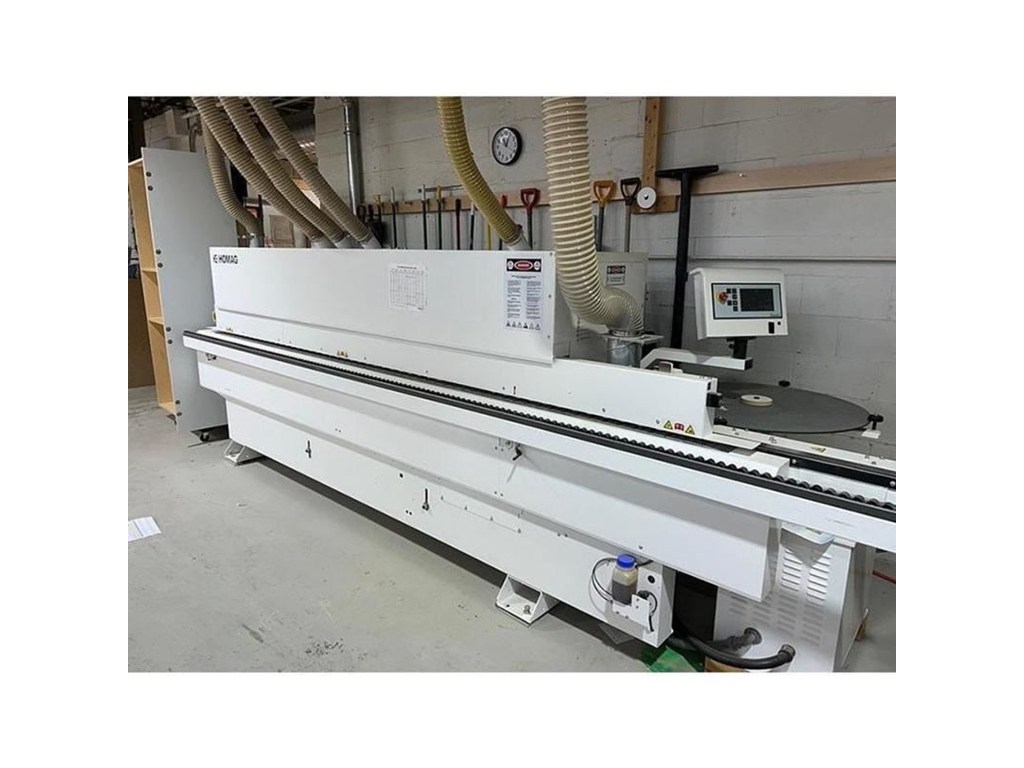

HOMAG - EDGETEQ S-240: Edgebander (w/Premill & Corner Rounding)Specifications • Solid Strip & Coil Stock; 0.3 - 3 mm (0.016 - 0.11") • Workpiece width 70 mm = thickness 8 - 22 mm• Workpiece width 120 mm = thickness 23 - 50 mm• Standard Workpiece thickness: 8 - 50 mm / 1.96" max.)• Fixed Feed of 11 MPM (36 FPM)Equipped with • Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM, LH & RH rotation. Diamond cutterheads & pneumatic jump control for chip-free and clean panel edges. • Integrated heated glue roller.• Automatic Edge Magazine for Solid Strip & Coil Stock; up to 3 mm. • "Heavy-Duty" Guillotine for Solid Strip & Coil Stock; up to 3 mm. • "Quick-Change" glue pot & roller application unit. • Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled. Operator Interface • HOMAG "easyTouch" Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation. (20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements. Clear overview of the help & assistant functions, including the glue pot temperature or troubleshooting in plain text.Workstations • End Trimming: (2) Motors, each @ 0.35 kW (1/2 HP) 12,000 RPM.• Top/Bottom Flush-Fine Trimming Unit: (2) Motors, each @ 0.55 kW (3/4 HP) - 12,000 RPM.• Corner Rounding Unit. (1) Motor, 0.35 kW (1/2 HP) - 12,000 RPM. • Top/Bottom Scraping, with vertical & horizontal copy wheels & PVC scrape collection box.• Top/bottom Buffing Unit: (2) motors, each @ 0.10 kW (0.125 HP) - 2,800 RPM. Complete with • Hold-down top pressure beam; padded sound enclosure, used tooling, and original factory machine documentation. • Actual Model: HOMAG EDGETEQ S-240 (aka: KDF 230)
