Description:

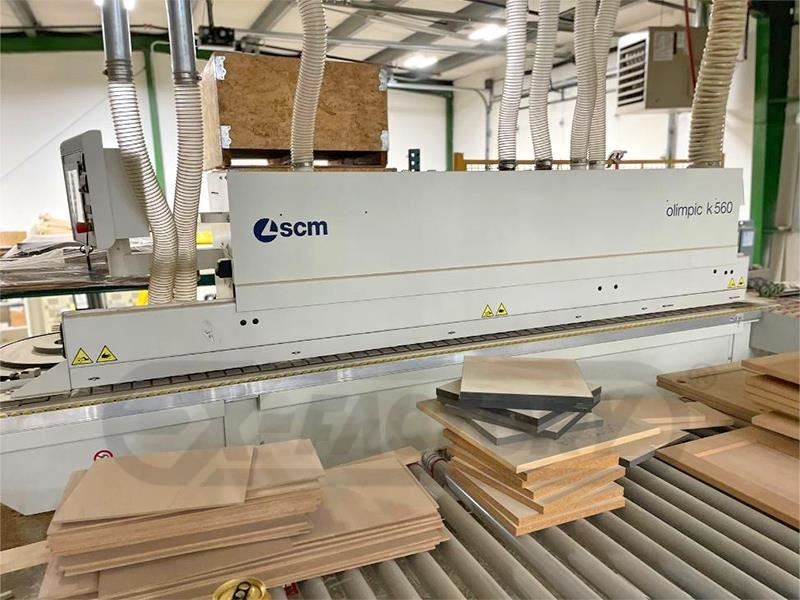

SCMI OLIMPIC K 560TE EDGEBANDER (W/PRE-MILLING): -- Specifications: Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. Panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with: Quick change/disconnect Teflon glue pot for fast glue tanks change if needed; Heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller & (2) spring loaded idle rollers.Workstations: -- End Trimming Station: (2) Front & rear 1/2 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings, flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit: Eliminates any excess glue. -- Buffing Unit: (2)Top/bottom 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control: -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz frequency inverter for all trimming units. -- Manual adjustable top hold-down pressure beam. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560TE
