Description:

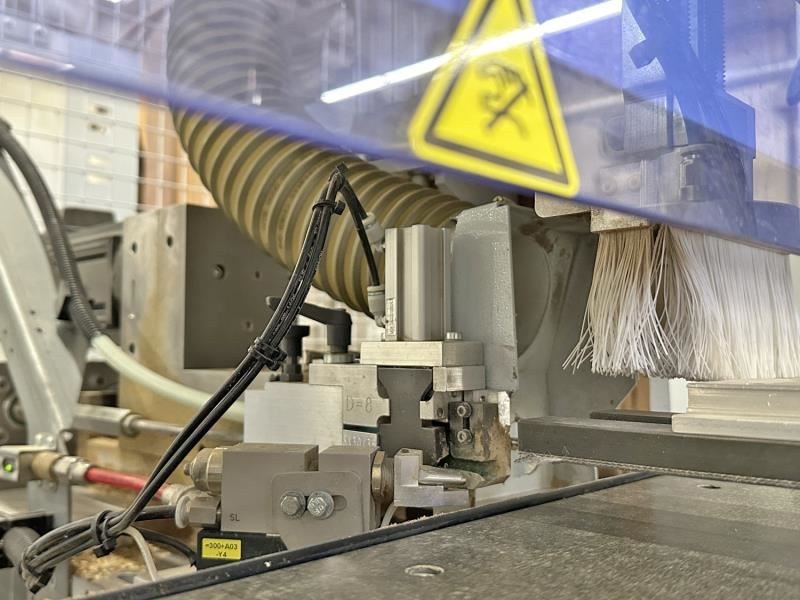

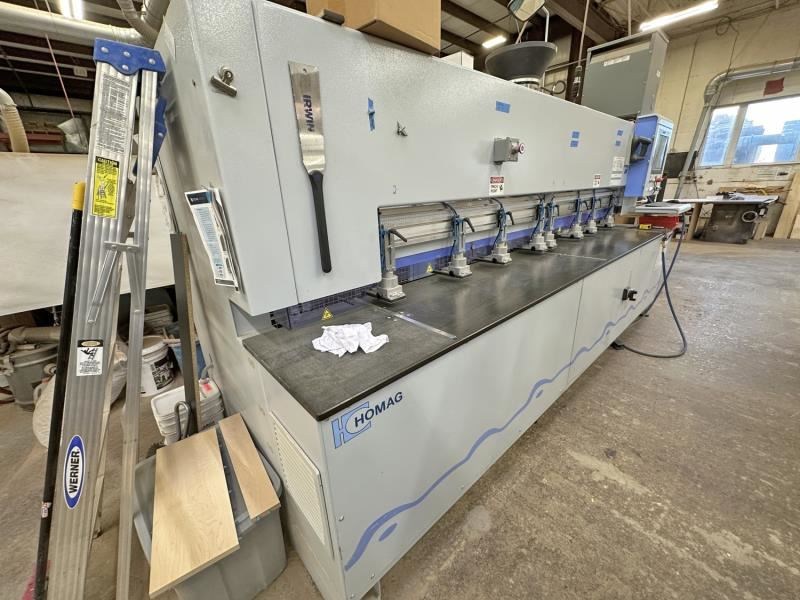

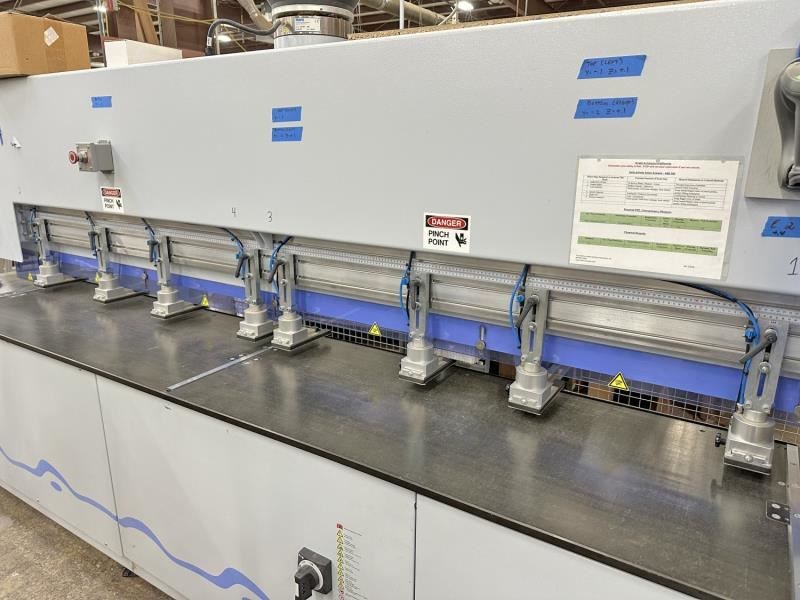

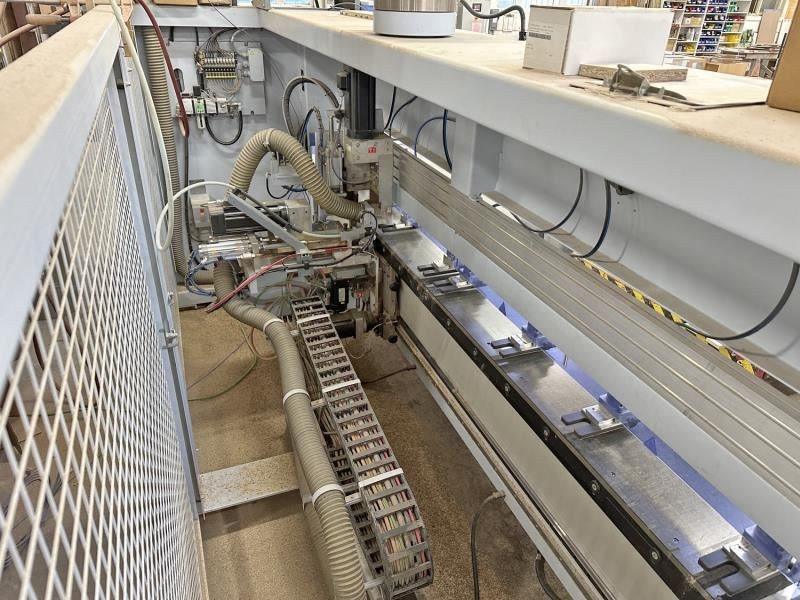

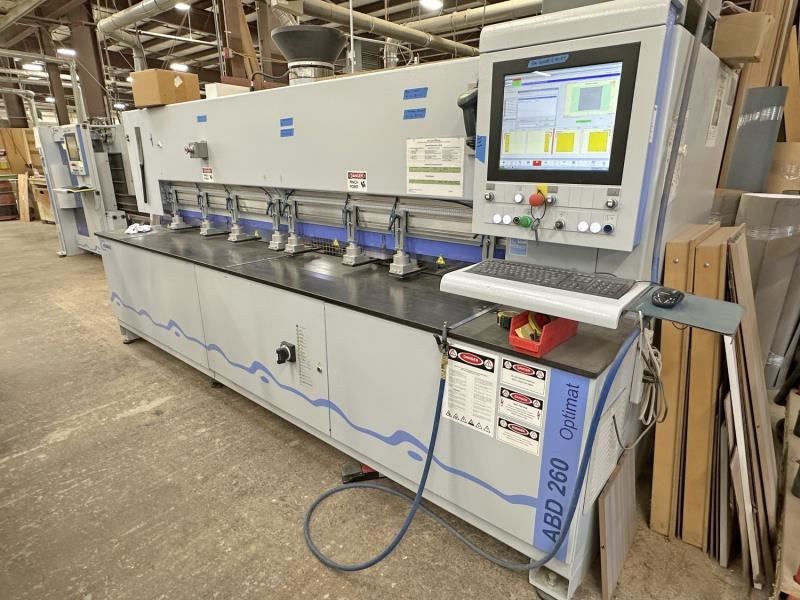

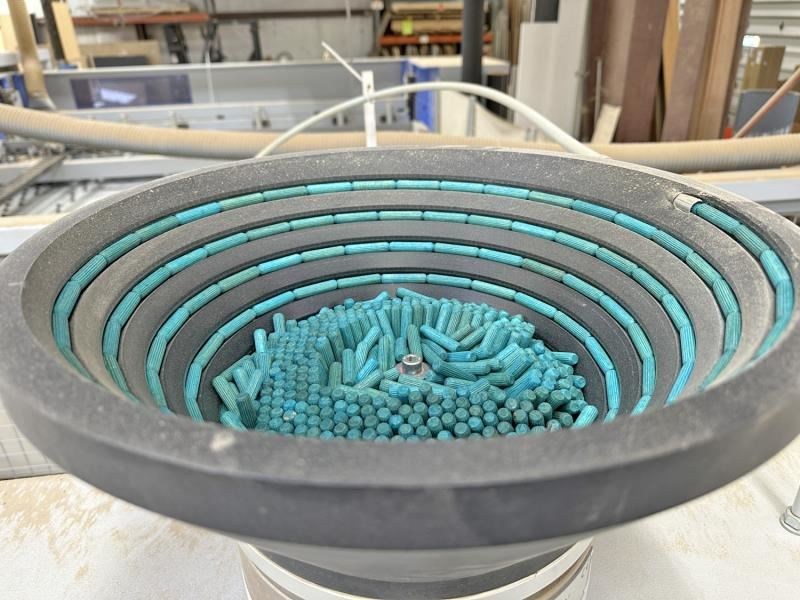

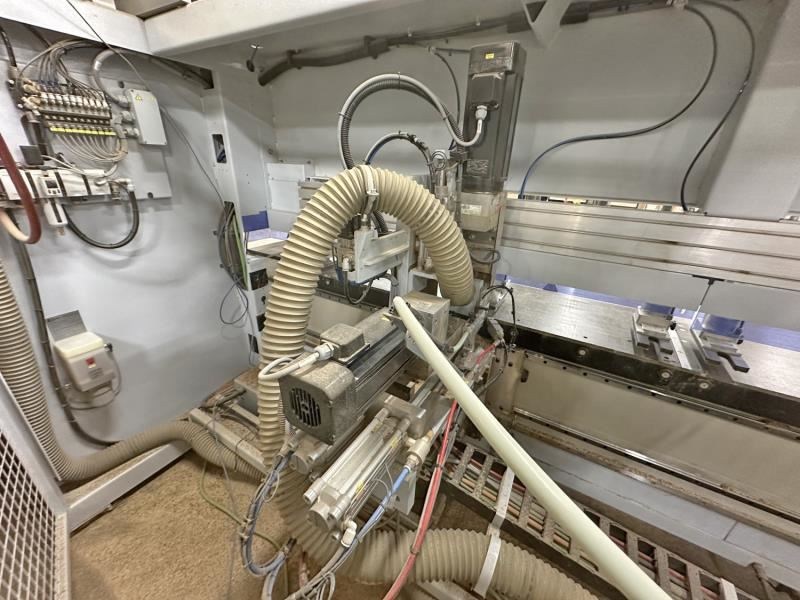

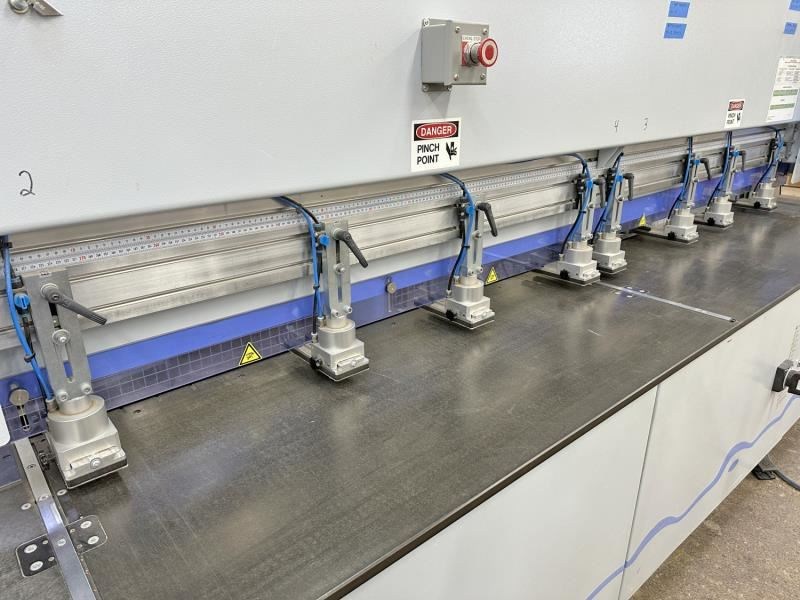

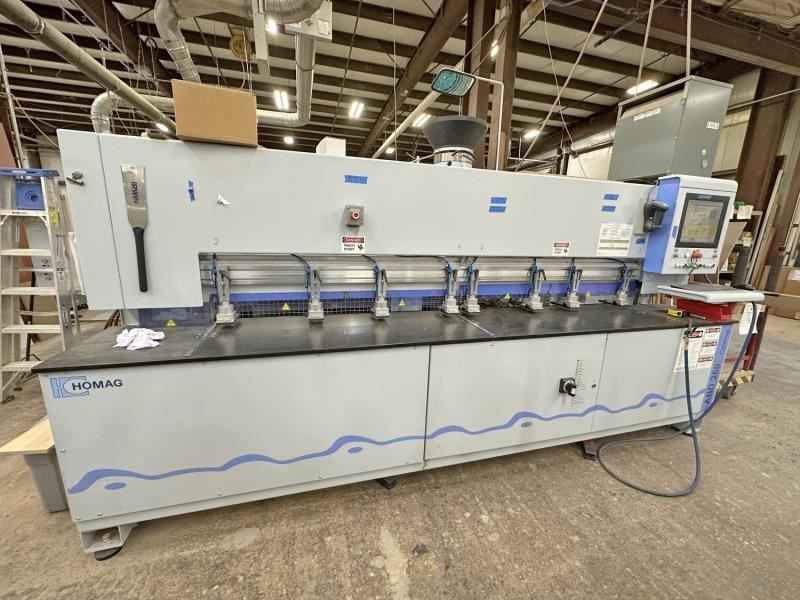

WEEKE - ABD 260: CNC Bore Glue & Inserter -- SpecificationsDesigned for small or large capacity horizontal drilling, gluing and dowel insertion; built on Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with: Left & right side stop & rear stop bar; center stop pneumatically activated.(8) Clamping cylinders; manually adjustable; automatic central lubrication. -- Working Capacity. Material size from: 20 mm - 2,800 mm (3/4" - 110-1/4") long; 100 mm - 800 mm (3.9" - 31-1/2") wide; 10 mm - 80 mm (0.4" - 3-1/2") thick.Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate with: (3) Individual spindles on 32 mm centers; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Vertical 3-Spindle Drilling Unit with: (3) Individual selectable spindles at: 32 mm Spacing; adjustable in "Y" direction from 0 - 50 mm; min. workpiece width: 100 mm. -- (2) Separate Stations process: (2) Parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in: (1) Field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface Power Control PC Front-End with: Microsoft Windows based control + WEEKE "PC85T" + "WoodWOP" Operating System with Graphic programming & error messaging.17" TFT Flat screen monitor: CD-RW Drive, 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation, and program disk provided with machine.
