Description:

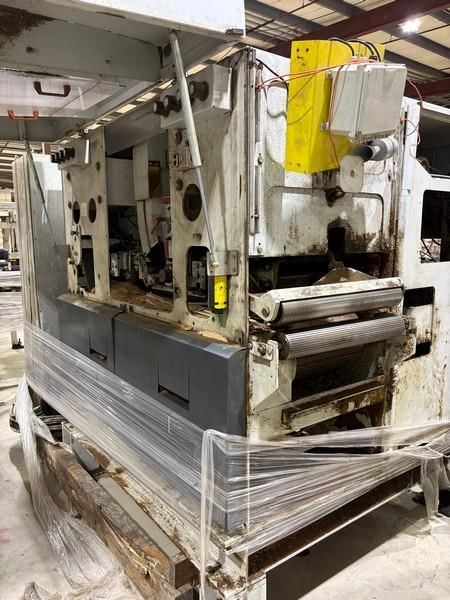

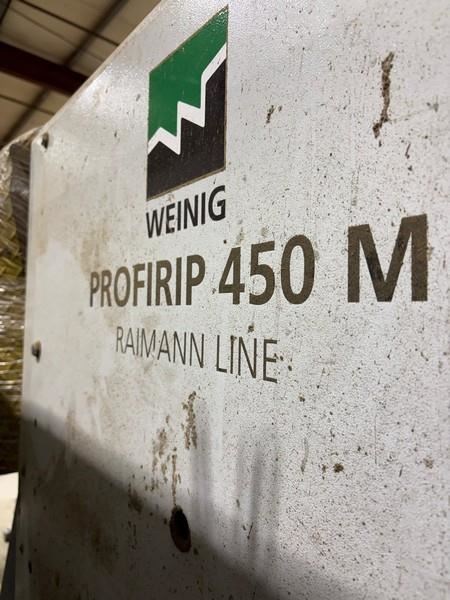

WEINIG RAIMAN PROFIRIP 450M And Combiscan EVO Luxscan Lumber Scanner SystemThe system is complete with: -- (1) Weinig lateral lumber feeder table to scanner head -- 12" wide rubber belted infeed -- Roller/Sweep type lateral conveyor with sequencing and buffer to scanner infeed -- (1) Weinig CombiScan EVO Luxscan Line Feed through lumber scanner -- Model CombiScan EVO -- Max width 310 mm (12.2") -- Min width 25 mm (0.984") -- Max length 6500 mm (255.9") Min length 900 mm (35.4") -- Max thickness 100 mm (3.93") -- Min thickness 12 mm (0.472") -- Speed range 80 to 300 m/Min (up to 250 boards/min) -- Max throughput 200 m/Min -- Luxscan combiscan EVo R with two cameras, top-bottom (2 side detection laser cameras, 2 side detection color defect high-resolution cameras, 2 side detection with dot laser, 2 side line scatter, angle crack detection 2 side) -- Freestanding operator computer control station -- Flat screen color display with keyboard -- Opticore direct controls -- Freestanding electrical and computer control cabinet -- Freestanding chiller unit for laser system -- Scanner infeed and outfeed table system -- Safety guards with access doors around the scanner and rip line machines -- Includes the machine operators' manuals -- (1) Weinig sweep type lateral conveyor table from scanner to the rip sequencer table -- Chain deck type sequencing and spacing conveyor table -- Infeed rip saw board flipper with servo fence system to rip saw -- (1) Weinig Raimann ProfiRip 450M Gang Rip Saw With (2) Movable blade -- 51 kW, 460 V, three-phase, 60 Hz -- Max cutting width 450 mm (17.7") -- Max cutting height (with 450 mm diameter blade and without pressure board) 150 mm (5.9") -- Max cutting height (with 450 mm diameter blade and with pressure board) 135 mm (5.31") -- Min. cutting thickness: 15 mm (0.59") -- Min cutting length 780 mm (30.7") -- Chain width 470 mm (18.5") -- Diameter of saw arbor 65 mm (2.55") -- Min blade diameter 300 mm (11.8") -- Max blade diameter 450 mm (17.7") -- Saw blade bore 80 mm (3.14") -- Arbor speed 3900 RPM -- Feed speed range: 15 to 120 m/Min -- Machine weight 4500 Kg (9920 Lbs) -- Saw drive motor 45 kW, 460 volt three phase -- Feed motor 4 kW, 460 V, three-phase -- (1) Fixed and (2) movable saw blade design -- Edging removal system -- Sound and safety machine enclosure -- Front access door with inspection window and safety interlock -- Freestanding operator computer control station -- Pro-Face color touch screen display -- Joystick movable blade controls -- Freestanding electrical control cabinet -- Includes the machine operator's manuals -- (1) Weinig rip saw outfeed table with lateral feeder to chop saw station -- Outfeed roller/sweep type conveyor -- Cross conveyor table with servo accelerator -- Freestanding operator conveyor system controls (zone ripping)Note: System installed new in 2019 and sells for a fraction of new.
