Description:

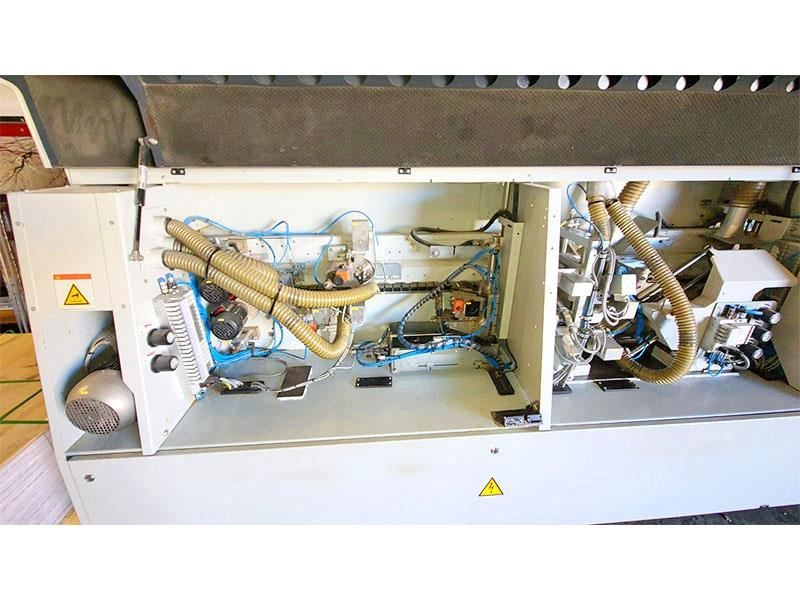

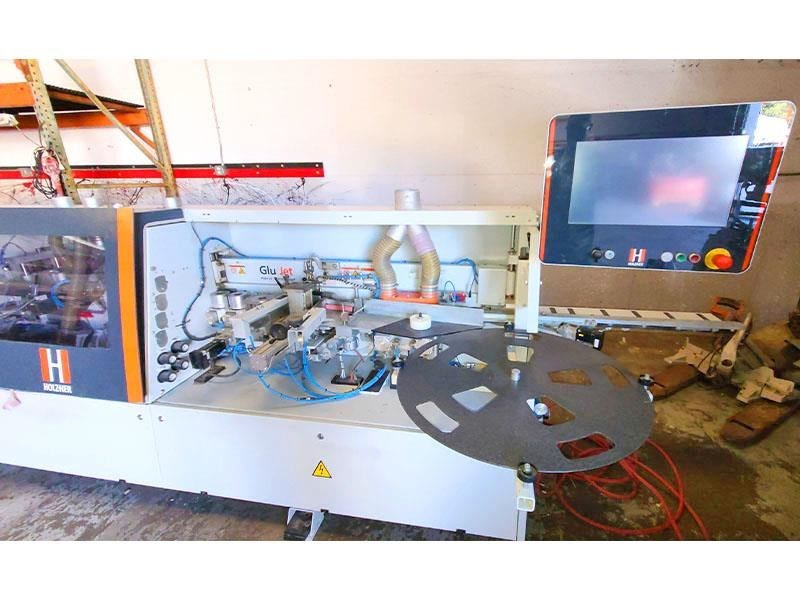

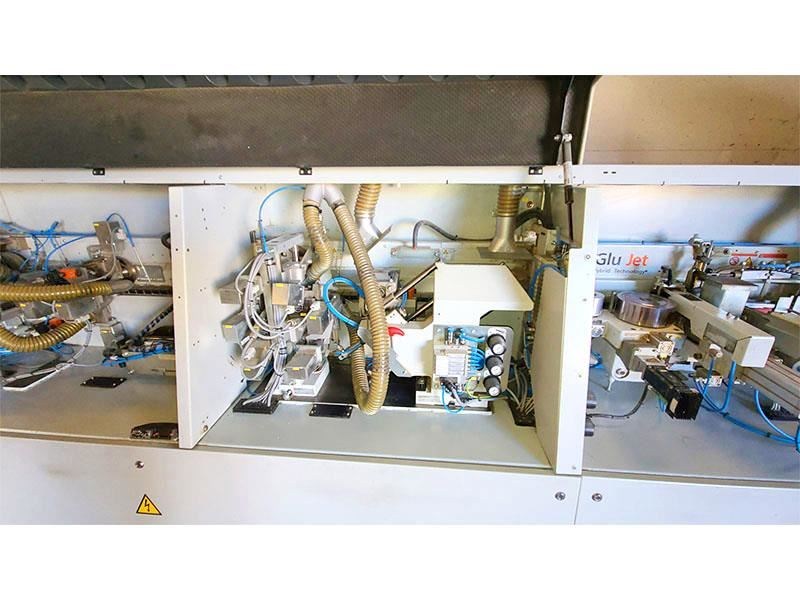

HOLZ-HER 1327 SPRINT CLASSIC EDGEBANDER (W/PER-MILL & CORNER ROUNDING) + Glu-Jet EVA & PUR Gluing Systems: -- Specifications: Servo Machine with Pre-mill, Corner Rounding and Reipe Spray Cleaners. -- Edgebanding Capacity: Edge thickness min./max. 0.4 - 8 mm (0.016 - 0.315"), coiled material 0.4 - 3 mm (0.016 - 0.157").Panel thickness 6 - 60 mm (0.236 - 2.362"), workpiece width min. of 65 mm (2.559").Workpiece length min. 160 mm (6.299"); Feed speed 10 - 18 MPM (33 - 59 FPM). Operator Interface:&#9679 15" Flat "Touch Screen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration:&#9679 Pre-Milling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors. -- Edge Magazine "1901": For coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety,3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913": Pneumatic Plunge controlled pressure section with (1) large driven roller and (2) cantered idle rollers. -- Gluing System "JG301" Glu Jet Hybrid Technology; Processes "EVA" or "PUR" Glue in Cartridge or Granulate form.Motorized programmable glue nozzle (upper glue line) height positioning. Approx. 3-Minute Heat Up TimeWorkstations: &#9679 End Trimming Unit "1918P": Front & rear 2 x 0.35 kW (0.5 HP) - 9,000 RPM motor each,For Straight or Chamfer trimming with pneumatic change-over/swiveling up to 10° bevel. -- Flush/Bevel/Radius Combination Trimming Unit "1827-Mot 4": Top & bottom, 2 x 0.65 kW (0.87 HP) - 9,000 RPM each motor.Manual Edge Radius adjustment up to 3 mm & chamfer adjustment up to 15°. -- Corner Rounding Unit "1832": (1) Motor 0.22 kW (0.30 HP) - 9000 RPM Up to 3 mm edge thickness, min./max. work-piece thickness 12 - 45 mm (0.473 - 1.772"),When CR unit is activated, the max. feed speed allowed is 10 MPM (33 FMP). -- Profile Scraping Unit "1929P": Top/Bottom pneumatic controlled knife position for PVC edges,Reversible insert carbide knives, equipped with air-jet blowers and chip collector box. -- Buffing Station "1940": Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter,Adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.Complete with:&#9679 Motorized Top Pressure Beam. Outboard panel support &#9679 Manual Central Lubrication of the Transport Chain &#9679 Sound enclosure w/interior lights over enclosed workstations of the machine &#9679 Used tooling on the stations &#9679 Machine documentation. -- Actual Model is HOLZ-HER 1327 SPRINT CLASSIC
