Description:

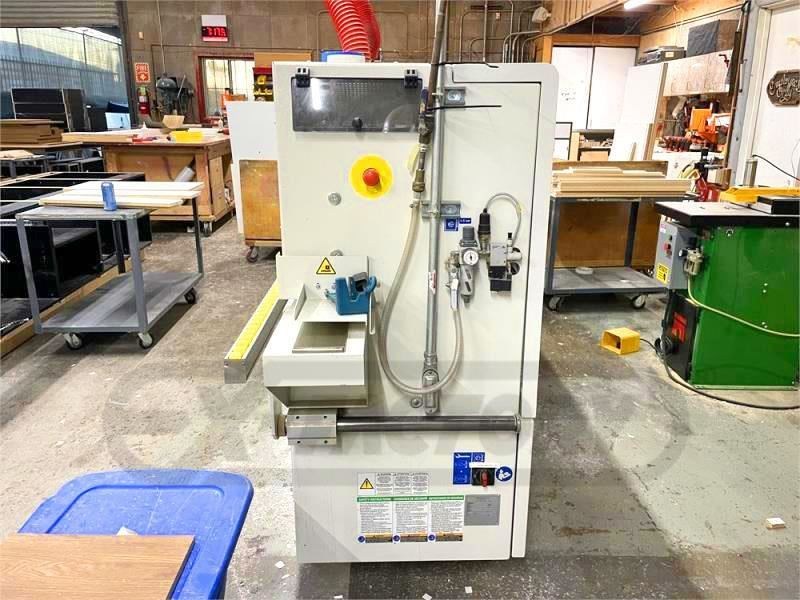

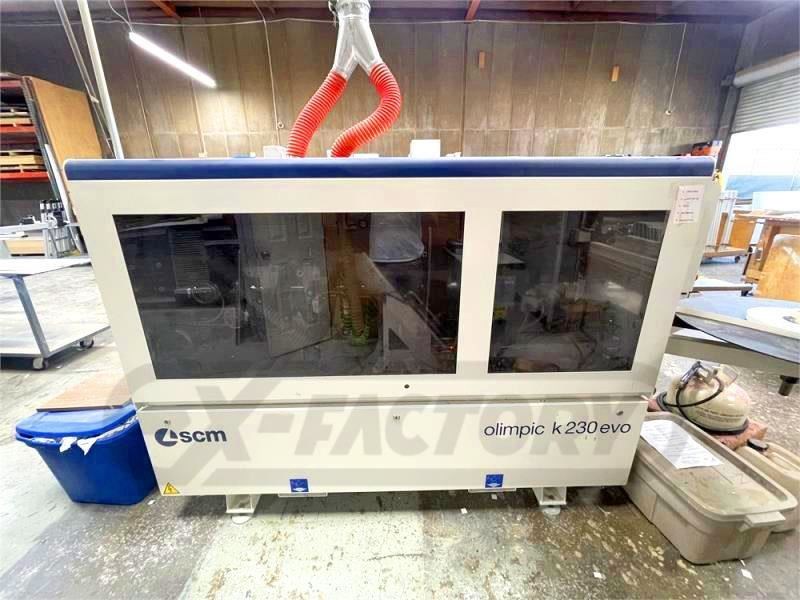

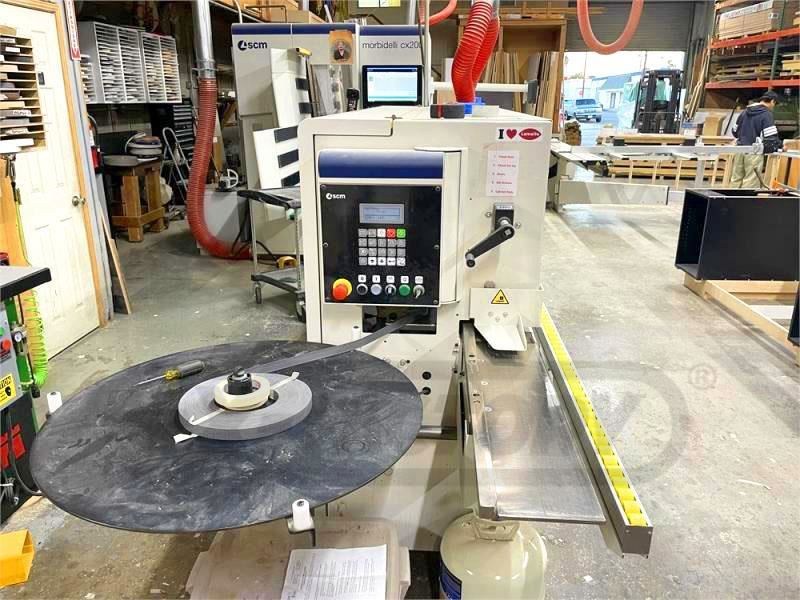

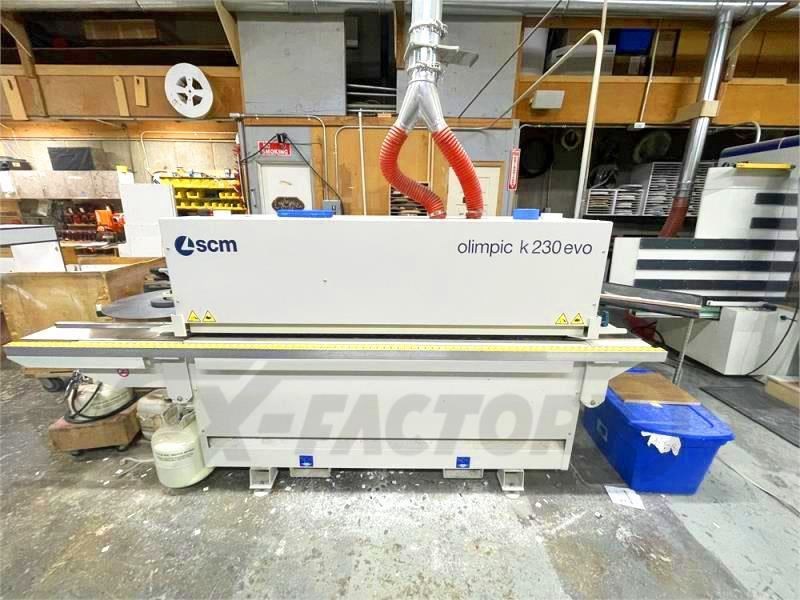

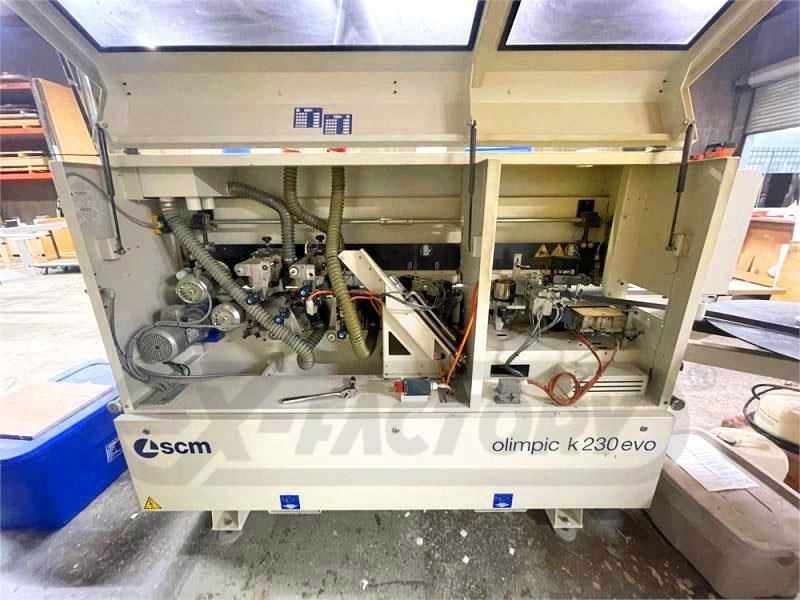

SCM OLIMPIC K230-EVO SINGLE SIDED EDGEBANDERSpecifications: --0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (3/8" to 1-15/15"), minimum part width 110mm (4.33"), minimum part length 160mm (6.30"). -- Equipped with: -- 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control. pneumatic guillotine, 3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine --Workstations: --÷Double motor front & rear (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide. --Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes (0.7 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. --Top & bottom scraping unit w/pneumatic positioning from the control panel. -- Top & bottom buffing unit (0.25 HP - 2,800 RPM motors). 29.5FPM Fixed feed speed, 0.75 HP feed drive.
