Description:

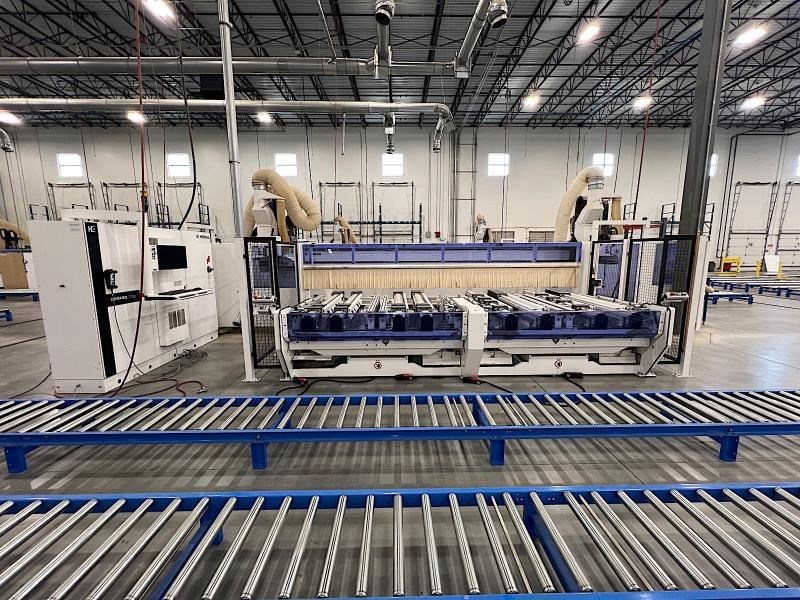

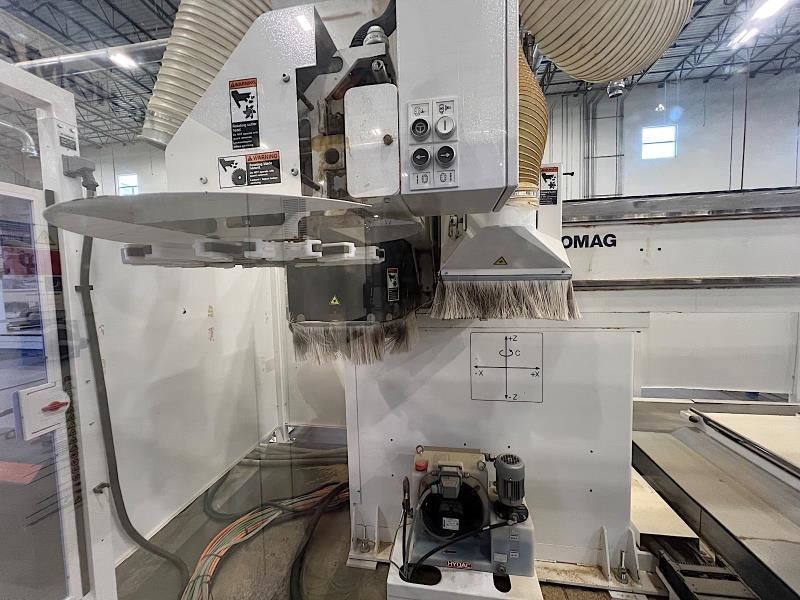

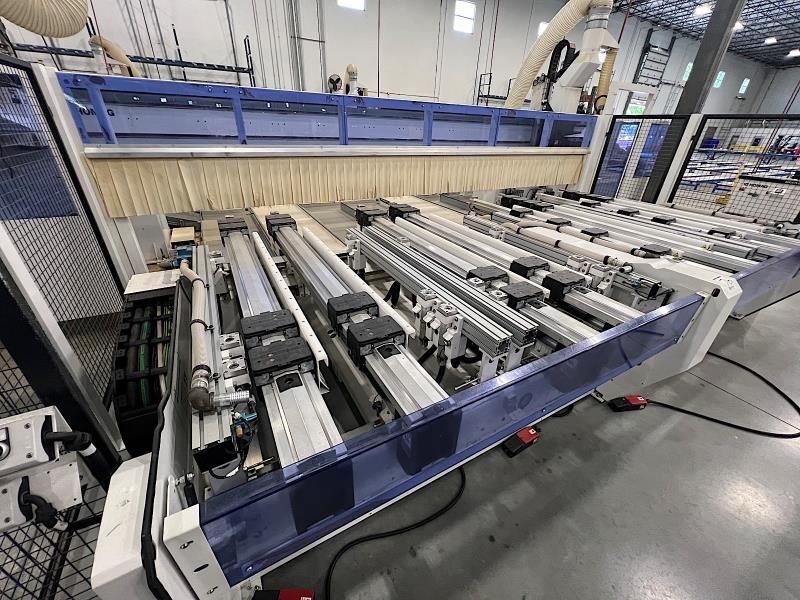

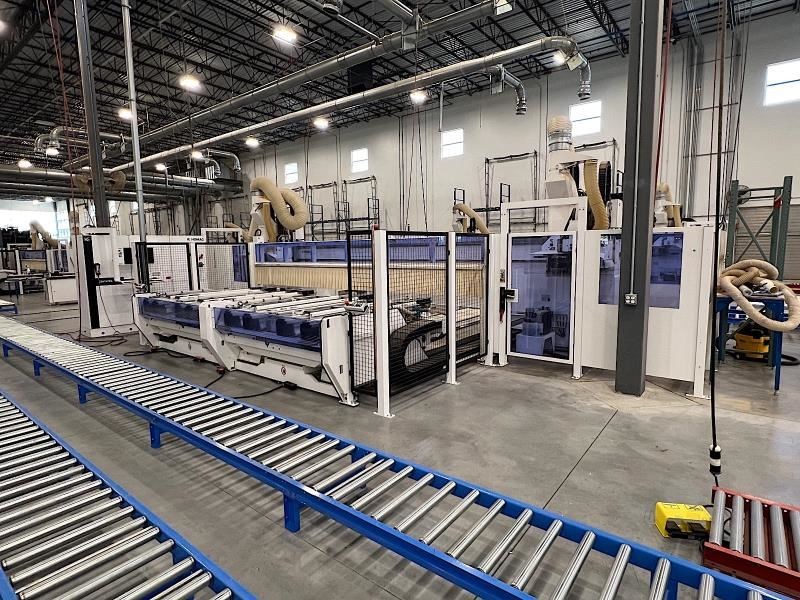

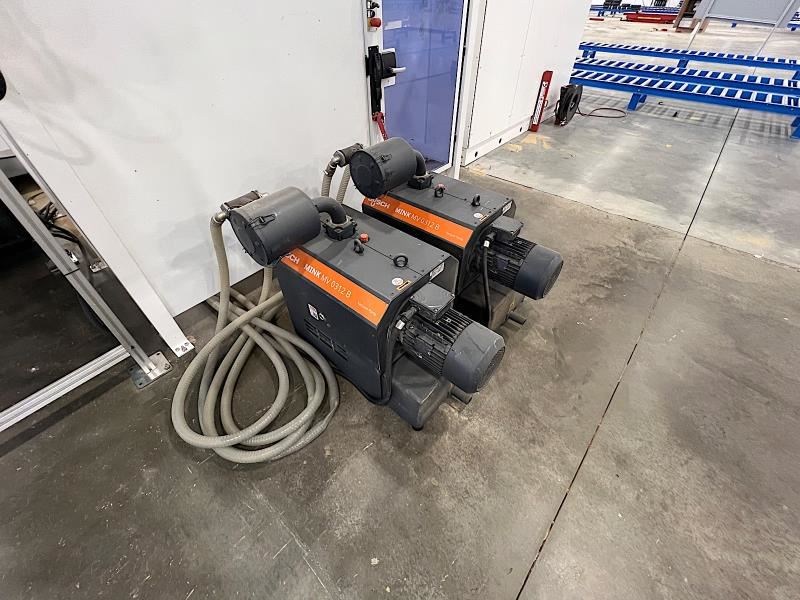

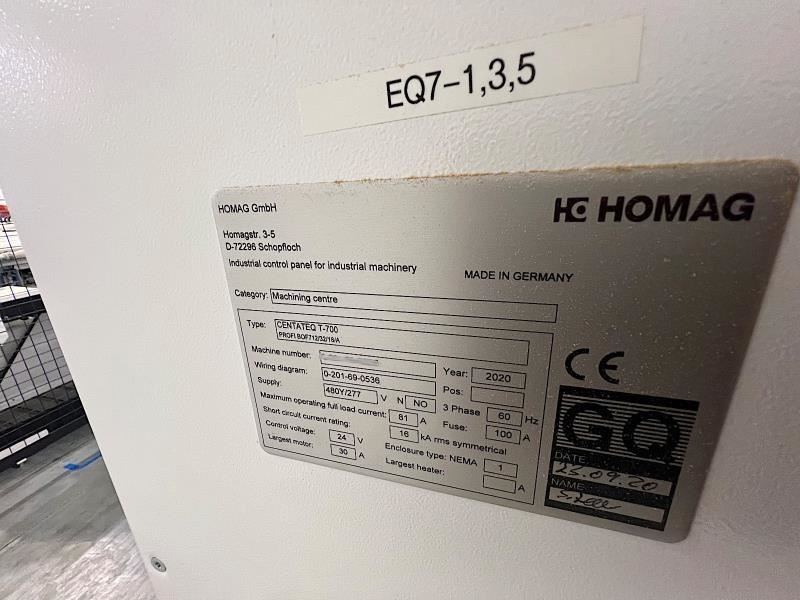

HOMAG CENTATEQ T-700/PROFI (BOF 712/32/18/A) TWIN POD SHUTTLE TABLE MACHINE (W/ATC/BORING): -- Specifications Twin Pod Shuttle Table, Bridge Gantry machine with: NC Controlled, User-Friendly support rails & vacuum pods. -- Working Area:"X" Axis is 126" (3,200 mm, "Y" axis 72" (1,828 mm), "Z" axis stroke Routing is 12.8" (325 mm), "Z" axis stroke Boring is 7.3" (185 mm) max. material thickness of 4" (100 mm). -- Positioning Speed"X" & "Y" Axes 426 FPM (130 MPM); "Z" axis is 66 FPM (20 MPM); machine head travels on THK linear motion guides on all axes. -- Worktable x 2Twin Pod Table "Bridge Gantry" machine with: NC Controlled, User-Friendly support rails & vacuum pods, with electronic surveillance of all vacuum rails/pods/stops.(2) Independent 10.5' x 6' working areas, for Pendulum processing during loading & offloading of the materials being processed. -- Boring Unit x 2(1) 3 HP (2.3 kW) Motor; variable speed from 1,500 - 7,500 RPM; (21) independent "Quick Change" vertical spindles; (13) in "X" axis & (8) in "Y" axis.10-Horizontal Spindles; (3+3 in X axis & ( 2+2) in Y axis. (1) 100 mm X-Axis Saw slot. -- Machining x 2(1) 20 HP (15 kW) Air-Cooled, high-speed constant duty Router with HSK F63 adaptor & tool length "touch off" probe.Programmable speed from 1,250 - 24,000 RPM; constant torque achieved at 9,000 RPM, RH or LH rotation.Router is powered by a 14 kW frequency inverter; integrated air jet blow off located in the extraction hood.(1) 10-Position ATC plate mounted at the back of each head. -- Operator Interface:PC87 Front-End with: "Power Control with PowerTouch2" + Windows© 10 + woodWOP Operating System.21" TFT Color graphic touchscreen for data entry; PC 85T hand control pendant; INTEL Core 2 Duo Processor; 1 SATA 160 GB hard disk CD R/W drives.Ethernet Connection 10/100 MBIT RJ45 (without switch) for LAN connection to office PC; USB ports & central USB connection at the operating panel.BECKHOFF Programmable logic control for (3/4) axes; linear, circular & helical interpolation.The machine control is contained on a separate freestanding console that can be placed at either the LH or RH side of the machine. woodWOP can be programmed offline with the same intuitive icon-driven software that the Operator has on the machine controller. -- Shuttle Tables x 2Manual LH & RH facing/loading & automatic shuttle into & out of the working field. Integrated dust/scrap/chip conveyor to clean/remove material form the work/processing area. -- Complete with (2) 100 m³/Hr Vacuum Pump: All zone perimeter Safety System. -- Actual Model is: HOMAG - CENTATEQ T-700/PROFI (BOF 712/32/18/A).
