Description:

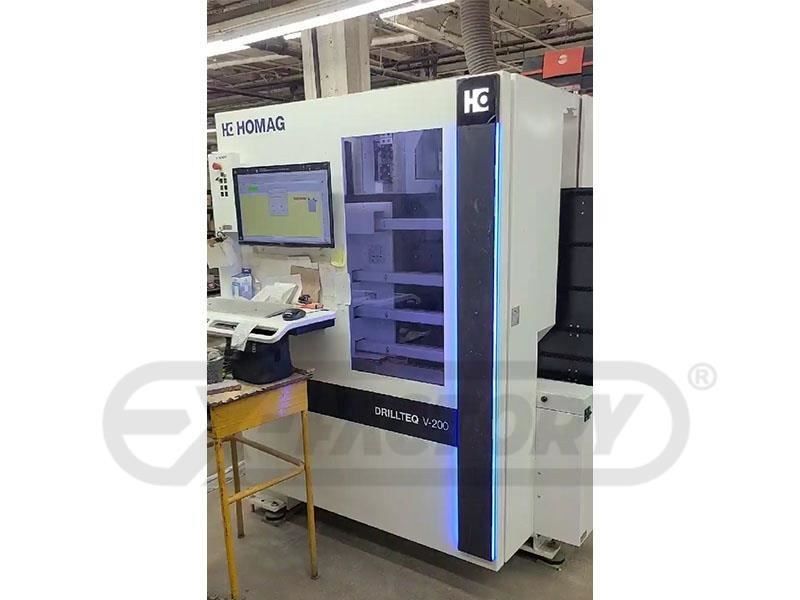

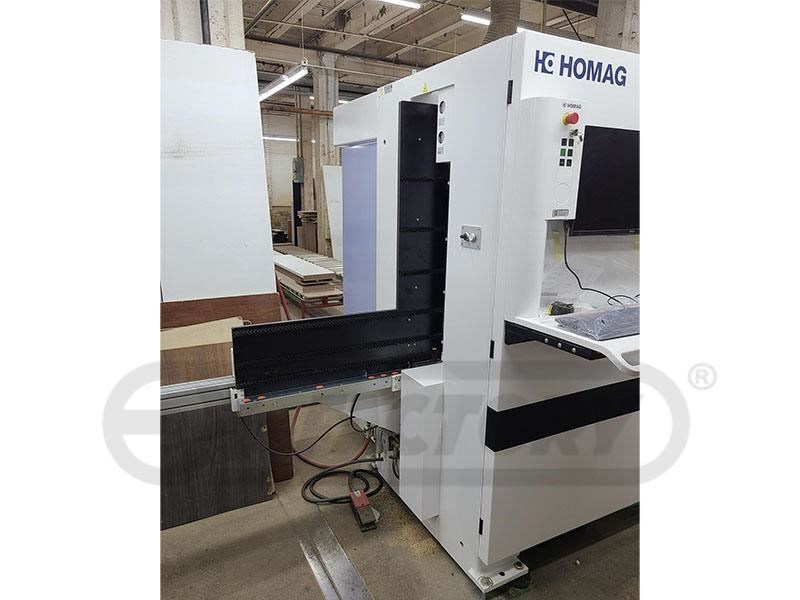

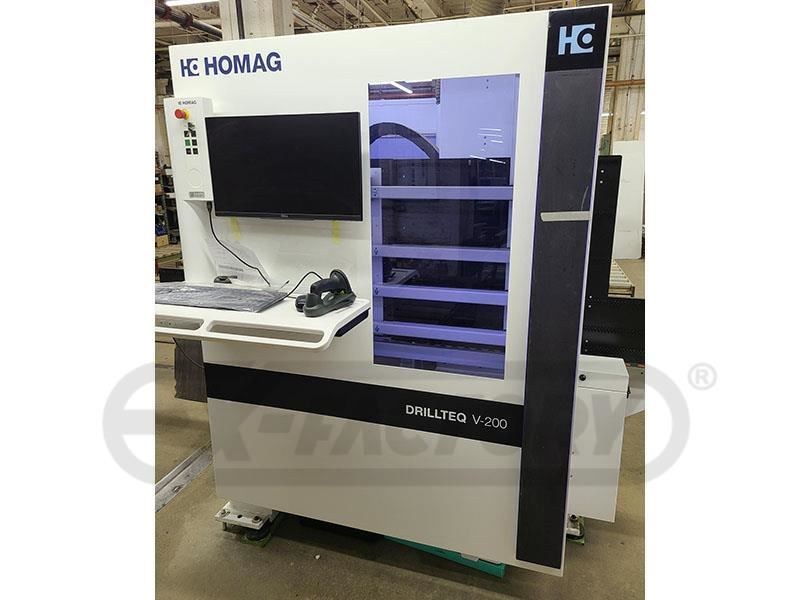

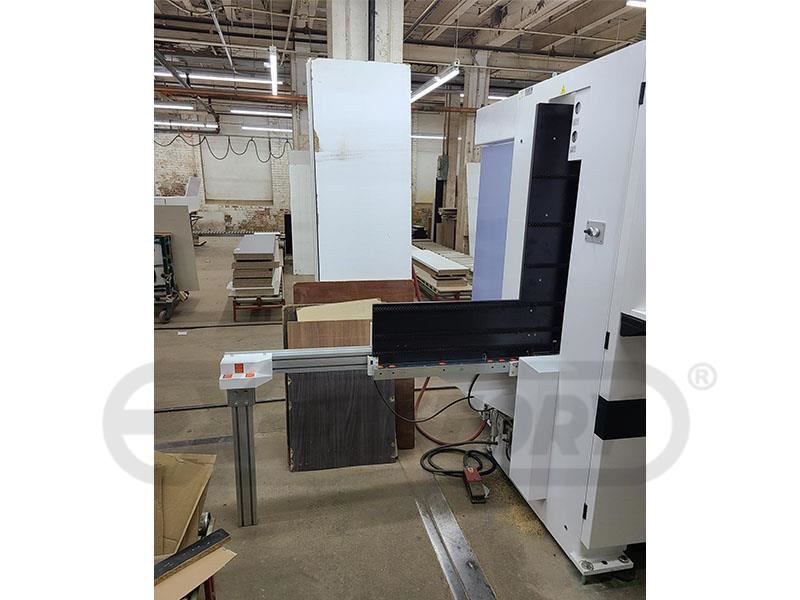

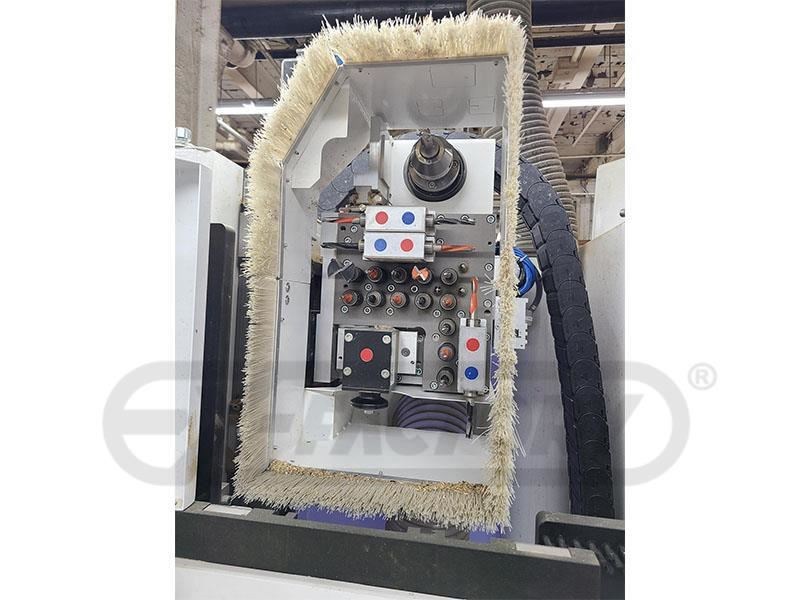

HOMAG DRILLTEQ V-200 CNC MACHINING CENTER (VERTICAL/W/BORING): -- Specifications: Flexible "Vertical" Machining Center with "BORING": Uses less than 5 sq. meter of valuable floor space in addition to an innovative panel handling system. -- Working Cap.Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm); max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.75" (70 mm); min. part thickness of 0.31" (8 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning SpeedThe "V-200" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit(1) 3 HP (2.3 kW); Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis; boring block has "QUICK CHANGE" spindle system. -- Operator Interface:HOMAG "POWERTOUCH" + Windows + WoodWOP Operating System; "IntelCore 2 DUO" Processor.21" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:(1) "X" Grooving Saw; 9,000 RPM, max. saw blade dia. 100 mm.(1) 12 HP (9 kW) Electro Spindle router with manual Quick-Change adaptor; variable speed from 6,000 - 24,000 RPM. -- Actual Model is: HOMAG DRILLTEQ V-200 OPTIMAT BHX 055.
