Description:

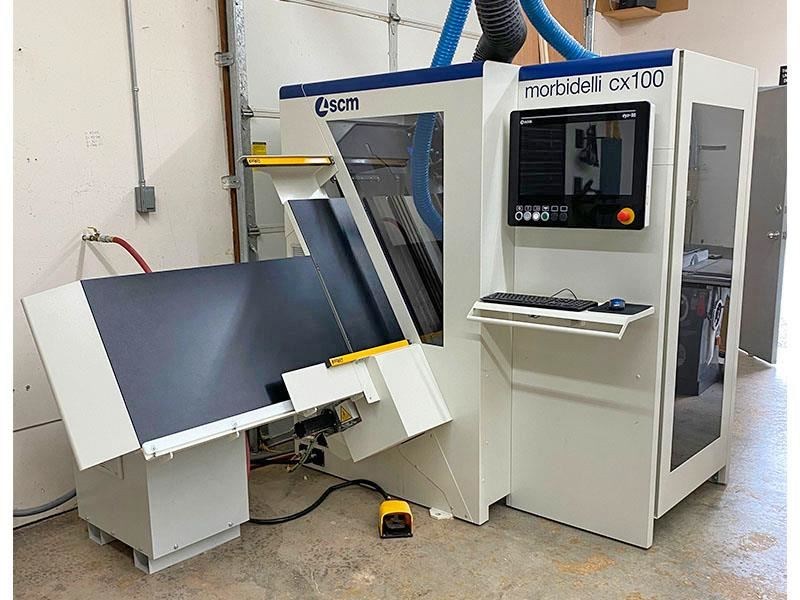

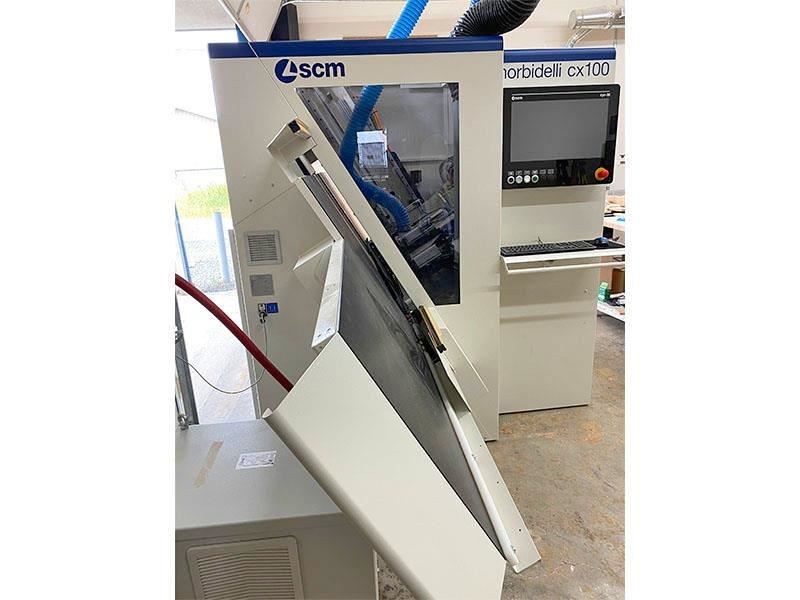

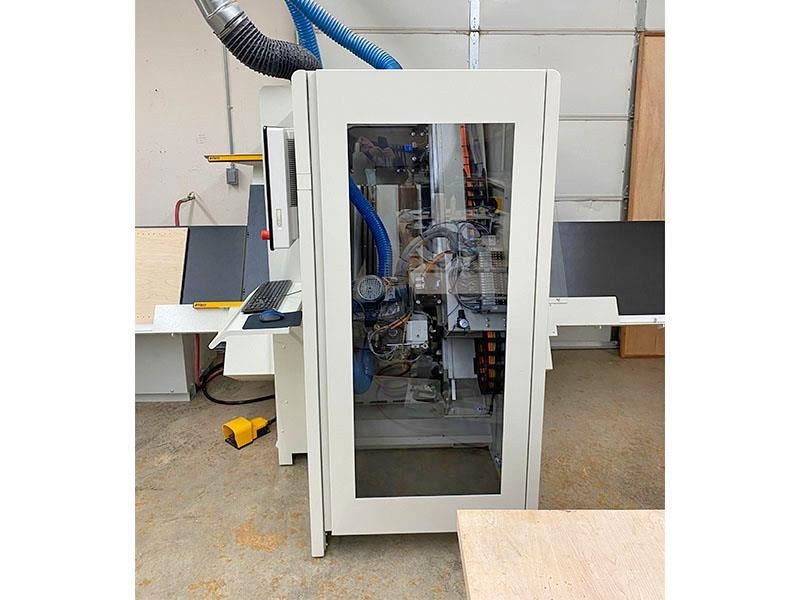

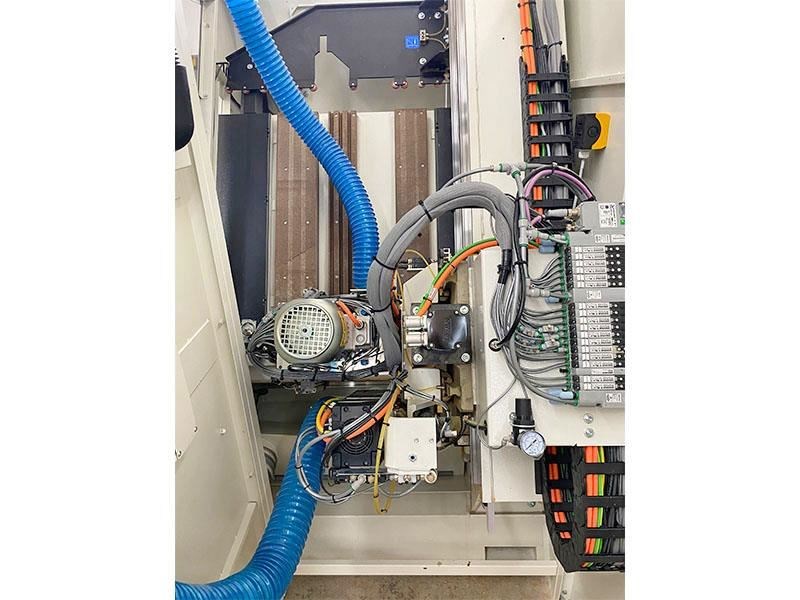

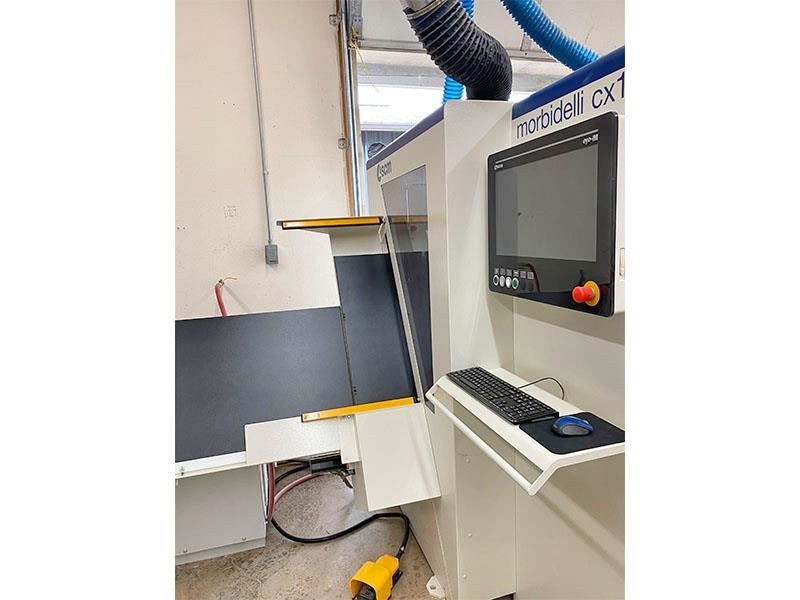

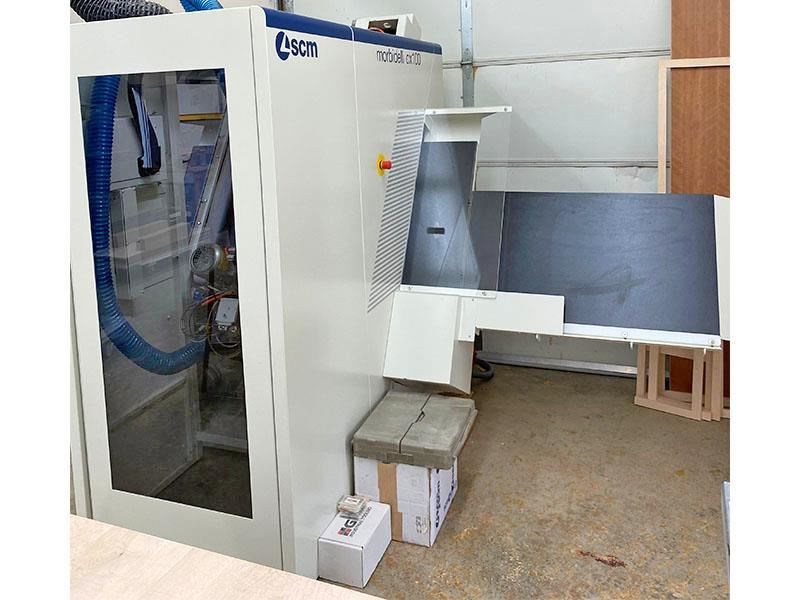

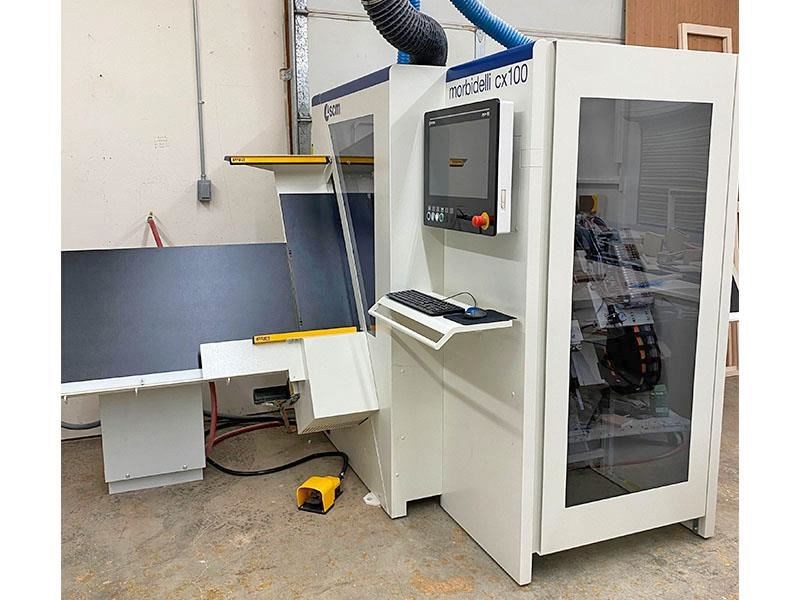

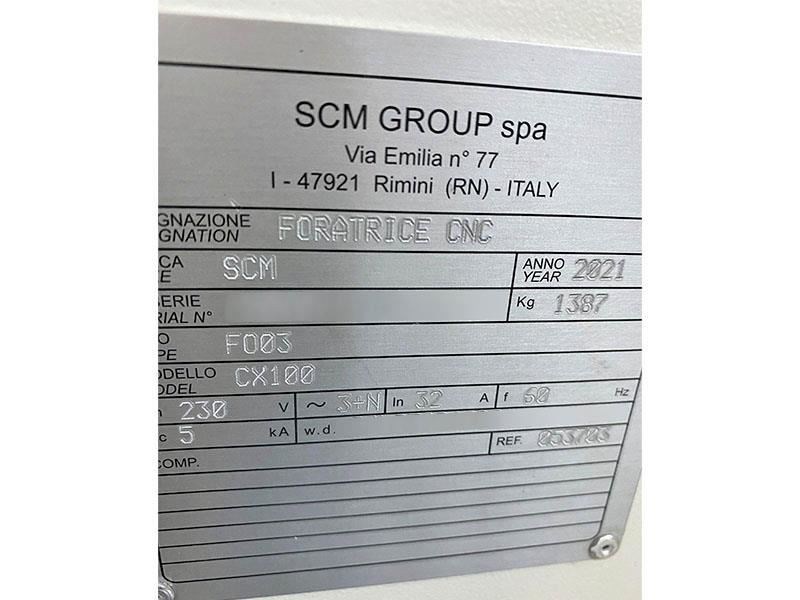

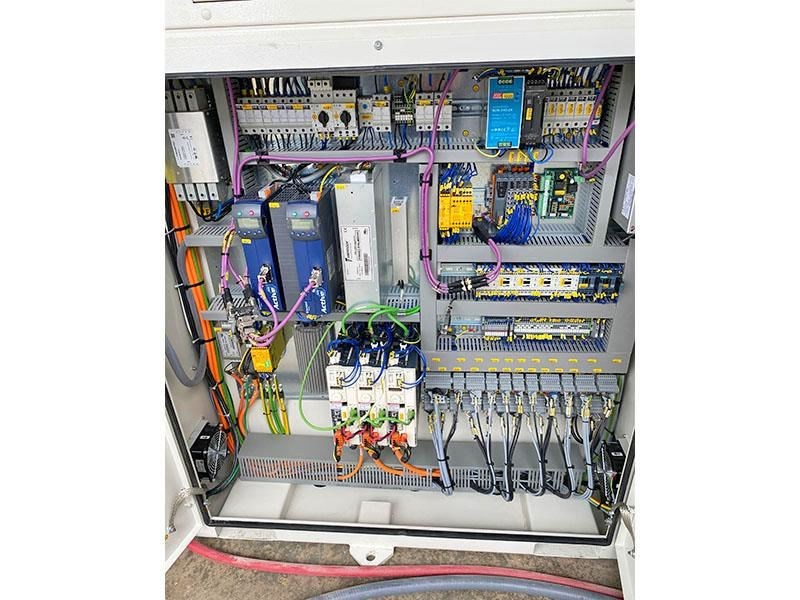

MORBIDELLI - CX 100: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center reaches movement speeds of: 229 FPM (70 MPM) in "X" axis; 131 FPM (40 MPM) in "Y" axis; 98 FPM (30 MPM) in "Z" axis with total safety. -- Working CapacityMax. part size for "X" axis is 120" (3,050 mm); "Y" axis 51.1" (1,300 mm); max. part thickness 3.7" (95 mm).Min part size for "X" axis is 7.8" (200 mm); "Y" axis 1.96" (50 mm); min. part thickness of 0.31" (8 mm); automatic infeed & outfeed from the LH side. -- Boring Unit(1) Boring block with: (2) 3 HP (2.2 kW) Motors; variable speed: Up to 8,000 RPM; (24) independent vertical spindles.(2) NC Controlled "Split Heads" with: (12) Independent spindles: (7) In "X" axis & (5) in "Y" axis; the "Split Heads" are independent of each other in the "Y" axis.(11) Horizontal spindles with: (4 + 4) in "X" axis; (1 + 1) NC controlled split head spindles in "Y" axis; (1) additional horizontal spindle mounted on the upper head in "Y" axis.(1) "X" Axis grooving saw: Mounted on the lower head; variable speed up to 10,000 RPM; 125 mm max saw blade diameter.Minimum distance between the "Split Heads". Vertical spindles in: "Y" axis is 64 mm; min. distance between the "Split Heads" horizontal spindles in "Y" Axis: 231 mm; min. distance between the "Split Heads" vertical spindles in "X" axis: 295 mm.Maximum distance between the "Split Heads" vertical spindles in: "Y" axis is 1,780 mm; max. distance between the "Split Heads" horizontal spindles in "Y" axis: 1,525 mm; max. distance between the "Split Heads" vertical spindles in "X" axis: 1,493 mm. -- Machining(1) 8.8 HP (6.6 kW) Router with: HSK F63 Adaptor for automatic tool change; variable speed from 1,000 - 24,000 RPM.(1) 4-Position ATC tool rack mounted on the side of the machine base. -- Operator & Machine ControlPC Front-end with: SCM "XILOG MAESTRO" + Windows Operating System with: 3D graphics.Includes: 17" TFT Monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 Serial ports; USB ports; (1) 1.44 MB floppy disk drive; (1) CD RW drive.Ethernet Connection. Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Handheld pendent control; (2) pneumatic part clamping devices; auto. lubrication system; sound enclosure & safety devices. -- Actual Model is: MORBIDELLI CX 100
