Description:

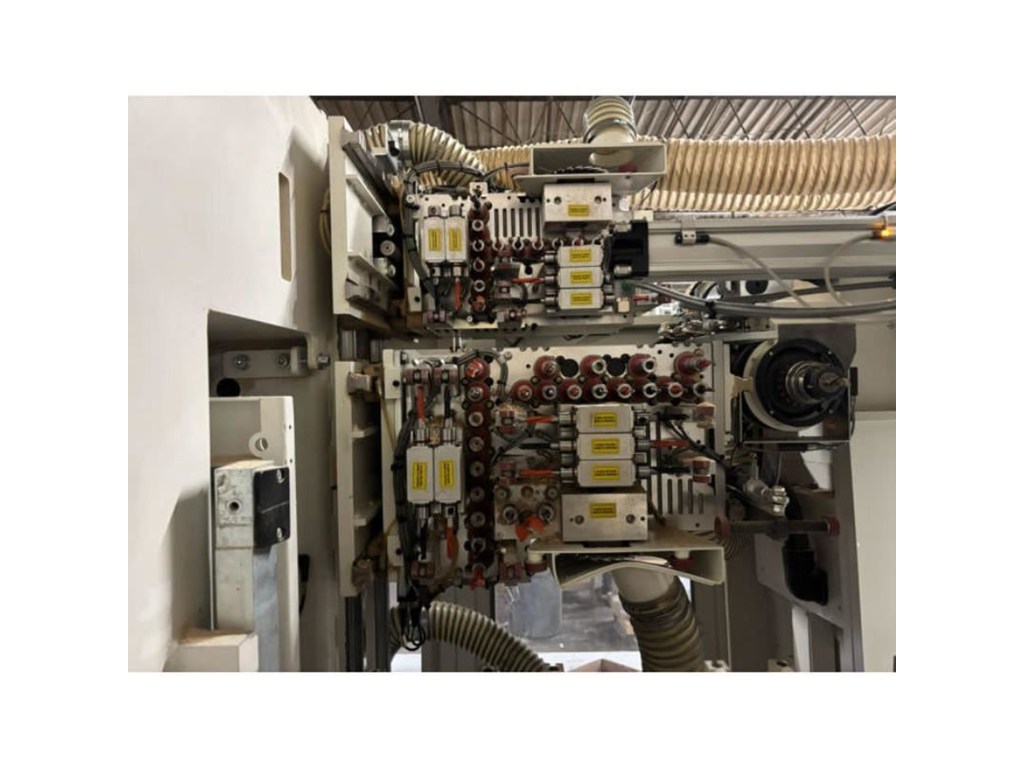

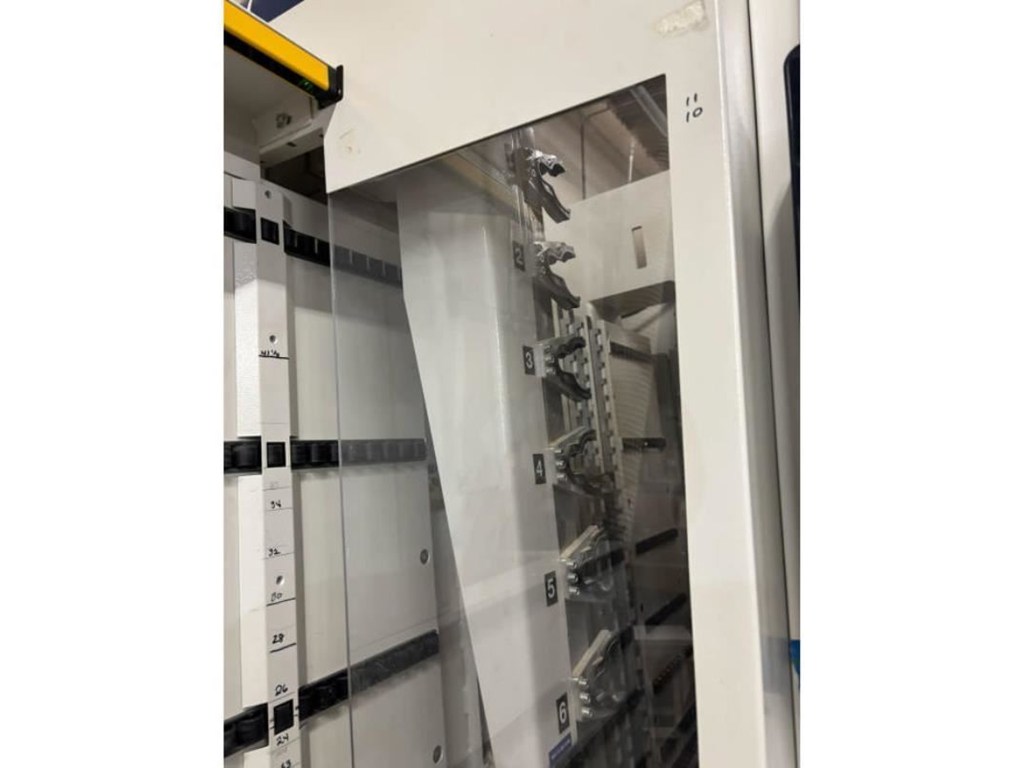

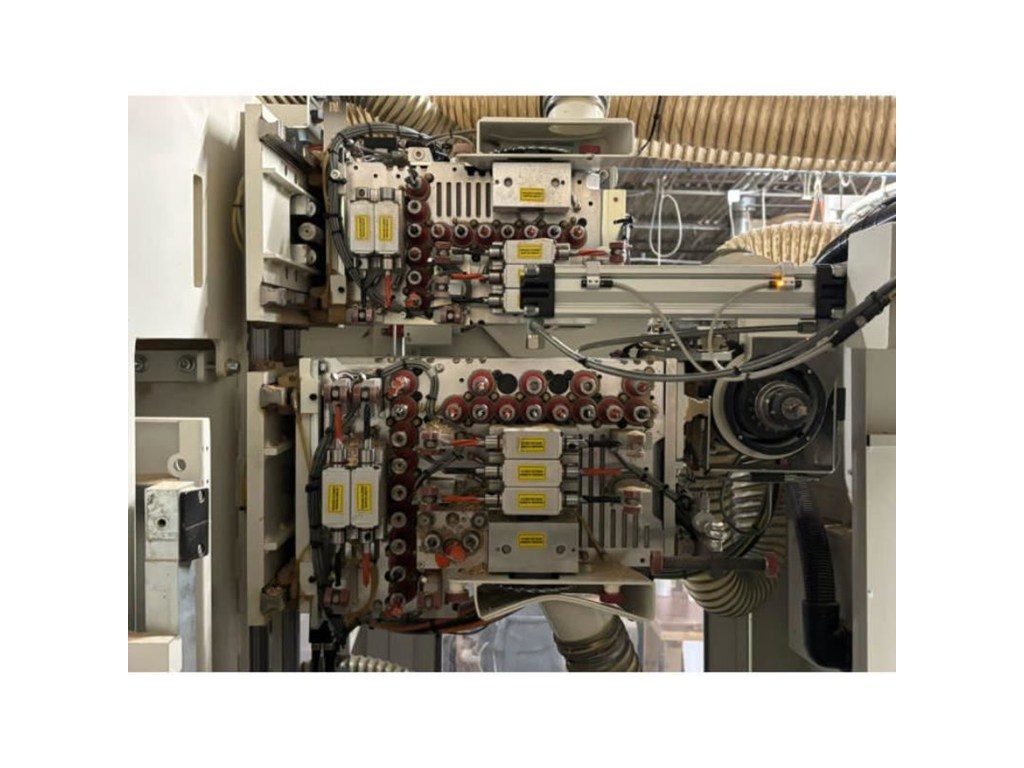

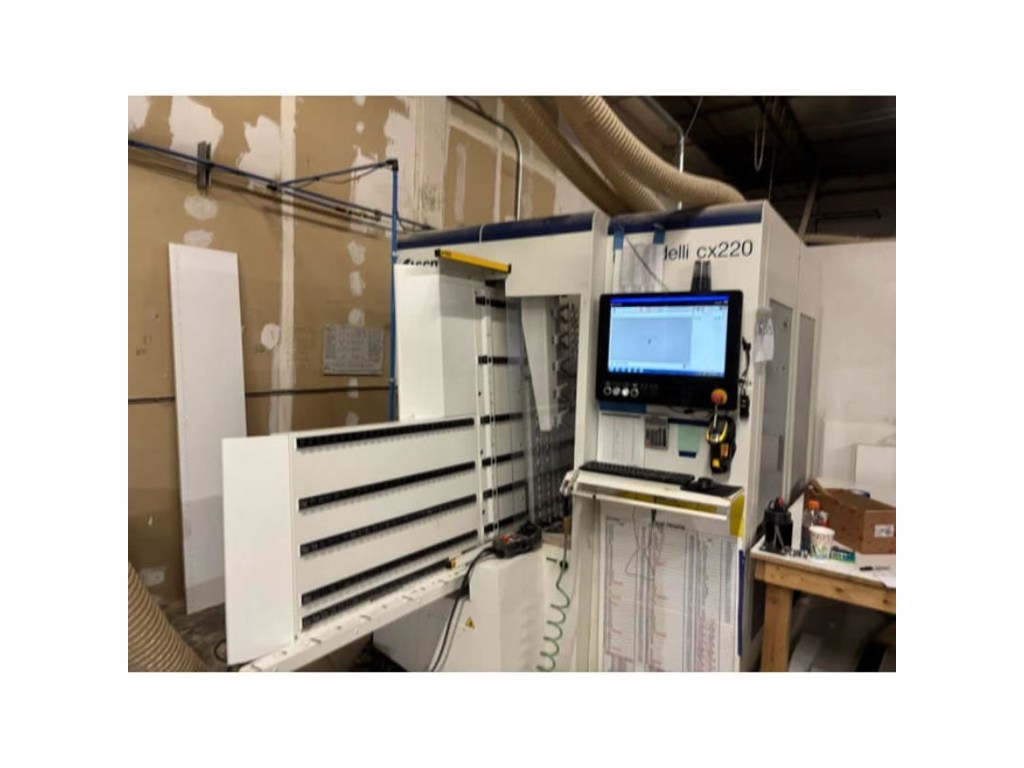

MORBIDELLI - CX 220: CNC Machining Center (Vertical) with (2) NC Controlled "Split Heads" -- Specifications• HSK63F Electrospindle.• 6-Position tool holders.• (S1/S6) 6.6/7.5 kW (9/10.2 HP).• Constant motor power from: 12,000 - 18,000 RPM.• Automatic lubrication.• Autotransformer.• Drilling on (5) faces.• "EYE-M" PC Controller.• 21-1/2" LCD Color display.Drill Head #1• Vertical spindles: 21.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 4.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power: 2.2 kW (3 HP).Drill Head #2• Vertical spindles: 13.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 2.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power 2.2 kW ((3 HP).• Actual Model: MORBIDELLI CX 220.
