Description:

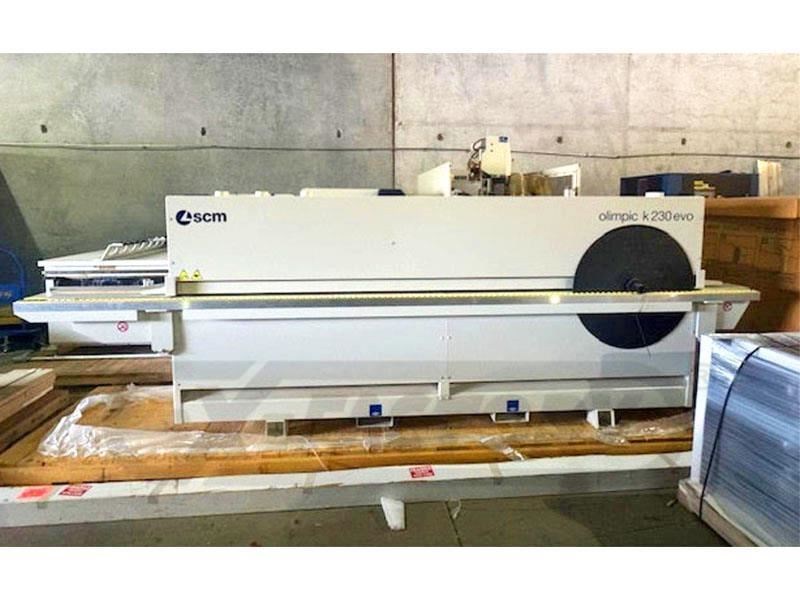

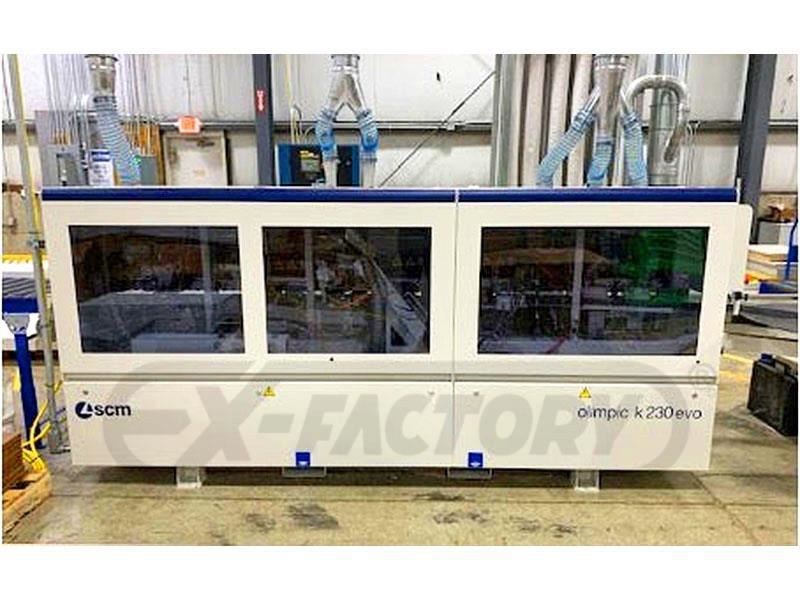

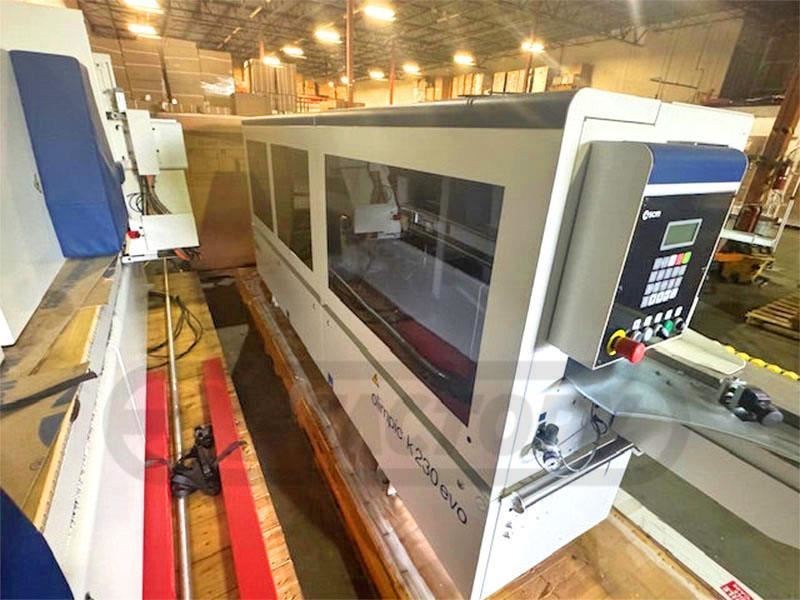

SCMI OLIMPIC K230R EVO EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (0.3" to 1.96"), minimum part width 60mm (2.36"), minimum part length 160mm (6.30").Minimum distance between panels: 559 mm (22";), 29.5 FPM (98 MPM) Fixed feed speed, 1.0 HP (0.75 kW) feed drive.Pre-milling station: (2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue.Digital thermostat adjustment for temperature control. pneumatic guillotine, heating time approx. 8-10 min.3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazineWorkstations:2-Motor front & rear End Trimming (0.5 HP - 12,000 RPM ea. motor.), tilts 0° - 15°, end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes(0.5 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. -- Top & bottom scraping unit w/manual positioning. -- Top & bottom buffing unit (0.25 HP - 3,000 RPM motors), tilts up to 12°. Operator & Machine Control:Orion 1 Plus controller, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons.It pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue.The control is tilted slightly upward for a more ergonomically friendly position for the operator. -- Actual Model is SCM OLIMPIC K230R EVO.
