Description:

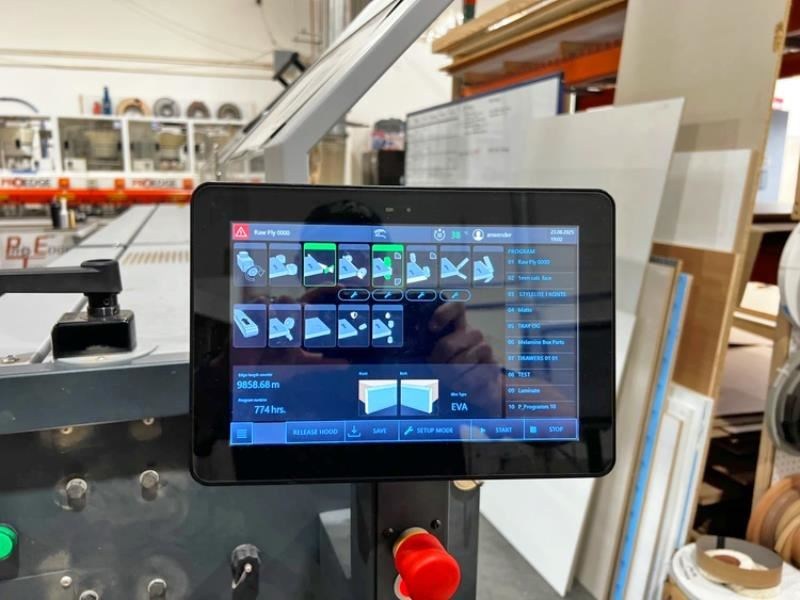

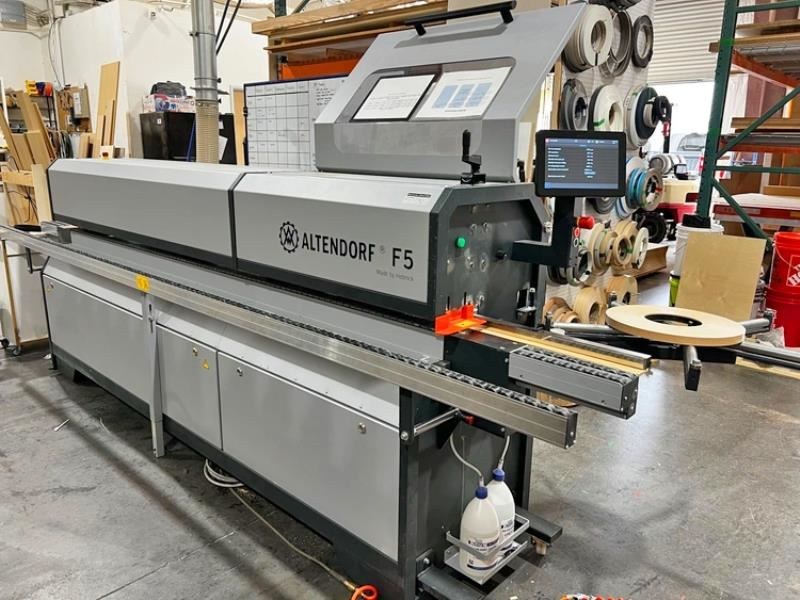

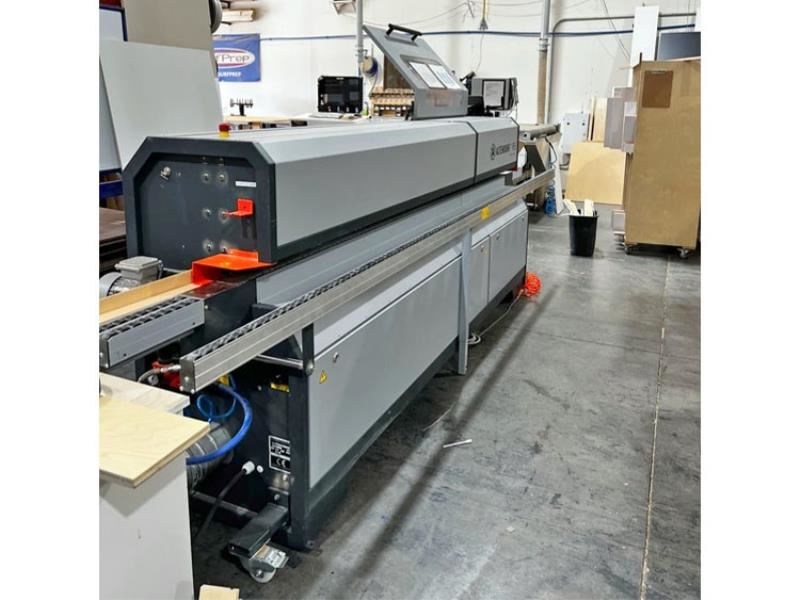

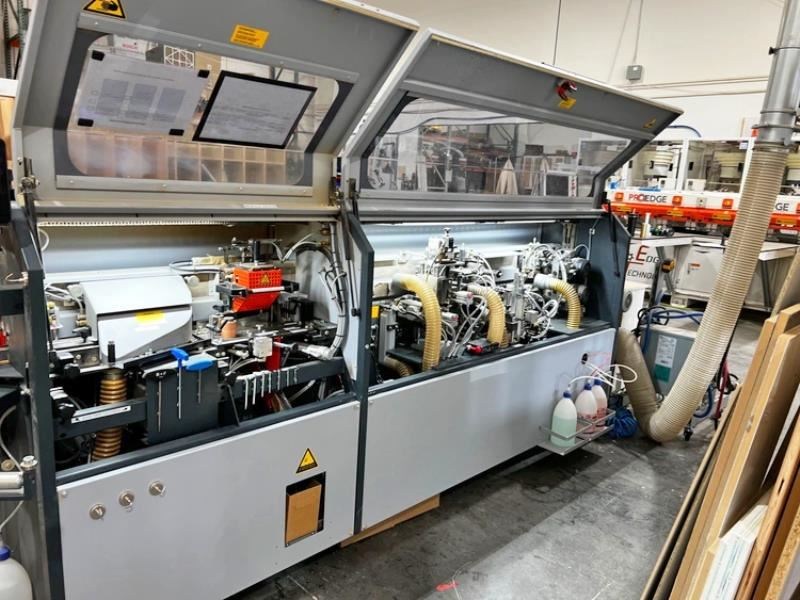

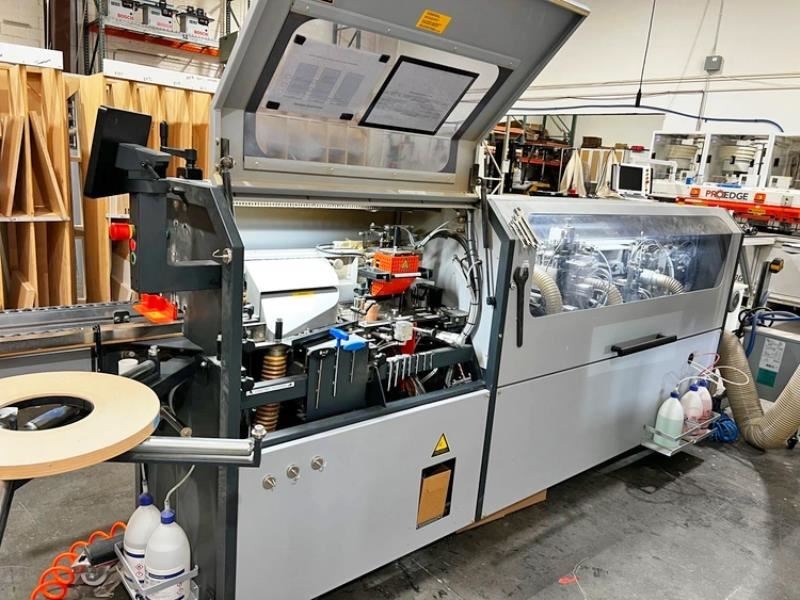

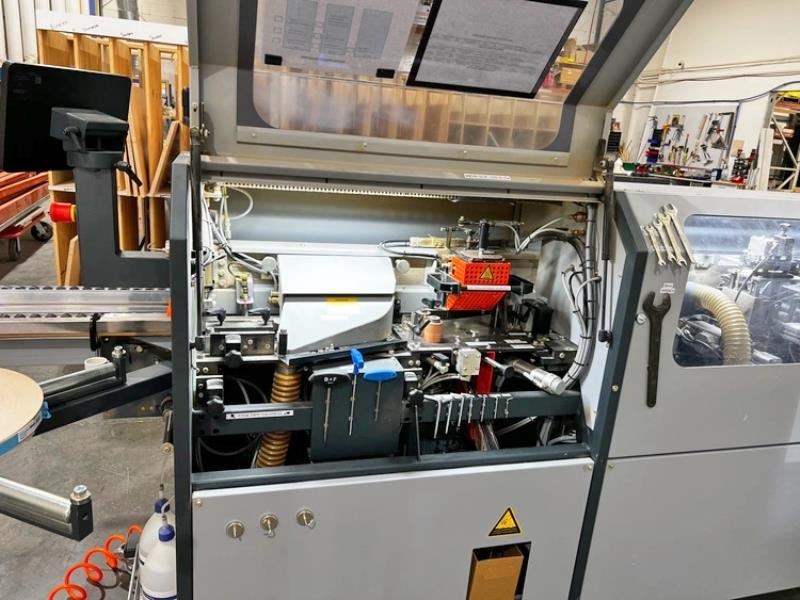

ALTENDORF - F5 (aka HERBROCK - F5): Edgebander (w/Premill & Corner Rounding) + EVA/PUR GLUING TECHNOLOGY: -- SpecificationsWorking CapacityMin. workpiece width: 80 mm; Min. workpiece length: 160 mm; Min. workpiece height: 8 mm; max. workpiece height: 40 mm; edge thickness in coils (min./max.) 0.4 - 3 mm.23 FPM (7 MPM) Fixed feed speed with: Indicator light for panel spacing. Features & Equipped with: 10" LED Smart Touch Control with: Touchscreen display with integrated operational/maintenance software. -- Pullout workpiece support to assist in the processing of larger workpieces. -- Top pressure beam with: (2) Offset lines of rollers for equal pressure distribution on the workpiece. -- Chain feeder with a fixed speed of: 7 MPM (23 FPM) & rubber grip pads for maximum grip on the workpiece. Working UnitsPremilling Unit with: (2) 1.1 kW independent motors running at 12,000 RPM; diamond-tipped cutters; manual positioning of the depth of cut between 0 – 2 mm; (2) diamond-tipped cutters included. -- Edge feed for coiled material: 0.4 – 3 mm thick coil stock. -- Guillotine Trimming Unit for: Precutting of PVC/ABS edgeband material 0.4 – 3.0 mm thick. Teflon coated gluepot with: (3-1/2) Minute heat up time; 1.5 kG capacity.Glue is applied using a fine adjustable glue roller & quick-change System, as well as monitoring of the heating element; pneumatically feed controlled glue unit capable of processing PUR & EVA hot-melt glue. Pressure unit with: (1) Large motor-driven roller & (1) conical roller operating pneumatically. -- End trimming unit with: (1) Motor, 0.35 kW - 12,000 RPM. -- Multifunctional Trimming Unit for: Radius & flush trimming & bevel trimming of thin edges with: (2) Independent motors; each with 0.75 kW - 12,000 RPM; manual positioning of the edge thickness adjustment with: Pneumatic disengage function via the Control Panel. -- Corner Round Units with: 0° - 10° Manual adjustment. Corner rounding unit for soft- & postforming pieces for processing edges between 0.4 & 3.0 mm in thickness & 10 – 60 mm in height. -- Finishing Units: 2-Axis, motor-driven, position-controlled radius trimming unit incl. pneumatic reverse function. -- Buffing Unit with: (2) Motors, top/bottom. -- Complete with: Cleaning & release sprayers; nesting tracers for milling station & radius profile scraper. -- Actual Model: ALTENDORF F5 (aka Herbrock F5).
