Description:

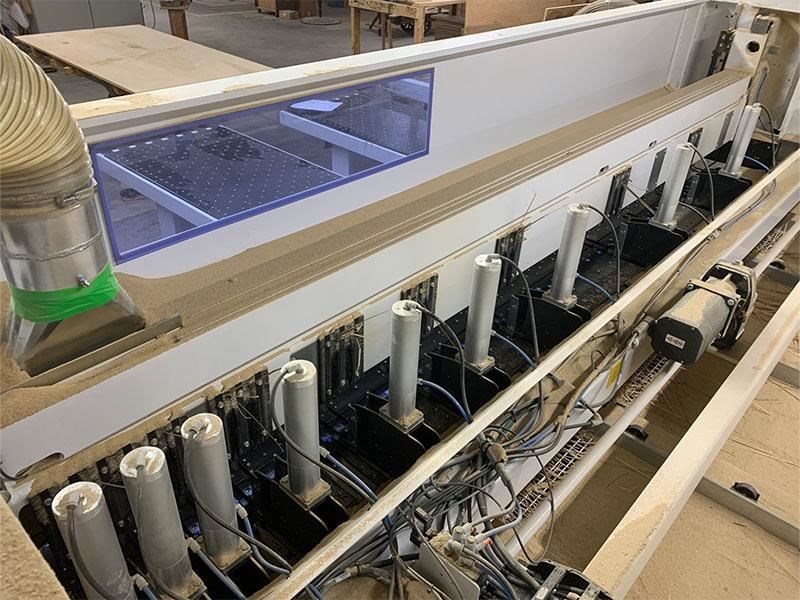

HOMAG SAWTEQ B-400 PROFILINE 32/32 FRONT LOAD AUTOMATIC PANEL SAW: -- Specifications:Working Capacity: 122'' (3,100 mm) Rip cutting capacity; 122'' (3,100 mm) Pull back capacity. Main saw blade projection 4.3'' (110 mm) 25 HP (18.6 kW) Main saw blade & 3 HP (2.2 kW) scoring blade; Scoring saw adjustment via "CADmatic" control. -- Saw CarriageForward speed 0 - 492 FPM (0 - 150 MPM) Saw carriage reverse speed 0 - 492 FPM (0 - 150 MPM). -- Pusher Fence:Electronically controlled overhead program fence with (9) 2-finger gripper clamps; clamps open up to 110 mm (4.3").Rack & Pinion drive on both sides, forward speed up to 296 FPM (90 MPM), return speed of 296 FPM (90 MPM). -- Operator & Machine Control:HOMAG "powerTouch2" PC Front-End with "CADmatic 5.0" Operating System "designed for industrial environments"; virtually unlimited cutting dimensions memory.21" Full HD widescreen "Touch-Screen" monitor with multi-touch display, online operation from an office PC is possible. All mounted into dust sealed, air-conditioned control cabinet."Real-Time" Cutting sequences with a new 3D assistance graphic supports the operator and is intuitive to operate, which shortens the training period and reduces errors to a minimum. This results in efficient processes and steady output.Simple handling via tapping and swiping (touch functions) with Quick change between the individual sectionsCADmatic 5.0 is Tapio compatible & open for communication with other machines and software solutions.The SAWTEQ B-400 "IntelliDivide" optimizing software is tapio-ready from installed software or directly from the tapio cloud, allowing "IntelliDivide" to recognize the machine configuration of your saw and take it into consideration for every optimization run in the cloud, completely automatically & you have the choice -- Complete with:On-Board Optimizer; Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right-angle fence.Max. Side aligner stroke 122'' (3,100mm): Rear support rails with non-marking roller modules.(3) Front air flotation tables74" x 26 (1,879 mm x 660 mm). -- Options Include:(1) American M-1202-30, 6,000 lb. scissor-lift, as pictured. -- Actual model is HOMAG SAWTEQ B-400 PROFILINE 32/32 US Addition.
