Description:

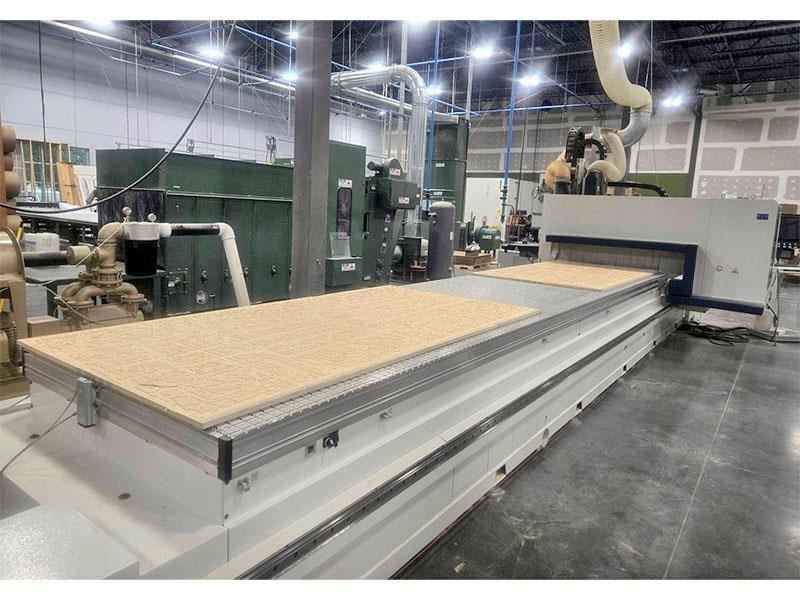

SCM ACCORD 25 FX -M CNC MACHINING CENTER (W/ATC): -- Specifications:4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table -- Working capacity:"X" axis 242.9" (6,170 mm), "Y" axis 51.9" (1,320 mm), "Z" axis stroke 17.3" (440 mm) & 9.8" (250 mm) max. material thickness. -- Positioning speed:"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis is 82 FPM (25 MPM).Movement is controlled by AC Brushless motors and YASKAWA drives, high precision rack & pinion system for "X" & "Y", precision ball-screw for "Z" axis.Working unit travels on prismatic guideways & sliding blocks with preloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable:"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with (6) adjustable pneumatic pop-up reference stops, that can be positioned on the perimeter of the worktable. -- Boring Unit:3 HP (2.2 kW), Boring Block with (8) Independent Vertical units, variable speed from 2,000 - 8,000 RPM, with (4) bits in "X" axis & (4) bits in "Y" axis.(1) NC controlled "X" Grooving saw w/max. 125 mm dia. blade(4) Horizontal Boring units with (2+2) in "X" axis & (2+2) in "Y" axis -- Machining units:(1) 16 HP (12 kW) Electro-spindle router with HSK F63 adaptor, rotation speed from 600 - 24,000 RPM,Constant torque achieved at 12,000 RPM: Router controlled by 12 kW inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage for "on the fly" ATC, center distance between tools is 104 mm (4.13"), max. tool dia. 300 mm (11.18") max. tool weight/tool is 8 KG (17.6 Lbs). -- Operator Interface:PC front with SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64bitoperating system. 21" Full HD, LCD Display, ergonomic industrial keyboard & mouse; central USB connection; Rj45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2-3D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch-off Probe, "TECPAD" hand-held mobile console, with 7" color display; "Pro-Space" safety system with photo-cell barriers & bump-stop; Safety fences; 208/230/460v Multi-tap autotransformer for various voltages. -- Actual Model is SCM ACCORD 25 FX-MNOTE: No Vacuum Pump is included with this machine.
