Description:

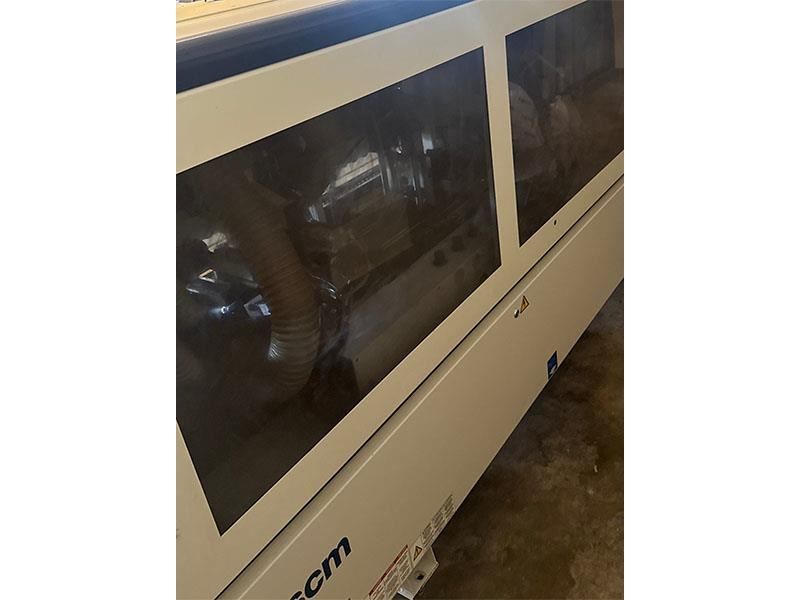

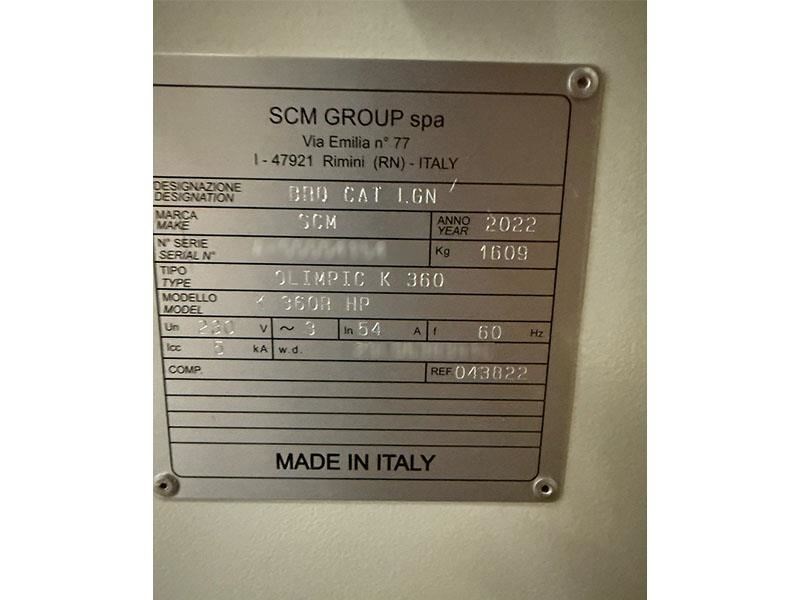

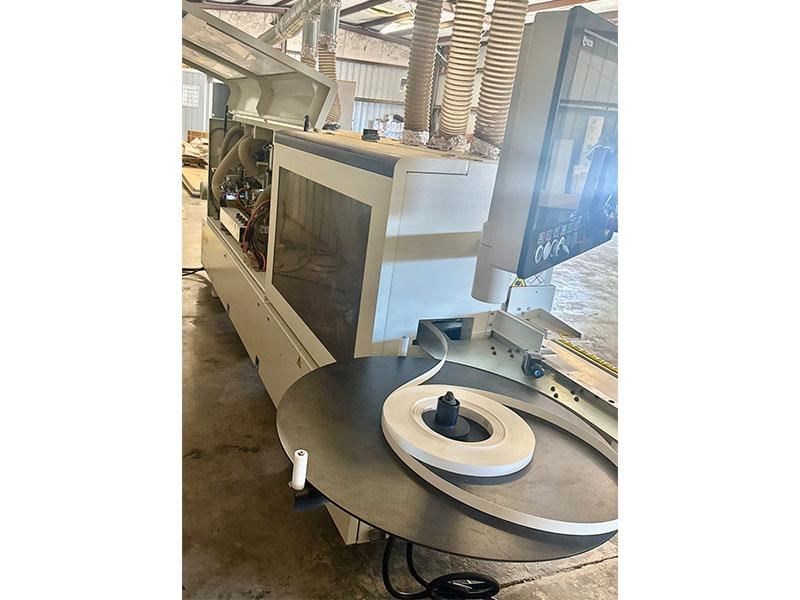

SCM - OLIMPIC K 360ERT HP: Compact Edgebander (w/Premill)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width: 65 mm' 140 mm min. length: 2-3/8" & 5-1/2"). Panel thickness min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station, RT-VP: Spindles: 2 x 2.0 HP - 19,000 RPM: (1) With PLC controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers, first larger: Teflon coated & powered. Workstations -- End Trimming Station: Front & rear 2 x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with: Automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Profile Scraping Unit "RAS/V": Top/Bottom; manual preset up with: Digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit: Top/bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Controls -- ORION "1 Plus" Controller: Fixed at infeed of machine with: "Touch Screen" Control with soft keys; graphics; LCD display panel; handles most machine setup functions & workstations. Complete with & Features: -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover & outboard panel support. -- Actual Model is: SCM OLIMPIC K 360R HP
