Description:

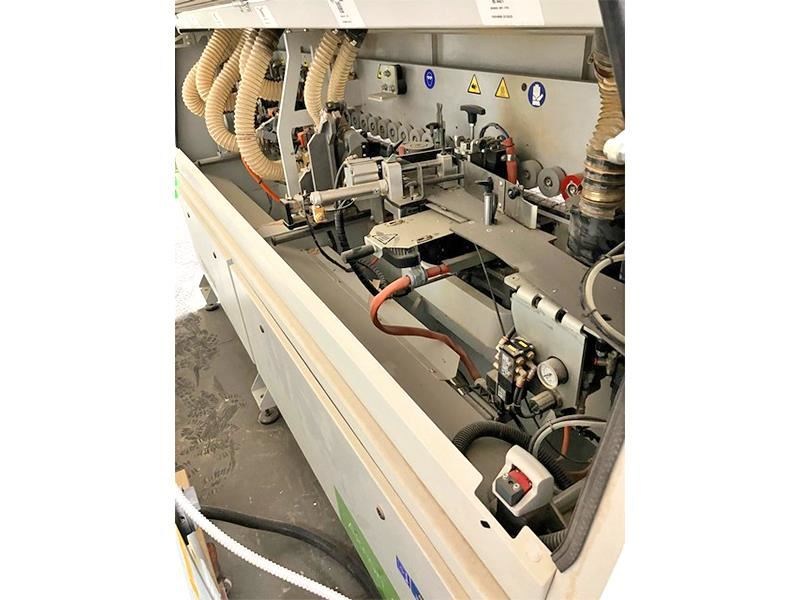

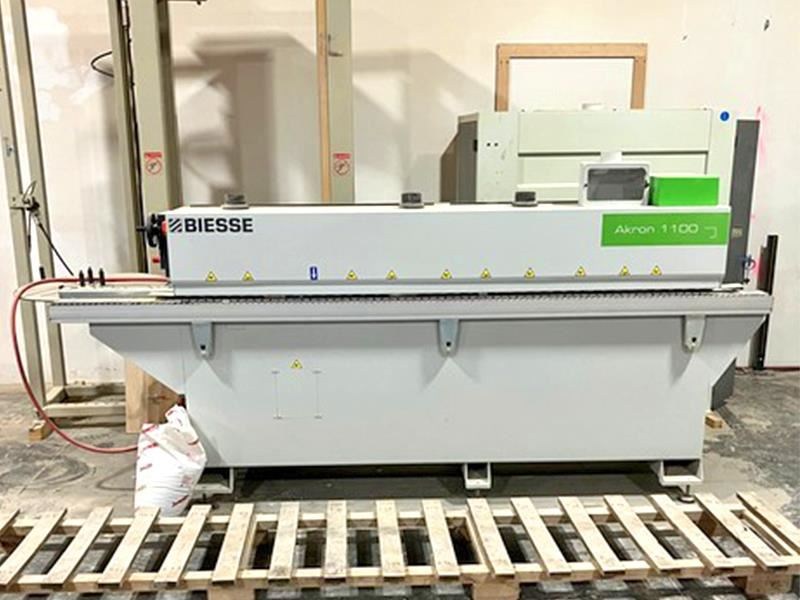

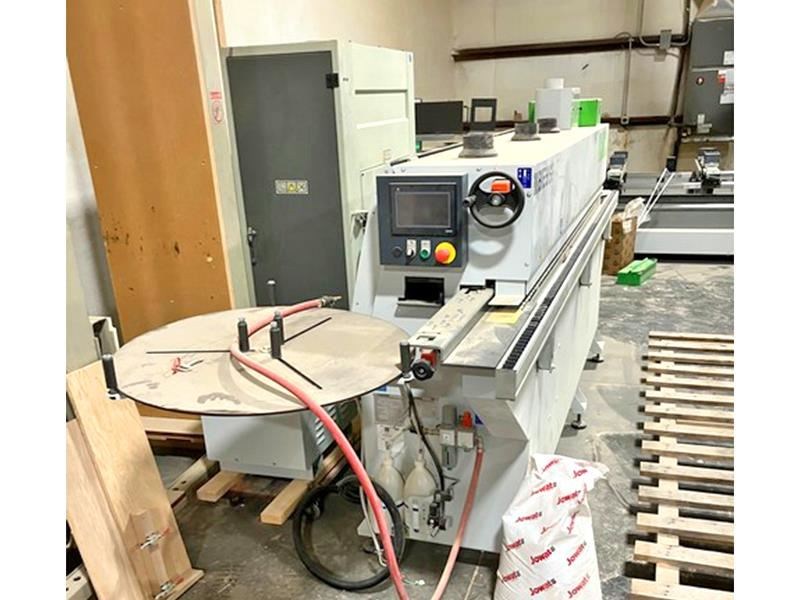

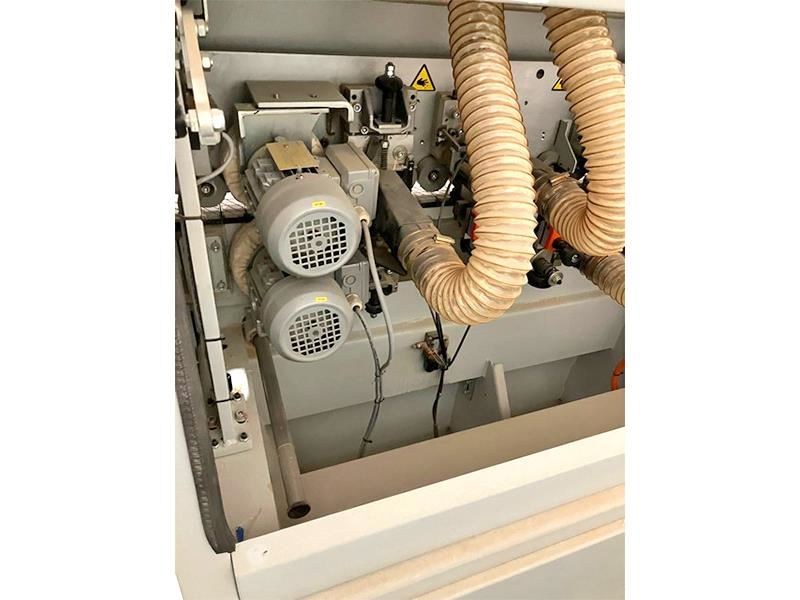

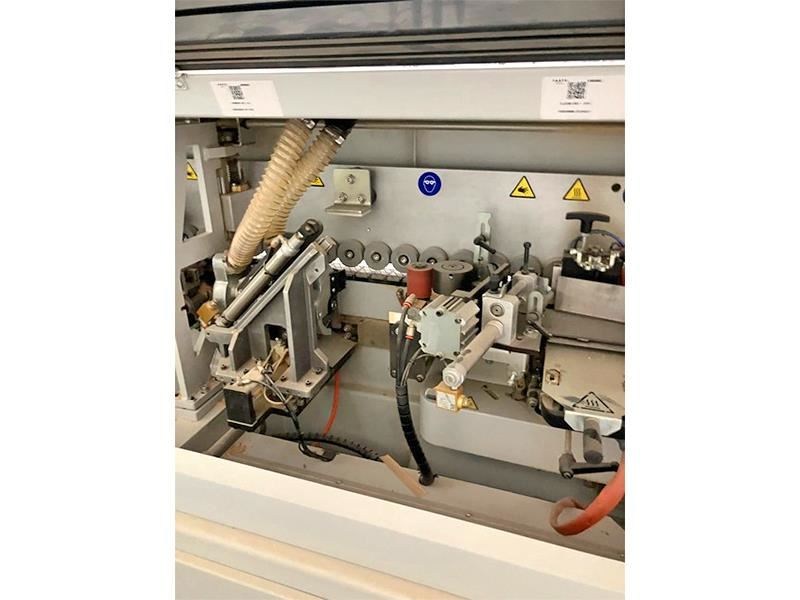

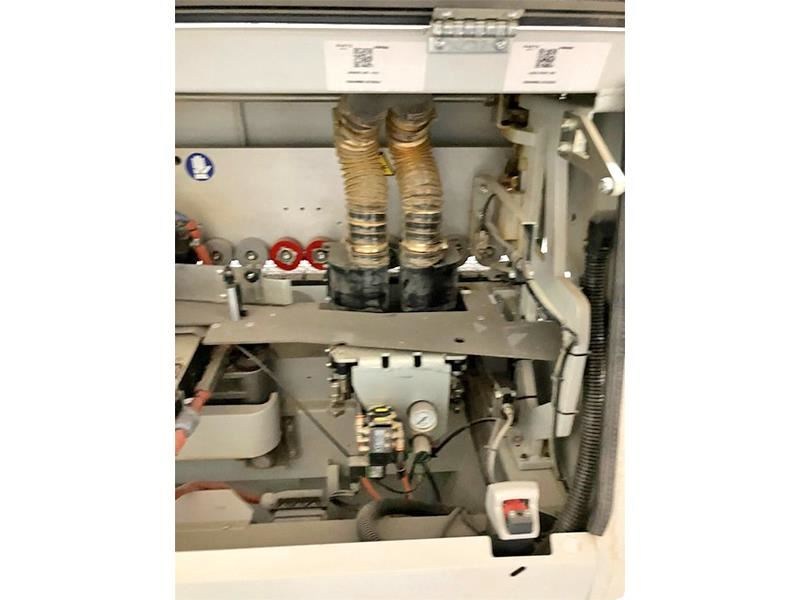

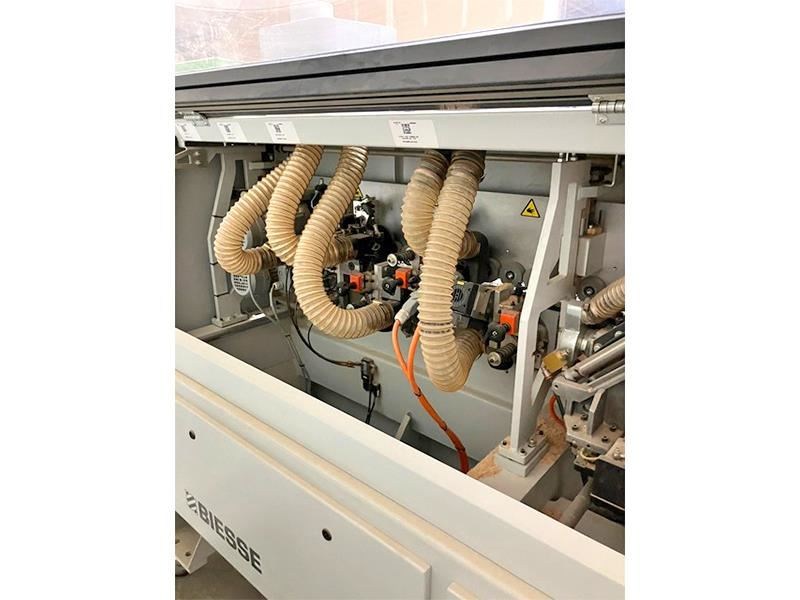

BIESSE AKRON 1120 J EDGEBANDER (W/PRE-MILLING): -- Specifications:Working Capacity: Edgebanding thickness, 0.4 - 5 mm capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96"). Feed Speed 9 MPM (30 FPM)Front-End Equipped With: -- Pre-milling Unit RT01: with "Auto set" automatic intervention, Strip & Coil Edge magazine, automatic shear type guillotine. -- Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.Pressure Section with (1) large dia. "non-stick" coated drive roller & (1) Teflon plated idle rollers Workstations: -- Pre-Milling Unit RT01: with asymmetrical diamond tools max height = 55 mm End Trimming Unit IT01: single motor end trimming unit with linear bearing support -- Tilting Fine Trimming Unit RF01: with multi-profile cutters for flush trimming, 25 degree chamfer and 3 mm radius trimming. -- Flat Scraping Unit RC01: top & bottom glue scraping unit. -- Buffing Unit SZ01: top & bottom buffing unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0° - 30°Operator & Machine Control: -- Biesse SMART TOUCH 7", user friendly touchscreen control panel for workstations.Complete With: -- Insulated sound enclosure over all trim stations with split dust hood, viewing windows.
