Description:

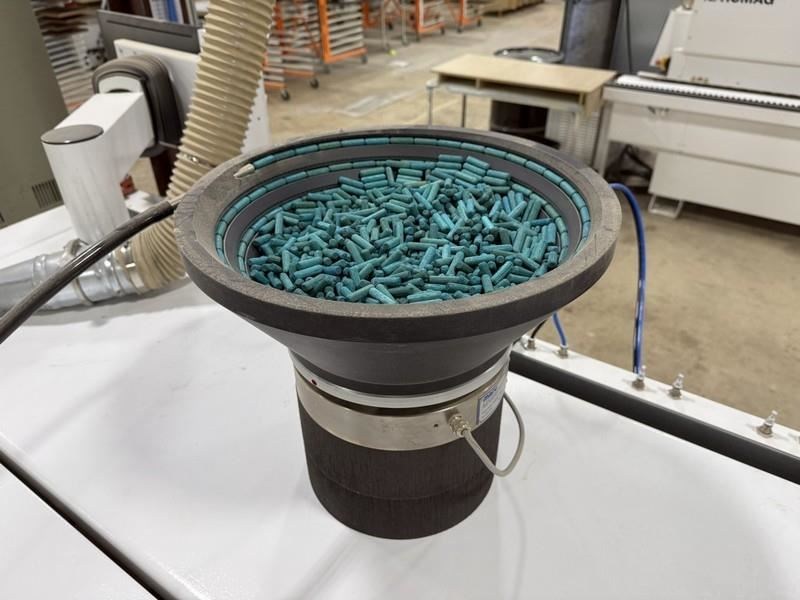

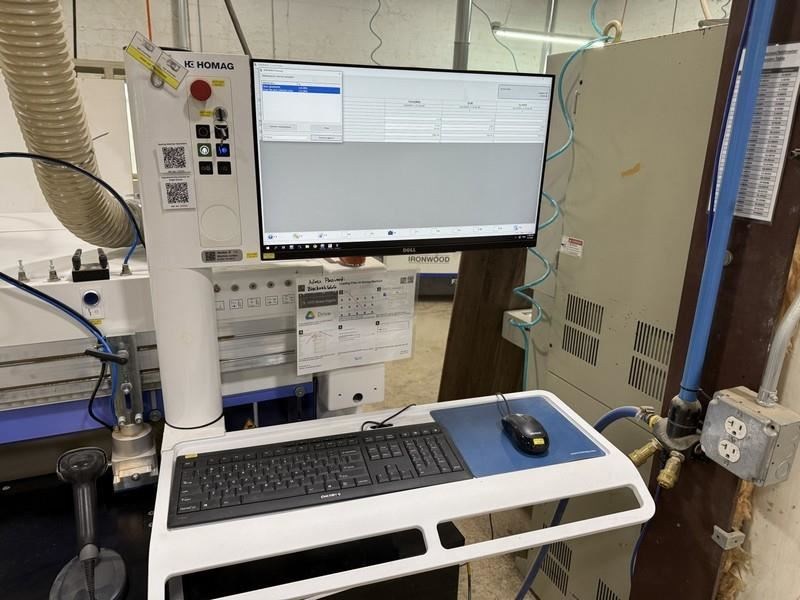

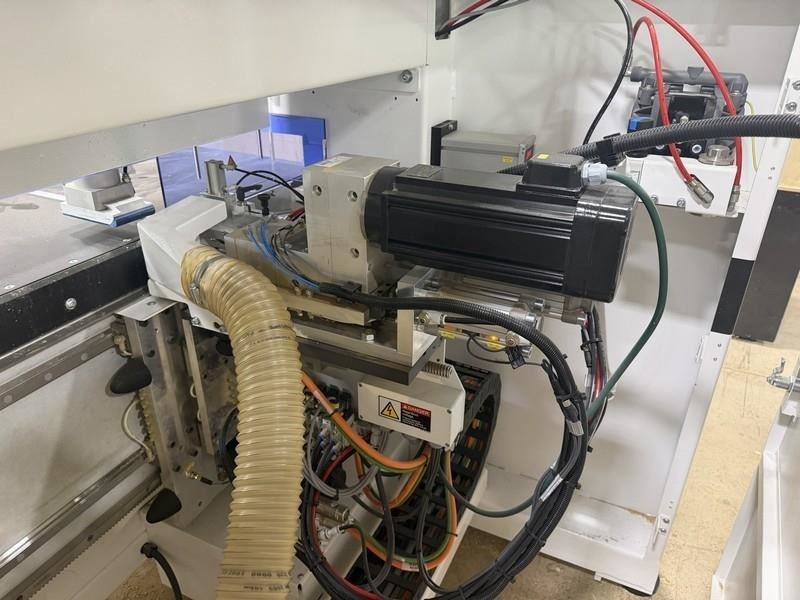

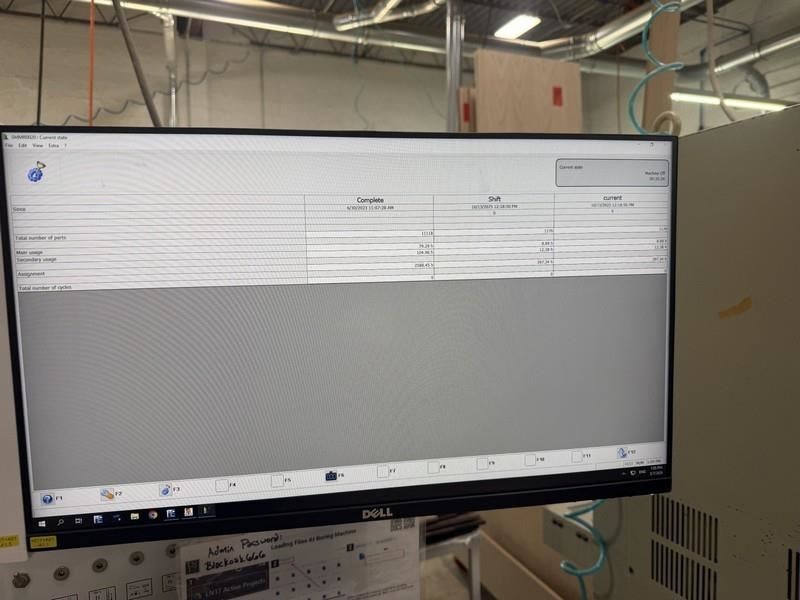

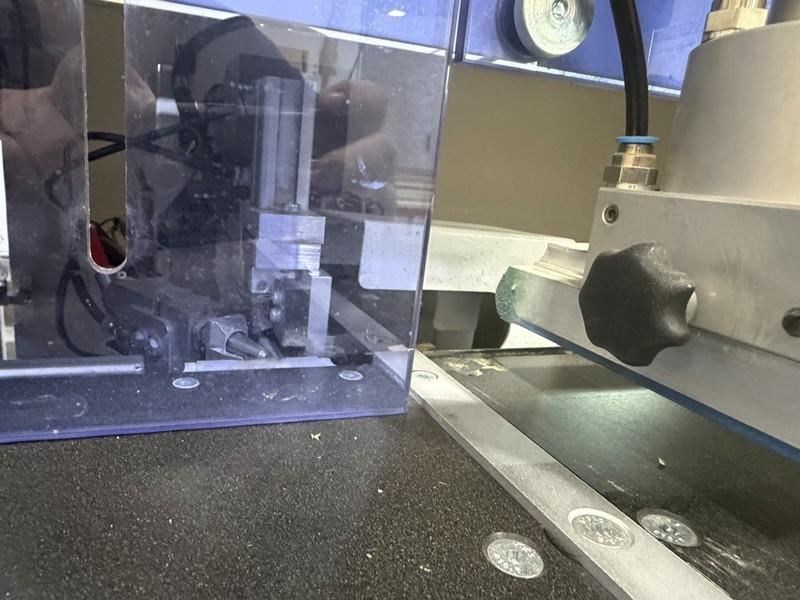

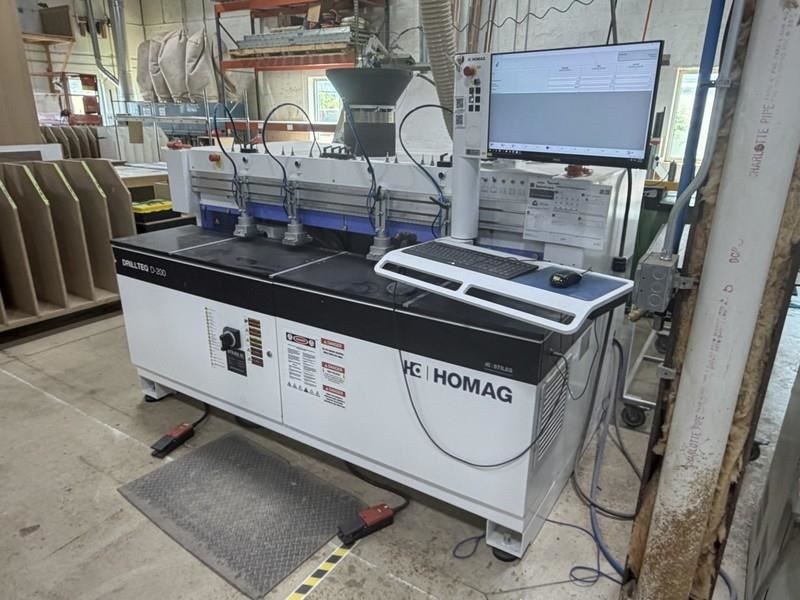

HOMAG - DRILLTEQ D-200/Model 1: CNC Bore, Glue & Dowel Inserter -- SpecificationsHorizontal drilling block/fixture with: (1) 10 mm (0.39") Dia. spindle; 0.55 kW (0.74 HP) - 7,500 RPM Motor; max. drilling dia.: 20 mm (0.79"). -- Low viscosity glue injection system with: Low pressure double membrane glue pump & external flow sensor; max. viscosity: 700 mPas. -- (1) Vibrating hopper dowel feeders. -- Working CapacityWorkpiece length: 20 - 1,250 mm (0.79" - 49.2"); workpiece width: 50 - 800 mm (1.97" - 31-1/2"); workpiece thickness: 10 - 60 mm (0.39" - 2.36"). -- Dowel sizes: 8 mm Dia. x 30 mm or 35 mm L (0.31" dia. x 1.18" or 1.38" L). -- Work Area(2) Separate work fields to: Process up to (4) workpieces independently; workpieces can be loaded in one field while being processed in the other field. -- Pneumatically lowering left-hand, right-hand & center stops; distance between left-hand & right-hand stops: 1,270 mm (50"); distance between center & left/right-hand stops: 620 mm (24.4"). -- Operator & Machine Control"POWERTOUCH" 3-Axis Control with: USB Port; 10/100 Ethernet Port; 21" TFT Flatscreen monitor. -- WOODWOP, ABDWORK with: BECKHOFF TWINCAT; MMR Data collection & Analysis; SCHULER machine data acquisition; Tapio-ready. -- Complete with:(4) Pneumatic clamping cylinders. -- Glue nozzle cleaning system. -- CNC controlled X-axis, manual control Y and Z axis.
