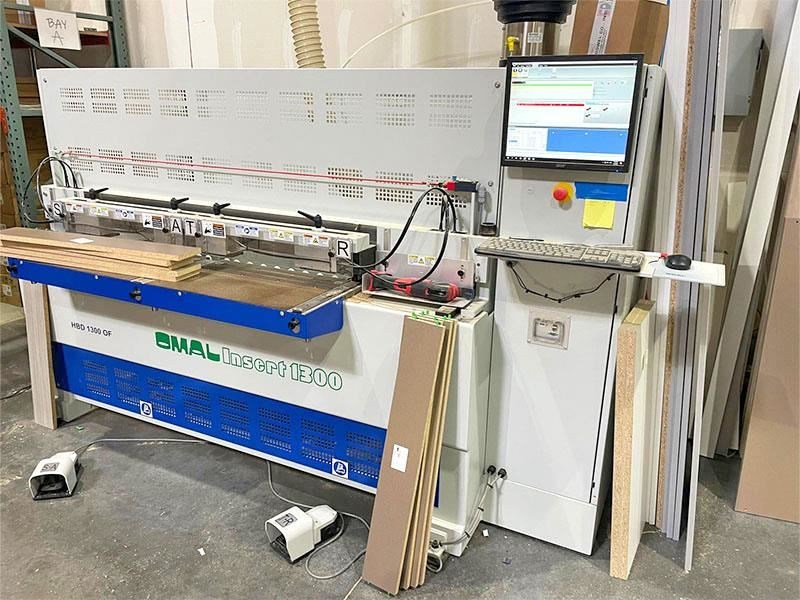

OMAL INSERT 1300 / LOCK-DOWEL HBD 1300 OF CNC BORE, GLUE & DOWEL INSERTER W/“LOCK-DOWEL"; PROCESSING + LASER MEASURING SYSTEM: -- Specifications:PLC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc., at random spacing. -- Working Capacity:1,300 mm (51.18") In the "X" axis work area, 40 mm (1.57") "Y" axis stroke with manual depth setting, 40 mm (1.57") "Z" axis stroke with manual vertical settings.10 mm to 30 mm (0.39" - 1.18") Material thickness capacity in the "Z" axis. -- Positioning Speed: Carriage travel speed is 164 FPM (50 MPM).Equipped with a brushless motor, ball nut and ball screw for quick positioning. -- Work Areas:15-1/2" x 50" x 33-1/2" H Table, (2) 23-1/2" Loading zones with a cycle time of one second for each bore, glue and dowel insertion when holes are on 32 mm intervals. -- Dowel Inserter:(1) Dowel Vibrating Hopper feeding system: (1) OMAL "SURE SHOT" revolver system guarantees a dowel is inserted every time. 2-Spindle Drill Head on 32 mm centers & (1) Dowel inserting unit with 8 mm diameter dowel capacity.Standard dowel dimension is 8 mm x 35 mm, max. dowel length is 40 mm, and max. dowel projection is 14 mm. -- “Lock-Dowel"; Processing:(1) "Lock-Dowel" Vibrating Hopper feeding system + (1) Manual “Lock-Dowel"; loading system; (2) Automatic “Lock-Dowel"; hopper feeders; (1) Automatic “Lock-Dowel"; inserting system. -- Laser System:Laser automatically measures the part, populates the program list of parts width & calculates all the inserting location for the part being processed. -- Operator & Machine Control:17" Touch Screen Control for writing and storing programs & is programmable in the "X" axis.Graphics programming 2.5D with simultaneous working display; Automatic Mirror-Image (left and right) programming; Parametric programming; Graphical aids.Internal self-diagnosis; Historical report of alarms -- Complete with:CNC controlled retractable side & center stop fences for various part sizes, (1) 2-gal (8-Liter) cap. high pressure glue tank, (1) 2-gal (8-liter) cap. water tank (for cleaning), (4) Large 2-3/4" x 5-1/2" pneumatic hold-down clamps, Dual foot pedal controls. -- Options Include: Handheld, Bar Code scanner/reader Set up for (4) Working zones which can be excluded for larger panels; OMAL "Sure Shot" revolver system (eliminates miss-feeds) Laser measuring system.Actual Model is OMAL INSERT 1300 / LOCK-DOWEL HBD 1300 OF
