Description:

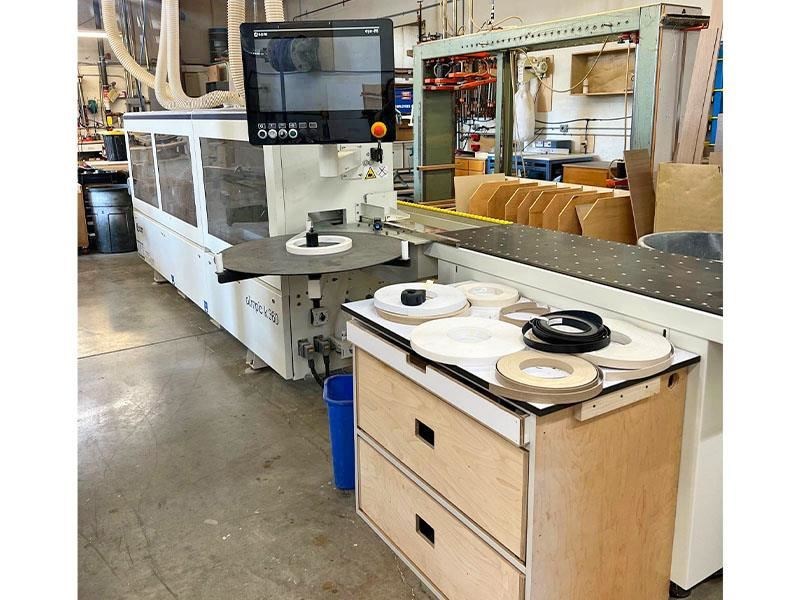

SCM OLIMPIC K360 ERT HP: Compact Edgebander (w/Premill & Corner Rounding)Specifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator, pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM; (1) with PLC controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with: Automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings; Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit: Top/bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control with soft keys, graphics, & LCD display panel; handles most machine setup functions & workstations. Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam; full sound enclosure cover; outboard panel support. -- Actual Model: SCM OLIMPIC K360 ERT HP
