Description:

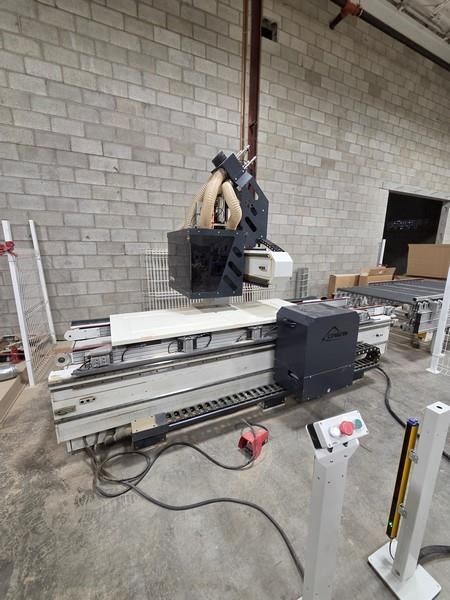

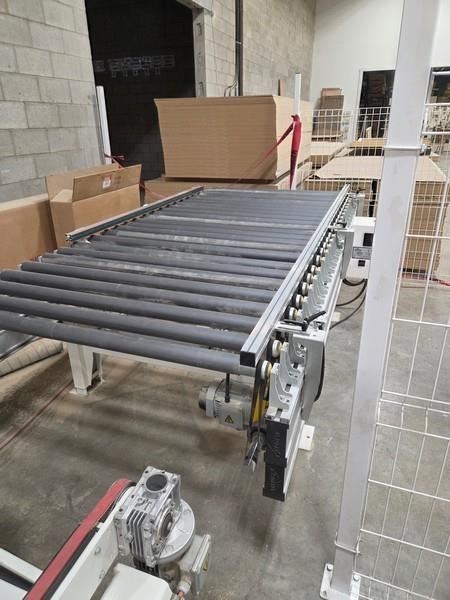

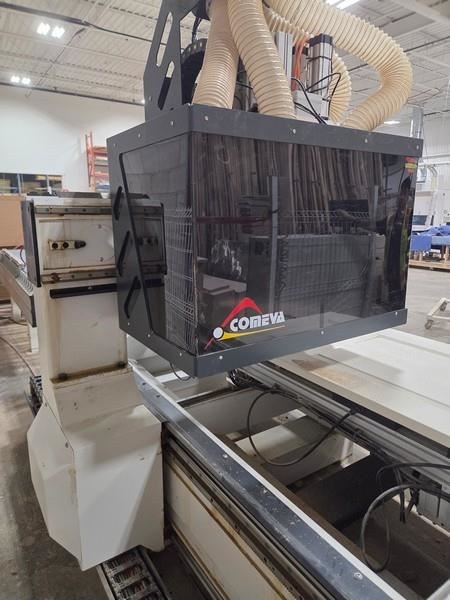

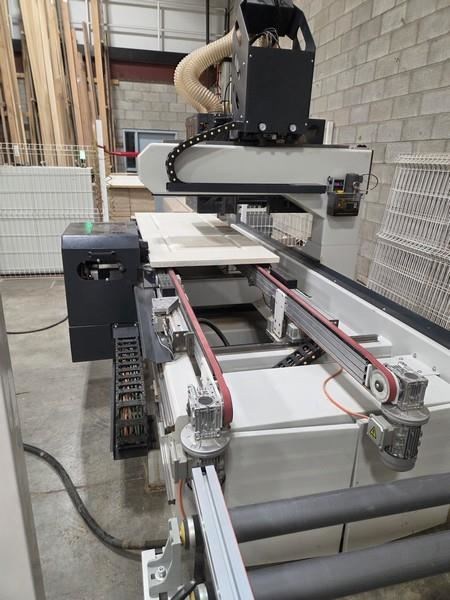

COMEVA - C-500 TOP PLUS, ...Automated Machining Center for Entry Doors with Variable Bevel Angles for Hinges and Automated Infeed System.A robust and solid construction Gantry style flexible Door Machining Center, which will machine Hinges/Locks on doors, and other similar operations. Horizontal heads (lock and hinges) on each side work simultaneously for faster cycle times.Left horizontal group that permits milling of classical hinges and the European hinges. The vertical group makes holes for crank (handle) and for standard locks, security, electronic lock for hotels, and also performs other milling/grooving operations on the top side of doors. -- Working dimensions: 1,100 x 2,600 x 80 mm (43.3" x 102.3" x 3.1").Working Heads:A.) Horizontal Groups: -- (2) Independant Horizontal Routers: mounted on the side of the table for mortising the hinges, and (1) horizontal router, pointing in the other direction, for the locks mounted on the gantry. (2) Vertical Routers mounted on the gantry for a: the door lock handle and b: -- Router Motors: (1) Horizontal head for locks; (2) Hinge mortise motors of 1.5 KW (2 HP), (1) Door Lock motor 2.2 kW (3 HP) motor; ; B:) Vertical Groups -- (2) Vertical Routers each with with 1.5 kW (2 HP) motor. They work on the top of the door for the Door Handle and 2nd routercan mill the complete contour of the door and machining on any part of the door surface since the bridge covers the entire width of the work. -- All axes, X, Y, Z drives are by OSAI CNC Control. All drives are supplied with high frequency drives. -- The horizontal working units on both sides (lock and hinge) work simultaneously to allow an approximate time for milling all the elements on a standard door below 1 minute, approximately. Operator Control Panel: -- Separate control console with touchscreen and easy/intuitive programming with the main Macros preinstalled. COMEVA DOORS Software -- Features automatic calibration and detection of the door size for correction on dimensions. -- Includes: Automated system designed to transport, align, and position doors into Comeva C500. Manufactured in 2024. Serial number: 408017-001It enhances efficiency by ensuring smooth and accurate movement of materials, reducing manual handling and minimizing downtime during transitions. -- Auto Door Adjustment for different sizes. Doors are fed into position two conveyor belt strips with can be used for loading/unloading. Powered by servomotor and a reducer coupled to a mobile bar that moves on linear guides. Machine has bars which automaticlly adjust to the door width. For positioning the door there are also a series of of stops that are used as a reference and that mark the correct position of the door. -- Probing for different measurements: Also equipped with an automatic probing system to adjust both height and width to the actual measurements of each door. This allows the machine to correct the small variations of measures in width and height of the doo
