Description:

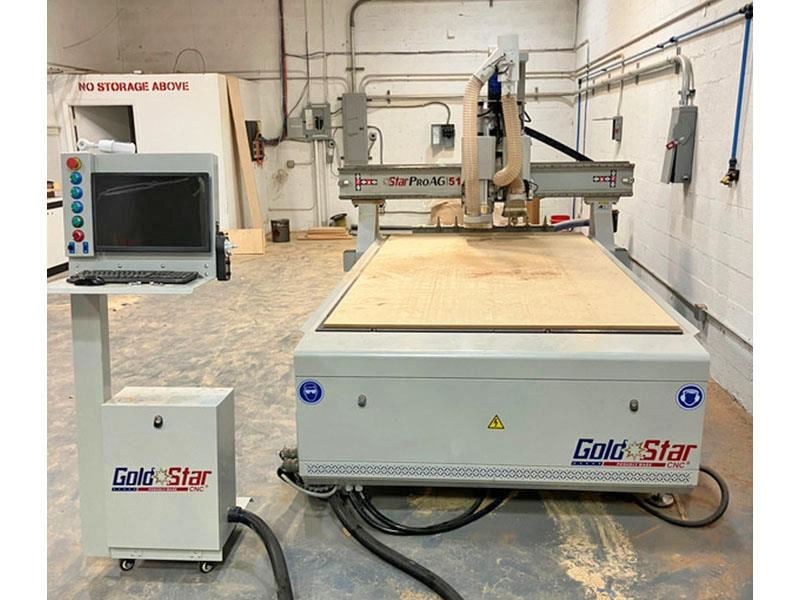

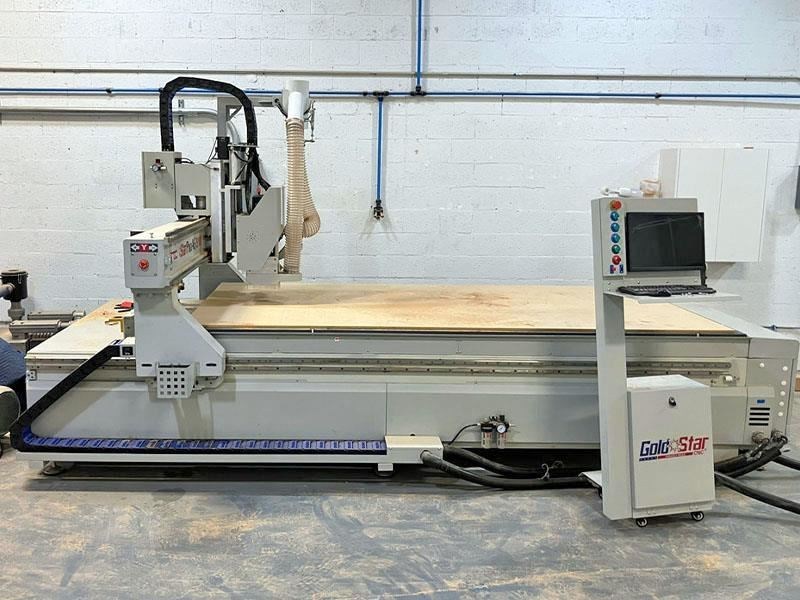

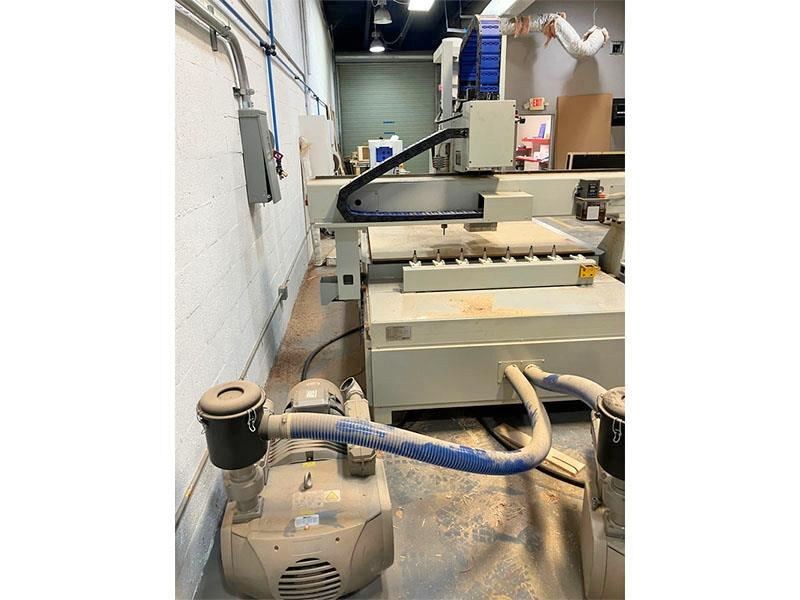

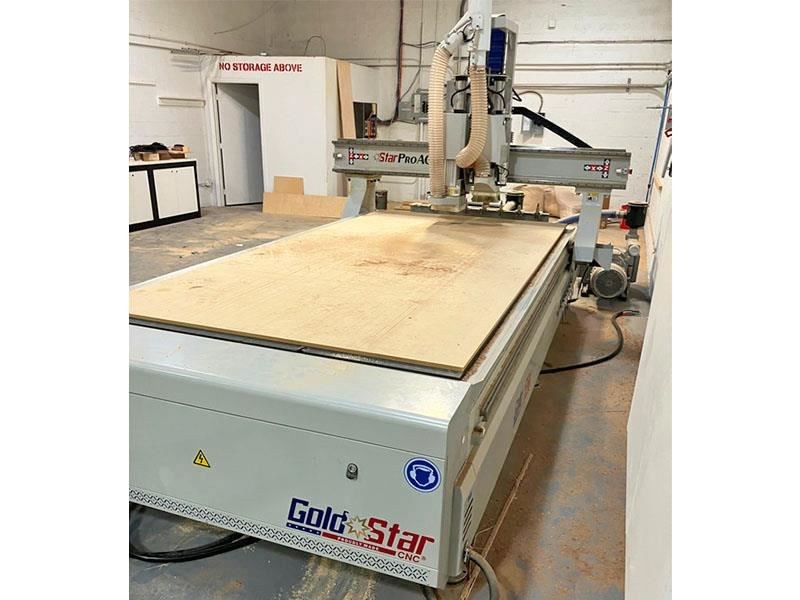

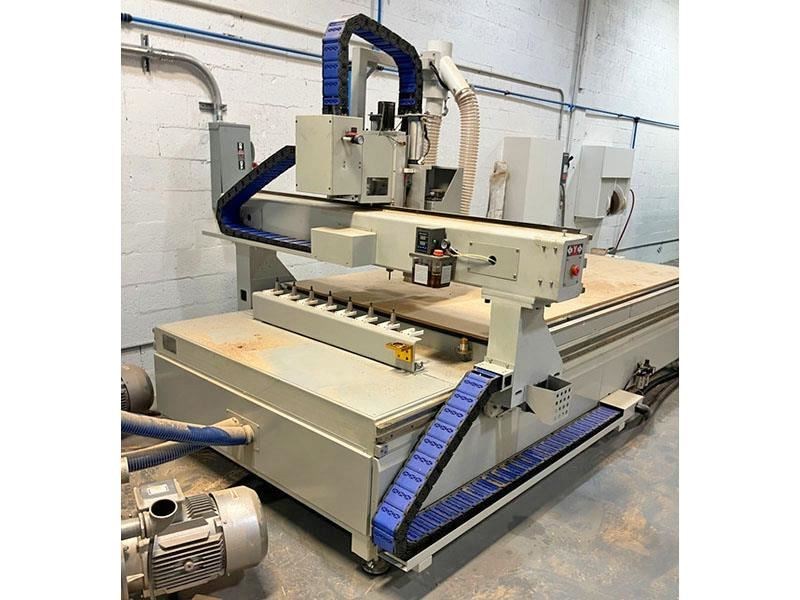

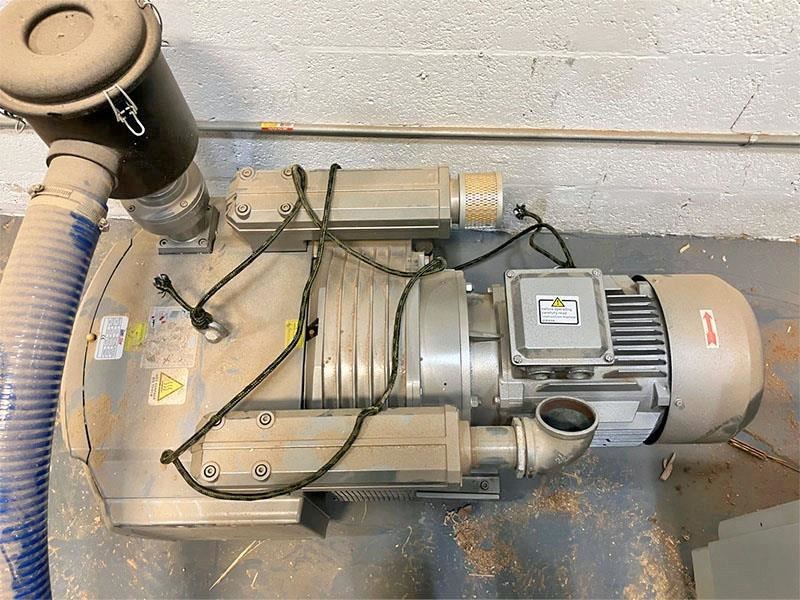

GOLD STAR - STARPRO AG 510: CNC Router w/ATC & Boring -- Specifications5' x 10' FLAT TABLE CNC ROUTER W/ATC & BORING: Great for "Nested Base Manufacturing" or just about any type of 3-Axis work. -- Working Table: 63" (1,600 mm) x 122" (3,100 mm). There are: (5) Sets of pop-up stops to aid in panel positioning & a 6-zone vacuum table system. -- X- & Y-Axis speed: 3,181 IPM (265 FPM / 83 MPM) and Z-Axis: 350 IPM (29 FPM / 12 MPM); for quick traverse positioning that reduces total CNC machining time between cutting cycles. (3) AC 750 W Servo Drives power the axes movement. -- Industrial machine tool welded structurally engineered machine base provides: Solid foundation for superior cut quality; the entire frame is stress relieved and heat treated. -- Moving gantry bridge: Travels on large thick hardened & precision ground rectangle linear guide slider-ways giving extra smooth movement for high-speed traverse and accurate cutting. -- Tool Gantry & Bridge Movement: By large, thick inclined teeth Rack & Pinion; the vertical axis travels on a large dia. precision ball screw for smooth consistent movement. -- Boring Unit: (1) 9-Spindle Vertical Boring Block with: (5) Independent spindles in "X" axis & (4) independent spindles in "Y" axis. -- Machining: (1) 12 HP (8.9 kW) Air-Cooled Router spindle with: HSK 63F Adaptor; variable programming speeds from: 1,000 to 22,000 RPM. -- Tools are loaded into the spindle by: (1) 8-Position ATC Rack mounted at the end of the machine base. -- Tool heights can be set using the Tool Length setting gauge (included); machine requires ER-32 tool collets. -- CNC Control - Industrial Grade OPEN CNC Control with: Color monitor; includes self-diagnosis & alarm history display & background editing; up to (4) simultaneously controlled axes with: 3D simulation; helical interpolation; tool offset, length compensation; backlash compensation. -- Compatible with virtually all CAD/CAM programming software on the market: You choose the software that best suits your needs. -- Complete with: (1) 15 HP (11 kW) "Rotary Vane" dry-type Vacuum Pump. -- Complete with: Dust hood with 6" manifold connection; Tool Length setting gauge; "MPG" handheld wheel remote; safety bumper system on both sides of the moving bridge' safety bar around the back of the machine.
