Description:

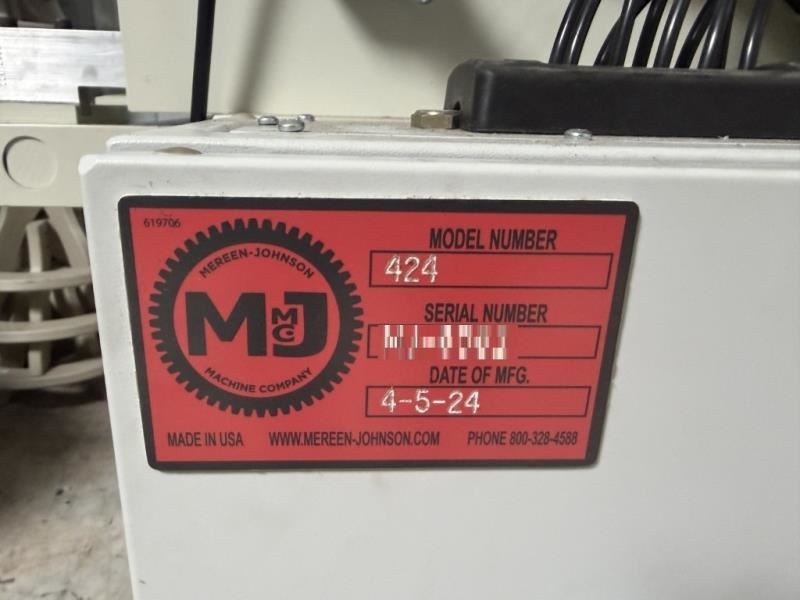

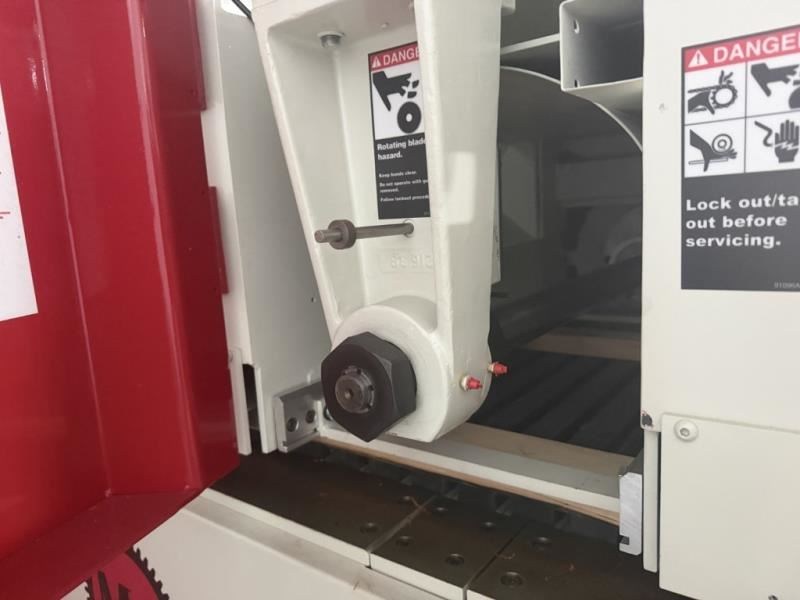

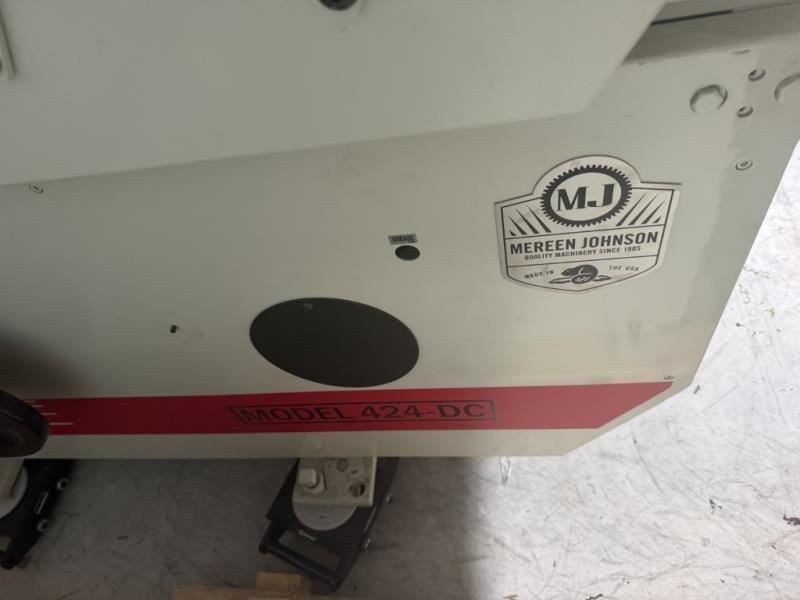

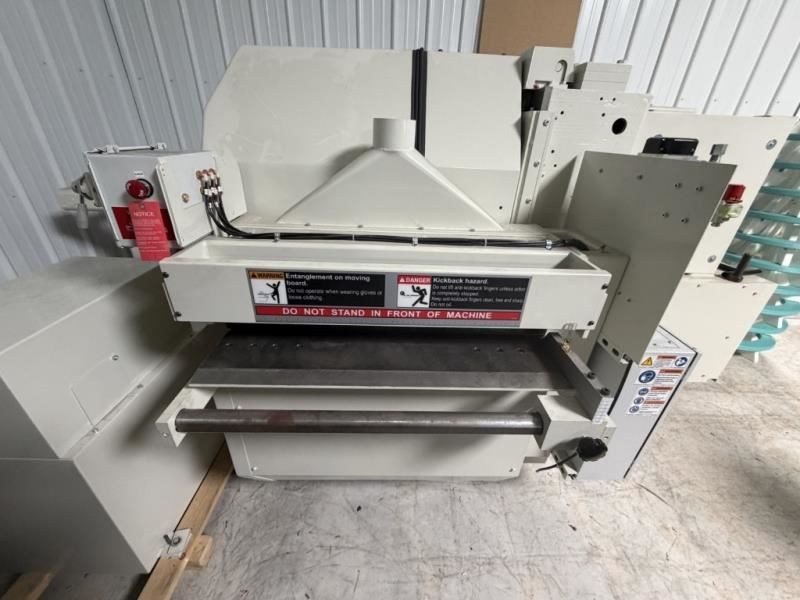

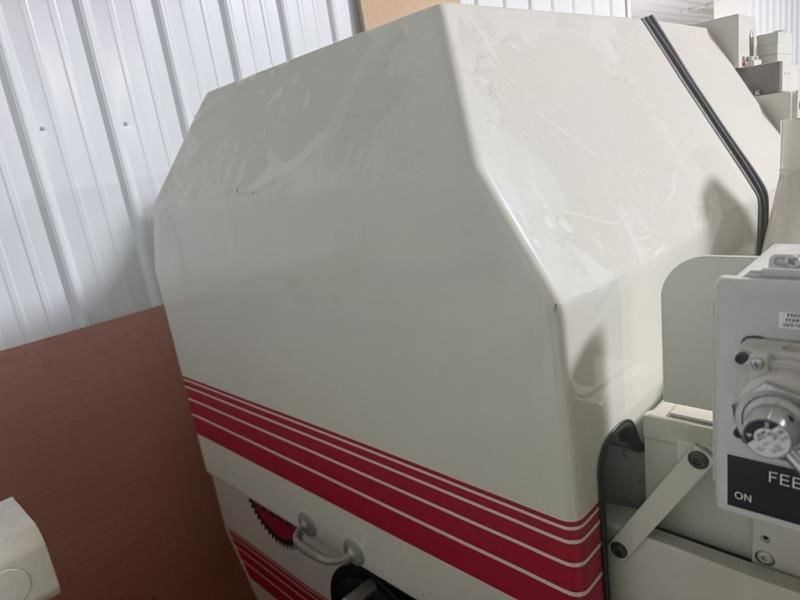

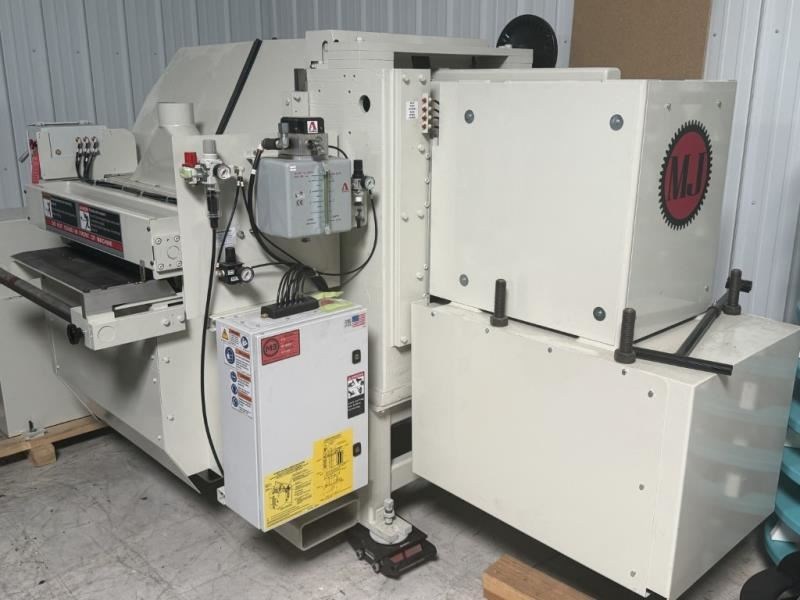

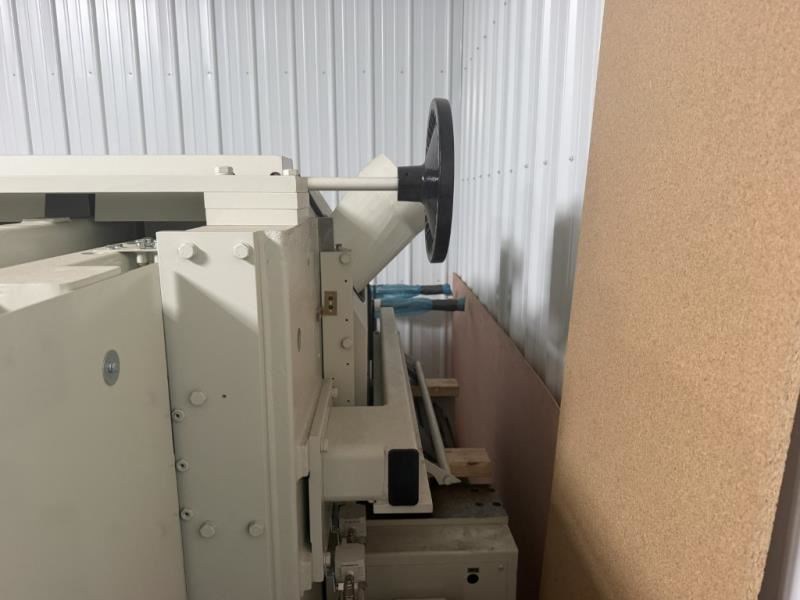

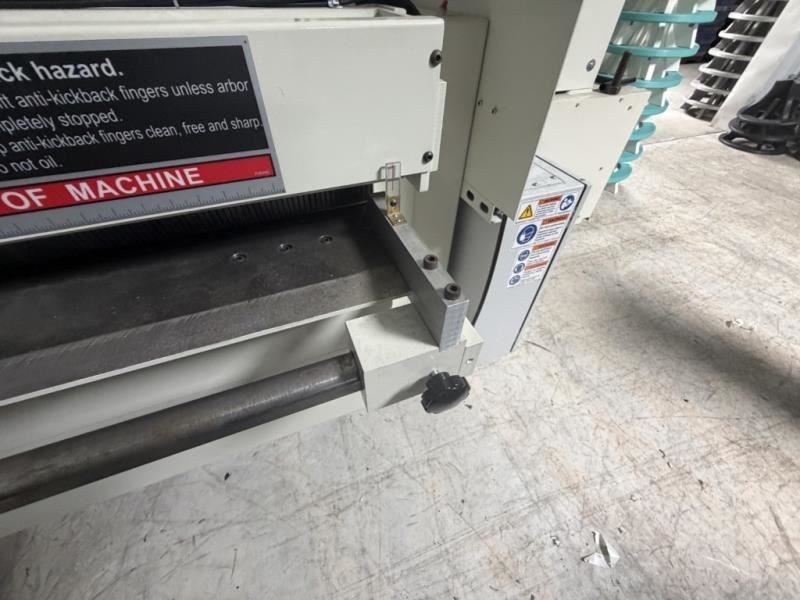

2024 Unused Mereen-Johnson Model 424-DC Straight Line Multiple Rip SawSpecifications --Capacity: Arbor space 24" -- Thickness to 3-1/2" using 14" diameter tooling -- 30" Minimum length glue joint accuracy -- 6" ThroatEquipped with & Features -- Feed Bed: Mereen-Johnson exclusive POSI-FEED dip bed carried on precision machined and hardened -- 5" pitch DOUBLE-VEE chain, Contoured hardened dip cams -- Hold Downs and Bed Plate: Four 3" diameter air loaded overhead idle press rolls -- Full width segmented maple overhead spring loaded bed plate -- Powered vertical adjust of press rolls and bed plate for unit vertical adjust through up/down push button controls, manual Hand-wheel adjust with scale and pointer thickness reference -- Saw Sleeve: Three 24" capacity sleeve, arranged for 3-1/8" bore, 14" maximum dia. tooling -- Saw Spacers: Three sets of saw spacers included, 24" total length -- Dust Collection: Two upper dust hoods: One 10" dia, One 5" dia, One Lower 5" dia.dust hood (Requires total 4,060 CFM at 5,000 FPM velocity with 4" water gauge at hood opening) -- Anti-Kickback Assemblies: Single bottom and double upper infeed, and single upper outfeed -- Sound Enclosure: Machine mounted fiberglass sound enclosure -- Press roll and motor enclosure hinged for machine access -- Press roll enclosure with gas cylinder lift assist
